String Series ST 12en / ST 12t
Compact Design, Massive Impact: Loudspeakers that Deliver
The String ST 12en / ST 12t is two-way full range passive cabinet designed to provide exceptional sound reinforcement as a standalone unit or with a sub-woofer. It can be used both in indoor and outdoor spaces. Crafted in Baltic Birch, this cabinet is a perfect option for installation and mobile use. The crossover design focuses on minimizing heat build-up, ensuring no compromise on transient response.
The String ST 12en / ST 12t being in an outdoor garden, an outdoor swimming pool, or a public space, is a versatile solution with a 100v built-in transformer.
String ST 12en / ST 12t features a 12" (300 mm) low-frequency driver and a 1" (25 mm) exit compression driver with a 1.4" (44 mm) voice coil mounted on a constant directivity of 55° x 45° horn. Depending on the application, the cabinet can be used either in its vertical or horizontal orientation. The LF driver is coupled to the HF horn through its optimally designed crossover.
String ST 12en / ST 12t performs perfectly out of the box. For demanding applications, the CSC Maestro MS 26 controller is configured to perform with it’s EQ and limiter functions are pre-loaded into the controller. Contrabass ST 18s, CB 12s, CB 15s, CR 18s are a perfect match for ST 12en / ST 12t.
Key Features
- Compact, two-way system
- Horn 55° x 45°
- Flexible mounting options
- Ideal for indoor and outdoor installations
- With a perforated grill
- Standard black finish

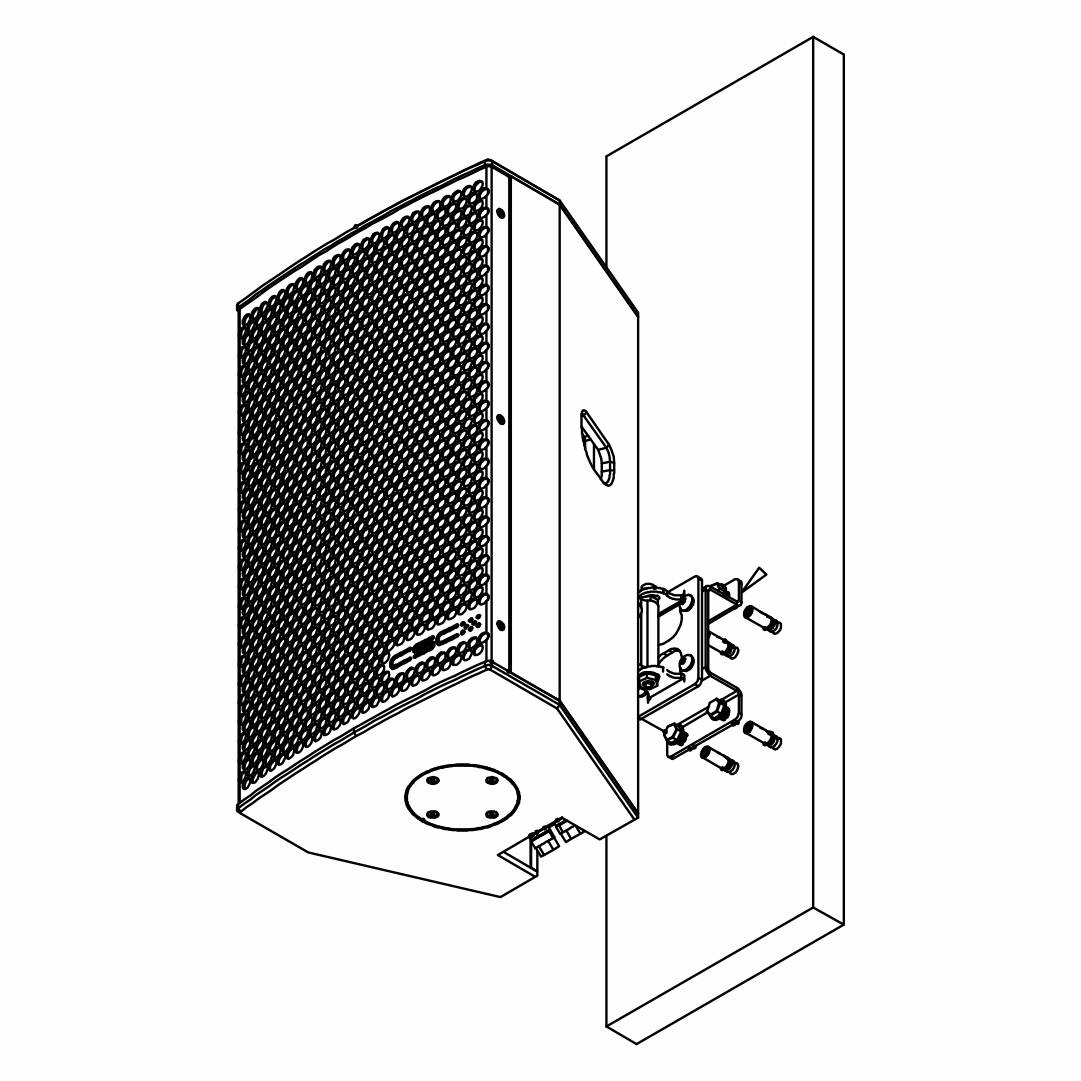

- Mounting points on the rear
Applications
- A/V applications
- Speech and presentations
- Fillers for large installs
- Small bands
- Bars and lounges
- Places of worship
- Gymnasiums
Technical Specification
| MODEL | ST 12en / ST 12t |
|---|---|
| Type | Two way passively crossed over full range loudspeaker |
| Frequency Response | 65 Hz-19.5 kHz ± 3 dB |
| Drivers | LF:12" (300 mm) + 1.4" HF |
| Recommended Amplifier Upto | 500 Watt |
| Sensitivity (1 W / 1 m) | 98 dB |
| Maximum SPL (9) | 121dB continuous, 126dB Max |
| Nominal Impedance | 8 Ohms/100v with tapings of 150/75/25w |
| Crossover | Low pass without subwoofer 65Hz, with subwoofer 100Hz |
| Enclosure | Baltic Birch Ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | binding post |
| Pin Connections | Red positive, Blue negative |
| Standard Colours | Black / White |
| Fittings | Mounting on top and rear |
| Horn dispersion | 55 x 45 degree |
| Rated nominal Power AES | 250 Watts / 60 Watts |
| Rated Maximum Power/Program Power | 500 Watts / 120 Watts |
| Peak Power | 1000 Watts / 240 Watts |
| Dimensions - Product (in mm) | (W) 354 x (H) 332 x (D) 302 |
| Dimensions - Including packing (in mm) | (W) 425 x (H) 745 x (D) 425 |
| Net Weight (kgs) | 17.2 |
| Shipping Weight (kgs) | 21 |
About Series
The String Series features a range of essentials for every application with a range of robust small satellite speakers designed to deliver harmonious and balanced sound reminiscent of the intricate qualities of string instruments. The extruded in thick-walled aluminum housing subjected to finite element analysis have near-zero resonance, thereby reproducing music with minimal distortion. With meticulous engineering and exceptional clarity, these offer a full-range audio product that faithfully reproduces complex musical tones and nuances. Ideal for both pro-install and commercial applications, the String Series speakers pair seamlessly with Contrabass Series subwoofers for enhanced low-end impact and dynamic range. When you want big sound in a small profile, ST3, ST23 are unbeatable. Designed to provide clear and dynamic sound in a sleek, unobtrusive form.Available in our string series is also a wide dispersion STW28, boasting of a 140 horizontal dispersion to replace two cabinets with no compromise in the power. The speakers are perfect for professional and entertainment setups, offering flexibility and high performance in any environment.
