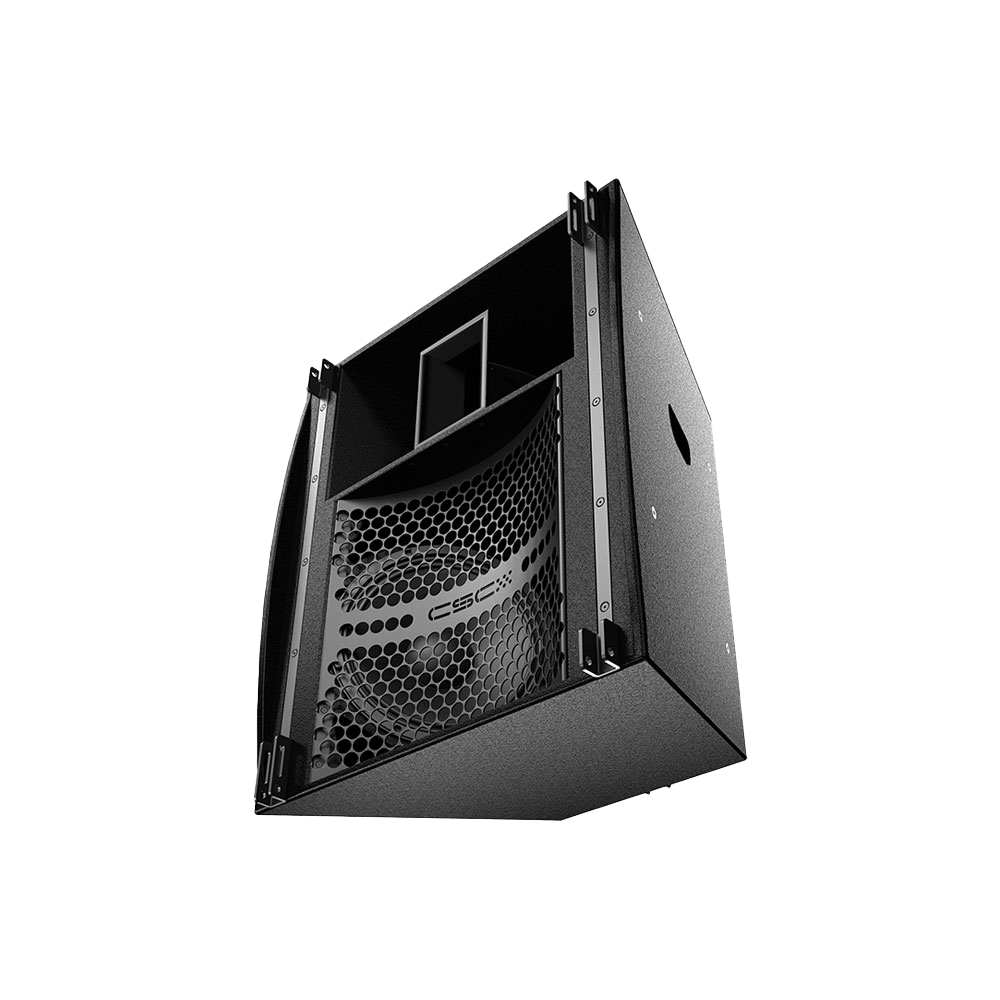

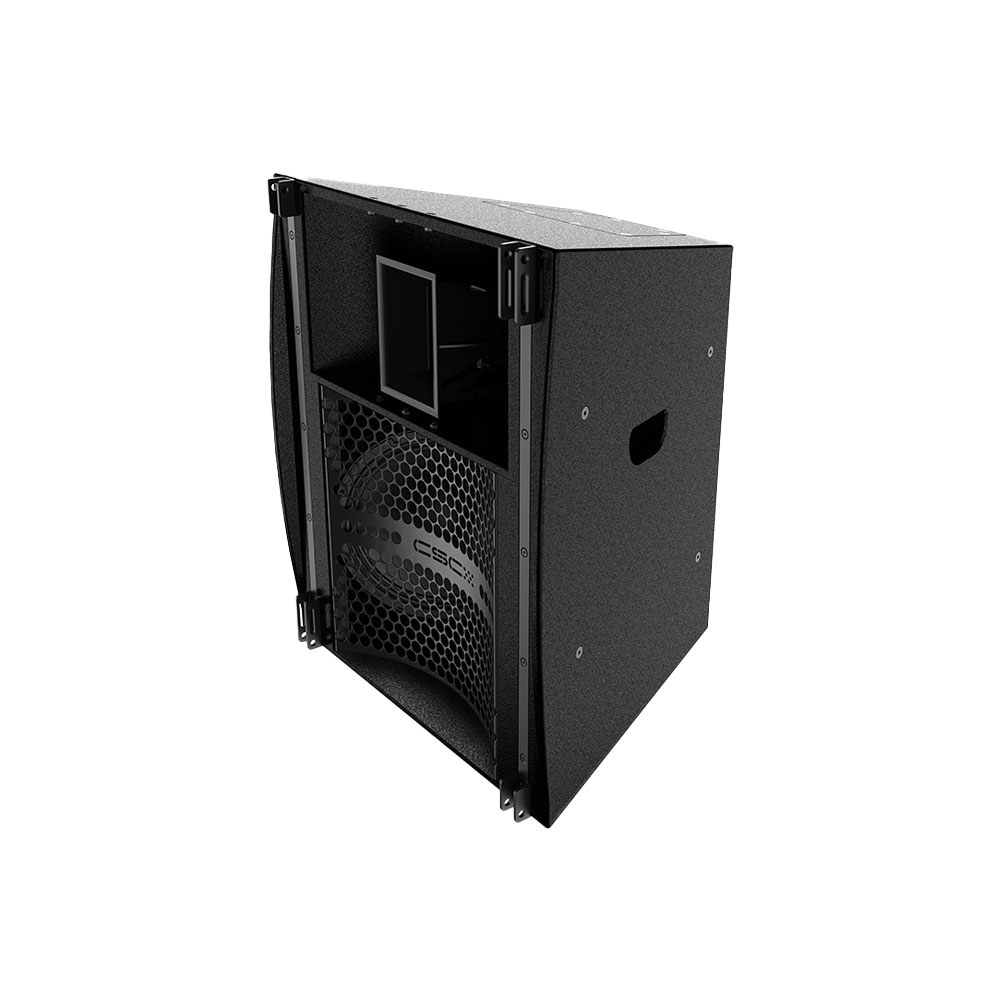

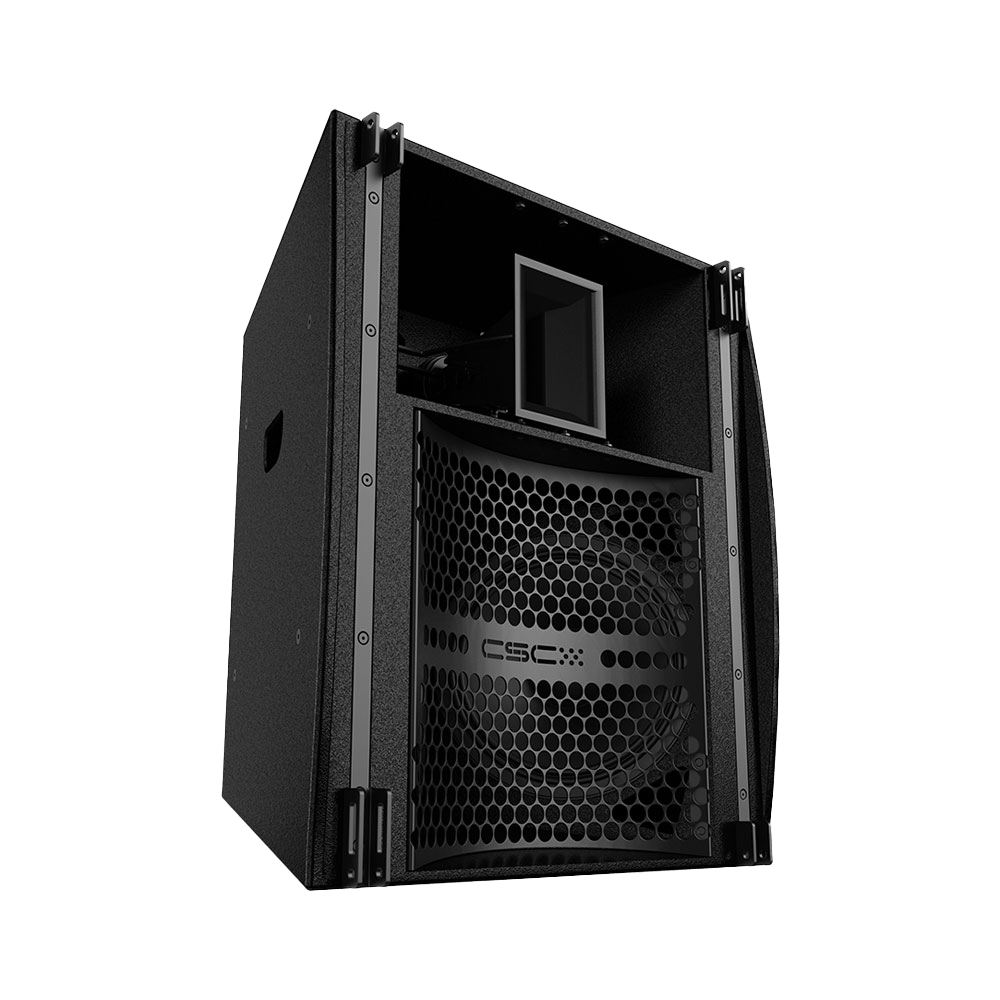

Cello Series RR 212hl
Compact Design, Massive Impact: Loudspeakers that Deliver

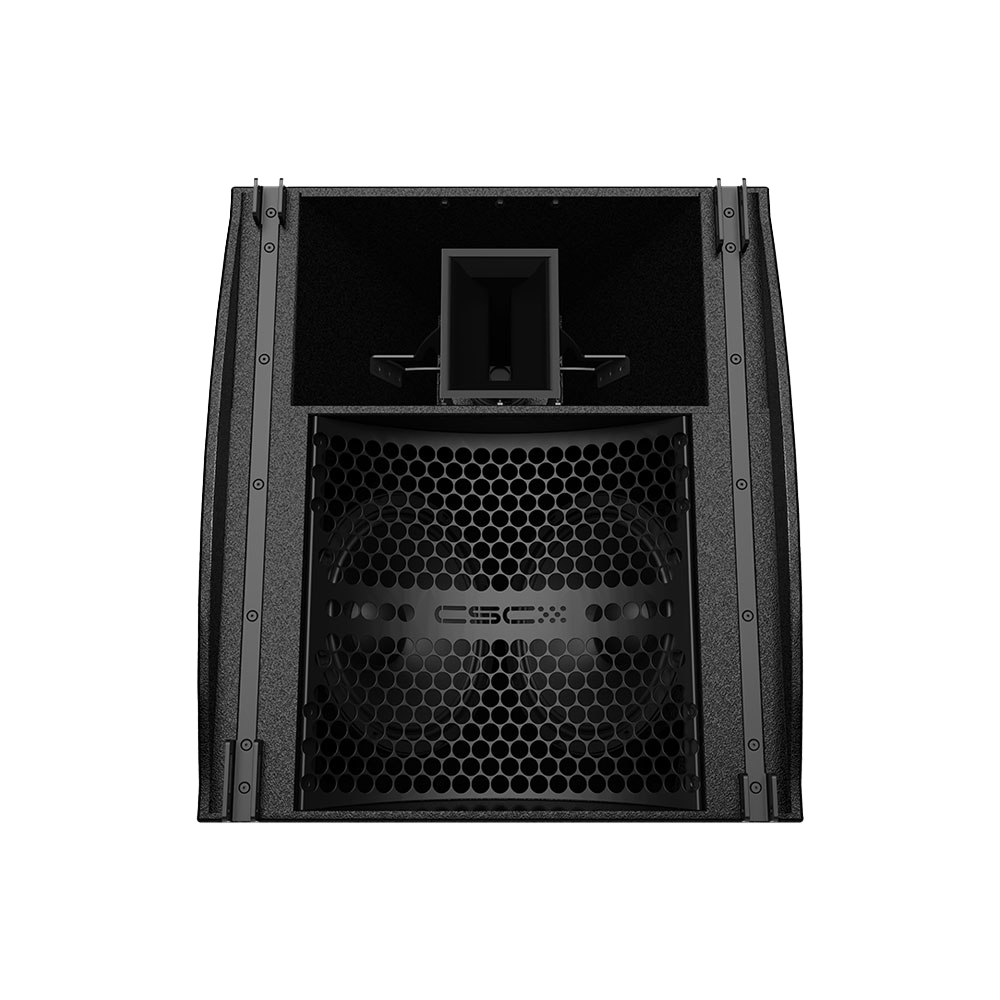

The Cello RR series is a horn-loaded loudspeaker system that is relatively light and compact, offering excellent clarity and directivity control. Cello RR 212hl is a passive bi-amp driven, 3-way horn-loaded, point source loudspeaker. The LF section features two customized 12" drivers loaded using a V-chamber aided reflex-tuning for added sensitivity and low-frequency directivity. The horn supporting the 1" HF in the HMF section acts as a phase plug, increasing the sensitivity and directivity of the mid and high sections. The 8" driver seamlessly crosses over into the 1" HF using a passive network, making each driver highly efficient and distortion-free by reducing their stress. The HMF section being coaxially horn-loaded gives a great solution for both installed and touring sound applications. Its cleverly designed horn acts as an acoustical amplifier, enhancing its sensitivity and directivity. This increases the mid-band SPL, propagating the highest frequencies without compromising power. This design helps the cabinet to perform brilliantly in reverberant environments. The CSC RR 212HL has three variants having different dispersions (VxH).
Key Features

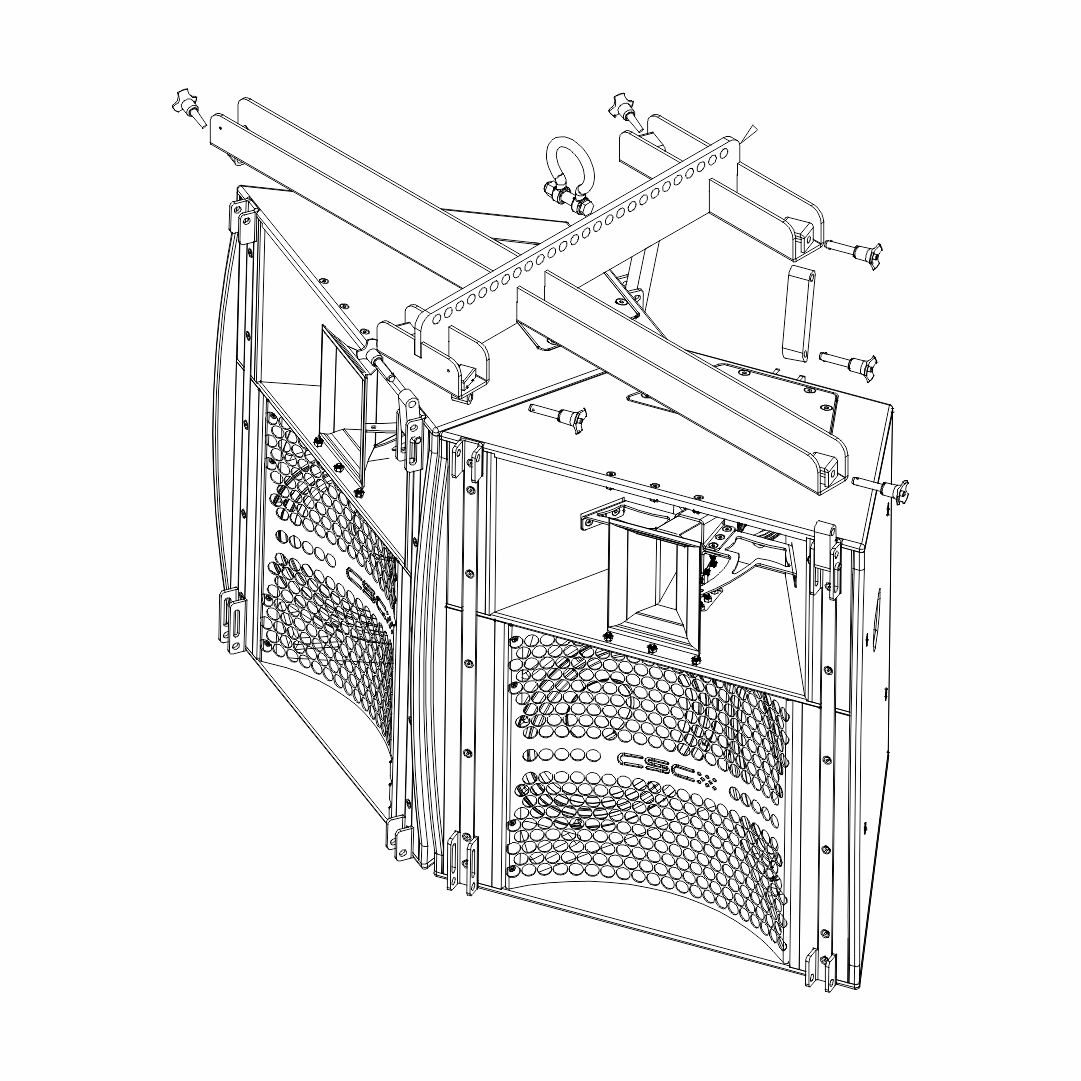

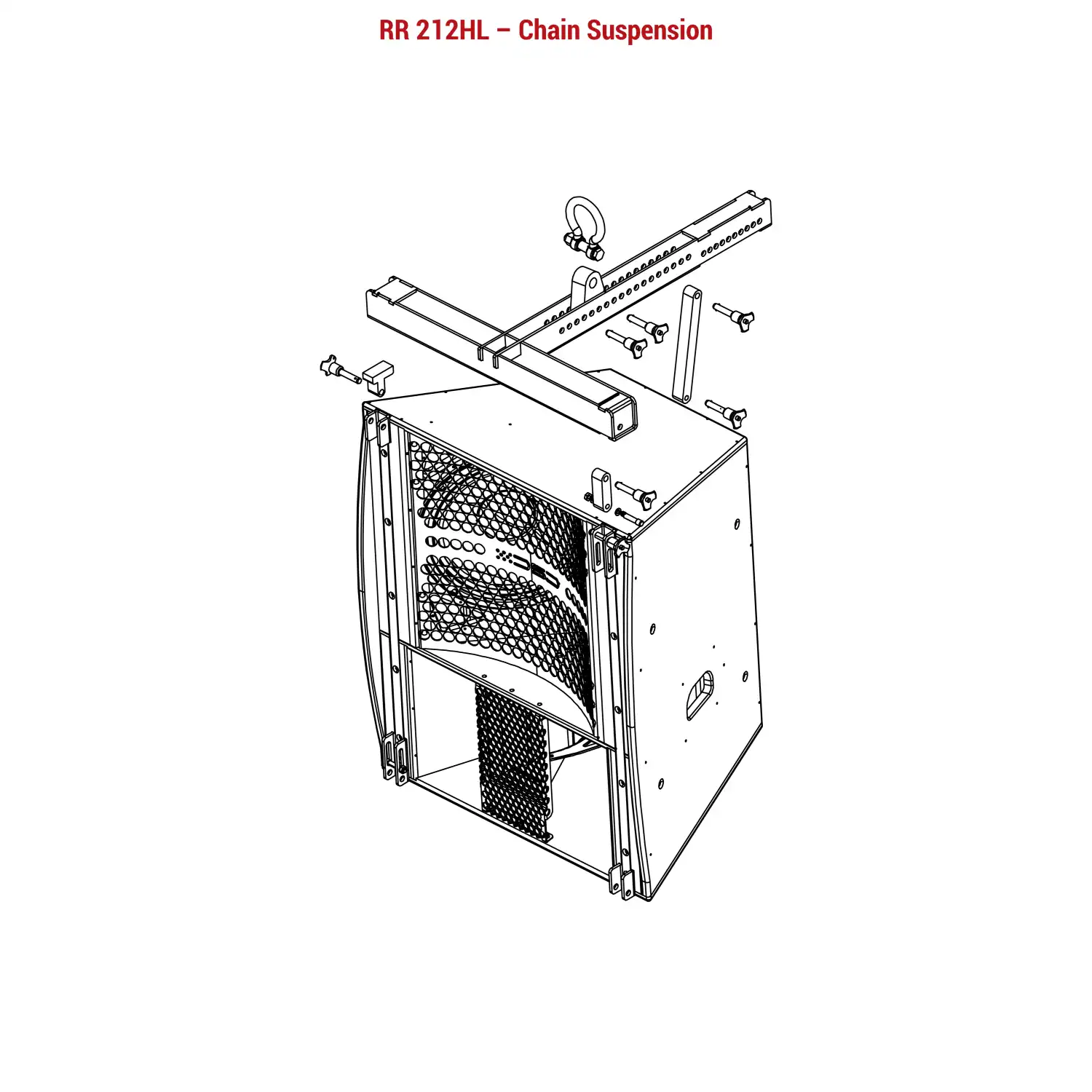

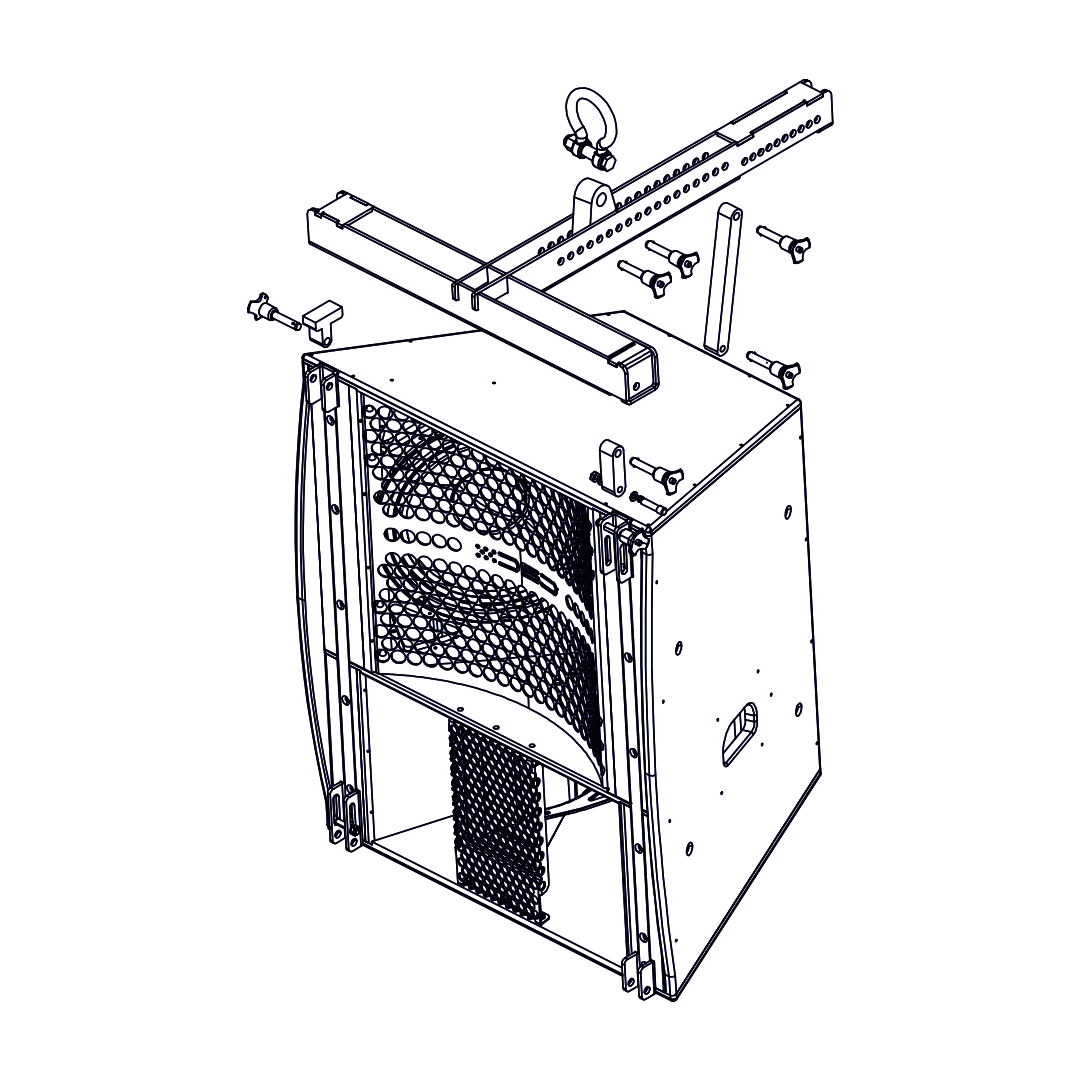

- Can be used as a single unit or in arrays of up to nine cabinets
- Represents a unique design concept

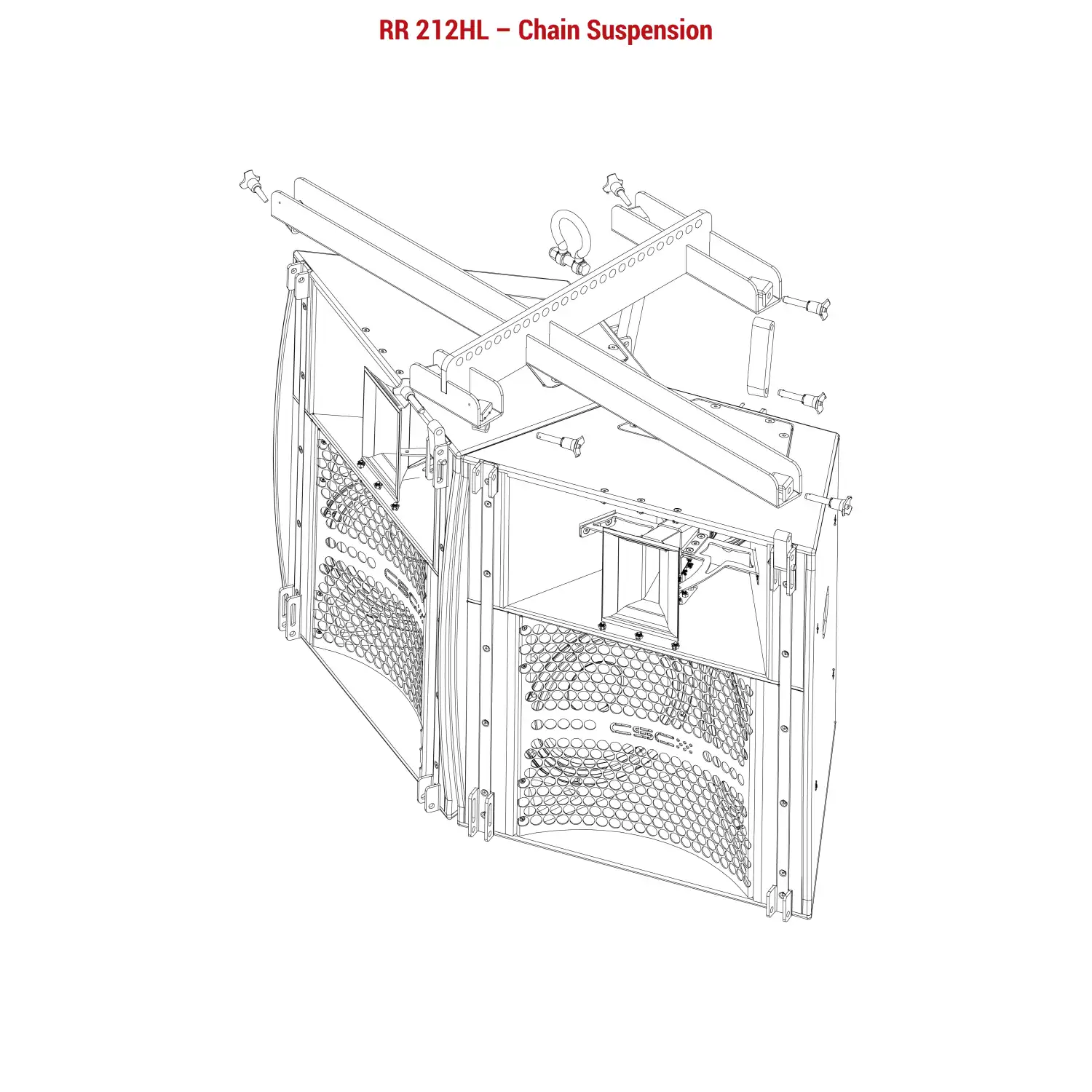

- Provides an unusually high degree of rigging flexibility
- Offers dynamic performance
- Reduced distortion and power compression
Applications
- Live performance
- Church
- Auditoriums
- Stadiums
- Large night clubs
Technical Specification
| Model | RR 212hl-40 | RR 212hl-60 | RR 212hl-90 |
|---|---|---|---|
| Type | Bi-amped, semi horn-loaded, three-way, Long throw, Mid-high | Bi-amped, Horn loaded, Coaxial, Three way, Long throw, Mid-high | Bi-amped, Horn loaded, Coaxial, Three way, Long throw, Mid-high |
| Frequency Response | 75 Hz - 20 kHz | 75 Hz - 20 kHz | 75 Hz - 20 kHz |
| Drivers | LF: 2x12" with a 2.56" V C, MF: 8" with a 2" VC and HF:1" with a CD 1.4" VC | LF: 2x12" with a 2.5" V C, MF: 8" with a 2.0" VC and HF:1" with a CD 1.4" | LF: 2x12" with a 2.5" V C, MF: 8" with a 2.0" VC and HF:1" with a CD 1.4" |
| Recommended Amplifier Upto | 1200/500 Watts | 1200/500 Watts | 1200/500 Watts |
| Sensitivity (1 W / 1 m) | LF : 103 , HMF : 108 dB | LF : 103 , HMF : 108 dB | LF : 103 , HMF : 108 dB |
| Maximum Spl Continuous/max | LF : 130 , HMF : 130 dB | LF : 130 , HMF : 133 dB | LF : 130 , HMF : 133 dB |
| Maximum Spl Peak | LF : 136 , HMF : 136 dB | LF : 136 , HMF : 136 dB | LF : 136 , HMF : 136 dB |
| Nominal Impedance | LF ; 8 Ohms , HMF :8 Ohms | LF ; 8 Ohms , HMF :8 Ohms | LF ; 8 Ohms , HMF :8 Ohms |
| Dispersion | 40° x 40° | 40° x 60° | 40° x 90° |
| Crossover | LF/HMF active, MF/HF passive | LF/HMF active, MF/HF passive | LF/HMF active, MF/HF passive |
| Enclosure | Baltic birch ply | Baltic birch ply | Baltic birch ply |
| Finish | Textured black paint | Textured black paint | Textured black paint |
| Protective Grill | Perforated Powder-coated Steel | Perforated Powder-coated Steel | Perforated Powder-coated Steel |

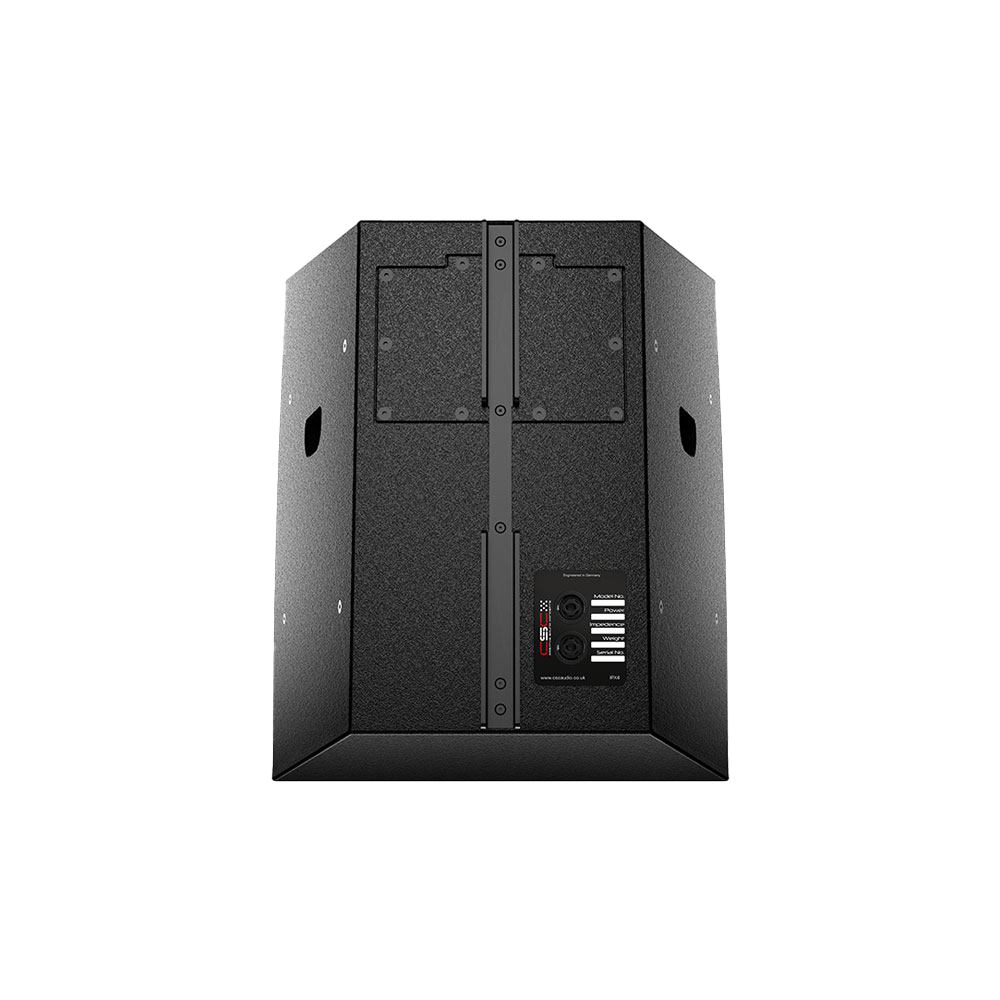

| Connectors | 2 x Neutrik NL8 | 2 x Neutrik Nl8 | 2 x Neutrik Nl8 |
| Pin Connections | Input LF: ± 3, HF: ± 4 Link through LF ± 3, HF: ± 4 | Input LF: ± 3, HF: ± 4 Link through LF ± 3, HF: ± 4 | Input LF: ± 3, HF: ± 4 Link through LF ± 3, HF: ± 4 |
| Standard Colours | Black / White | Black / White | Black / White |

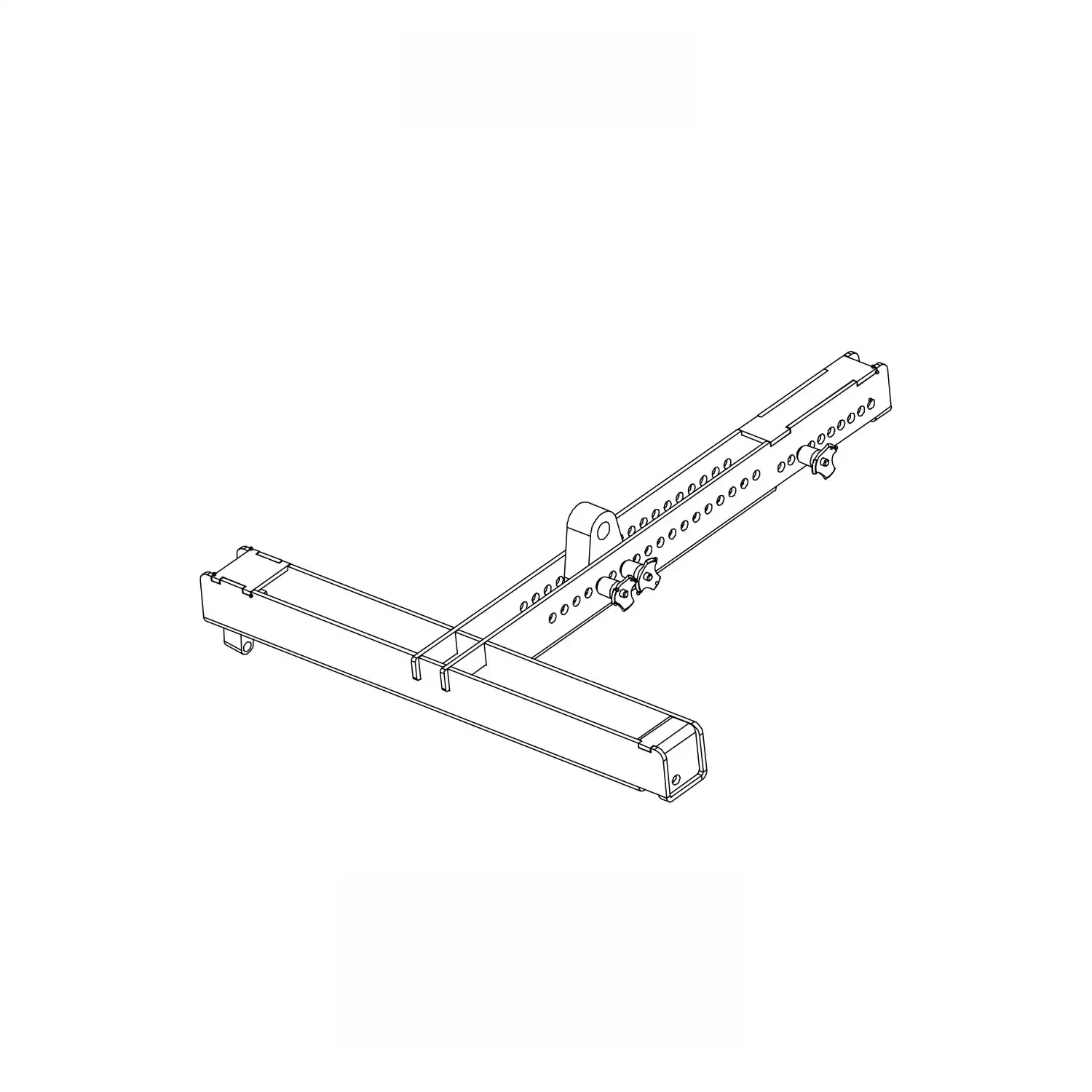

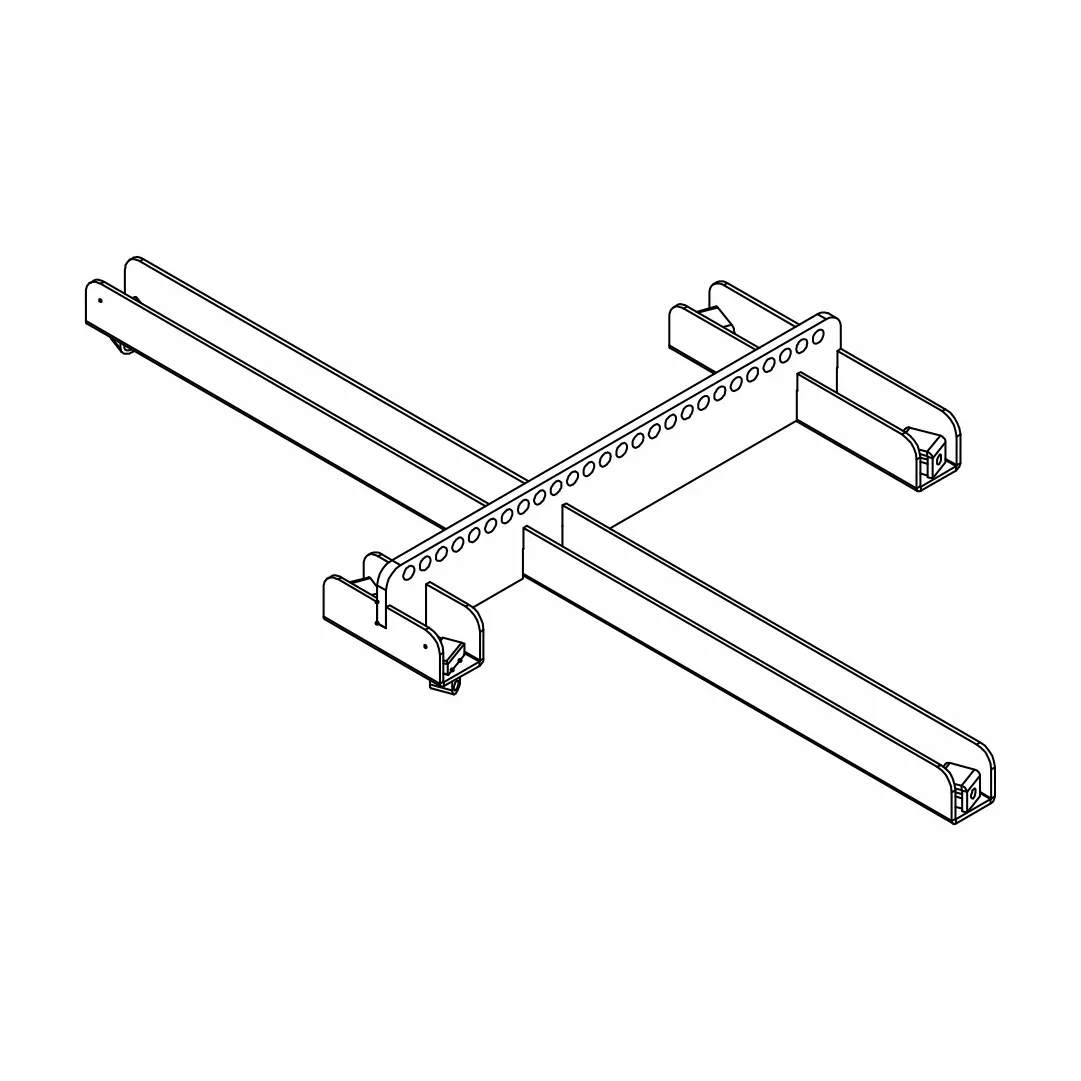

| Fitting | Side Rails and Flying Frame | Side Rails and Flying Frame | Side Rails and Flying Frame |
| Horn | Non Rotatable | Non Rotatable | Non Rotatable |
| Rated Continuous Power AES | 600/250/60 Watts | 600/200/60 Watts | 600/200/60 Watts |
| Rated Maximum Power / Program Power | 1200/500/120 Watts | 1200/400/120 Watts | 1200/400/120 Watts |
| Peak Power | 2400/1000/240 Watts | 2400/800/240 Watts | 2400/800/240 Watts |

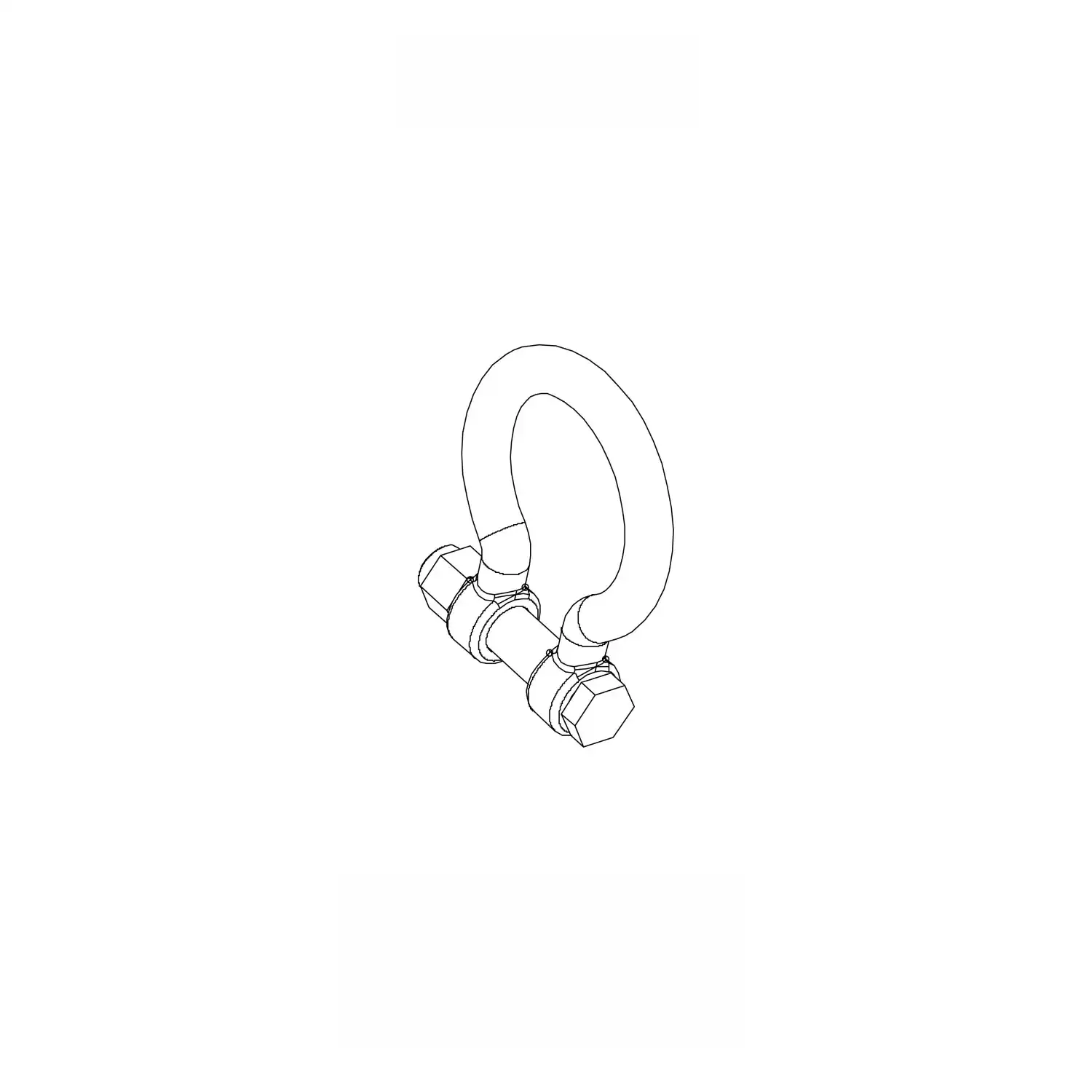

| Accessories | Speaker ground stacking separator, felted waterproof covers, flying hardware | Felted waterproof covers, Flying hardware | Felted waterproof covers, Flying hardware |
| Dimensions For Product (in mm) | (W) 671 x (H) 756 x (D) 465 | (W) 671 x (H) 756 x (D) 465 | (W) 671 x (H) 756 x (D) 465 |
| Dimensions Including Packing (in mm) | (W) 820 x (H) 766 x (D) 550 | (W) 820 x (H) 766 x (D) 550 | (W) 820 x (H) 766 x (D) 550 |
| Net Weight (kgs) | 48 | 48 | 48 |
| Shipping Weight (kgs) | 51 | 51 | 51 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
