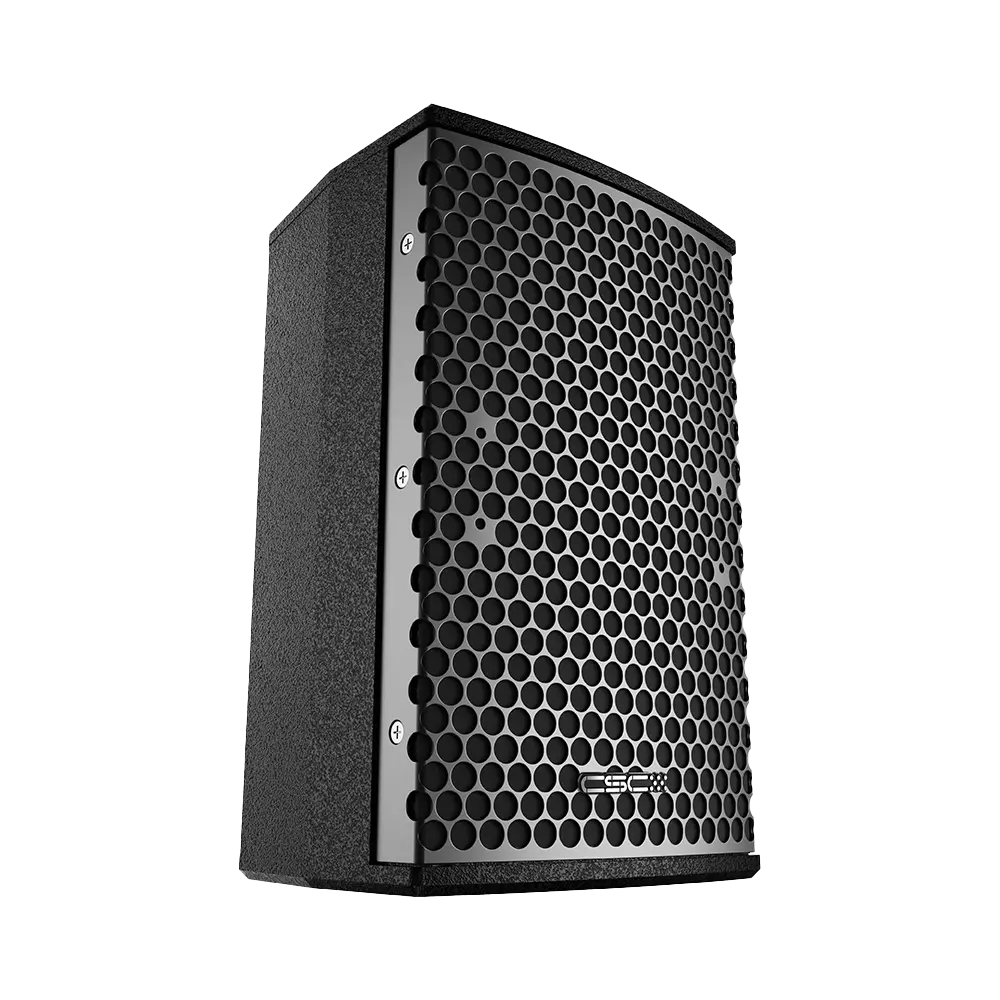

Cello Series CF 5
Compact Design, Massive Impact: Loudspeakers that Deliver
The CF 5 from CSC is a compact passive loudspeaker designed for architectural integration where discreet aesthetics and professional-grade sound are required. Equipped with a 5" LF driver and 3" HF paper cone, it delivers natural, transparent sound ideal for cafes, meeting rooms, under-balcony zones, and A/V setups. Its conical dispersion pattern ensures smooth, even coverage with minimal tonal variation.
Housed in a durable Baltic birch cabinet, the CF 5 is available in black or white finishes and supports both vertical and horizontal mounting. Despite its small footprint, it delivers clarity and reliable output, making it a trusted choice for integrators. With its balance of subtle design, clean voicing, and installation flexibility, the CF 5 is perfect for unobtrusive yet high-quality sound reinforcement.
FEATURES AND APPLICATIONS
Key Features
- Compact, two-way passive systems
- Discreet Baltic birch enclosures
- Wide dispersion and natural sound
- Available in black or white
- Flexible vertical or horizontal mounting
Applications
- Home and corporate AV systems
- Cafes, lounges, and restaurants
- Under-balcony and architectural installs
Technical Specification
| MODEL | CF 5 |
|---|---|
| Type | Compact two way Full range |
| Frequency Response (1) | 80Hz-16kHz ± 3 dB |
| Drivers | LF: 5" (125 mm) with a .75" (19 mm) voice coil, HF: 3" (77 mm) paper cone |
| Recommended Amplifier Upto | 200 watts |
| Sensitivity (1 W / 1 m) | 90 dB |
| Maximum SPL (9) | 110 dB continuous, 116 dB Max |
| Nominal Impedance | 8 ohms |
| Dispersion | 90° conical |
| Crossover | HPF 75 Hz full range / 110 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Non-toxic Textured black/white paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear / Top standard mounting points |
| Horn | NA |
| Nominal/ AES Power | 100 watts |
| Max/ Continuous/ Program Power | 200 watts |
| Peak Power | 400 watts |
| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 187 x (H) 300 x (D) 197 |
| Dimensions - Including packing (in mm) | (W) 450 x (H) 380 x (D) 260 |
| Net Weight (kgs) | 5 |
| Shipping Weight (kgs) | 12 (Shipped in pair) |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
