Cello Series CF 5
Compact Design, Massive Impact: Loudspeakers that Deliver
Designed for smooth and clear vocals, they can be used with or without a sub- woofer. Perfect for both background and foreground music, the uncompromising clarity makes it an ideal option for A/V and under balcony applications.
The specialized and phase optimized crossover network ensures minimum loss and maximum clarity, the enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation. It can be both used for background and foreground music with uncompromised clarity, and it is integrators choice for A/V applications. It eliminates any compression/off-axis variations, thus optimizing and improving the audio field to produce high quality transparent sound.
CF 5: Cello CF 5 is a two-way passive loudspeaker with an integrated 5” (125 mm) LF and a 3" (75 mm), 20 Watt HF. With no horn on the HF, the CF 5 houses a large, high- frequency transducer and is designed to sound natural
Key Features
- Two-way passive system
- Elegant birch ply enclosure

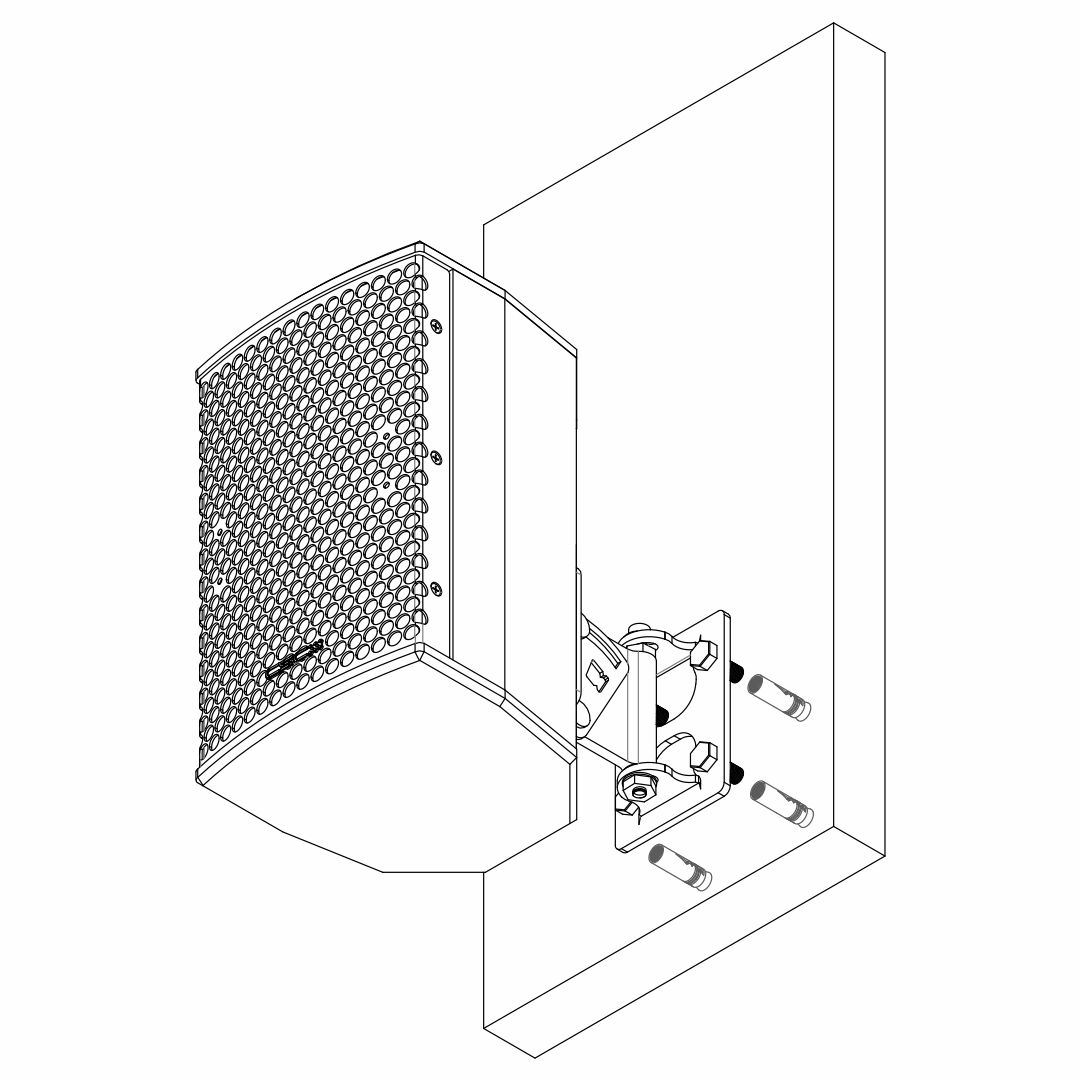

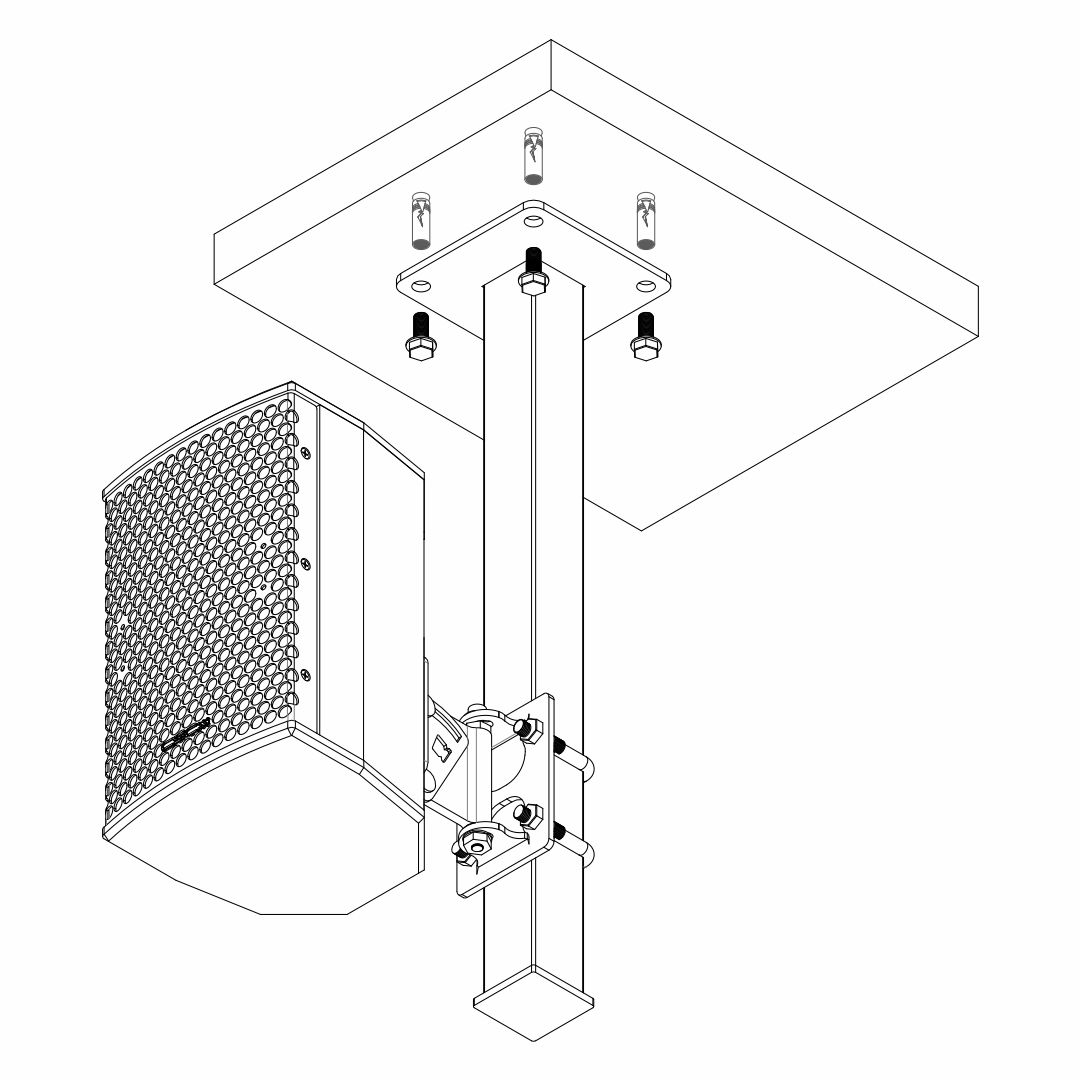

- Vertical and horizontal mounting options
- Perforated steel grill
- CF 5 8 ohms nominal impedance
- Discreet mounting accessories
- Available in black and white colours

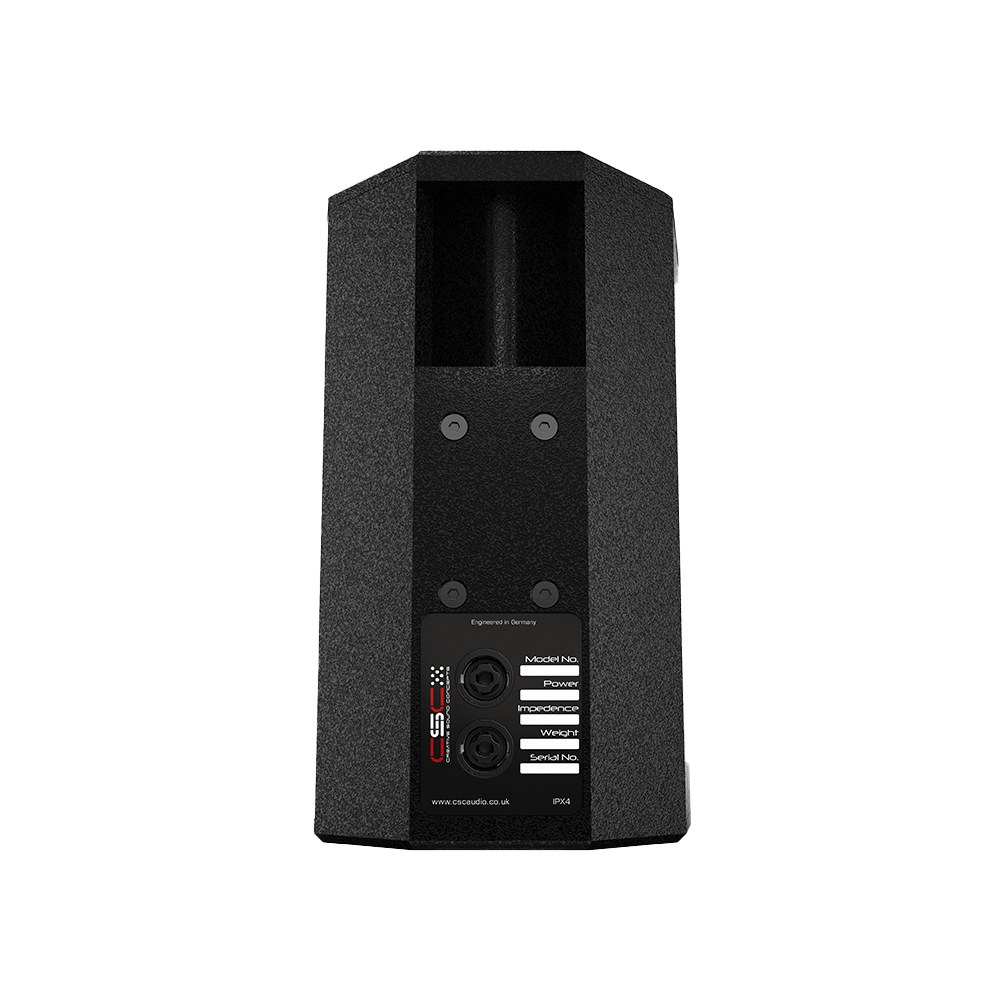

- Port located behind the cabinet
Applications
- Homes
- Classrooms
- Corporate meeting rooms
- Restaurants and cafes
- Small space A/V applications and home cinemas
- Small lounges and bars
- Apron of stage and under a balcony
Technical Specification
| MODEL | CF 5 |
|---|---|
| Type | Compact two way Full range |
| Frequency Response (1) | 80Hz-16kHz ± 3 dB |
| Drivers | LF: 5" (125 mm) with a .75" (19 mm) voice coil, HF: 3" (75 mm) paper cone |
| Recommended Amplifier Upto | 200 Watt |
| Sensitivity (1 W / 1 m) | 90 dB |
| Maximum SPL (9) | 110dB continuous, 116dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | 90° conical |
| Crossover | HPF 75 Hz full range / 110 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Textured black |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear / Top standard mounting points |
| Horn | NA |
| Rated Continuous Power AES | 100 Watts |
| Rated Maxium Power/Program Power | 200 Watts |
| Peak Power | 400 Watts |
| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 187 x (H) 300 x (D) 197 |
| Dimensions - Including packing (in mm) | (W) 453 x (H) 360 x (D) 260 |
| Net Weight (kgs) | 5 |
| Shipping Weight (kgs) | 12 (Shipped in pair) |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
