Cello Series CF 205
Compact Design, Massive Impact: Loudspeakers that Deliver
The Cello CF 205 is a compact, two-way passive loudspeaker featuring a 2x5" (125 mm) high energy LF drivers with a true 1” (25 mm) compression driver mounted on a 90°x 40° horn. Designed for smooth and clear vocals, it can be used with or without a sub-woofer. Perfect for both background and foreground music, the CF 205s’ uncompromising clarity makes it an ideal option for A/V and under balcony applications.
Cello CF 205 combines perfectly with the Contrabass CR 10s, CR 210s, CB 12s and it works wonders for venues with low ceiling limitations.
Designed to eliminate off-axis variations by optimizing and improving the audio field, the smooth and transparent sound of CF 205 creates a natural sounding audio system. The specialized and phase optimized crossover network ensures minimum power loss and maximum linearity. It is available in black and white colour options.
Key Features
- Two-way passive system
- Elegant birch ply enclosure
- Vertical and horizontal mounting options
- Perforated steel grill
- 16 ohms nominal impedance
- Discreet mounting accessories
- Available in black and white colours
- Port located behind the cabinet
Applications
- Homes
- Classrooms
- Corporate meeting rooms
- Restaurants and cafes
- Small space A/V applications and home cinemas
- Small lounges and bars
- Apron of stage and under a balcony
Technical Specification
| MODEL | CF 205 |
|---|---|
| Type | Compact two way Full range |
| Frequency Response (1) | 80 Hz-18 kHz ± 3 dB |
| Drivers | LF: 2 x 5" (125 mm) with a .75" (19 mm) voice coil, HF: 1" (25 mm) compression driver with a 1" (25 mm) voice coil |
| Recommended Amplifier Upto | 400 Watt |
| Sensitivity (1 W / 1 m) | 93 dB |
| Maximum SPL (9) | 116 dB continuous, 122 dB Max |
| Nominal Impedance | 16 Ohms |
| Dispersion | 90° x 40° |
| Crossover | HPF 75 Hz full range / 110 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Textured black/ white paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear / Top standard mounting points |
| Horn | Rotatable |
| Rated Continuous Power AES | 200 Watts |
| Rated Maxium Power/Program Power | 400 Watts |
| Peak Power | 800 Watts |

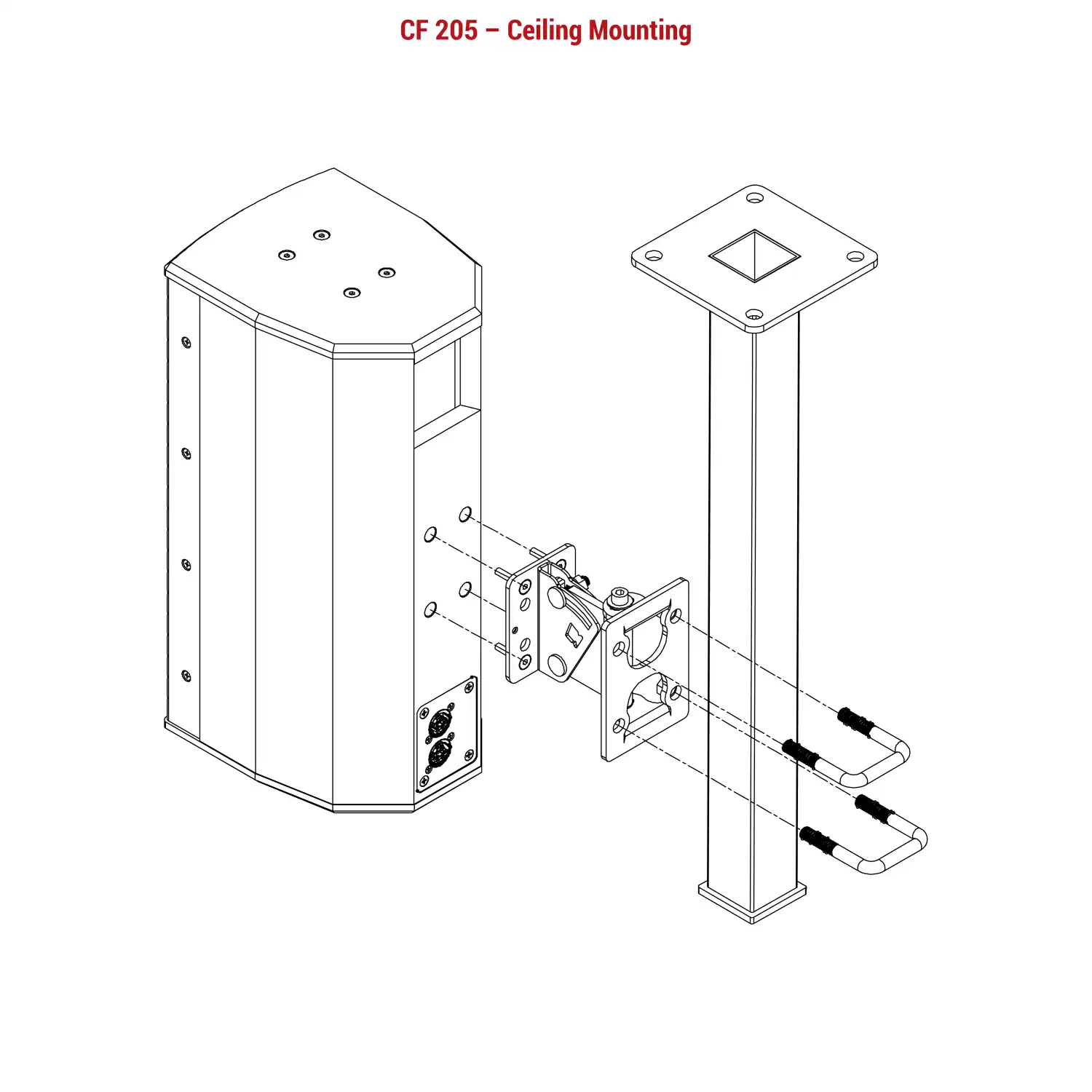

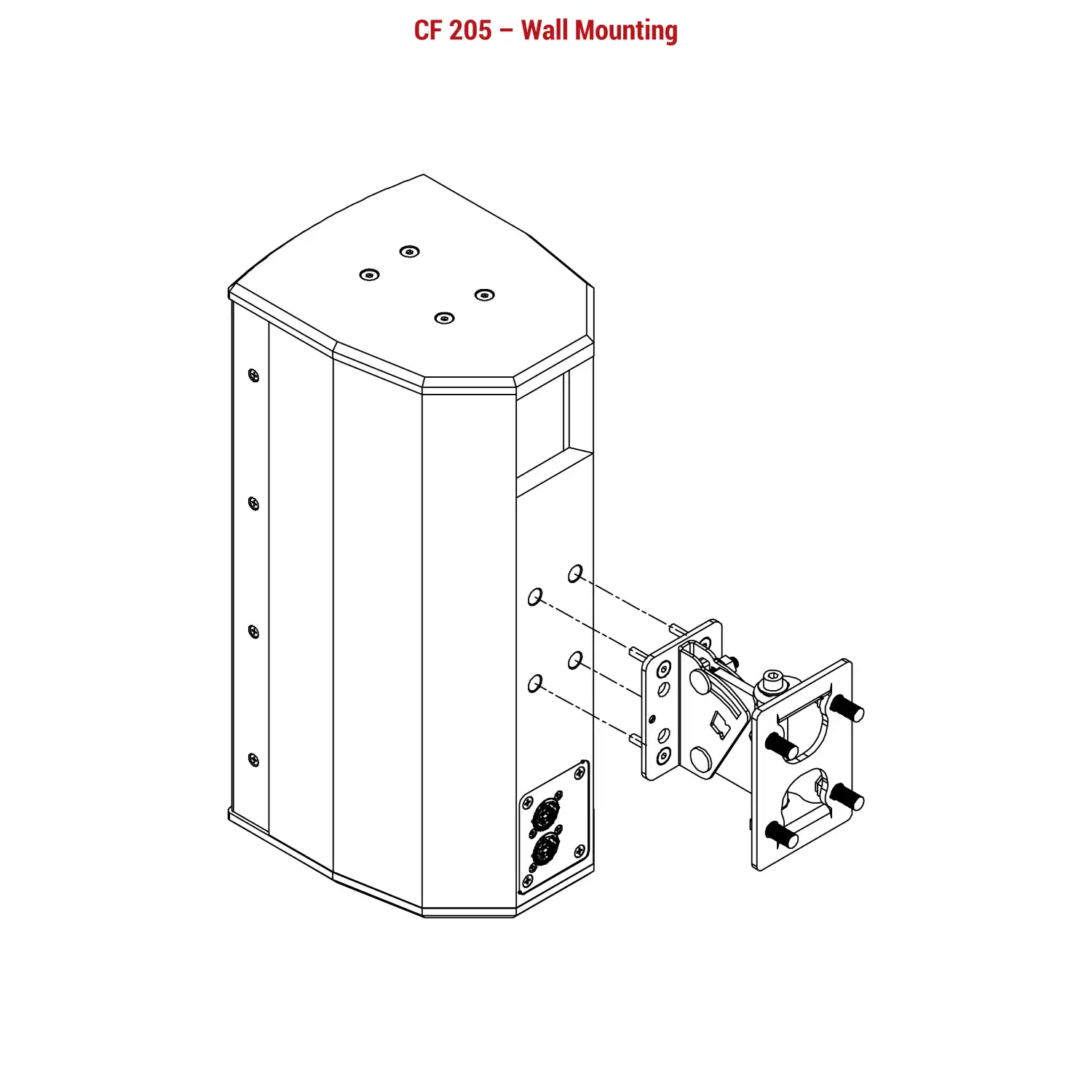

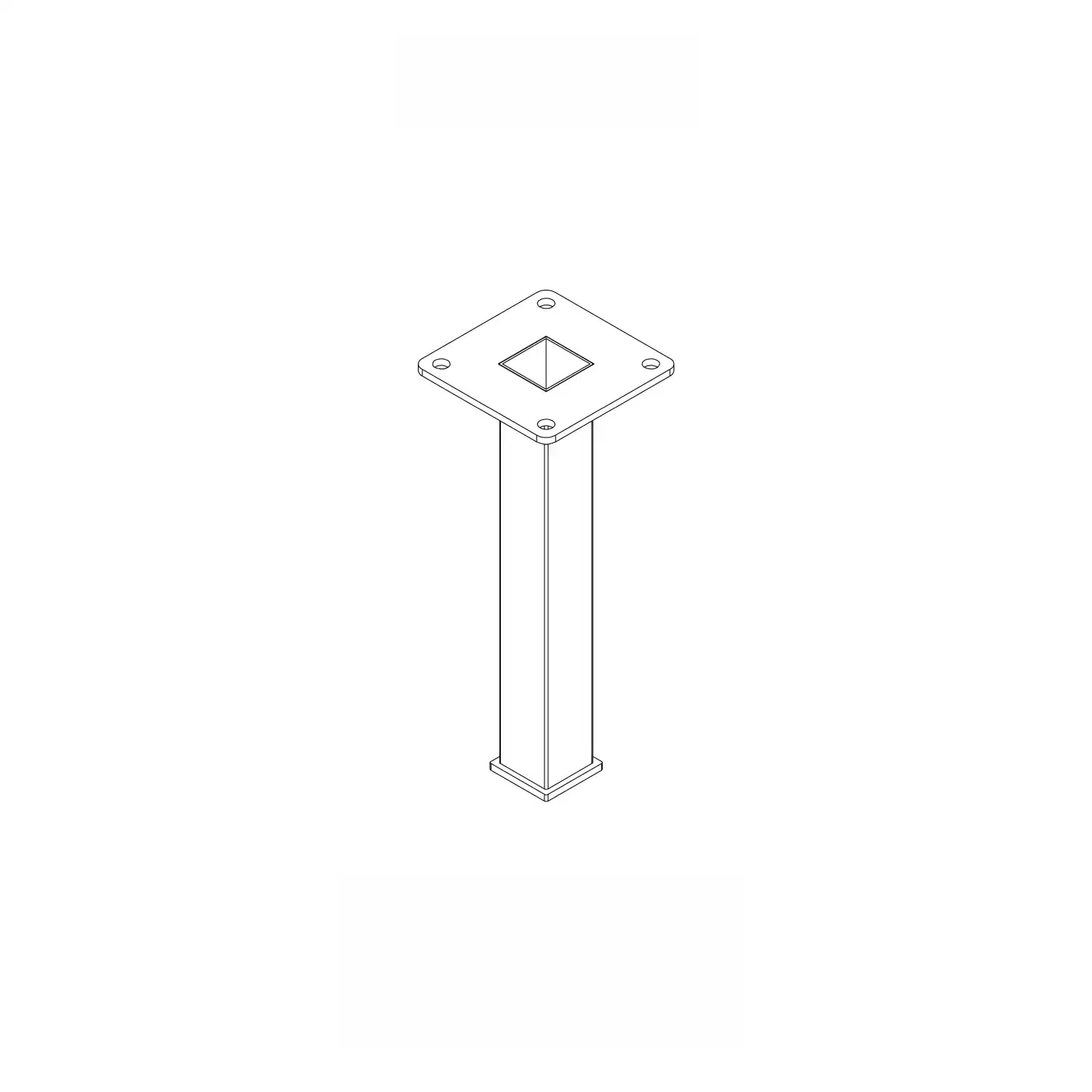

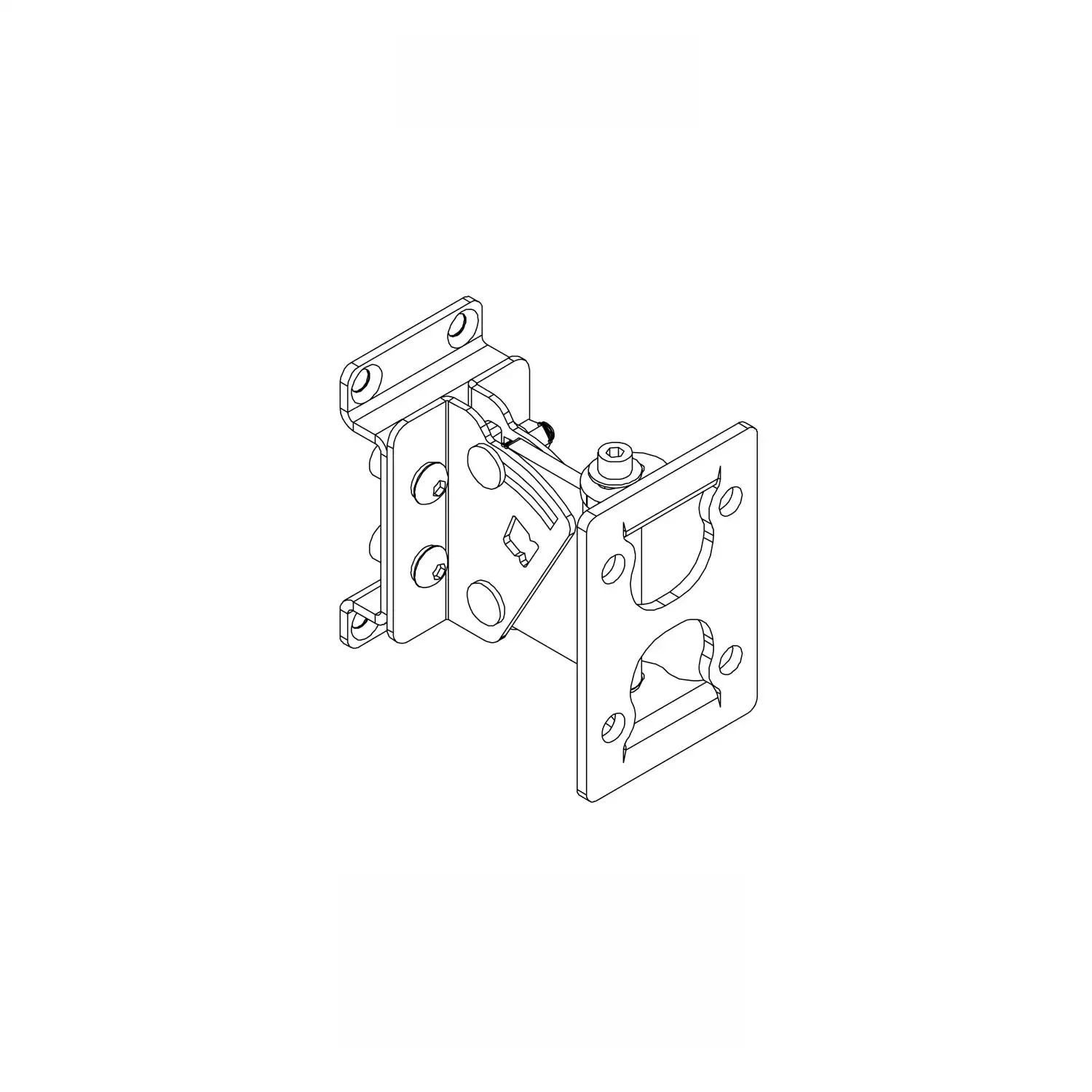

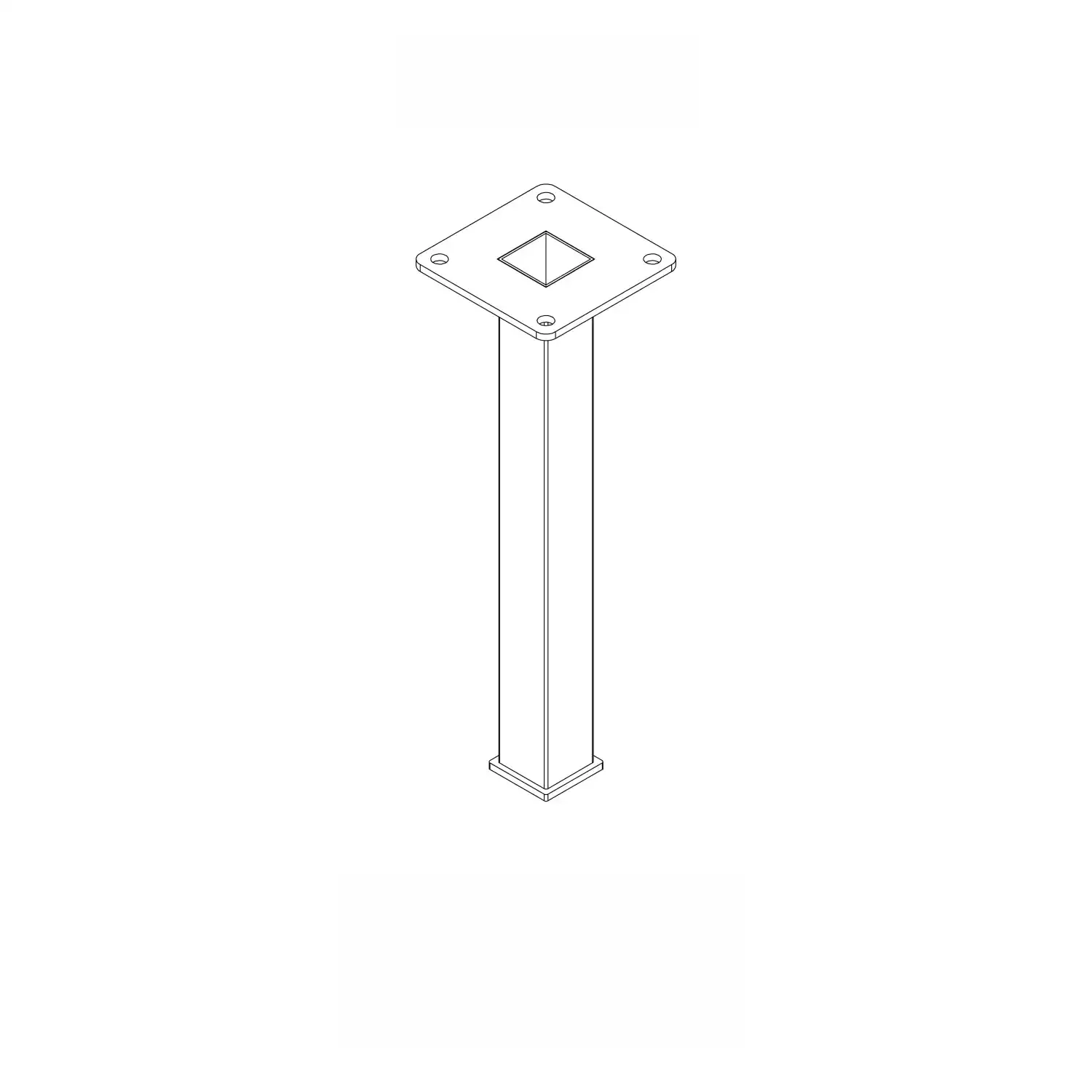

| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 187 x (H) 443 x (D) 229 |
| Dimensions - Including packing (in mm) | (W) 453 x (H) 507 x (D) 293 |
| Net Weight (kgs) | 9 |
| Shipping Weight (kgs) | 20 (Shipped in pairs) |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
