Cello Series CF 15
Compact Design, Massive Impact: Loudspeakers that Deliver
Two-way passive cabinets designed to provide exceptional sound reinforcement from a compact enclosure. Crafted in Baltic Birch ply, these cabinets fit perfectly for installation and mobile use. These have the flexibility to suit even the most difficult applications, owing to their special design. There has been a focus on cabinet size to minimize heat build-up within the cabinet without compromising on transient response. With their un- coloured and transparent timber these are perfect for a pounding nightclub or a critical opera. Crafted in Baltic Birch ply, these are perfectly designed for installation and can double up as a stage monitor for small bands.
CF 15: With it’s deep low frequency response, CF 15 can be used with or without any sub woofer. It features a powerful 15” (375 mm) low frequency driver housing a 4" (100 mm) voice coil and a 1”(25mm) compression driver with a 1.7" (44 mm) voice coil. All these are mounted on a constant directivity 60° x 50° horn. Its deep low-frequency response makes it perfect for use even without any sub-woofers.
For demanding applications, the CSC Maestro MS 26 controller is pre-configured with it’s EQ limiter crossover. Contrabass CR 18s, CR 218s, RRH 218s, RR 218s and RR 215s are a perfect match for Cello CF 15.
Key Features
- Compact, two-way system
- CF 10 80° x 70° while CF 12/CF15 60° x 50° horn

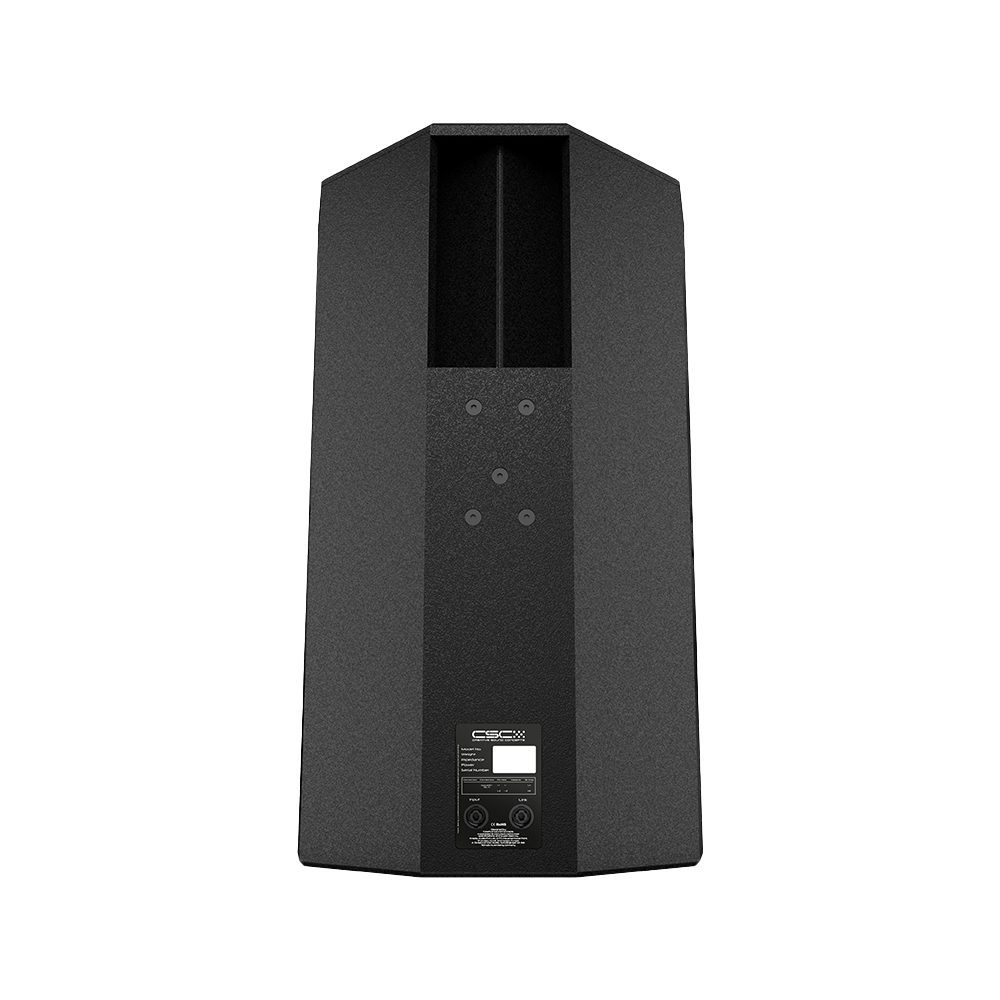

- Mounting points behind the cabinet
- Large port behind the cabinet
- Can double as a stage monitor
- Top hat
Applications
- A/V applications and presentations
- Live performances
- Clubs reinforcement
- Stage monitoring
- Convention centres
- Auditoriums
- Places of worship
- Ideal for installation and mobile use
Technical Specification
| MODEL | CF 15 |
|---|---|
| Type | Compact two way full range |
| Frequency Response (1) | 45 Hz-19.5 kHz ± 3 dB |
| Drivers | LF: 15" (375 mm) with a 4" (100 mm) voice coil, HF: 1" (25 mm) compression driver with an 1.7" (44 mm) voice coil |
| Recommended Amplifier Upto | 1400 Watt |
| Sensitivity (1 W / 1 m) | 97 dB |
| Maximum SPL (9) | 124 dB continuous, 130 dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | 60° x 50° |
| Crossover | HPF 45 Hz full range / 100 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear / Top standard mounting points, Top hat |
| Horn | Rotatable |
| Rated Continuous Power AES | 700 Watts / 60 Watts |
| Rated Maximum Power/Program Power | 1400 Watts / 120 Watts |
| Peak Power | 2800 Watts / 240 Watts |

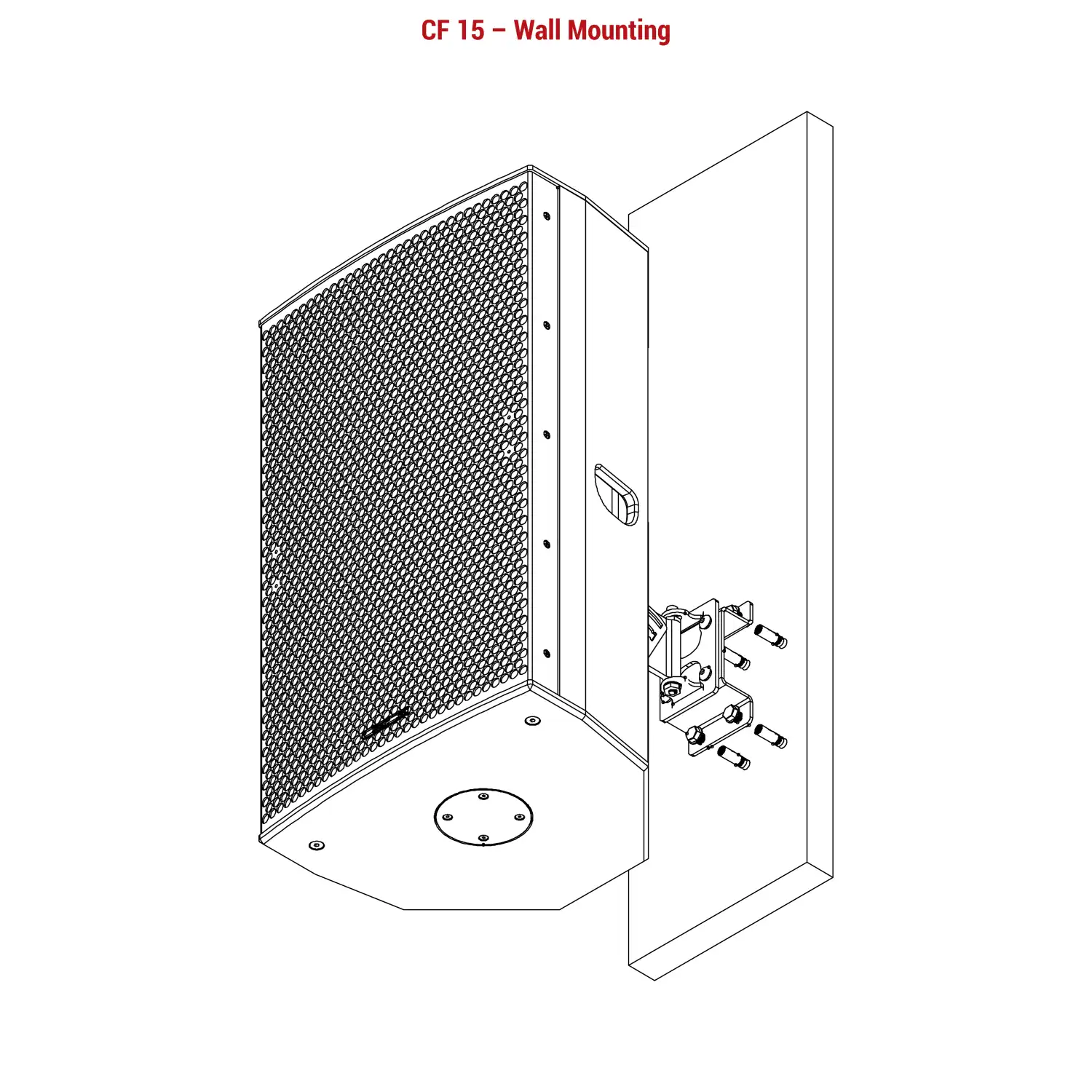

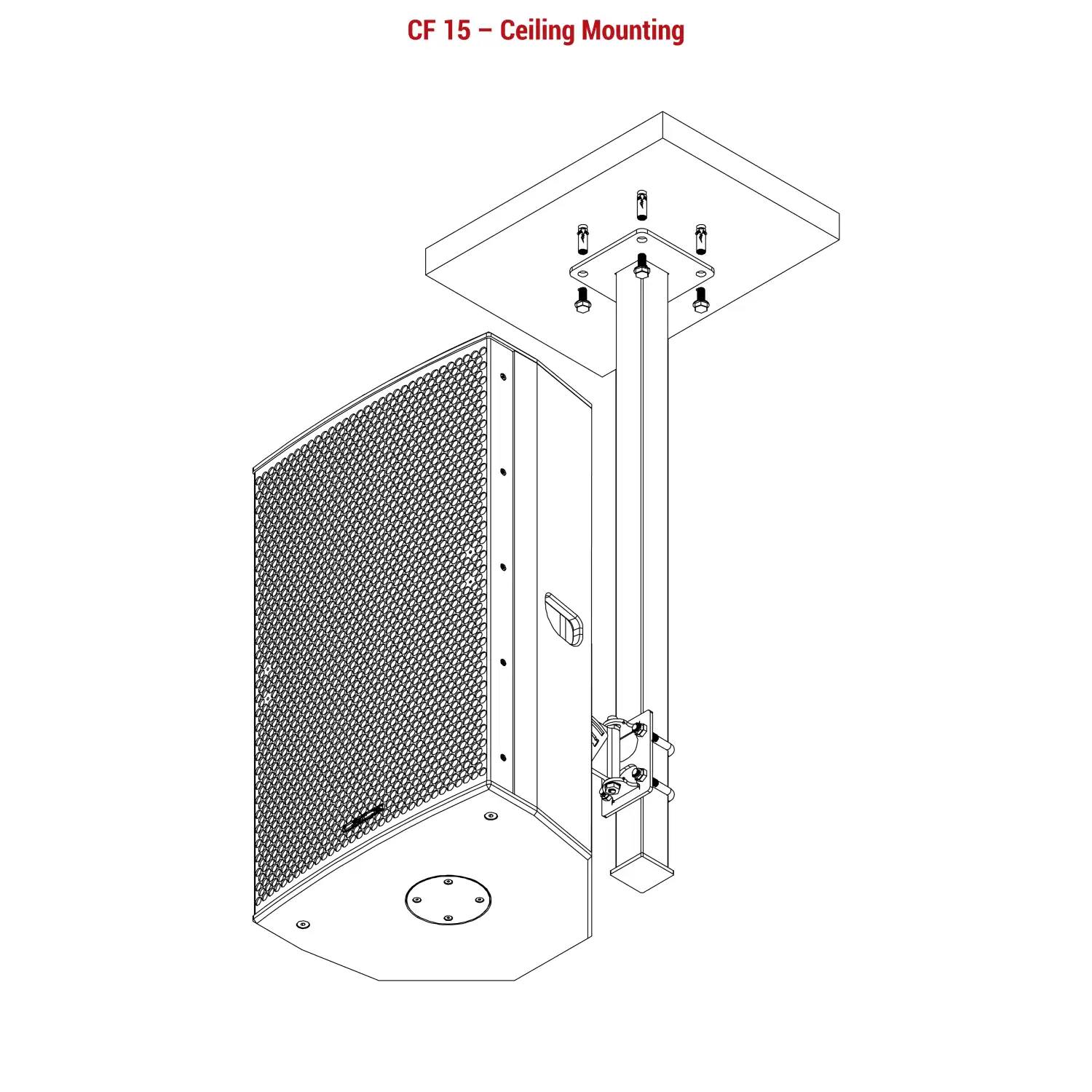

| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 442 x (H) 738 x (D) 357 |
| Dimensions - Including packing (in mm) | (W) 497 x (H) 795 x (D) 408 |
| Net Weight (kgs) | 33 |
| Shipping Weight (kgs) | 35 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
