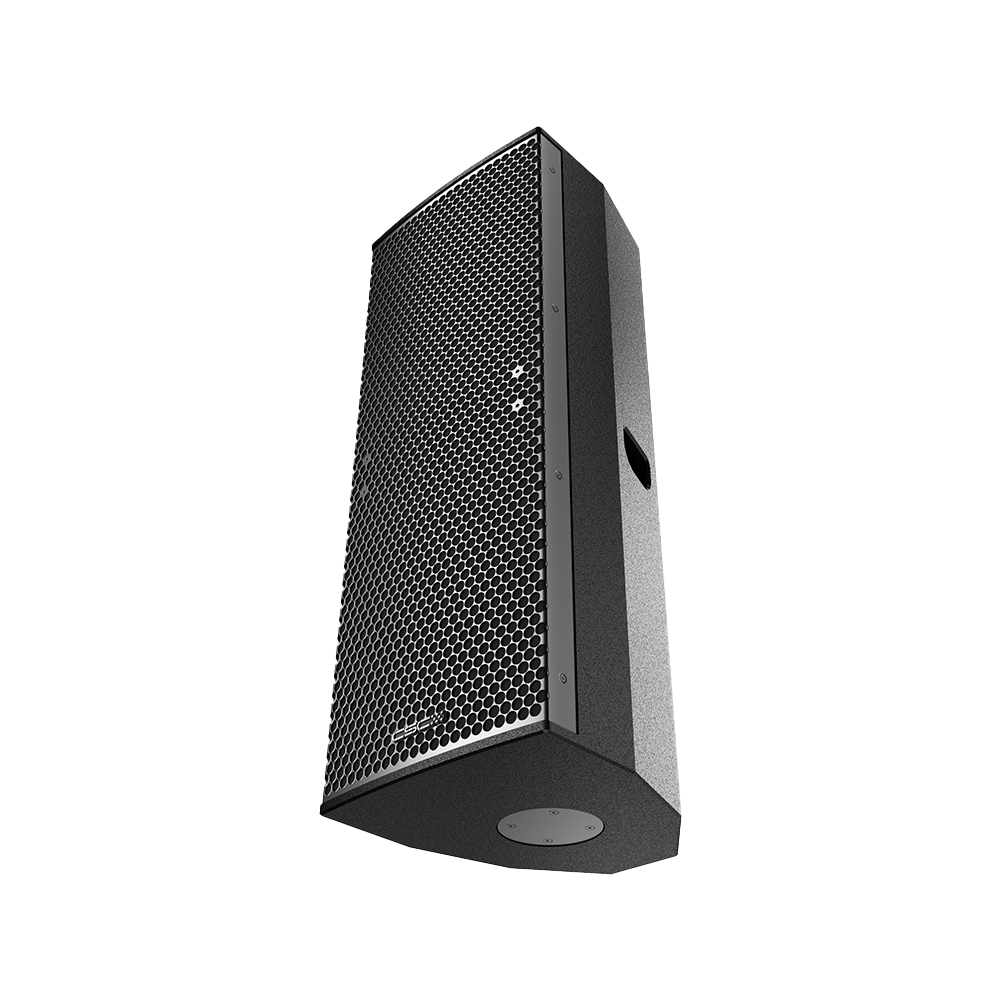

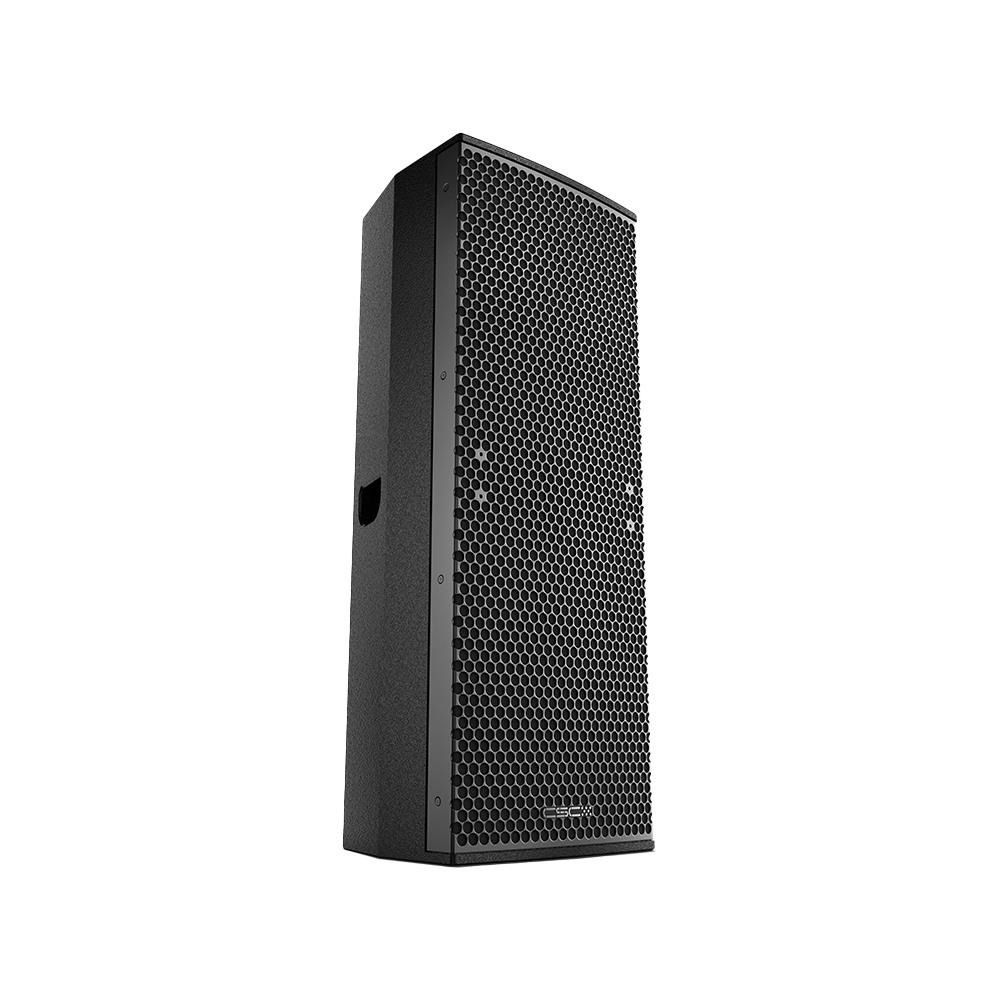

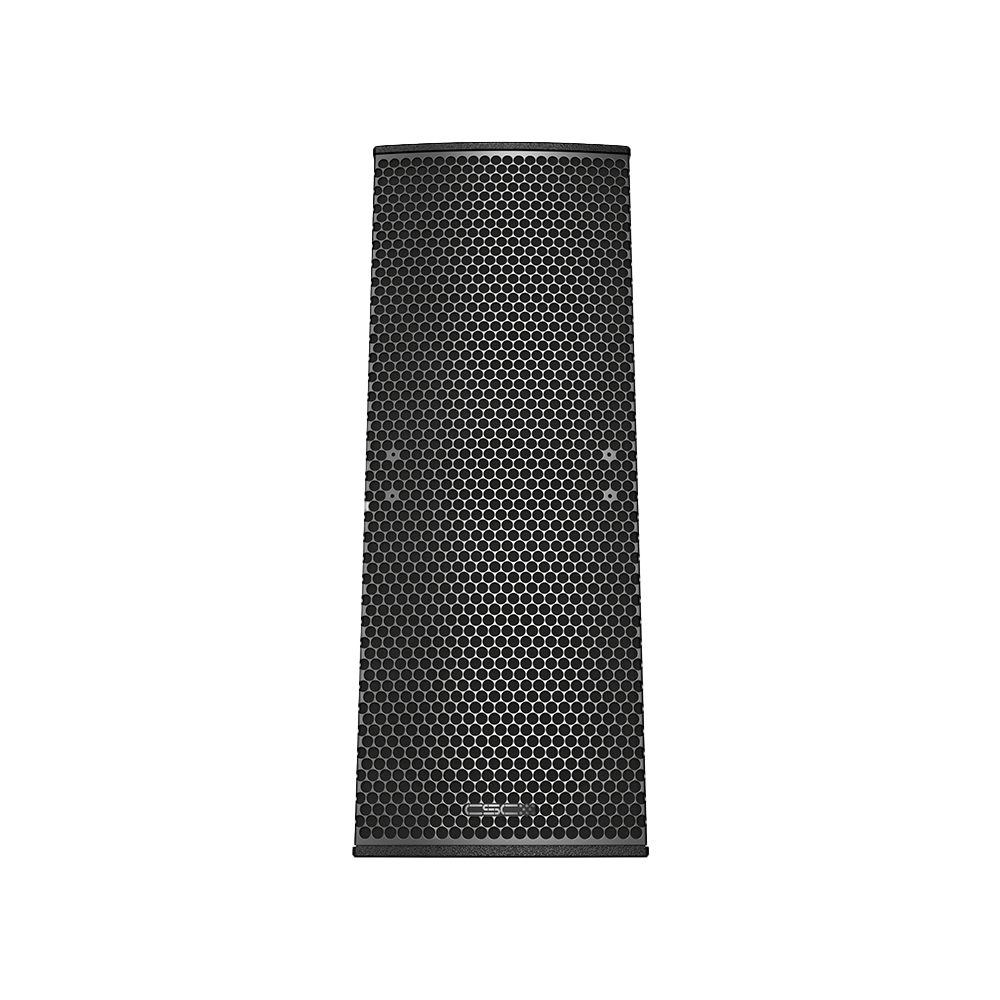

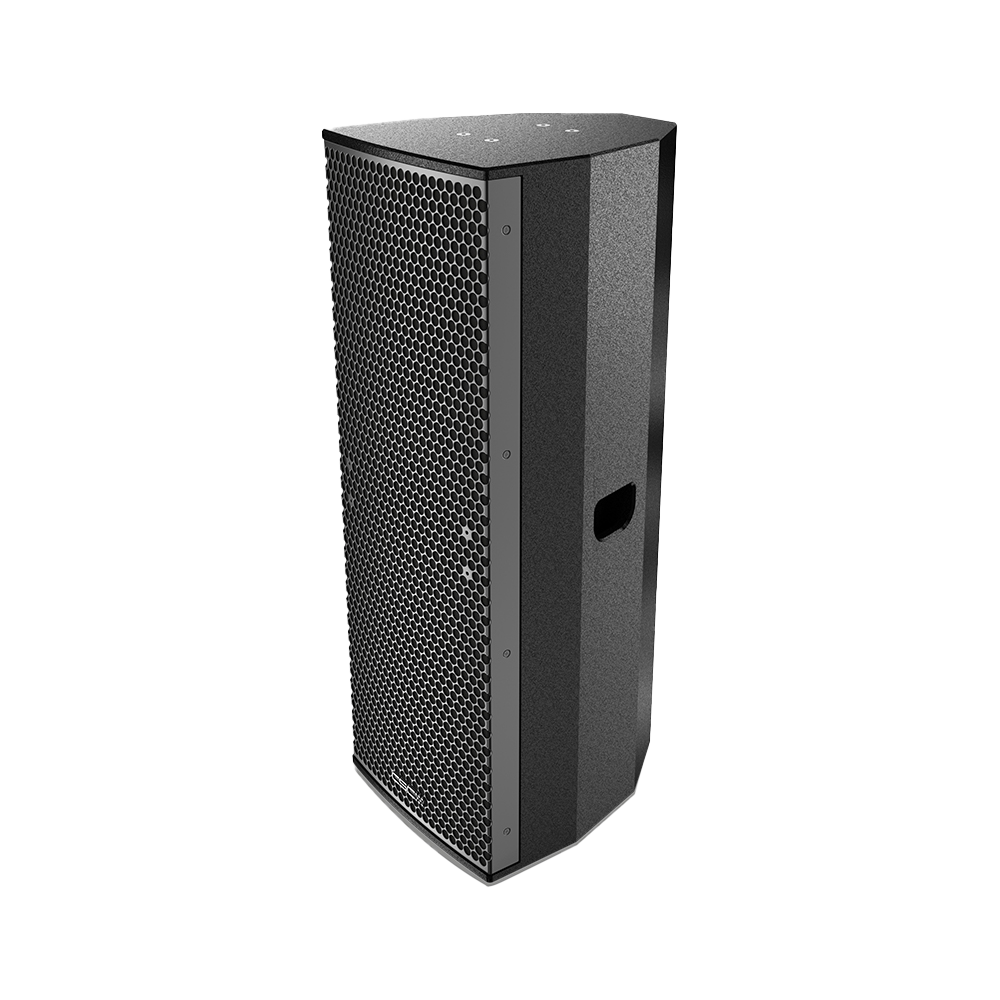

Cello Series CF 210
Compact Design, Massive Impact: Loudspeakers that Deliver
The Cello CF 210 is a versatile, passive two-way loudspeaker Crafted in Baltic Birch. This Dipole arrangement fits perfectly for High SPL installation. There has been a special focus on cabinet size to minimize heat build-up within the cabinet without compromising on transient response.
CF 210 is a point source two-way cabinet that houses two powerful 2x10 in (254 mm) low-frequency ferrite motors structure and a 1 in (25 mm) exit compression driver with a 1.7 in (44 mm) voice coil mounted on a constant directivity 60° x 50° horn. Depending on the application, the cabinet can be installed with its vertical or horizontal orientation. The LF driver has been coupled to the HF horn through its optimally designed crossover.
Cello CF 210 cabinet performs perfectly out of the box. For demanding applications, the CSC Maestro MS 26 controller is configured to perform with it’s EQ and limiter functions are pre-loaded in the controller. Contrabass CB 215s, CR 218s, RRH 218s, RR 218s and RR 215s are a perfect match for Cello CF 210.
Key Features
- Compact, two-way system
- Dispersion 60° x 50° horn

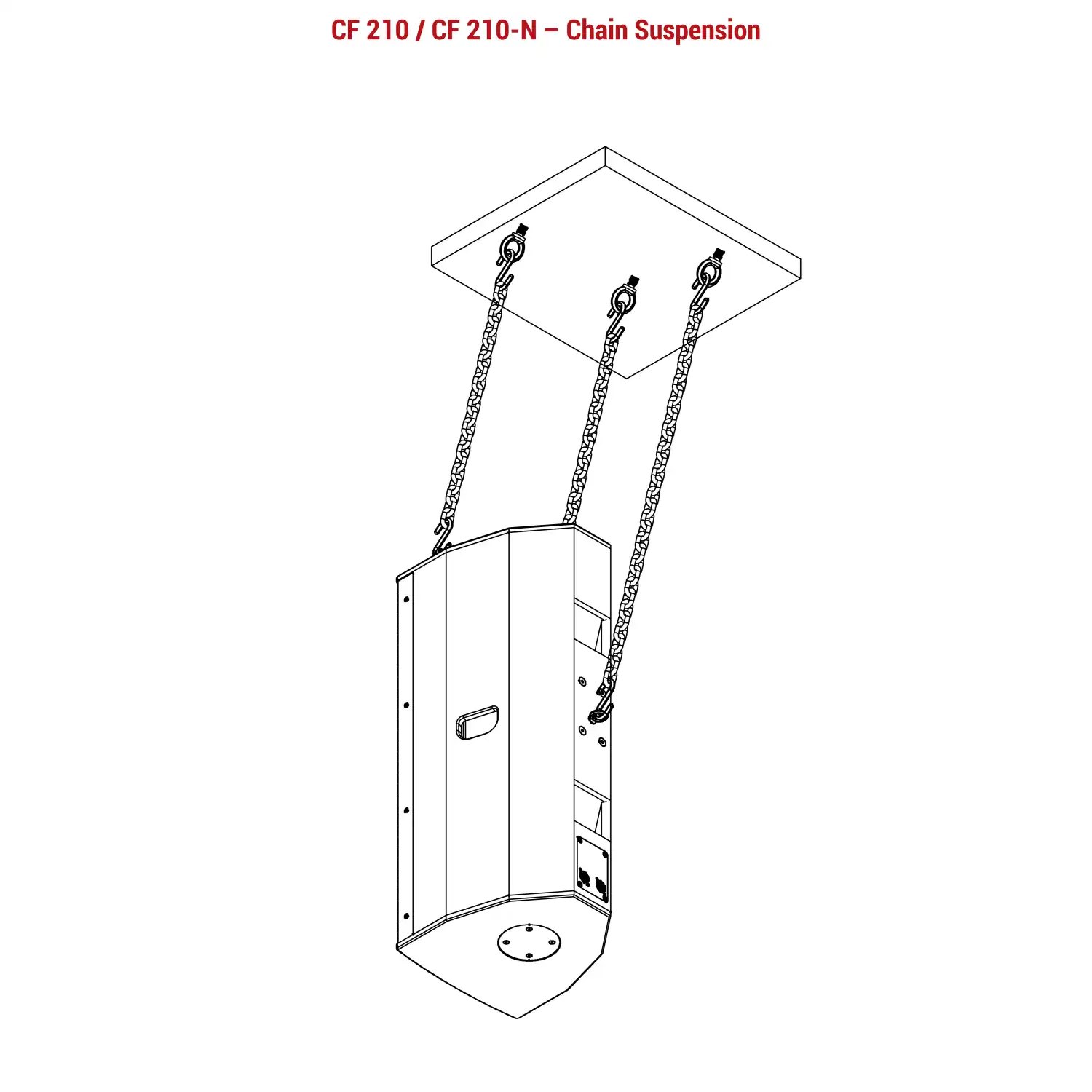

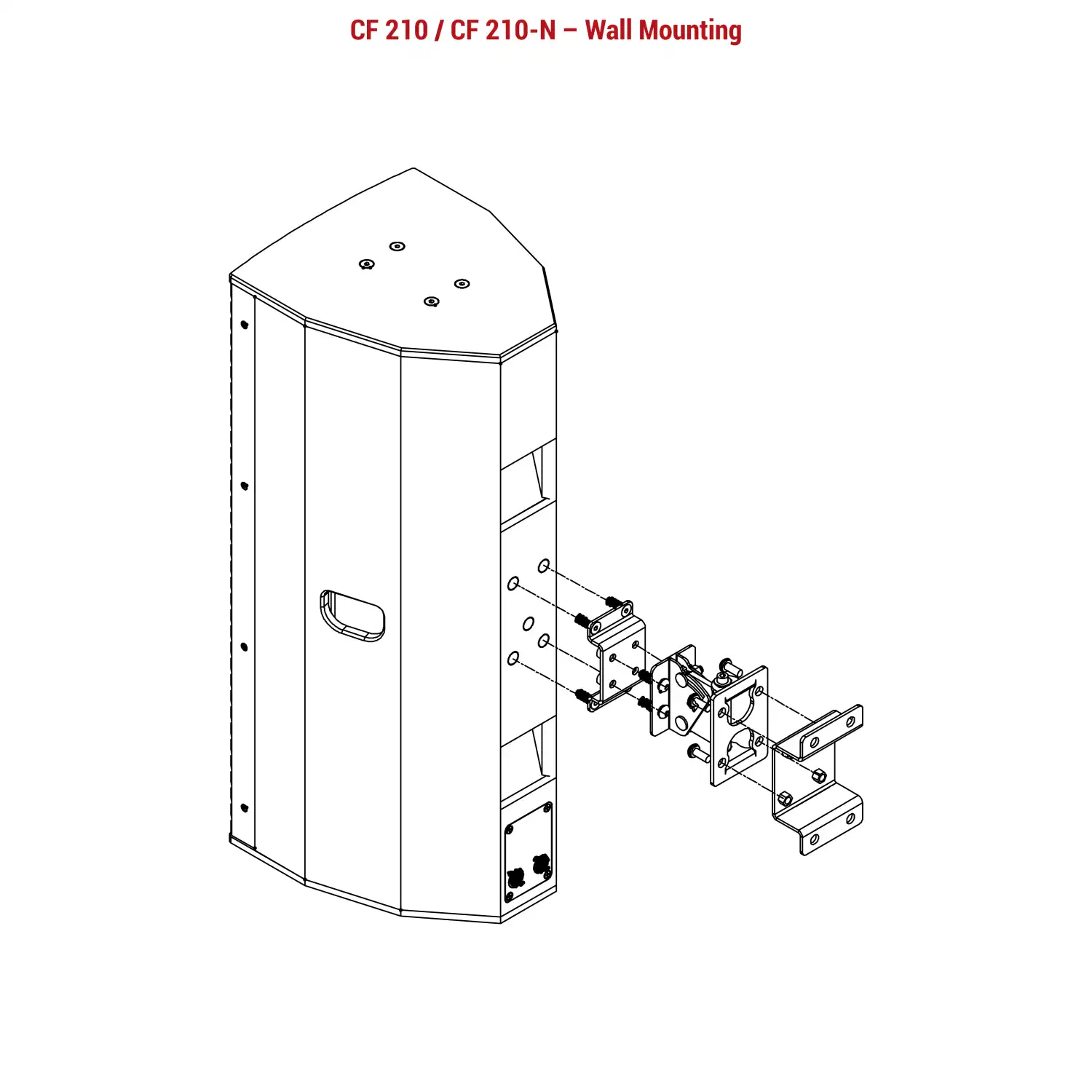

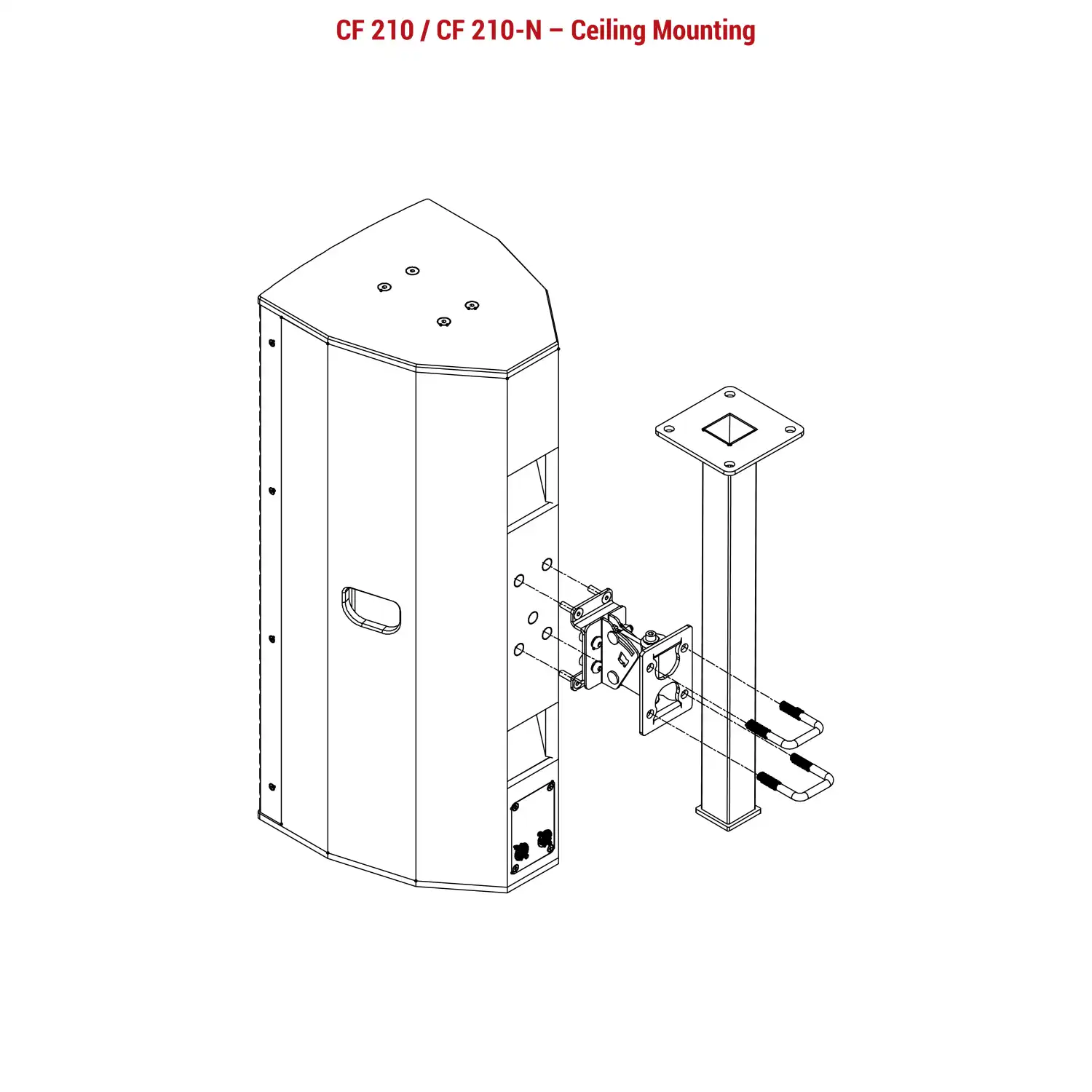

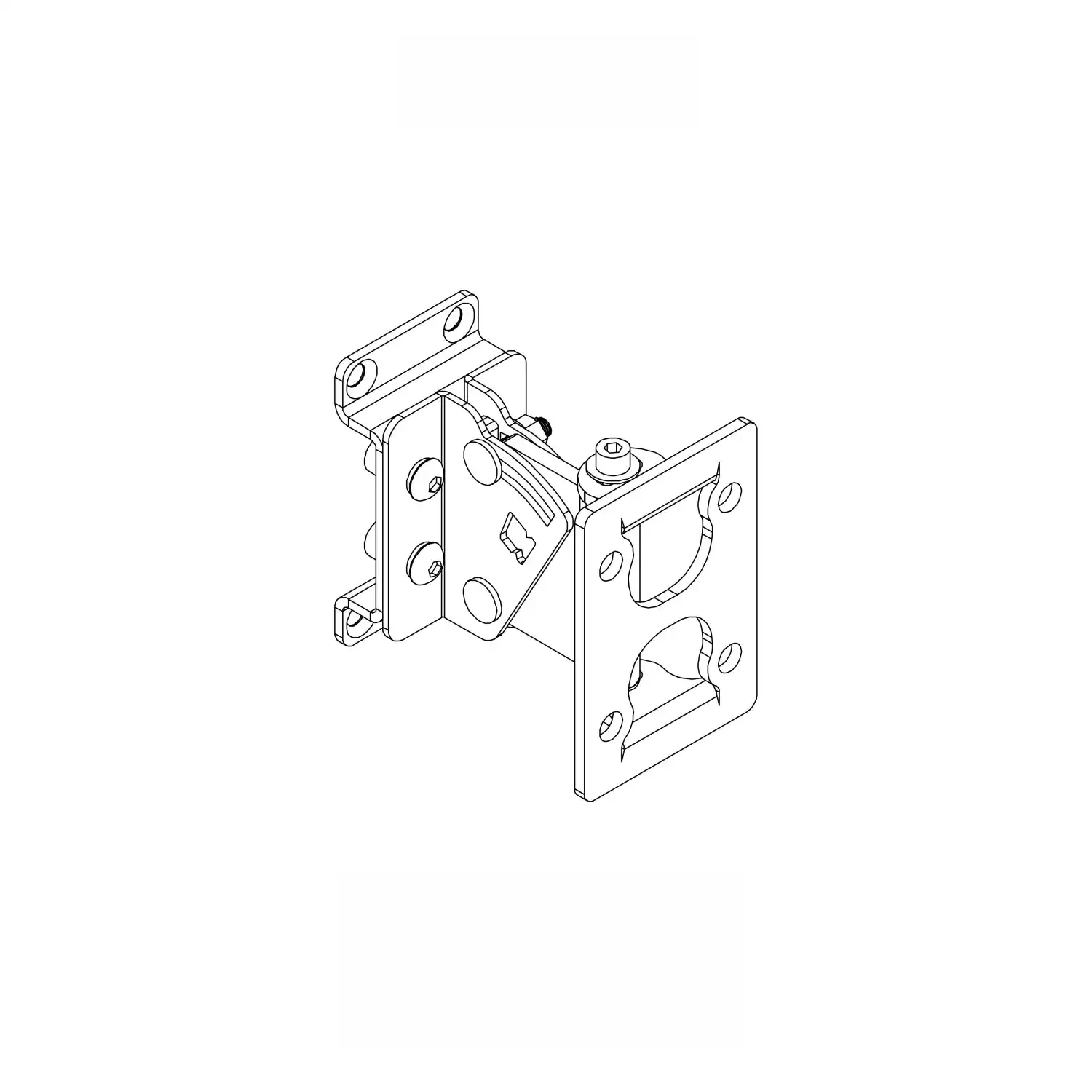

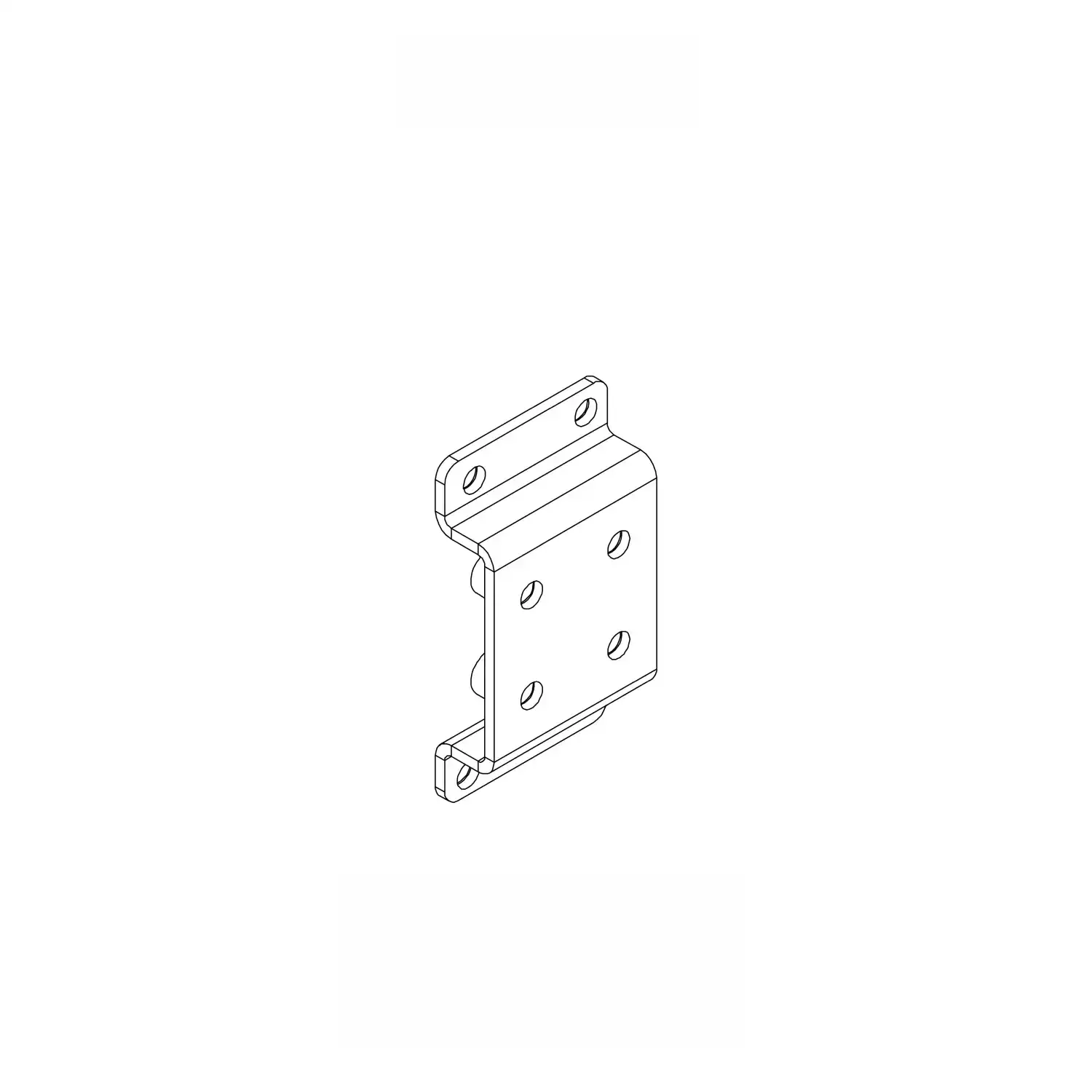

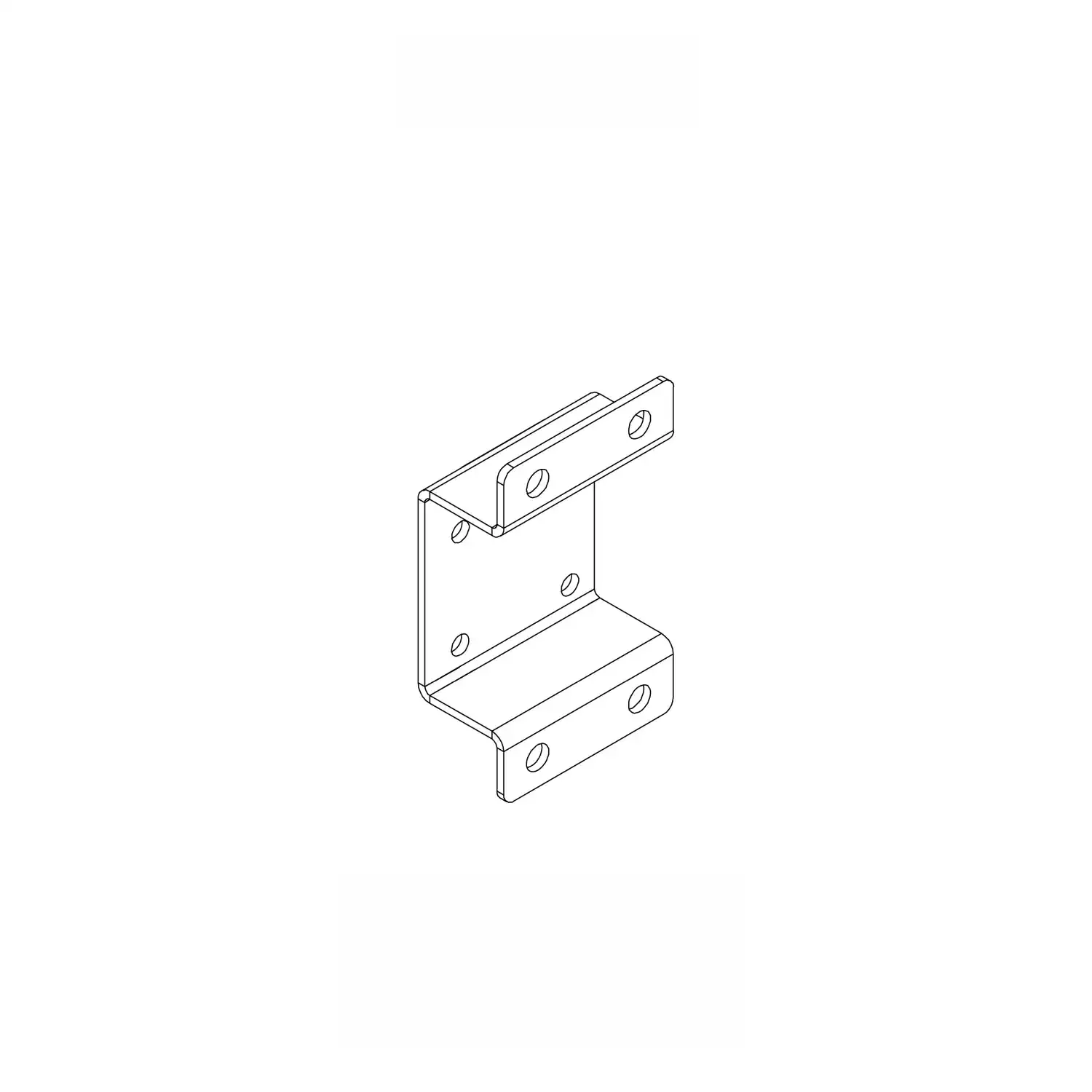

- Flexible mounting options with mounting points both on top and behind.
- Ideal for installation and mobile use
- Perforated grill
- Standard black finish
- Mounting points both at the top and rear
- Top hat
Applications
- A/V application and presentations
- Live performances.
- Clubs.
- Auditoriums and large conference rooms
- Bars and lounges
- Places of worship
Technical Specification
| MODEL | CF 210 |
|---|---|
| Type | Two-way passive, full range loudspeaker |
| Frequency Response (1) | 70Hz-20kHz ± 3dB |
| Drivers | LF:2x10" (250mm)/ with 3" (with a 75mm voice coil), HF: 1" (with a 44mm voice coil) |
| Recommended Amplifier Upto | 1000W |
| Sensitivity (1 W / 1 m) | 101 W / m |
| Maximum SPL (9) | 127dB continuous, 133dB peak |
| Nominal Impedance | 4 ohms |
| Dispersion | 60° x 50° |
| Crossover | HPF 110Hz |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | IMF: +1, - 1 |
| Standard Colour | Black / White |
| Fittings | Flying Points, Top Hat |
| Horn | Rotatable |
| Rated Power | LF: 600 Watts |
| Accessories | Caster, Speaker poles, Felted waterproof covers |
| Dimensions - Product (in mm) | (W) 310 x (H) 821 x (D) 356 |
| Dimensions - Including packing (in mm) | (W) 350 x (H) 861 x (D) 395 |
| Net weight (kgs) | 34 |
| Shipping Weight (kgs) | 38 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
