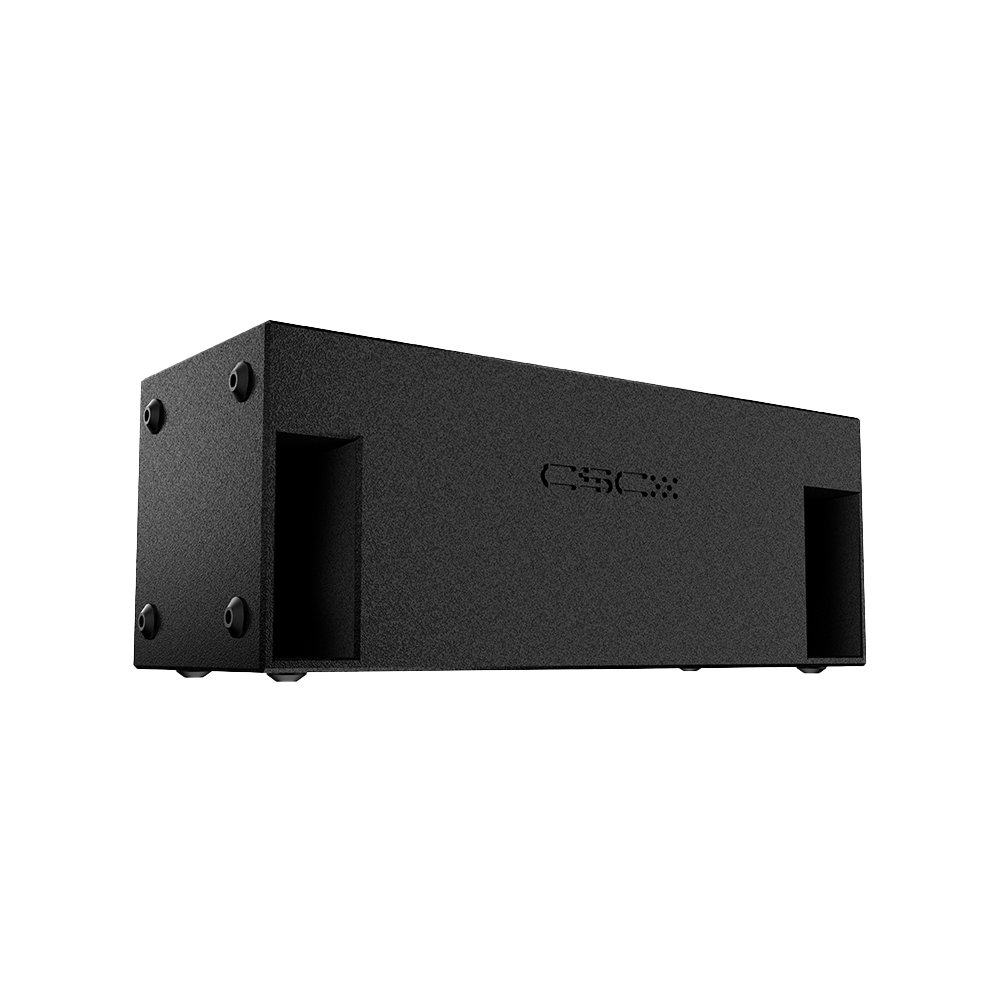

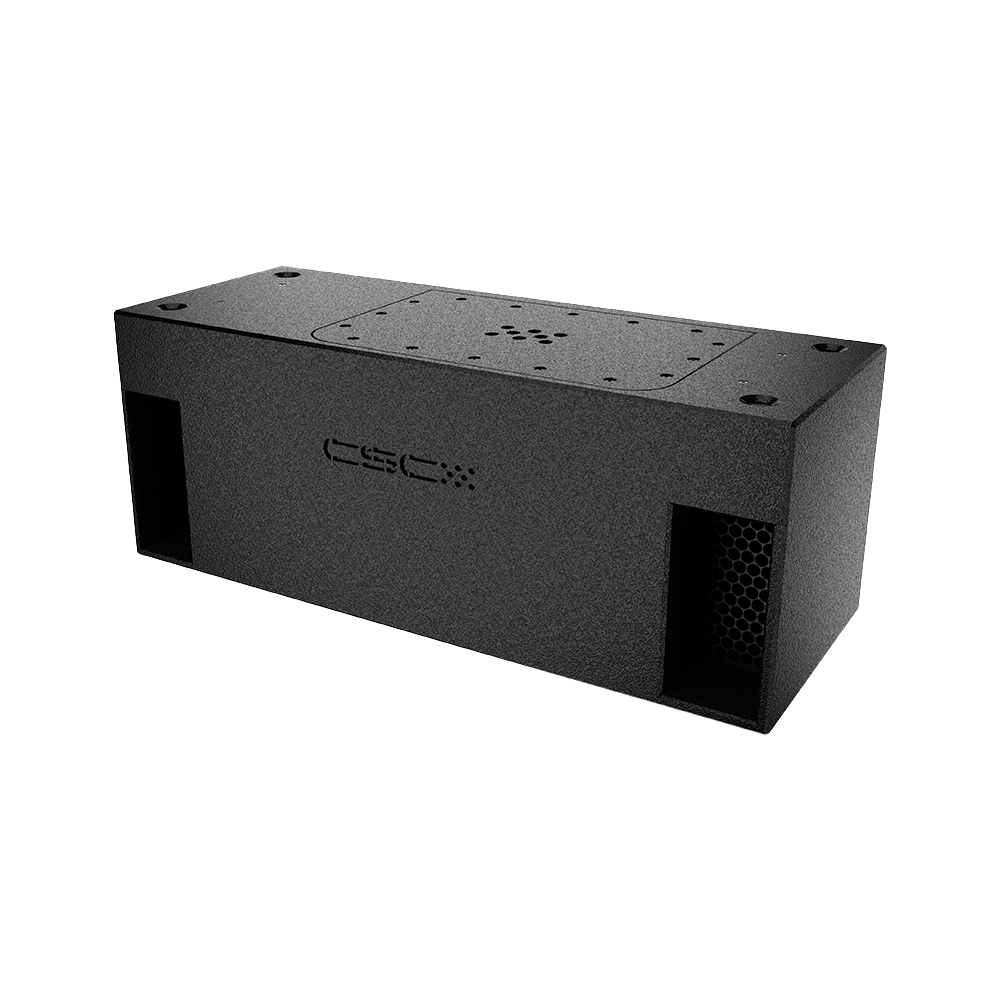

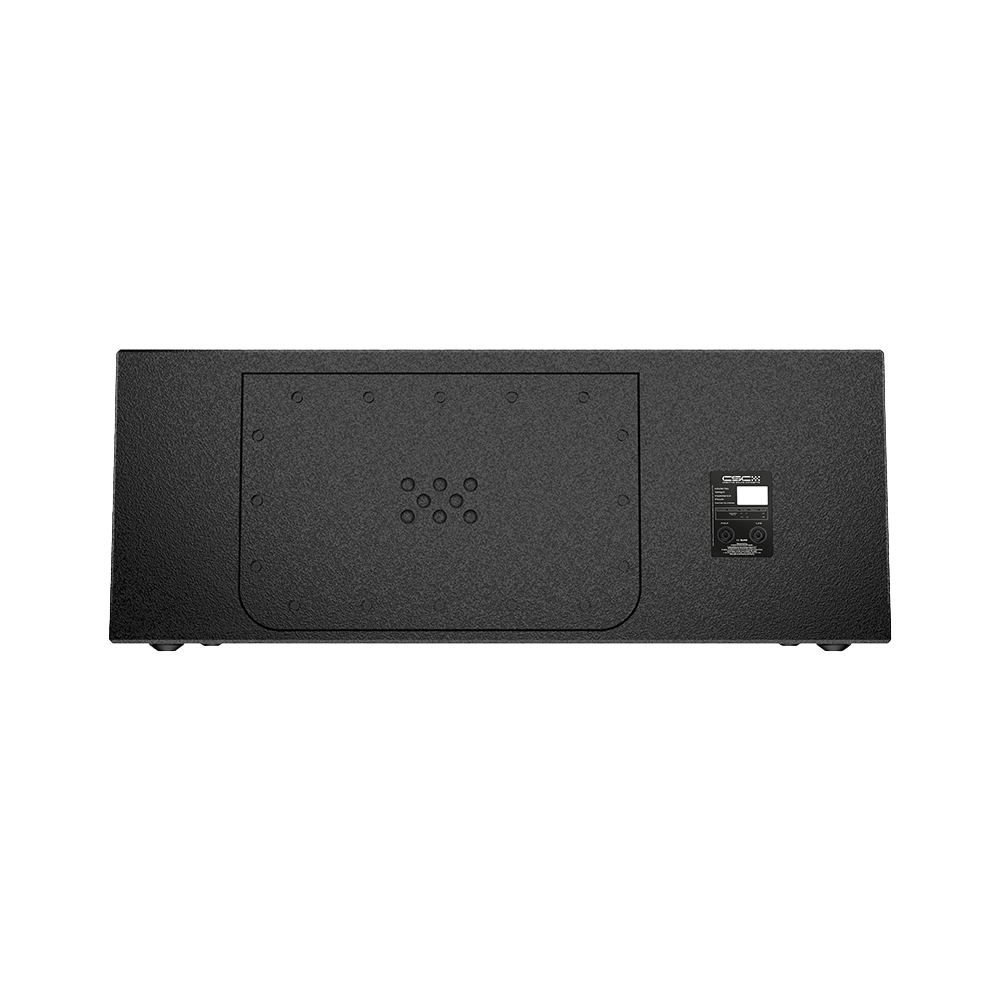

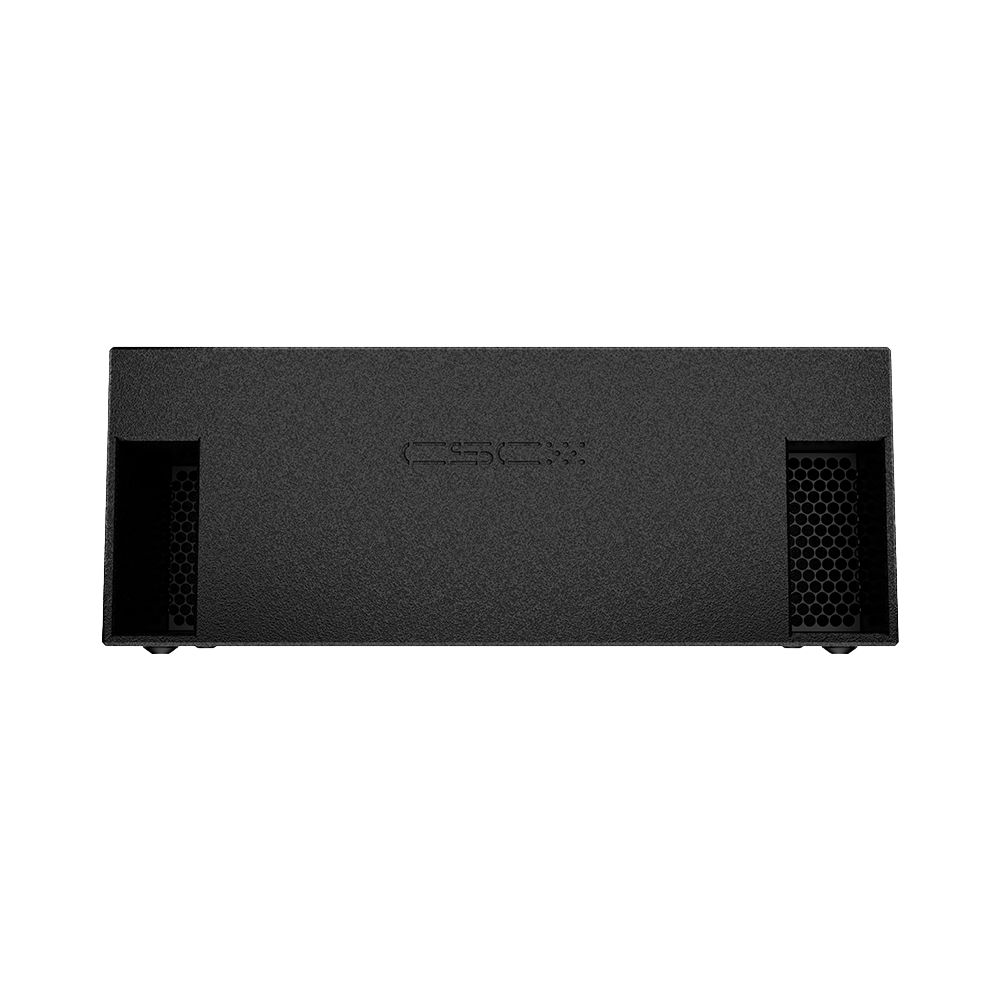

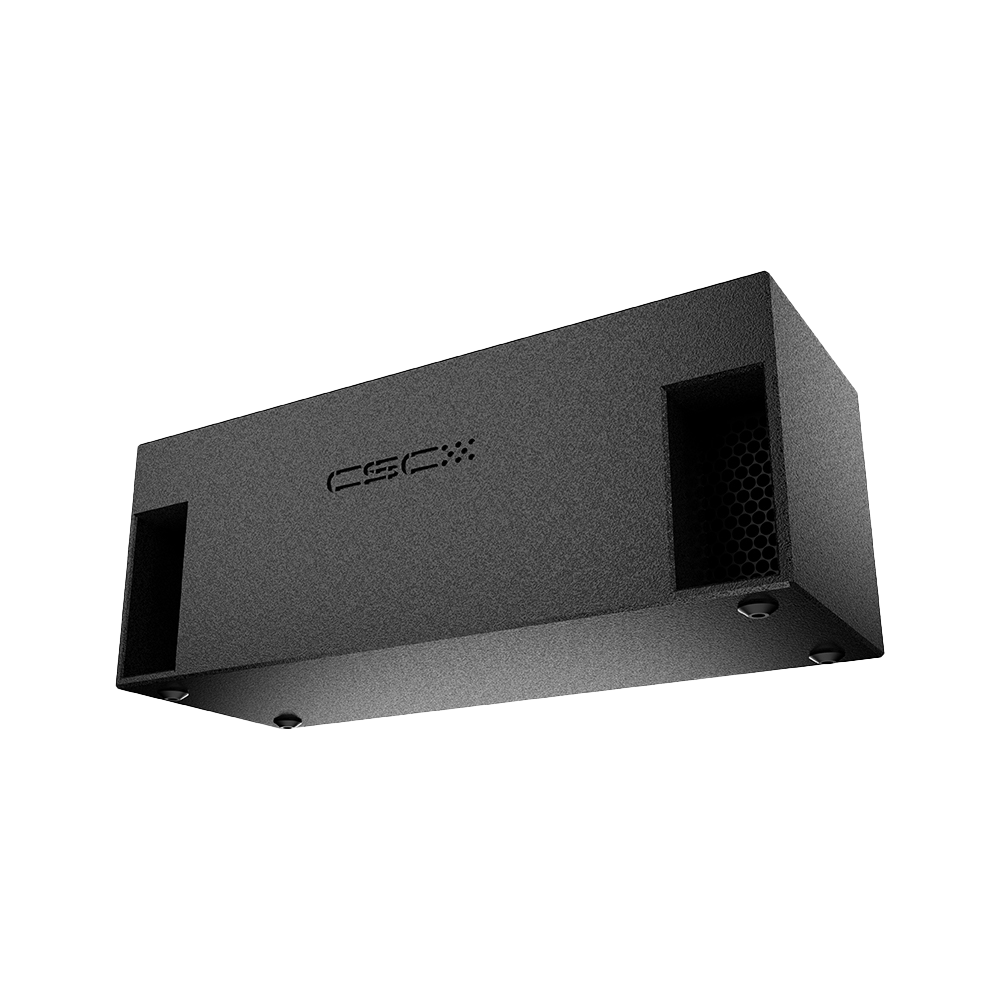

Contrabass Series CB 15s
Engineered for Impact: Experience Bass Like Never Before!
The Contrabass range of low profile sub-woofers are intended to be heard not seen. The trend for high standard interiors in entertainment and catering venues requires sub-woofers to be incorporated without taking up valuable floor space. It can be placed under a seat, next to a column and can be easily mounted on the ceiling and walls. These can also conveniently be built into stages, steps and vertical columns, creating an illusion of invisible sub-woofers. Designed to complement all the Cello series tops, it adds significantly more bass energy and body to the sound, while improving the mid clarity by taking the stress away from the smaller mid drivers on the main cabinets it can custom match any decor upon request, owing to its innovative grill-less design.
Contrabass CB 15s employs a 600 Watt, low-frequency driver using a 4” (100 mm) voice coil.
For demanding applications, the CSC Maestro MS 26 controller is configured to perform with it’s EQ and limiter functions are pre-loaded in the controller. CC 8, CF 10, CF 12, CF 15, CF 12h are a perfect match for CB 15s and CB 215s. CF 5,CF 205, CC 8, are a perfect match for CB 12s.
Key Features
- Compact, high-performance, band-pass 12" or 15” sub- woofer
- Fast, integral wall/ceiling mounting frames
- Vertical and horizontal mounting options
- Easy and fast to install
- Can retrofit in existing venues
- Grill-less design to optimize the performance and colour options
Applications
- Lounges and bars
- Gyms
- Museums and A/V spaces
- Hotels
- Homes
- Places of worship
- Music rooms
Technical Specification
| MODEL | CB 15s |
|---|---|
| Type | Compact, Band pass sub-woofer |
| Frequency Response (1) | 45 Hz-150 Hz ± 3 dB |
| Drivers | LF: 15" (375 mm) with a 4" (100 mm) voice coil |
| Recommended Ampli?er Upto | 1200 Watt |
| Sensitivity (1 W/1 m) | 98 dB |
| Maximum SPL (9) | 123 dB continuous, 129 dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | Omni |
| Crossover | 100 Hz active / passive low pass filter |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Internal Steel Grill |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | Input ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Integral feet |
| Horn | NA |
| Rated Continuous Power AES | 600 Watts |
| Rated Maximum Power/Program Power | 1200 Watts |
| Peak Power | 2400 Watts |
| Accessories | Ceiling mount kit |
| Dimensions - Product (in mm) | (W) 1014 x (H) 393 x (D) 383 |
| Dimensions - Including packing (in mm) | (W) 1031 x (H) 411 x (D) 404 |
| Net weight (kgs) | 38 |
| Shipping Weight (kgs) | 41 |
About Series
The Contrabass Series products capture the bold and dynamic characteristics of the contrabass. Choose between a Reflex, Multiload, or a bandpass; the Contrabass Series has it all. The aim is to deliver deep, impactful bass that defines the lower frequency extension of the audio spectrum, making them ideal for both live sound and installation applications. Engineered to ensure minimum cabinet resonance, they disappear in a venue and are in different shapes and sizes that fit under a stairway, stand next to a column, or simply can be slipped under a stage without losing the high-impact performance. These subwoofers enhance low-frequency extension and overall audio presence, making them perfect for high-energy environments. These are ideally paired with the Cello and String Series mid-highs. Choose from our range of Contrabass and String series subwoofers to play, hear, and feel the music.
