Contrabass Series CR 10s
Engineered for Impact: Experience Bass Like Never Before!
CR 10 integrate seamlessly in small venues, including homes & other A/V applications. As the trend of discreet installations in interiors continues to grow, these sub-woofers are designed to be concealed and occupy minimal floor space.
A combination with the String or Cello series tops make a fabulous system, and it is recommended for use in situations where a user requires a low-end extension for ambient music. This unconventionally shaped neutral appearance can be installed on ceilings, against walls or hidden under seating. When used in multiples, they can cover a relatively large space & blends nicely with the interiors. The speakers are available in custom colours. CR 210s can be placed in a corner as a table, & it is a perfect fit for small venues, including homes & other AV applications. These cabinets are available in custom colours.

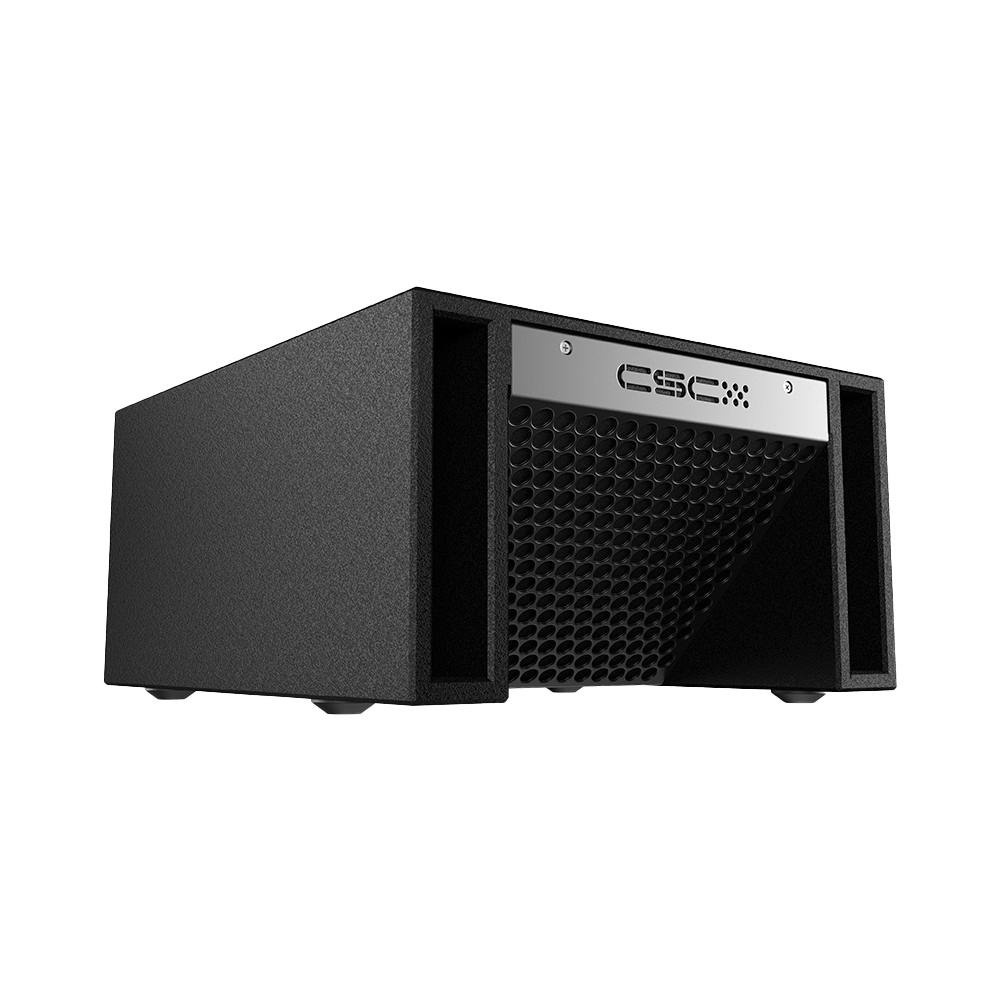

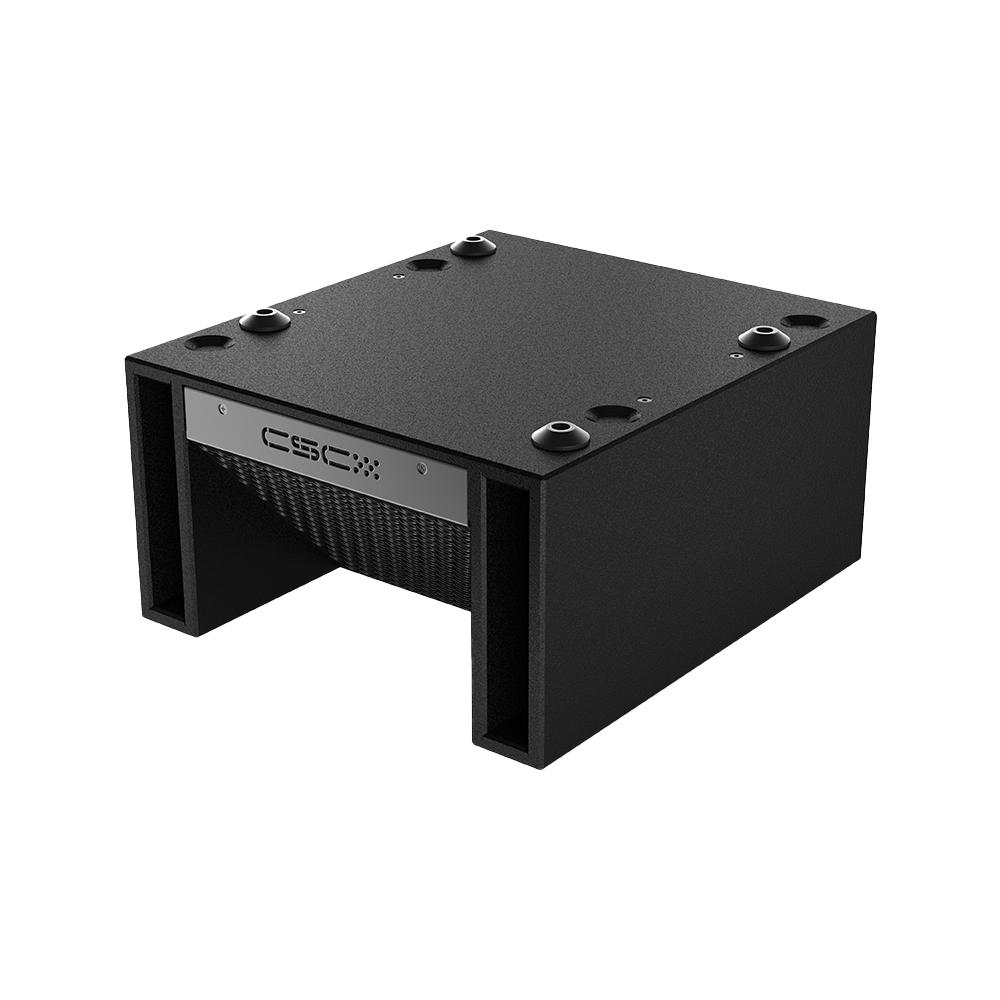

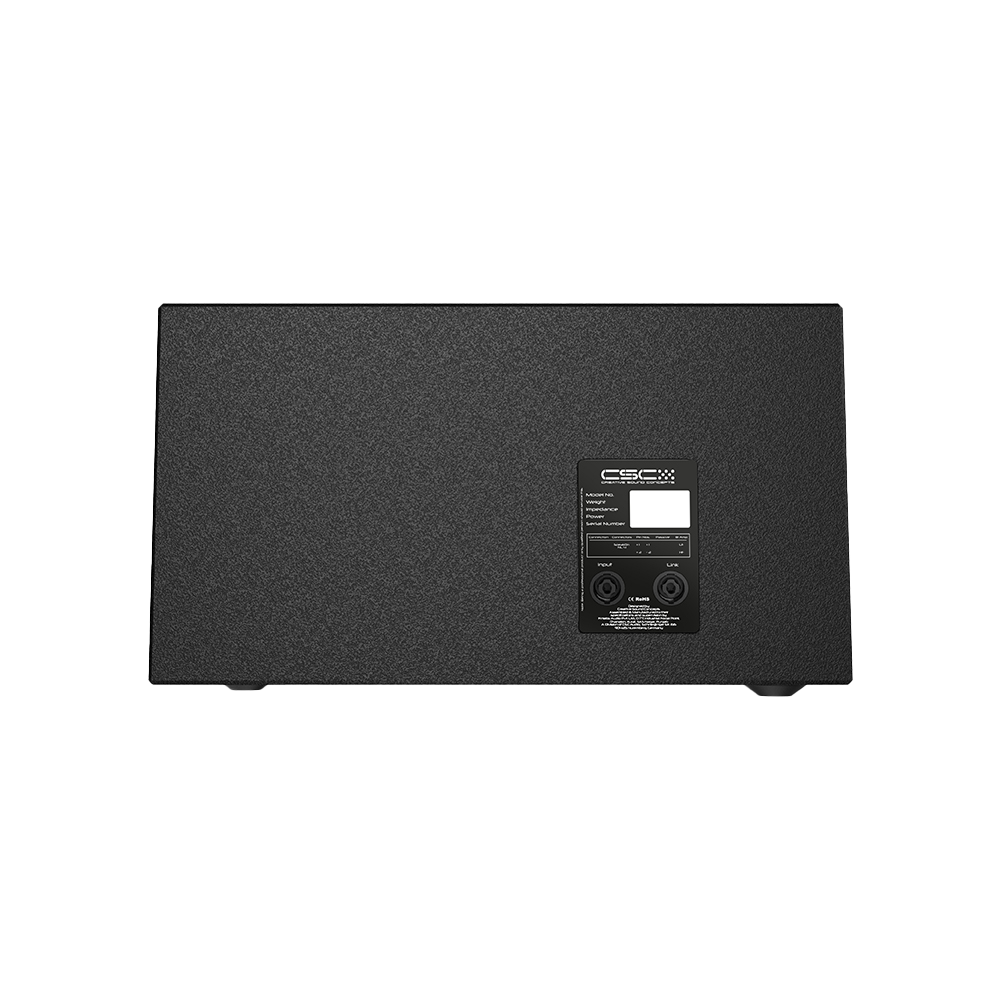

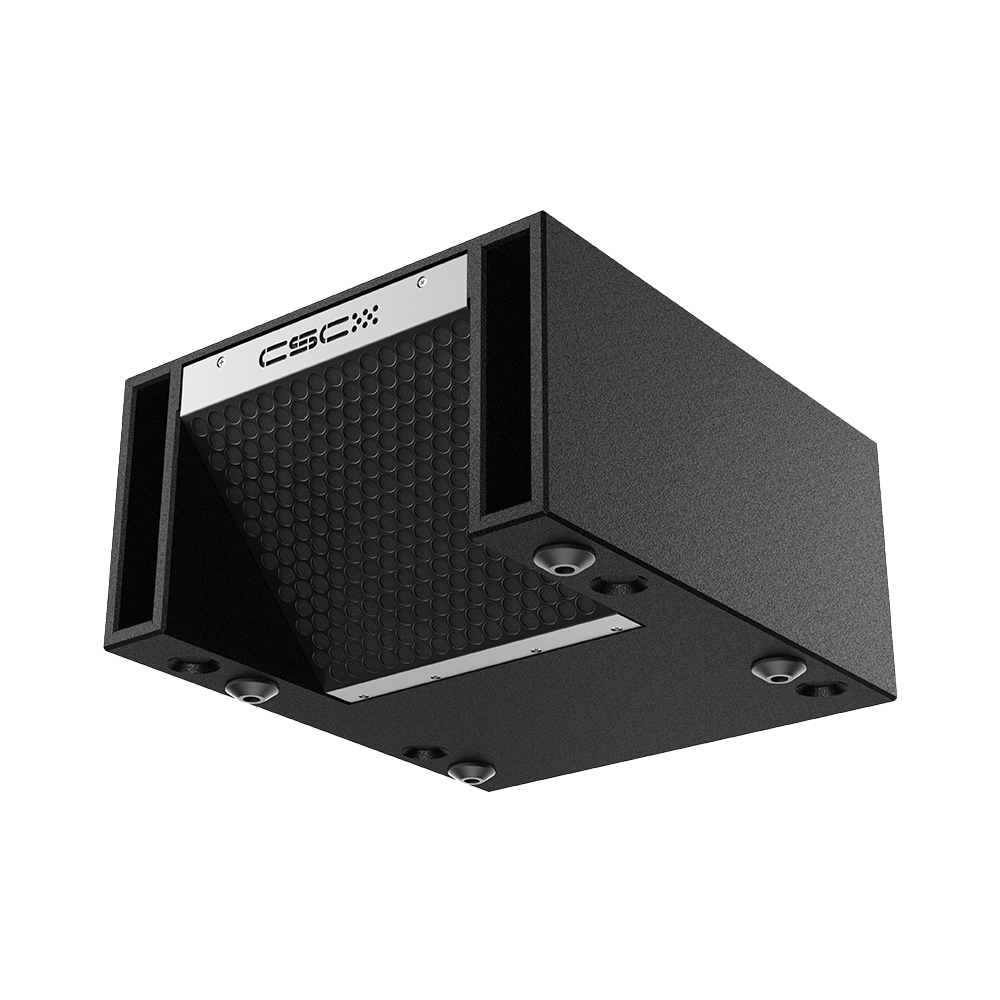

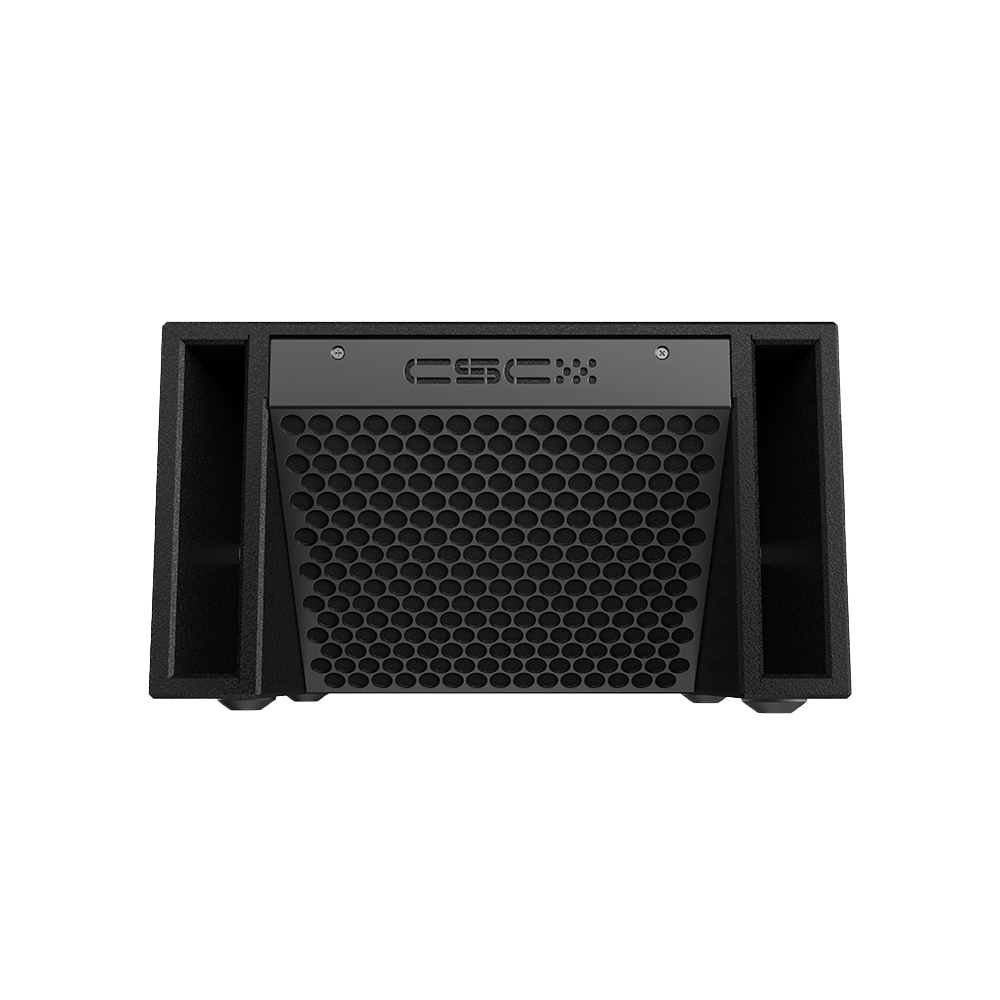

Contrabass CR 10s is a low-profile, 10" (254mm) high energy, reflex-loaded sub-woofer intended for low visibility installations.
Key Features
- Compact, high-performance, reflex-loaded dual 10" (254 mm) sub-woofer
- Fast, integral wall/ceiling mounting clamp
- Easy to install
- Can retrofit into existing venues
- Less than 9" tall, it can easily go under a stairway
Applications
- Restaurants
- A/V spaces
- Conference rooms
- Bars and lounges
- Gyms
- Homes
Technical Specification
| MODEL | CR 10s |
|---|---|
| Type | Compact, Reflex Loaded Sub-woofer |
| Frequency Response (1) | 48 Hz-300 Hz ± 3 dB |
| Drivers | LF: 10" (254 mm) with a 2" (50 mm) voice coil |
| Recommended Amplifier Upto | 600 Watts |
| Sensitivity (1 W / 1 m) | 94 dB |
| Maximum SPL (9) | 115 dB continuous, 121 dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | Omni |
| Crossover | LPF 110Hz |
| Enclosure | Baltic birch ply |
| Finish | Textured black |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Integral feet |
| Horn | NA |
| Rated Continuous Power AES | 300 Watts |
| Rated Maxium Power/Program Power | 600 Watts |
| Peak Power | 1000 Watts |
| Accessories | NA |
| Dimensions - Product (in mm) | (W) 453 x (H) 272 x (D) 511 |
| Dimensions - Including packing (in mm) | (W) 477 x (H) 290 x (D) 536 |
| Net weight (kgs) | 17 |
| Shipping Weight (kgs) | 19 |
About Series
The Contrabass Series products capture the bold and dynamic characteristics of the contrabass. Choose between a Reflex, Multiload, or a bandpass; the Contrabass Series has it all. The aim is to deliver deep, impactful bass that defines the lower frequency extension of the audio spectrum, making them ideal for both live sound and installation applications. Engineered to ensure minimum cabinet resonance, they disappear in a venue and are in different shapes and sizes that fit under a stairway, stand next to a column, or simply can be slipped under a stage without losing the high-impact performance. These subwoofers enhance low-frequency extension and overall audio presence, making them perfect for high-energy environments. These are ideally paired with the Cello and String Series mid-highs. Choose from our range of Contrabass and String series subwoofers to play, hear, and feel the music.
