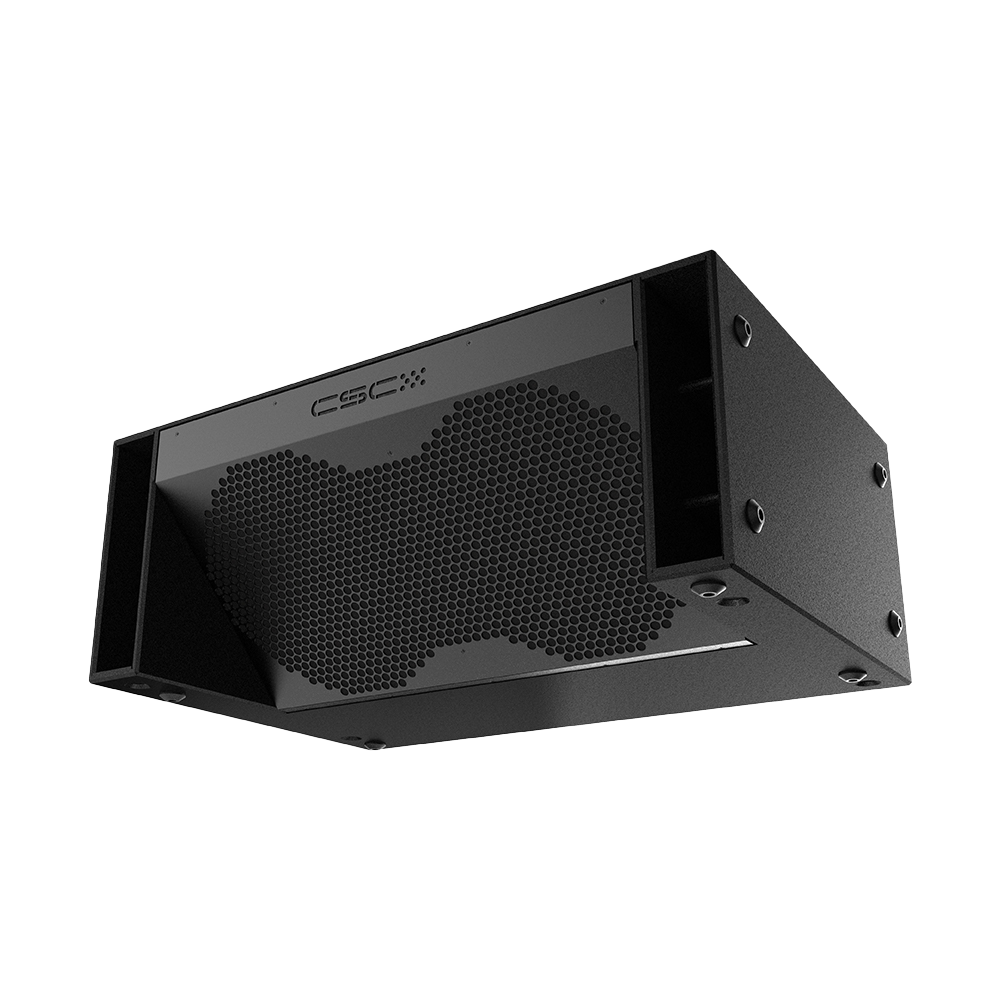

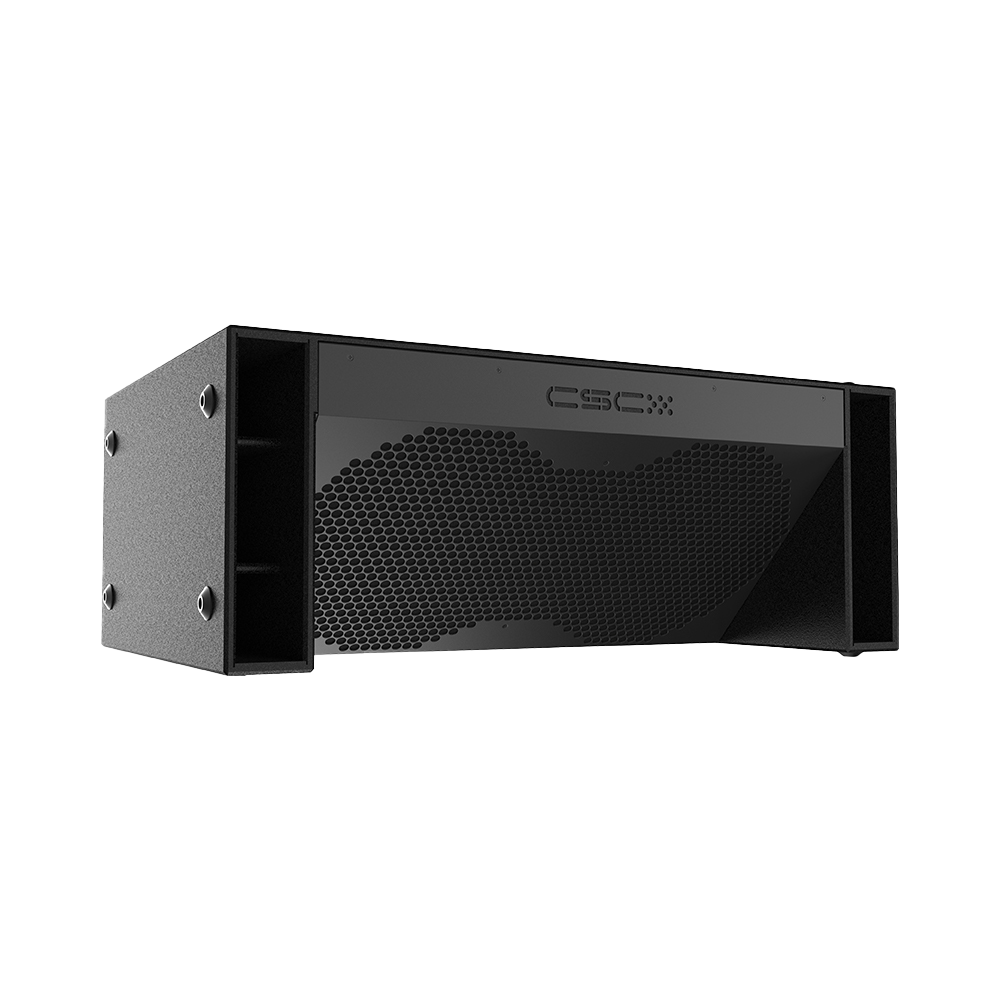

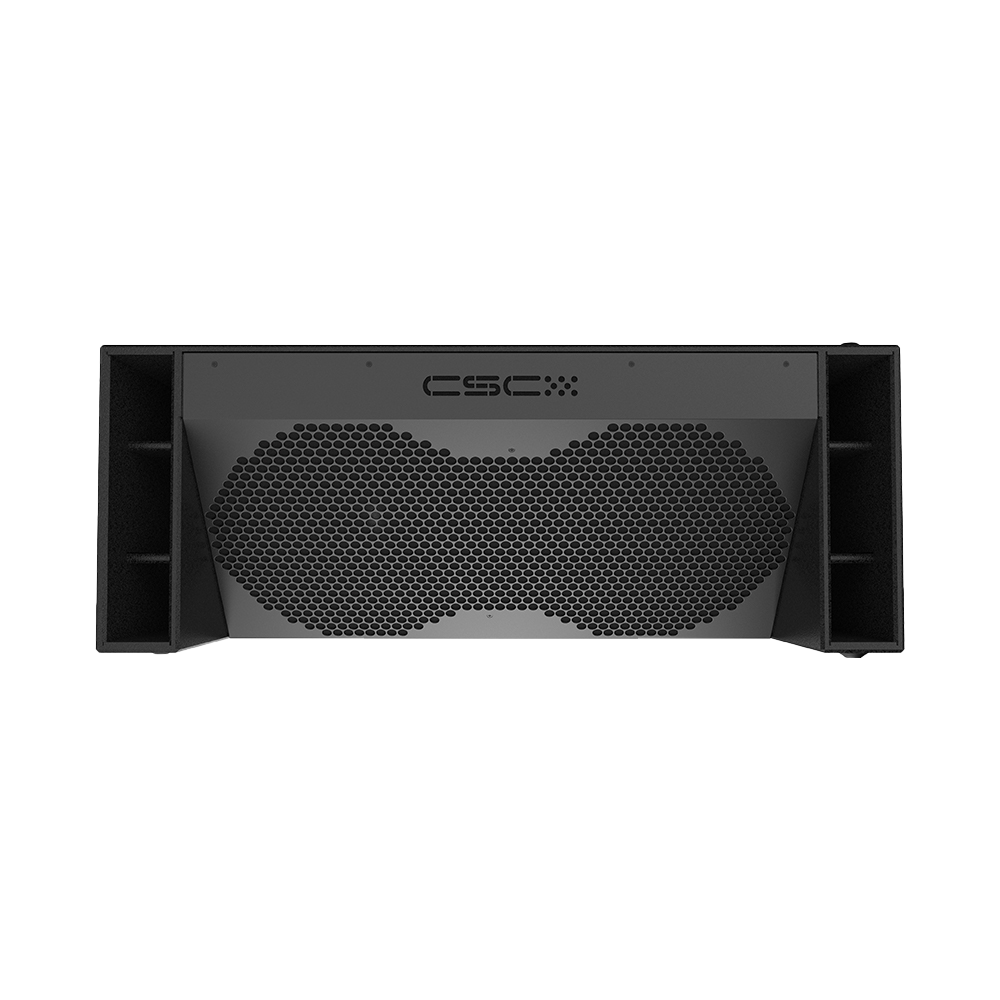

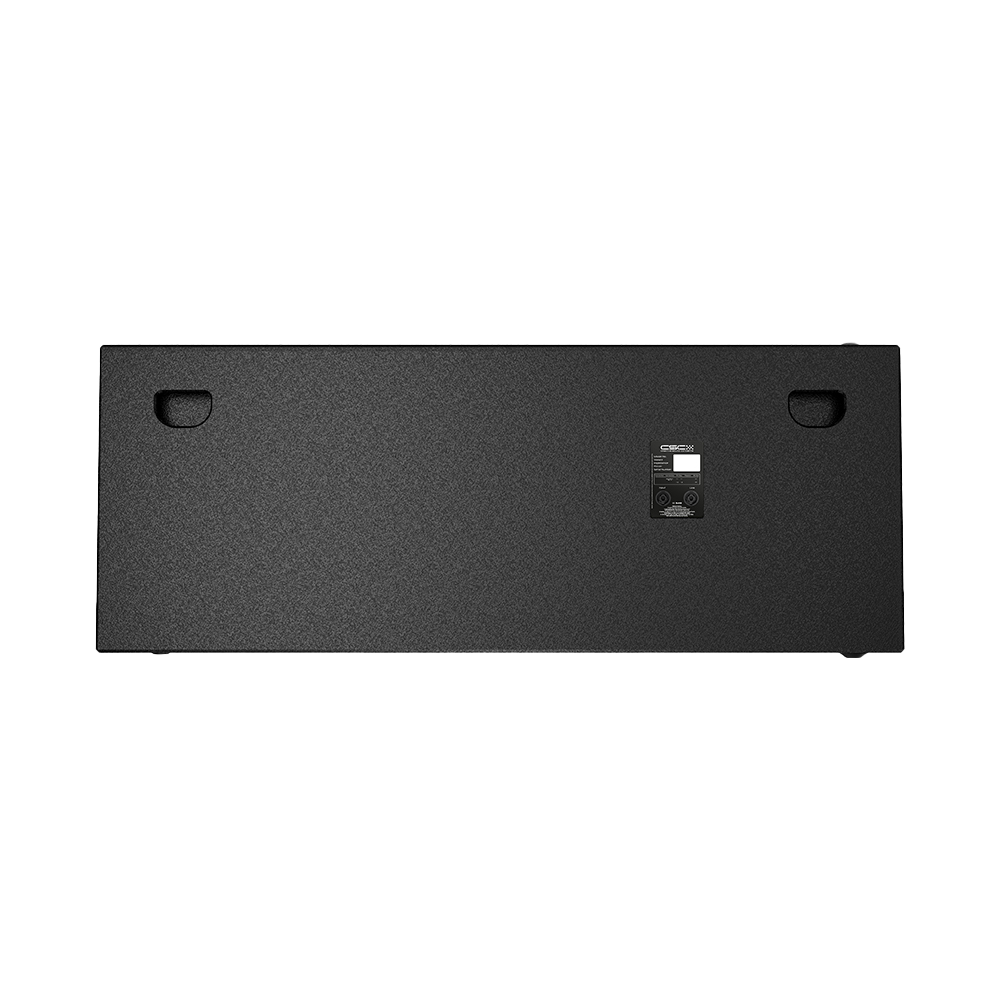

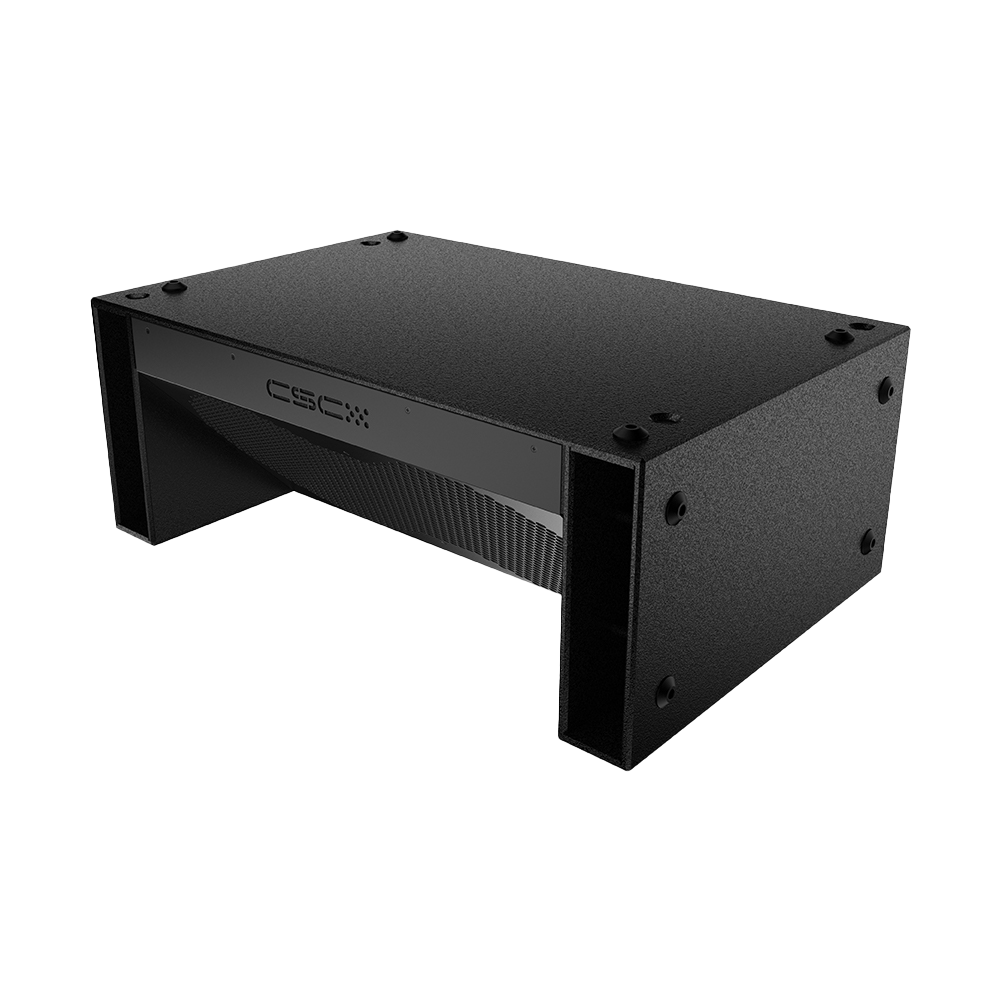

Contrabass Series CR 218s
Engineered for Impact: Experience Bass Like Never Before!
These reflex-loaded single and dual 18 in (450 mm) sub-woofers are the main system optimized for use with the Cello series top cabinets. Designed to extend the low frequency response on all systems, these are ideal for use in live band performances and dance clubs. These versatile sub-woofer are less than 475 mm in height and can go under stages in venues with height restrictions. These extensively adds more bass dynamics to the sound system, while improving the mid clarity by taking the tension away from the smaller mid drivers on the main cabinets.
Contrabass CR 218s is a 1400 Watt, dual 18” sub-woofer with an industry standard 4” voice coil.
For demanding applications, the CSC Maestro MS 26 controller is configured to perform with its EQ and limiter functions are pre-loaded in the controller. CC 8, CF 10, CF 12, CF 15, CF 12h, RR 15h and RR 212h are a perfect match for CR 218s.
Key Features
- Compact, high- performance
- Reflex-loaded, 18” sub-woofer
- Easy and fast to install
- Can retrofit in existing venues
Applications
- Auditoriums
- Concerts and live performances
- Nightclubs and loud bars
- Places of worship
Technical Specification
| MODEL | CR 218s |
|---|---|
| Type | Compact, Reflex loaded Sub-woofer system |
| Frequency Response (1) | 35 Hz-250 Hz ± 3 dB |
| Drivers | LF: 2 x 18" (450 mm) with a 4" (100 mm) voice coil |
| Recommended Amplifier Upto | 3200 Watt |
| Sensitivity (1 W / 1 m) | 101 dB |
| Maximum SPL (9) | 133 dB continuous, 139 dB Max |
| Nominal Impedance | 4 Ohms |
| Dispersion | Omni |
| Crossover | 100 Hz active / passive low pass filter |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl4 |
| Pin Connections | Input ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rubber feet |
| Horn | NA |
| Rated Continuous Power AES | 1600 Watts |
| Rated Maxium Power/Program Power | 3200 Watts |
| Peak Power | 6400 Watts |
| Accessories | NA |
| Dimensions - Product (in mm) | (W) 1200 x (H) 474 x (D) 777 |
| Dimensions - Including packing (in mm) | (W) 1226 x (H) 494 x (D) 806 |
| Net Weight (kgs) | 69 |
| Shipping Weight (kgs) | 76 |
About Series
The Contrabass Series products capture the bold and dynamic characteristics of the contrabass. Choose between a Reflex, Multiload, or a bandpass; the Contrabass Series has it all. The aim is to deliver deep, impactful bass that defines the lower frequency extension of the audio spectrum, making them ideal for both live sound and installation applications. Engineered to ensure minimum cabinet resonance, they disappear in a venue and are in different shapes and sizes that fit under a stairway, stand next to a column, or simply can be slipped under a stage without losing the high-impact performance. These subwoofers enhance low-frequency extension and overall audio presence, making them perfect for high-energy environments. These are ideally paired with the Cello and String Series mid-highs. Choose from our range of Contrabass and String series subwoofers to play, hear, and feel the music.
