String Series ST 8 / ST 8t
Compact Design, Massive Impact: Loudspeakers that Deliver
The String ST 8 / ST 8t is a versatile, two-way passive cabinet designed to provide exceptional sound reinforcement for both indoor and outdoor spaces. Crafted in Baltic Birch, this cabinet is a perfect option for fixed installation. The crossover design focuses on minimizing heat build-up, ensuring no compromise on transient response.
Be it a classroom, conference hall, airport, or an outdoor swimming pool, String ST 8 / ST 8t is a versatile solution. ST 8 / ST 8t with a 100v built-intransformer is perfect for a distributed sound system for indoor and outdoor applications.
String ST 8 / ST 8t features an 8 (200 mm) low-frequency driver and a 1" (25 mm) exit compression driver with a 1" (34 mm) voice coil mounted on a constant directivity of 75° x 65° horn. Depending on the application, the cabinet can be used either in its vertical or horizontal orientation. The LF driver is coupled to the HF horn through its optimally designed crossover.
String ST 8 / ST 8t performs perfectly out of the box. For demanding applications, the CSC Maestro MS 26 controller s configured to perform with it’s EQ and limiter functions are pre-loaded into the controller. Contrabass, CB 12s, CR 10s, CR 210s are a perfect match for ST 8.
Key Features
- Compact, two-way system
- Horn 75° x 65°

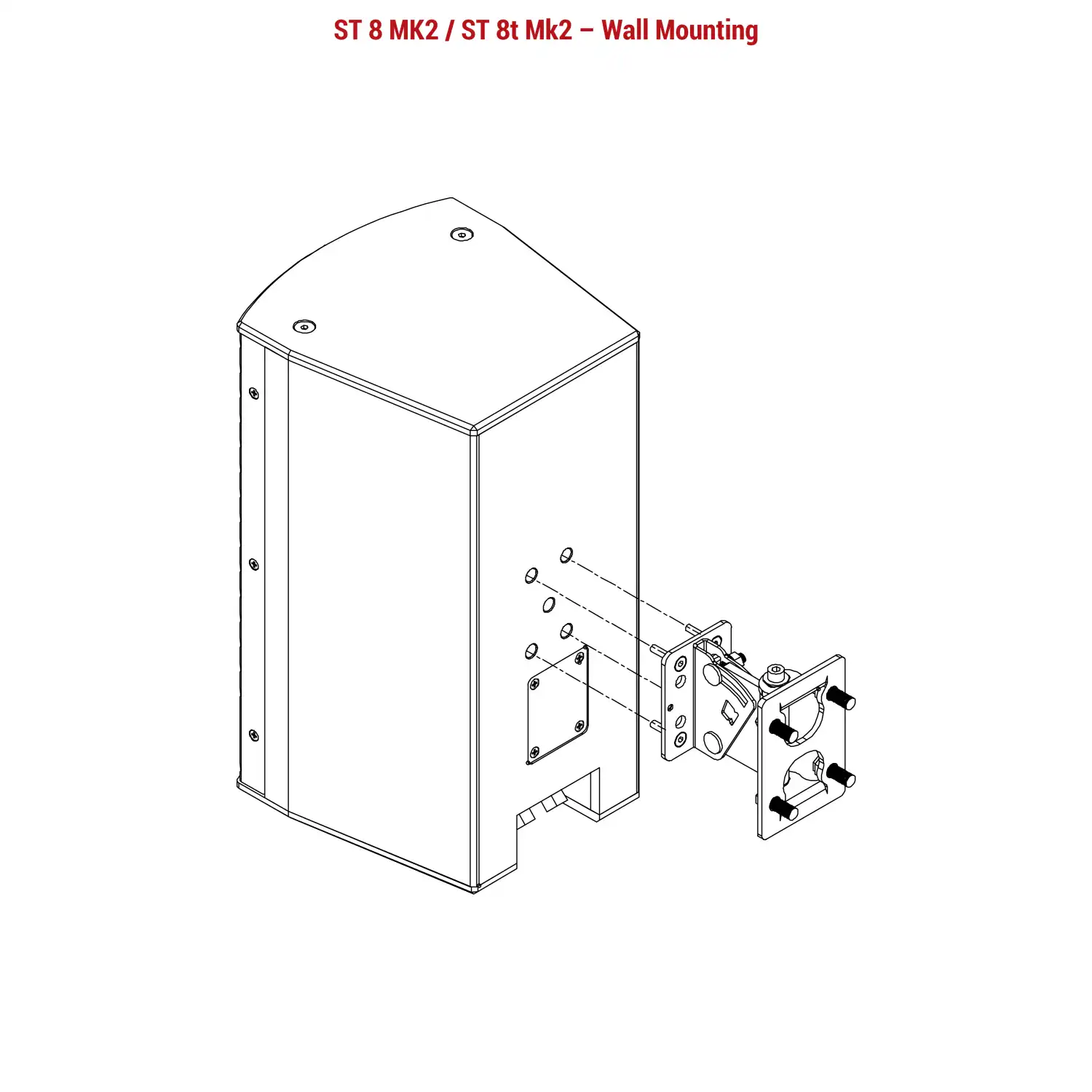

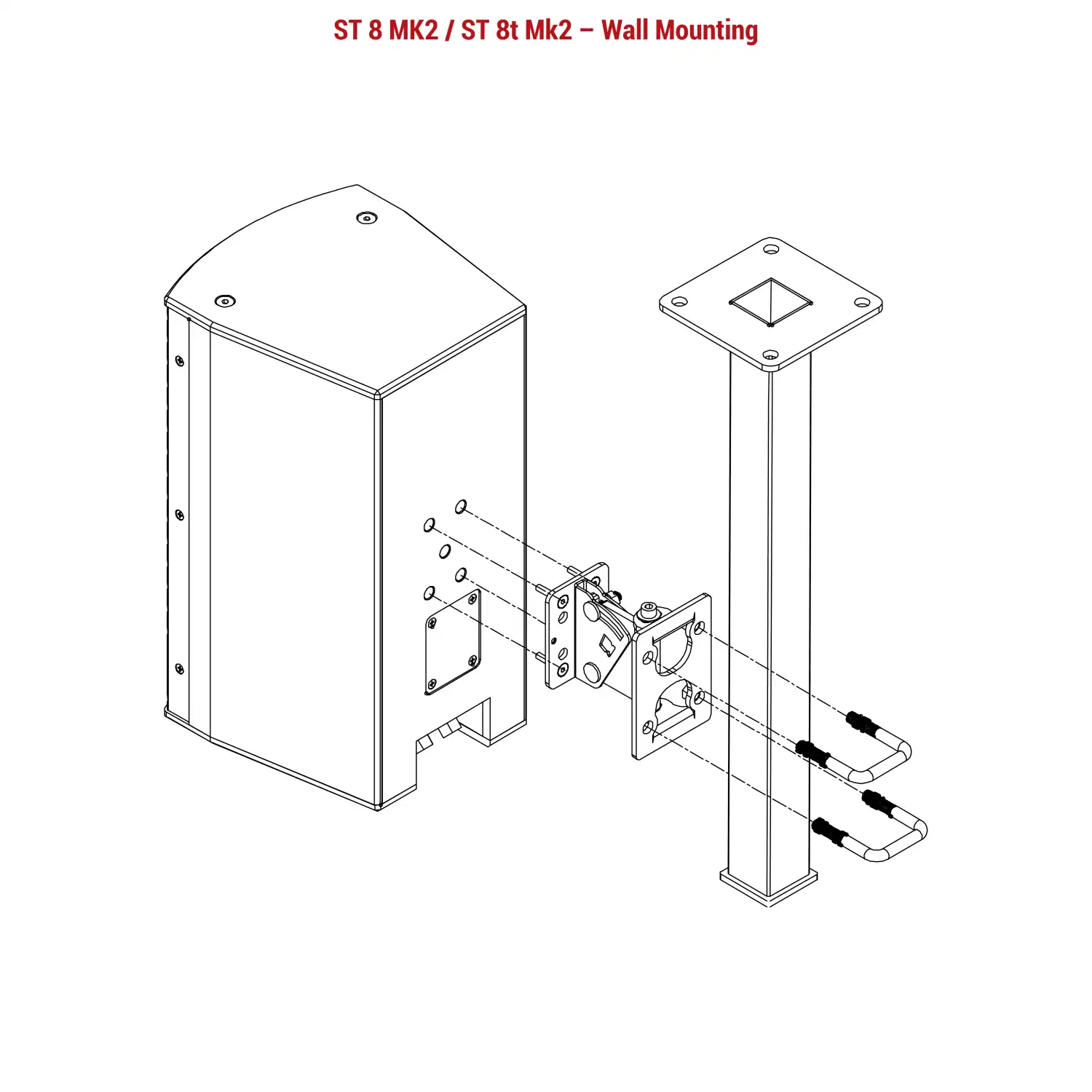

- Flexible mounting options
- Ideal for installation both indoors and outdoors

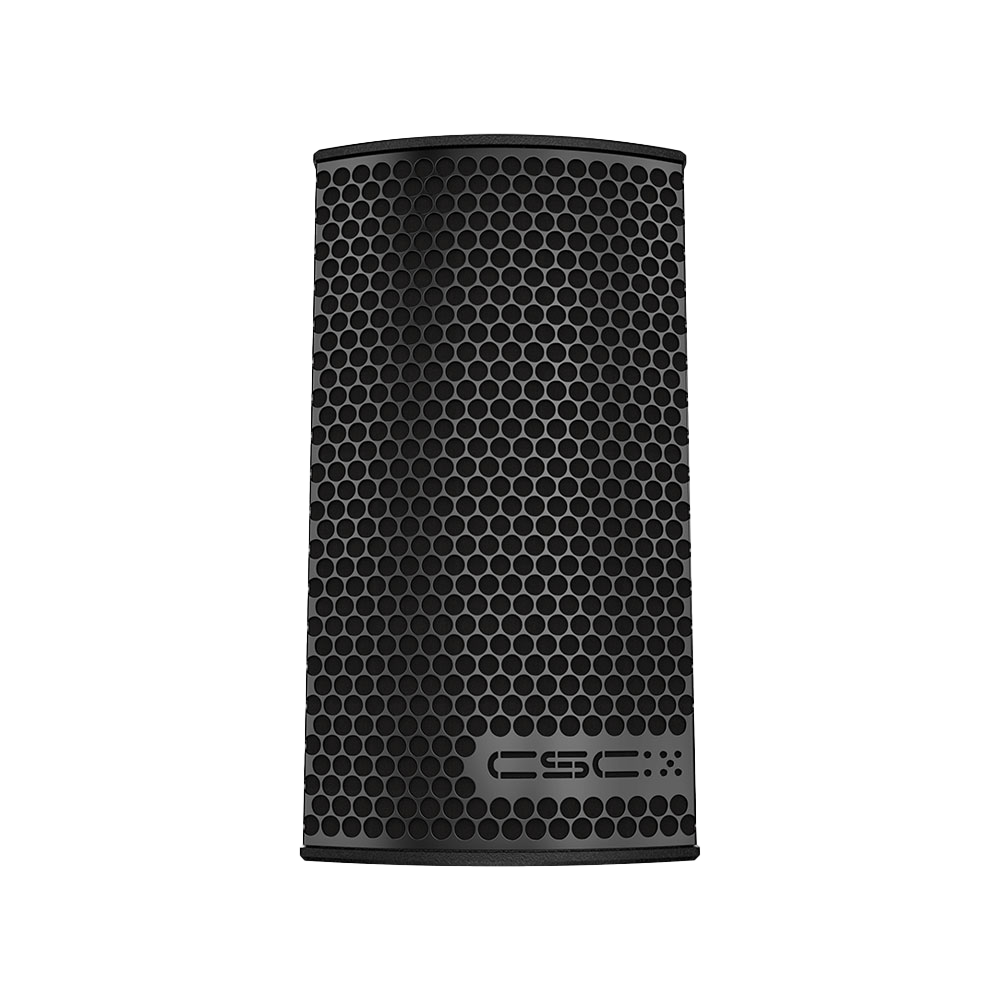

- With a perforated grill
- Standard black finish

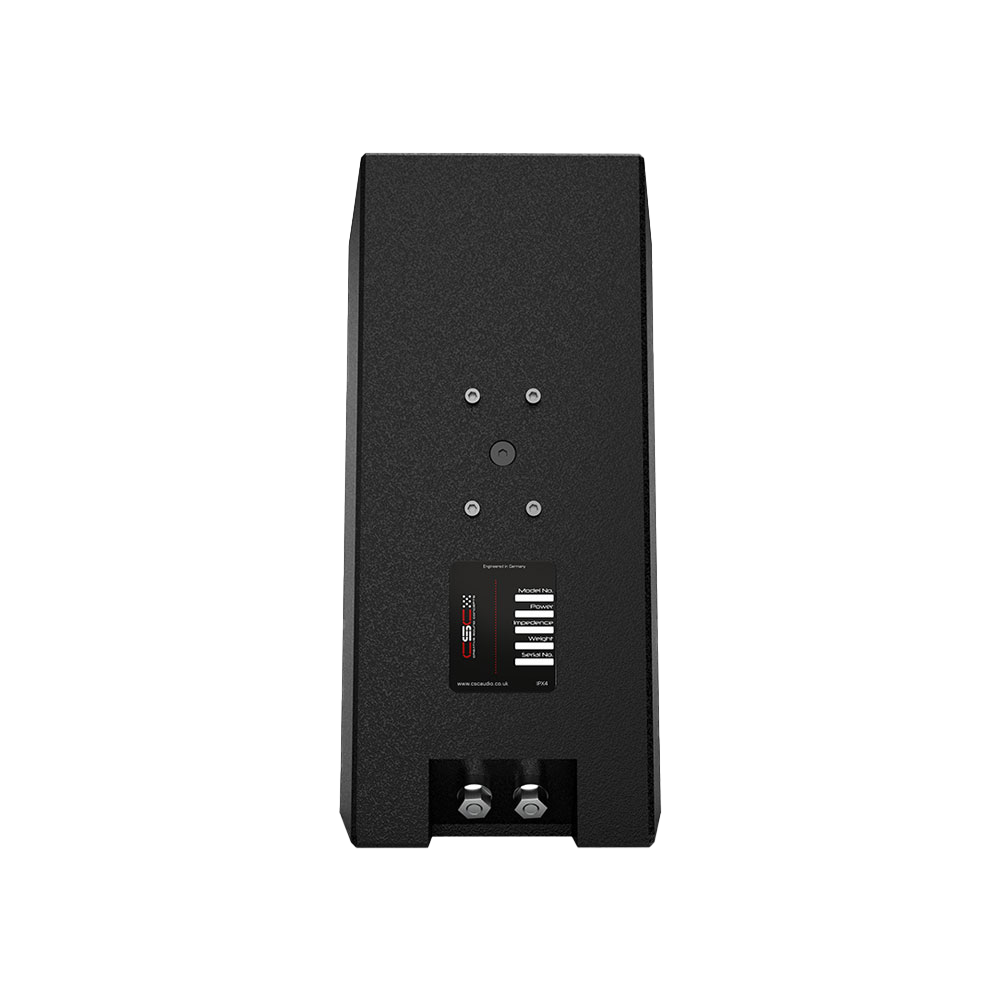

- Mounting points on the sides and the rear
- Top hat is optional
Applications
- Small live setups
- Speech and presentations
- Fillers for large installs
- surrounds for auditoriums and conference rooms
- Bars and lounges
- Places of worship gymnasiums
Technical Specification
| MODEL | ST 8 / ST 8t |
|---|---|
| Type | Two way passively crossed over full range loudspeaker |
| Frequency Response | 70 Hz-19.5 kHz ± 3 dB |
| Drivers | LF: 8" + HF: 1" |
| Recommended Amplifier Upto | 200 Watt |
| Sensitivity (1 W / 1 m) | 94 dB |
| Maximum SPL (9) | 115dB continuous, 121dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | 75° x 65° conical |
| Crossover | 100Hz |
| Enclosure | Baltic Birch Ply |
| Finish | Powder Coated |
| Protective Grill | Perforated steel |
| Connectors | Binding Post |
| Pin Connections | Red positive, Blue negative |
| Standard Colour | Black / White |
| Fittings | Mounting on top and behind |
| Horn | Non Rotatable |
| Rated nominal Power AES | 135 Watts / 30 Watts |
| Rated Maximum Power/Program Power | 270 Watts / 60 Watts |
| Peak Power | 540 Watts / 120 Watts |
| Accessories | Top Hat |
| Dimensions - Product (in mm) | (W) 237 x (H) 439 x (D) 356 |
| Dimensions - Including packing (pair) (in mm) | (W) 283 x (H) 548 x (D) 366 |
| Net Weight (kgs) | 11 |
| Shipping Weight (kgs) | 26 (Shipped in pairs) |
About Series
The String Series features a range of essentials for every application with a range of robust small satellite speakers designed to deliver harmonious and balanced sound reminiscent of the intricate qualities of string instruments. The extruded in thick-walled aluminum housing subjected to finite element analysis have near-zero resonance, thereby reproducing music with minimal distortion. With meticulous engineering and exceptional clarity, these offer a full-range audio product that faithfully reproduces complex musical tones and nuances. Ideal for both pro-install and commercial applications, the String Series speakers pair seamlessly with Contrabass Series subwoofers for enhanced low-end impact and dynamic range. When you want big sound in a small profile, ST3, ST23 are unbeatable. Designed to provide clear and dynamic sound in a sleek, unobtrusive form.Available in our string series is also a wide dispersion STW28, boasting of a 140 horizontal dispersion to replace two cabinets with no compromise in the power. The speakers are perfect for professional and entertainment setups, offering flexibility and high performance in any environment.
