String Series STW 28
Compact Design, Massive Impact: Loudspeakers that Deliver
The String STW 28 is a powerful, versatile, passively crossed-over two-way wide dispersion mid-high cabinet designed to provide exceptional sound reinforcement. Works perfectly as a delay speaker in a nightclub, under-the-balcony application in an auditorium, or just a pole-mounted wide dispersion conference system. Its tuned for vocal propagation; hence, it will be perfect for a critical opera. The cabinet is uncolored and transparent. Crafted in Baltic birch ply, it is perfectly designed for a wide dispersion application. It has the flexibility to suit even the most difficult applications.
The cabinet is focussed on vocal clarity and the minimization of heat buildup within the enclosure without compromising the transient response. It has two versions 4 Ohms and 16 Ohms.
It features a powerful 2x8" (300mm) low-frequency driver and a 1" (25mm) compression driver with a 1.75" (44mm) voice coil mounted on a diffraction horn compression driver with 140° x 40° dispersion.
For demanding applications, the CSC Maestro MS 26 controller is configured to perform, with its EQ and limiter functions pre-loaded in the controller. Contrabass CB 215s, CR 18s, RRH 218s, RR 218s, CR 218s, and RR 215s, ST 18s are all perfectly matched with the STW 28.
Key Features
- Compact passive two way system
- 140° x 40° horn

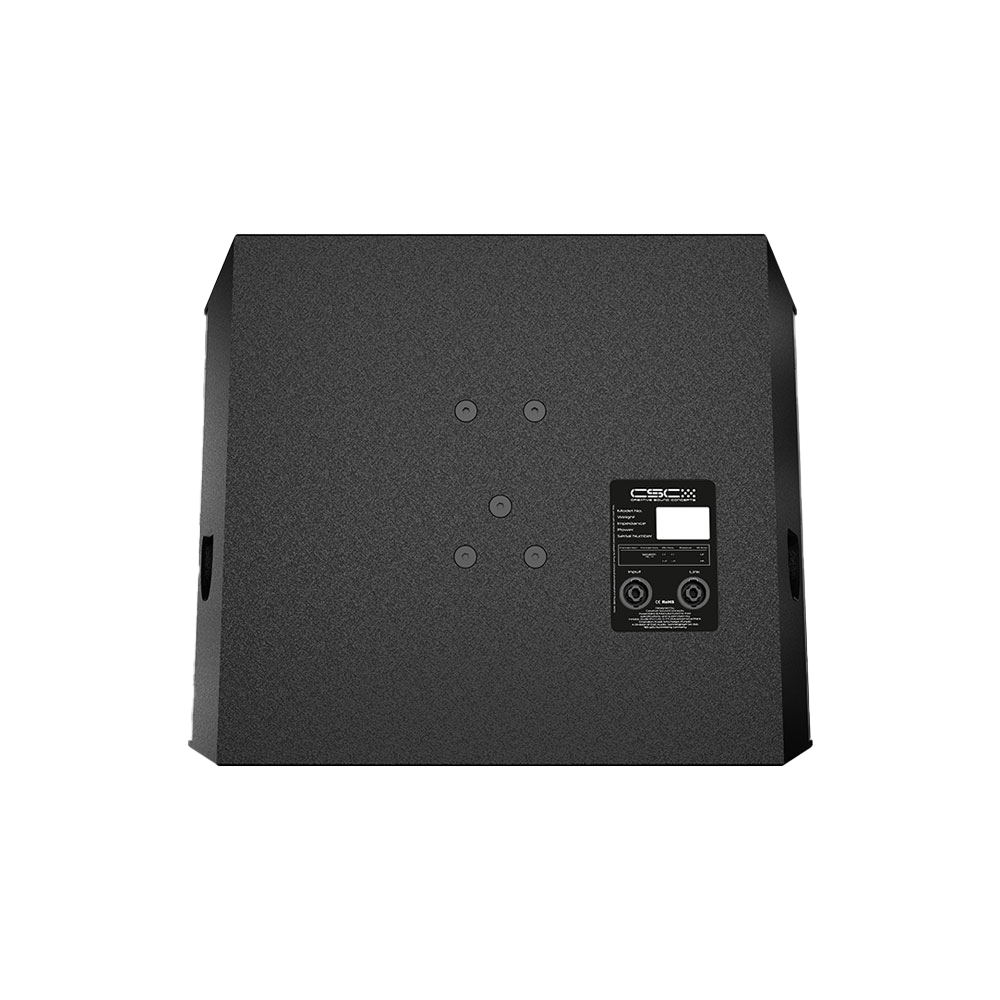

- Mounting points behind the cabinet
- Large port
- Ideal for install and mobile use
Applications
- Live music
- lounge sound enhancement
- Main PA for small and medium installs
- large convention centers, PA
- Auditoriums
- Places of Worship
Technical Specification
| MODEL | STW 28 |
|---|---|
| Type | Two way passively crossed over mid high |
| Frequency Response | 75 Hz-19.5 kHz ± 3 dB |
| Drivers | LF: 2X8" (200 mm) with a 2" (50 mm) voice coil, HF: 1" (25 mm) Diffraction Horn compression driver using a 1.75" (44 mm) V.C |
| Recommended Amplifier Upto | 800 Watts |
| Sensitivity (1 W / 1 m) | 97dB |
| Maximum SPL (9) | 122 dB continuous, 128 dB Max |
| Nominal Impedance | 4 Ohms |
| Dispersion | 140° x 40° |
| Crossover | HPF 70 Hz full range / 110 Hz with sub |
| Enclosure | Baltic Birch Ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl4 |
| Pin Connections | +1 positive, -1 negative |
| Standard Colours | Black / White |
| Fittings | Rear / Top standard mounting points |
| Horn | Not rotatable |
| Rated Continuous Power AES | 450 Watts / 60 Watts |
| Rated Maximum/Program Power | 1000 Watts / 200 Watts |
| Peak Power | 2000 Watts / 400 Watts |

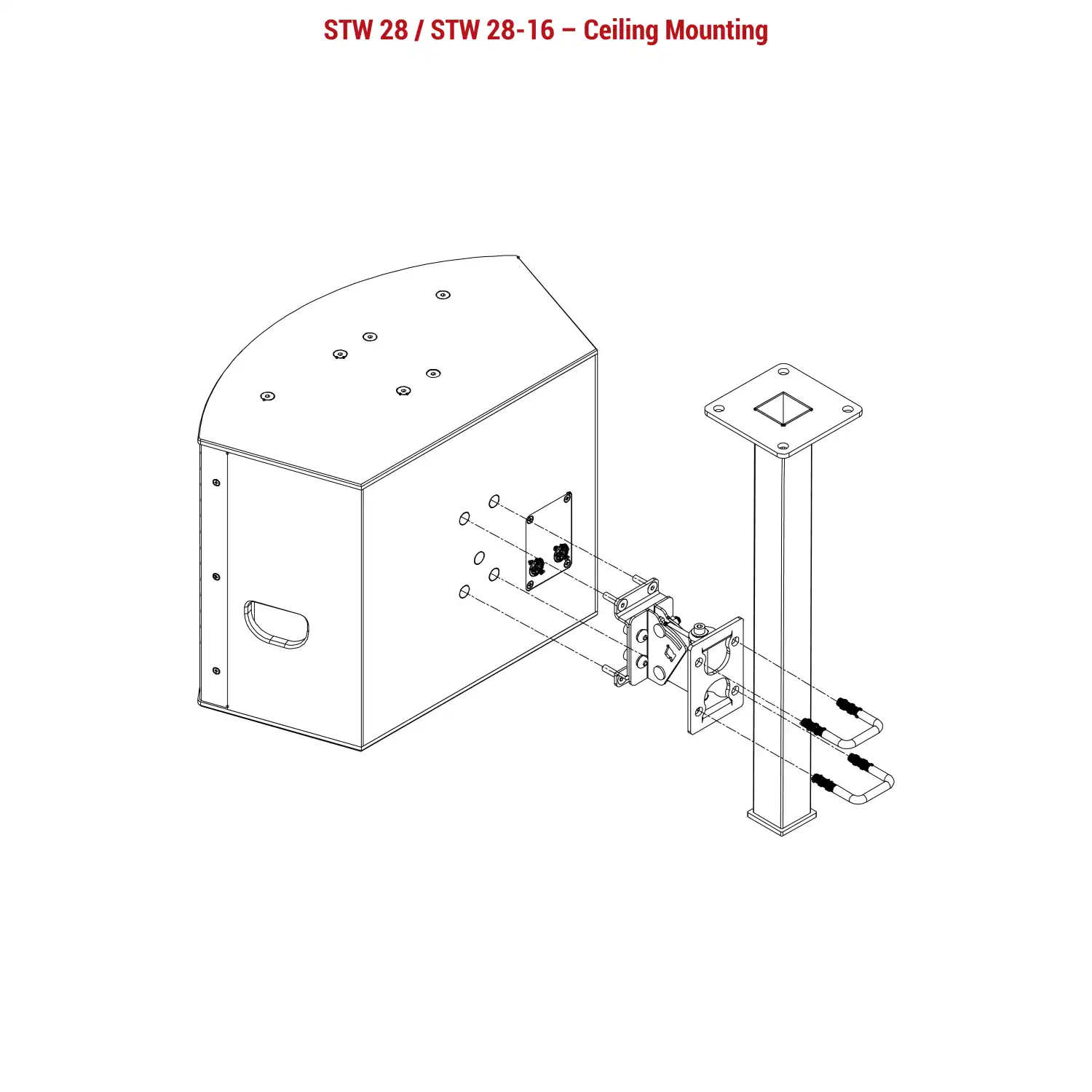

| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 542 x (H) 394 x (D) 345 |
| Dimensions - Including packing (in mm) | (W) 572 x (H) 446 x (D) 375 |
| Net Weight (kgs) | 18 |
| Shipping Weight (kgs) | 22 |
About Series
The String Series features a range of essentials for every application with a range of robust small satellite speakers designed to deliver harmonious and balanced sound reminiscent of the intricate qualities of string instruments. The extruded in thick-walled aluminum housing subjected to finite element analysis have near-zero resonance, thereby reproducing music with minimal distortion. With meticulous engineering and exceptional clarity, these offer a full-range audio product that faithfully reproduces complex musical tones and nuances. Ideal for both pro-install and commercial applications, the String Series speakers pair seamlessly with Contrabass Series subwoofers for enhanced low-end impact and dynamic range. When you want big sound in a small profile, ST3, ST23 are unbeatable. Designed to provide clear and dynamic sound in a sleek, unobtrusive form.Available in our string series is also a wide dispersion STW28, boasting of a 140 horizontal dispersion to replace two cabinets with no compromise in the power. The speakers are perfect for professional and entertainment setups, offering flexibility and high performance in any environment.
