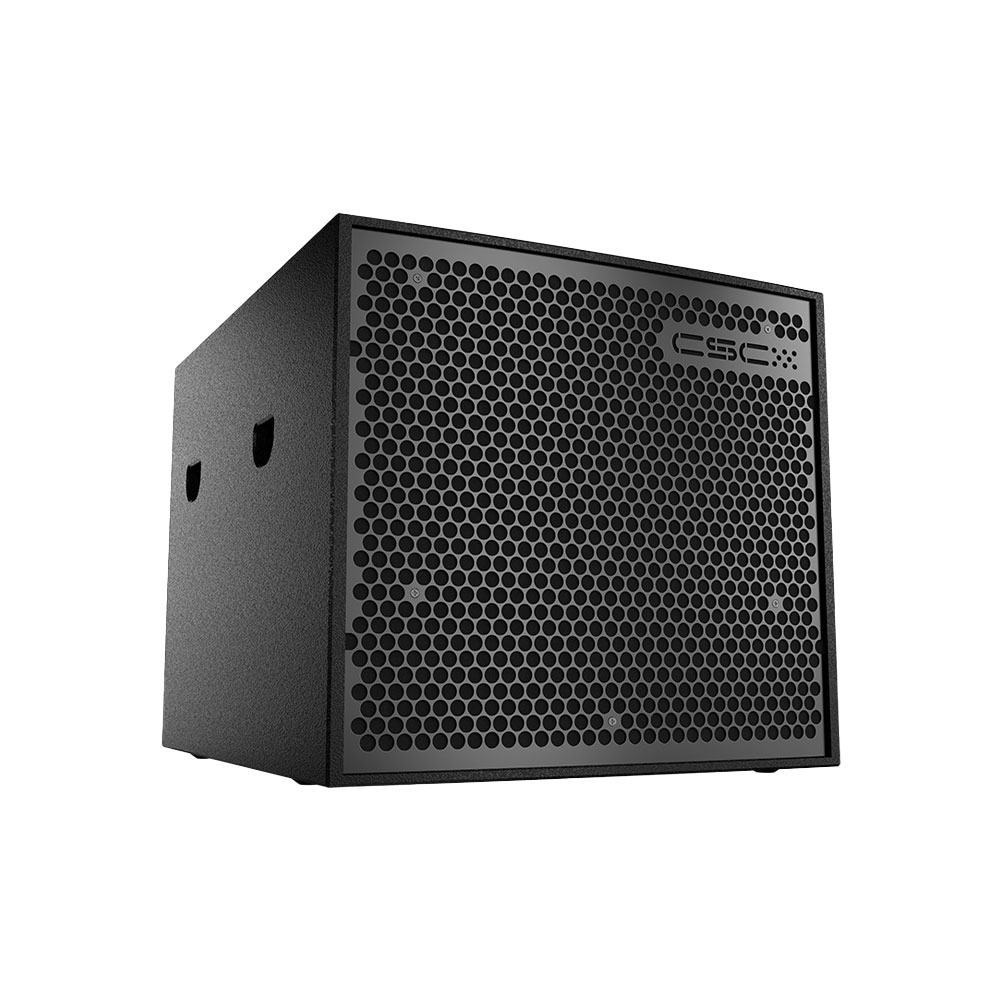

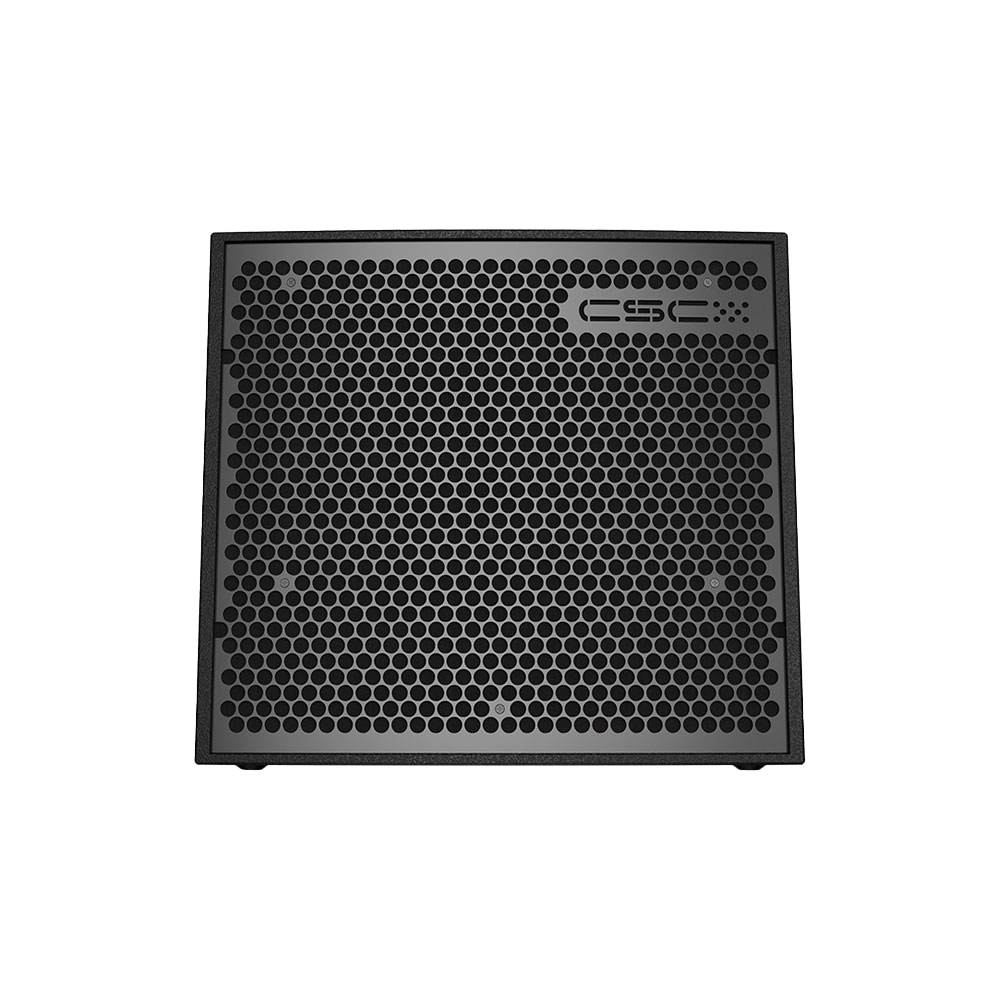

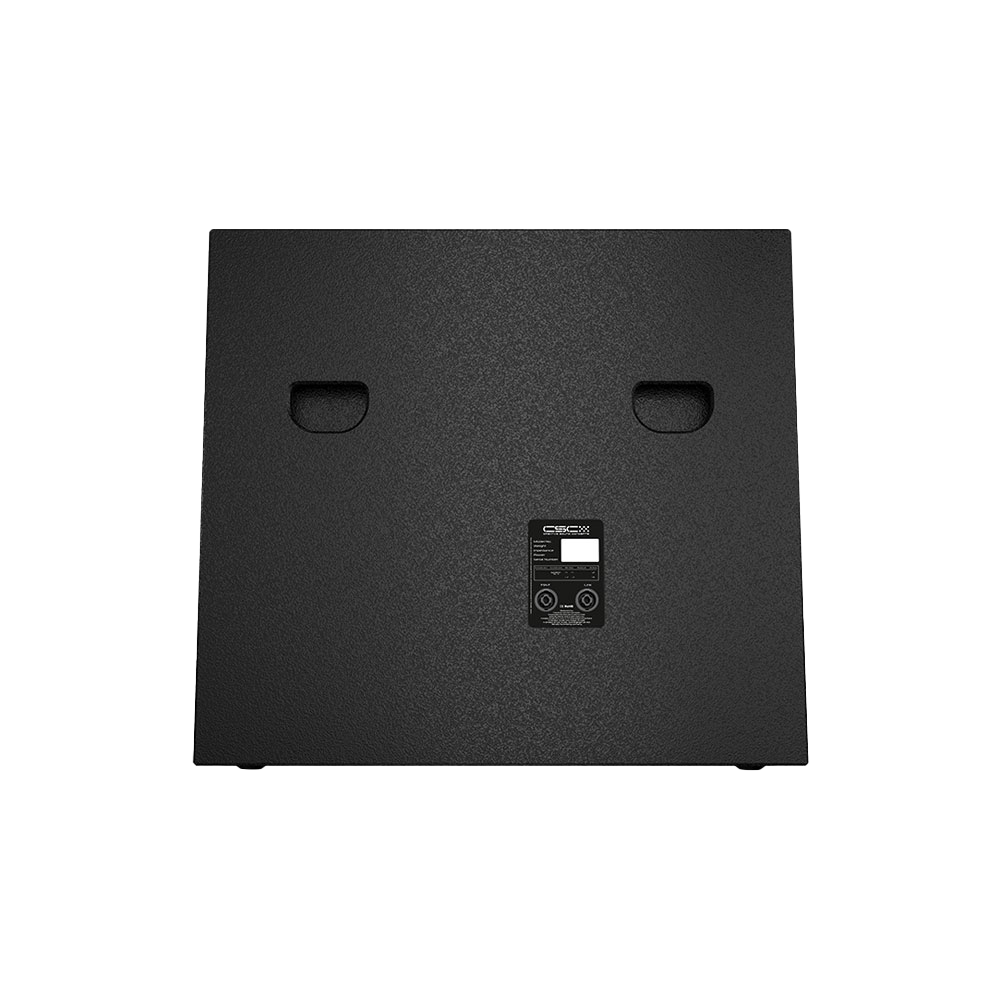

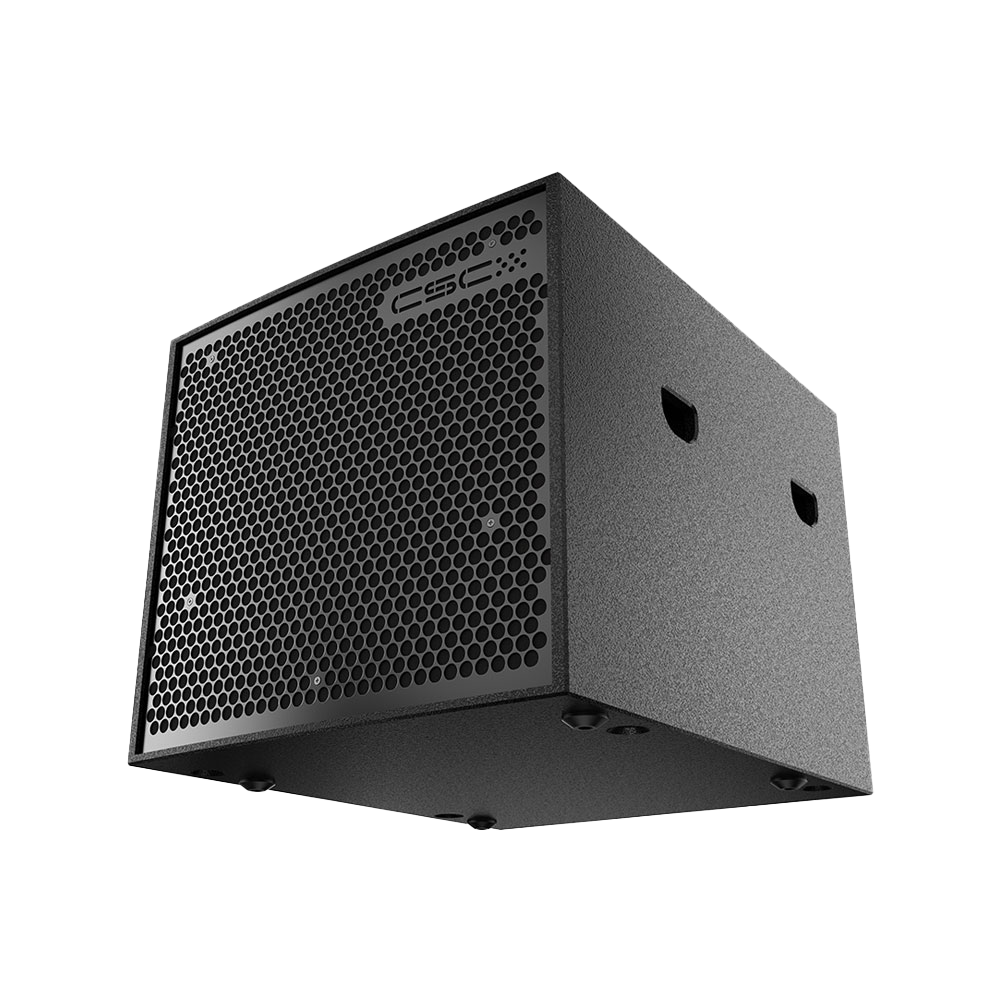

String Series ST 18s
Compact Design, Massive Impact: Loudspeakers that Deliver
The String ST 18s is a powerful single 18" reflex-loaded sub-woofer with a nominal power handling of 1000 watts. It is designed to provide a clean low-frequency extension. Its 4 inch voice coil and generous ports minimize thermal compression and reduce port noise. The well-braced Baltic birch cabinet has anti- skid rubber feet and an alloy grill to protect it from vandals. The four handles and a top hat complete all the requirements of a small DJ.
The product is ideal for installation and with small DJs. The drivers unique construction focuses on accuracy and power, reducing distortion.
Key Features
- Compact, high performance
- Reflex-loaded, 18" sub-woofer using customized European pedigree driver
- Fast, integral wall/ceiling mounting clamp
- Easy and fast to install
- Can retrofit in an existing venue
- Top hat
Applications
- Live performances
- Lounges
- Homes
- Nightclubs and bars
Technical Specification
| MODEL | ST 18s |
|---|---|
| Type | Compact, Reflex loaded, Sub-bass system |
| Frequency Response (1) | 40 HZ-250 Hz+ 3 dB |
| Drivers | LF: 18" (450 mm) with a 4" (100 mm) voice coil |
| Recommended Amplifier Upto | 1600 Watts |
| Sensitivity (1 W / 1 m) | 98 dB |
| SPL Peak | 139 |
| SPL Max | 133 |
| SPL nominal | 127 |
| Nominal Impedance | 8 Ohms |
| Dispersion | Omni |
| Crossover | 100 Hz active/ passive low pass filter |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colour | Black / White |
| Fittings | Rubber feet, Universal pole mount |
| Horn | NA |
| Power Peak | 1000 Watts |
| Power Program/max | 1800 Watts |
| Power nominal | 3000 Watts |
| Accessories | NA |
| Dimensions - Product (in mm) | (W) 620 x (H) 583 x (D) 742 |
| Dimensions - Including packing (in mm) | (W) 670 x (H) 610 x (D) 804 |
| Net Weight (kgs) | 47 |
| Shipping Weight (kgs) | 51 |
About Series
The String Series features a range of essentials for every application with a range of robust small satellite speakers designed to deliver harmonious and balanced sound reminiscent of the intricate qualities of string instruments. The extruded in thick-walled aluminum housing subjected to finite element analysis have near-zero resonance, thereby reproducing music with minimal distortion. With meticulous engineering and exceptional clarity, these offer a full-range audio product that faithfully reproduces complex musical tones and nuances. Ideal for both pro-install and commercial applications, the String Series speakers pair seamlessly with Contrabass Series subwoofers for enhanced low-end impact and dynamic range. When you want big sound in a small profile, ST3, ST23 are unbeatable. Designed to provide clear and dynamic sound in a sleek, unobtrusive form.Available in our string series is also a wide dispersion STW28, boasting of a 140 horizontal dispersion to replace two cabinets with no compromise in the power. The speakers are perfect for professional and entertainment setups, offering flexibility and high performance in any environment.
