MS 26
Powerful, Unmatched Reliable, Efficient, Amplification Redefined
The MS 26 Sound Management System is a professional digital loudspeaker management unit designed for precision and reliability. With its 2-input, 6-output architecture, it enables fine control and distribution of audio across multiple zones—ideal for complex reinforcement setups.
Balanced XLR inputs (0dBV sensitivity, CMRR >55dB) ensure compatibility and noise rejection, while XLR outputs deliver 24-bit/48kHz resolution, 10Hz–20kHz frequency response, and ultra-low distortion (<0.0028% THD). A noise floor below –115dB and crosstalk isolation over 95dB guarantee clarity and channel separation.
The MS 26 offers extensive EQ options (4-band input, 8-band output), advanced filters (Linkwitz-Riley, Butterworth, Bessel), and precise output control in 0.1dB steps. Built-in compressor/limiter functions with adjustable parameters provide full dynamic management. Connectivity includes USB for PC control and dual 0–10VDC ports for remote volume operation.
Compact and lightweight at 1.8kg, the MS 26 supports universal mains voltage(120V/220V), making it a durable and versatile choice for professional installations.
FEATURES AND APPLICATIONS
Key Features
- 2 inputs x 6 outputs audio processor
- All inputs and outputs are balanced

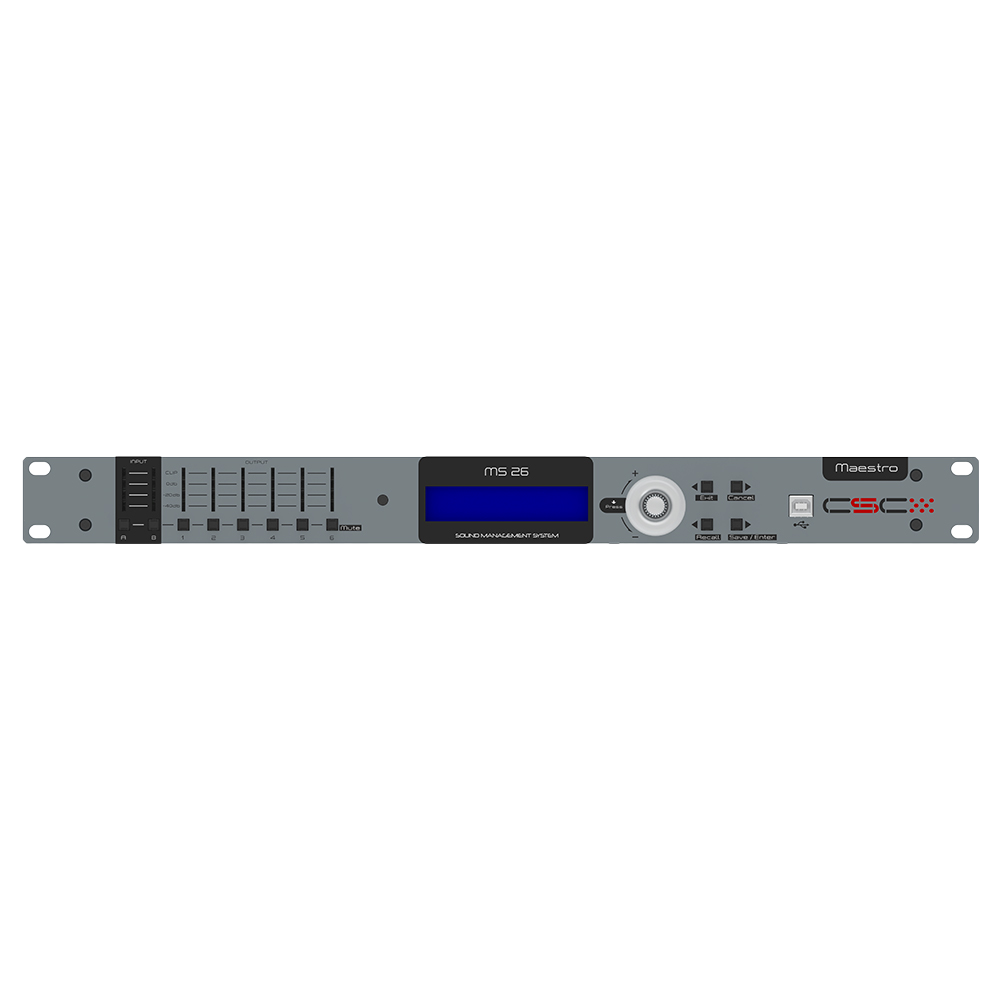

- Control and mute buttons on the front panel
- Polarity in each input and output
- 4 parametric EQ filters per input
- 8 parametric EQ filters per output
Applications
- Live sound, stage monitoring, permanent installation
- Stereo, bi/tri-amped general applications
Technical Specification
| MODEL | MS 26 |
|---|---|
| INPUT | |
| Sensitivity | 0dBV |
| Input Impedance | >20k; electronically balanced |
| CMRR | >55dB (20Hz ÷ 20kHz) |
| Input Connectors | XLR female |
| Input Delay/ step | 1seg/20, 8μs |
| OUTPUT | |
| Nominal Output Level | 0dBV |
| Output Impedance | 300 ohm balanced |
| Output Connectors A/D &D/A | XLR3 male 24 Bit/48kHz |
| Frequency Response | 10Hz to ~20kHz |
| Output Noise Floor (FFT) | < -115dB (From 20Hz to 20kHz) |
| THD + Noise | <0.0028% (1kHZ, 1Vrms) |
| Crosstalk | >95dB, 40Hz ÷20KHz |
| Output Delay/ step | 1seg/20, 8μs |
| PARAMETRIC EQ | |
| Input | 4 per Channel |
| Output | 8 per Channel |
| Type | Q - 03 to 200 |
| Low and high shelf 6/12dB/oct | |
| Low and high pass 6/12dB/oct | |
| All pass 1 or 2 | |
| FILTER | |
| Input | 6, 12, 18, 24 or 48dB /Octave (Filter Type Dependant) |
| Output | Linkwitz-Riley, Butterworth or Bessel |
| Type | -60dB +12dB step 0.1 dB |
| COMPRESSOR LIMITER | |
| Threshold | -36 /+12dBV |
| Attack Time | 0.1 to 500ms |
| Release Time | 1 to 5s |
| Ratio | 1:1 to ∞ :1 |
| MAINS | |
| Voltage | 90÷264VAC 50/60 Hz |
| Power Consumption | 25VA |
| Dimensions (in mm) (W X H X D) | 484 x 44 x 122 |
| Packing Dimensions (in mm) | 555 X 55 X 225 |
| Weight | 1.8 Kg |
