HPA 3602 / HPA 4802 / HPA 6402
Powerful, Unmatched Reliable, Efficient,: Amplification Redefined
HPA Series liner power supply amplifiers
Constant innovation in the pro audio industry has led to the development of new technologies and innovations. High performance in professional loudspeakers demands an equally efficient amplification. For a sound system engineer, whether an installed sound or touring system, the only thing that matters is - the show must go on.
Reliability is the highest priority
Amplifier HPA series amplifiers are an answer for both install and touring verticals.
Design Philosophy
- Sonic performance
- Ease of Service
- Reliability
HPA series is a combination of Linear Power Supply mated with high efficiency Class- D output stage. The PCB design is fairly modular, with on-field replacements as easy as unscrewing a few fasteners, dropping in a new PCB, and you are back in business.
Key Features
- Robust high current CLASS D amplifier

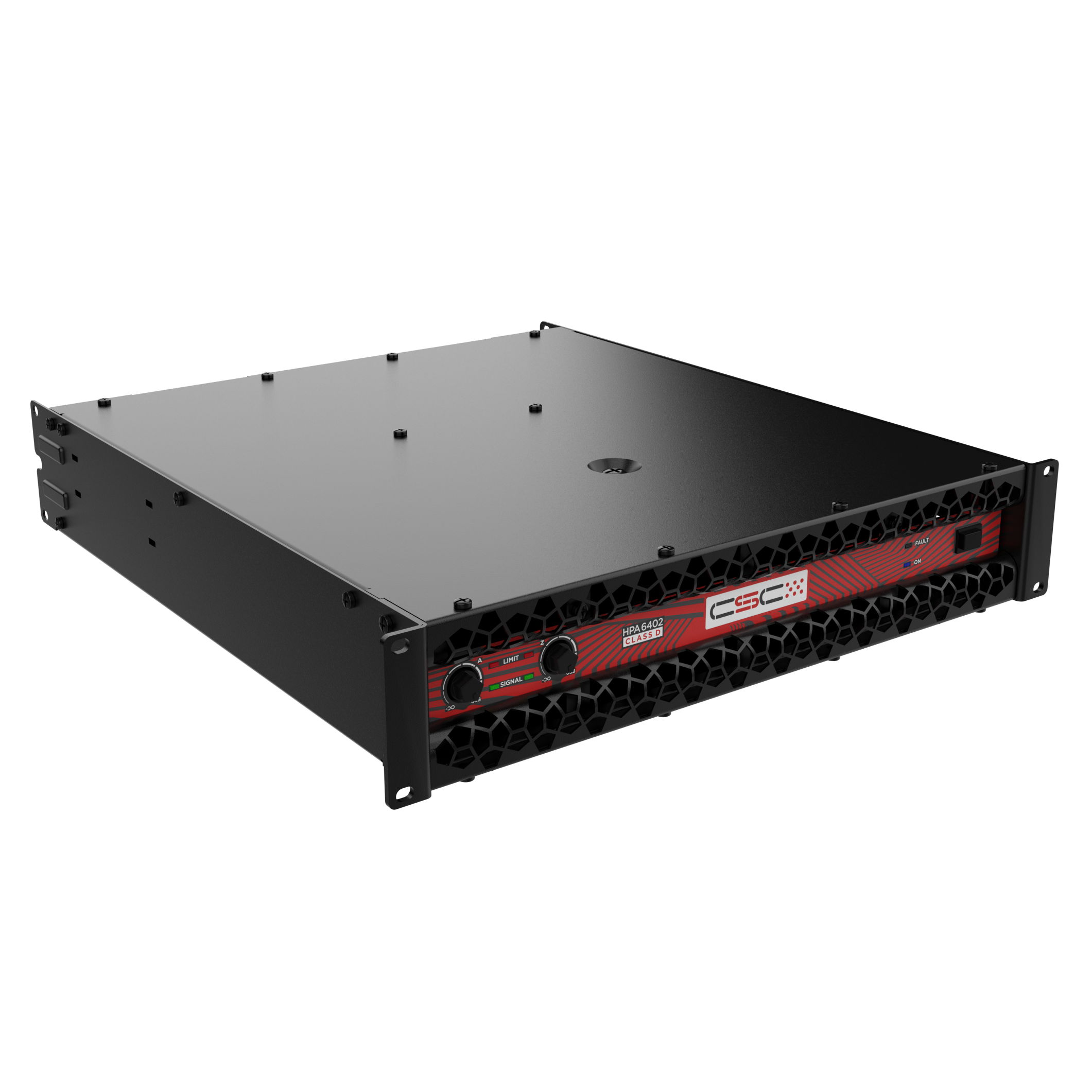

- Sturdy 2U chassis size
- Stable to 1 ohm.
- Full power bandwidth 10hz-20 kHz.
- Reliable Toroidal linear power supply.1500
- Damping factor > 1000
Applications
- Live sound, stage monitoring, permanent installation
- Stereo, bi/tri-amped general applications
Technical Specification
| MODEL NO | HPA 3602 | HPA 4802 | HPA 6402 |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Continuous Average Power/Ch @ 4 Ohms | 1200 | 1800 | 2400 |
| [all channels driven] in watts | |||
| Continuous Average Power/Ch @ 2 Ohms | 1800 | 2400 | 3200 |
| [all channels driven] in watts | |||
| Peak Power/Ch @ 2 Ohms in watts | 2000 | 3000 | 4000 |
| Full power Frequency response | 20 Hz-20 kHz | ||
| THD @ Full power Bandwidth | 0.10% | ||
| Signal to Noise (20hz--25Khz) 8 Ohm | 100dB | ||
| Input Sensitivity at Rated power @4 ohm | 1.1V | 1.4V | 1.7V |
| Cross Talk before clip | 75dB | ||
| Voltage Gain | 43X | ||
| Damping factor 20hz to 1000hz | 1000 | ||
| Power requirement from mains | |||
| A Current draw 1/8 power @ 4ohms [240VAC@50Hz] | 5A | 7.5A | 10A |
| Input impedance | 10K | ||
| Input clip setting | 10V RMS |
