MOD 2K4 / MOD 3K4/MOD 1.6K2 /MOD 2.4K2 / MOD 3.4K2 / MOD 4.8K2

High-Efficiency Two-Channel Amplifiers with Silicon Carbide Technology

MOD series liner power supply amplifiers

To ensure a transparent and sonically neutral audio experience, the MOD series has been painstakingly innovated. Constant up-gradation in technology in the pro-audio industry has resulted in the creation of new technologies and improved amplifier performance through efficient circuits and components. The MOD is one of the first pro-audio amplifiers in the world to use Silicon Carbide Mosfets [SICMOS], which have extremely low switching loss and result in highly efficient amplifiers with large dynamic headroom.

Range

Power Amplifier MOD SERIES amplifiers are designed to be installed and used in touring applications. It has total 5 models having 2 and 4 channel options. Two- Channel Models: MOD 2.4K2, MOD 3.4K2 and MOD 4.8K2

Design Philosophy

  • Sonic performance
  • Ease of Service
  • Reliability

The MOD Series is a hybrid of linear power supplies and high-efficiency Class-D output stages. The PCBs are modular in assembly, and on-field replacements are as simple as unscrewing a few fasteners, dropping in a new PCB, and you are back in business.

Key Features

  • 2.5U height
  • Stable to 1 Ohm
  • Full power bandwidth of 20hz-20khz
  • 50A Speakon Connectors are used
  • The Damping Factor is in excess of 1500

Applications

  • Auditoriums
  • Wellness Centres
  • Religious Places
  • Hospitality
  • Homes

Technical Specification

MODEL NO MOD 2K4 MOD 3K4 MOD 1.6K2 MOD 2.4K2 MOD 3.4K2 MOD 4.8K2
No of channels 4 4 2 2 2 2
Power/channel All channels driven
2 Ohms 800 1200 800 1200 1700 2400
4 Ohms 800 1200 800 1200 1700 2400
8 Ohms 500 800 500 900 1000 1700
Input Sensitivity @4 ohms 1.42 V 1.73 V 1.42 V 1.42 V 1.73 V 2.10 V
Gain     30dB
Distortion: 20 Hz-20 kHz : 2 dB 0.10% 0.10% 0.15% 0.10% 0.10% 0.15%
Slew Rate 30 V/µs 35 V/µs 35 V/µs 30 V/µs 35 V/µs 35 V/µs
Frequency Response: +0/-1dB 20-20k
SNR 100 dB
Max Input: RMS 10 V
Input Impedance: Ohms 10 k
Damping Factor: 8 ohms: 100Hz 1500
Output Circuitry class - D

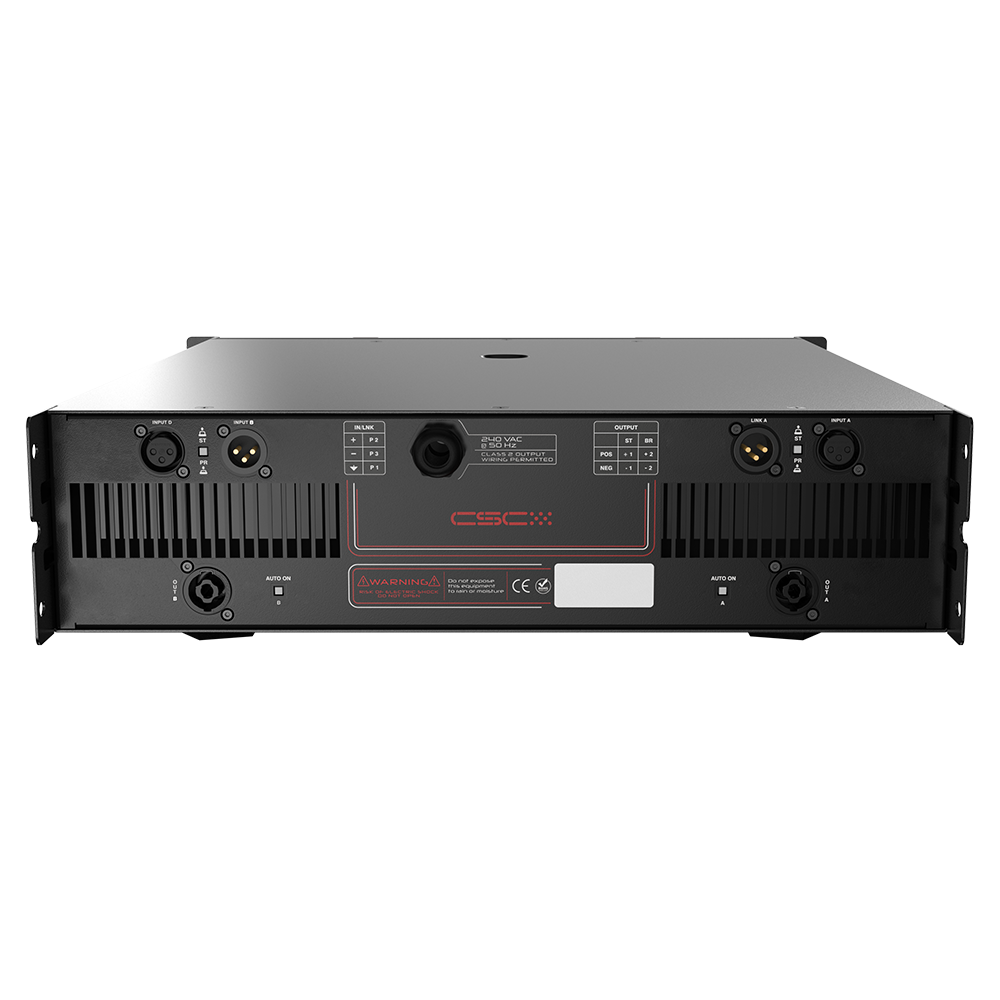

Connector: Input/Link XLR
Connector: Output Speak on
Controls: Front level
Controls: Rear Mono / stereo & standby
Indicators Signal, limit, standby
Protection Over current, over temperature, mismatched loads, over voltage
Cooling: 2 X Fans Temperature controlled 2-step speed fans
Mains Operating Range 170-260 VAC
Mains Cable Fixed 1meter in length
Dimensions : W x D x H : (in mm) 486 X 487 X 120
Weight: Net (kgs) 22.65 26.76 18.37 20.81 24.94 32
Weight: including packing Net (kgs) 25.06 29.14 20.73 23.19 27.3 34
