Cello Series HARMONICA 210
Powerful Performance Meets Perfect Dispersion.

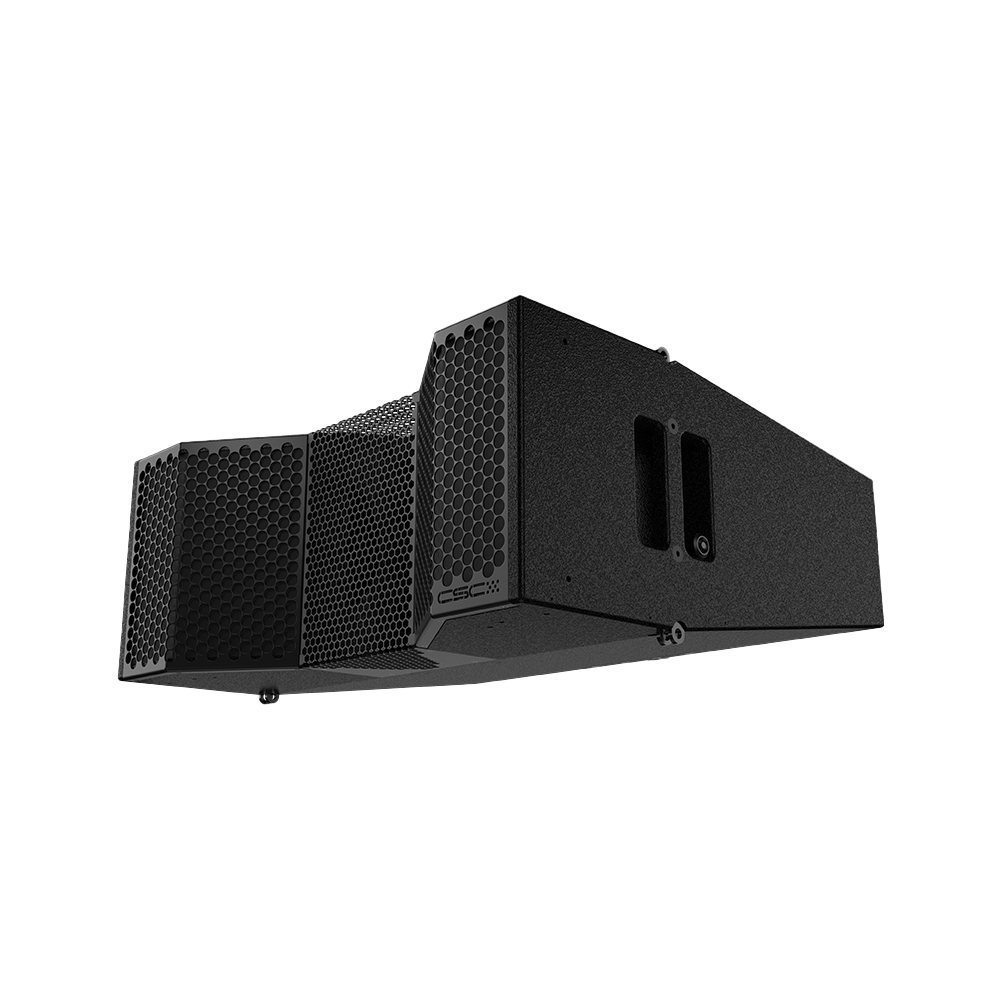

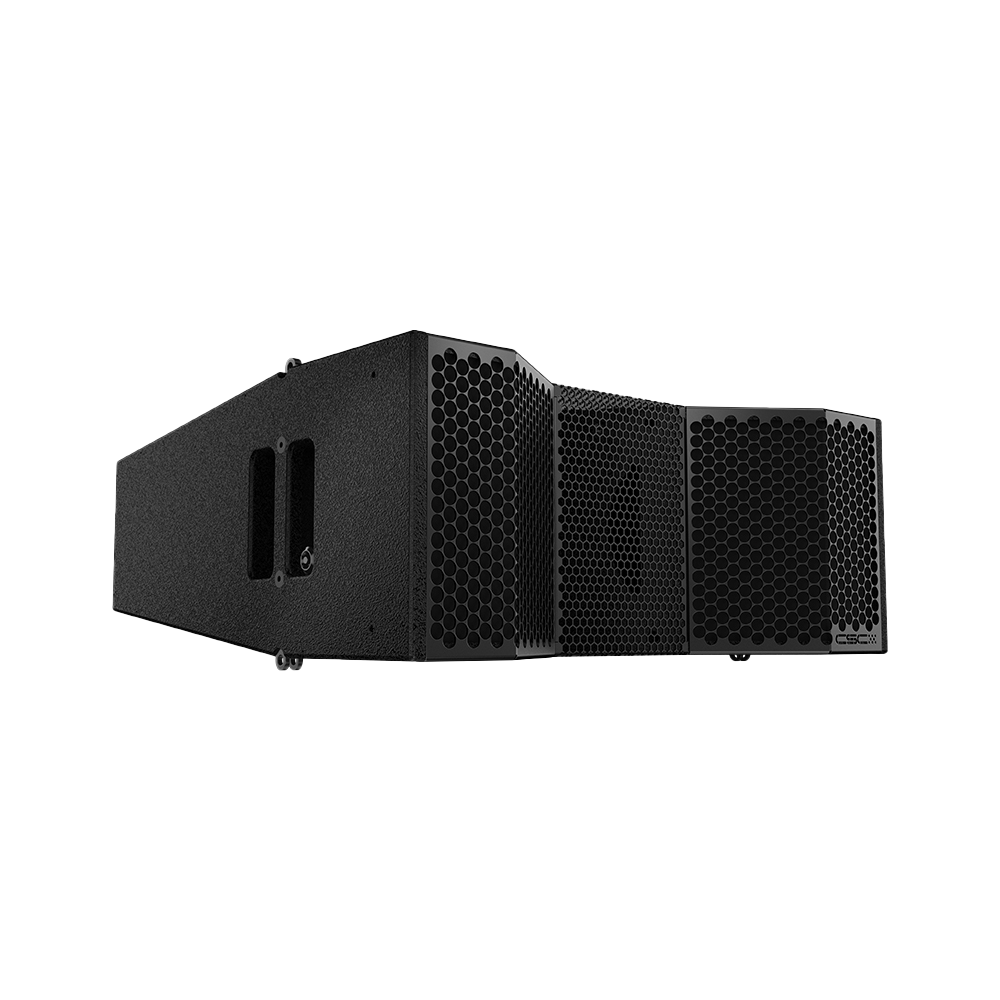

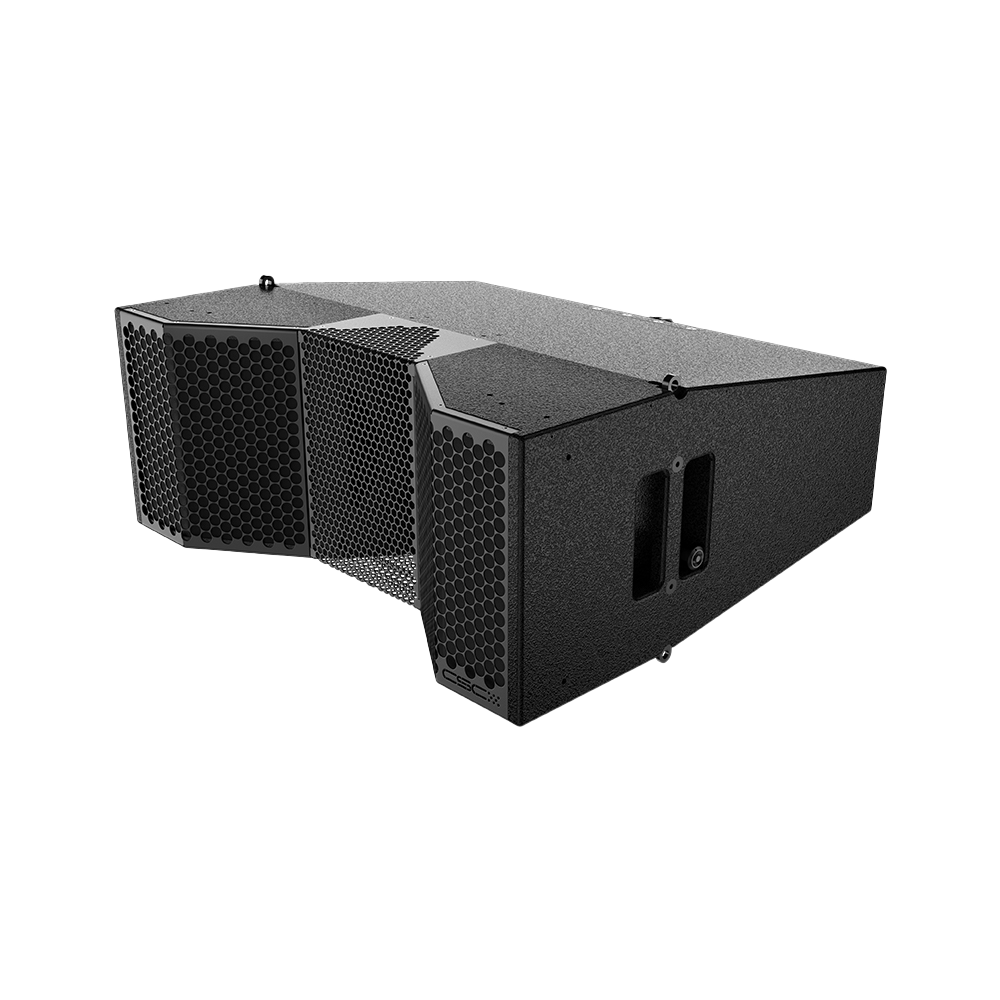

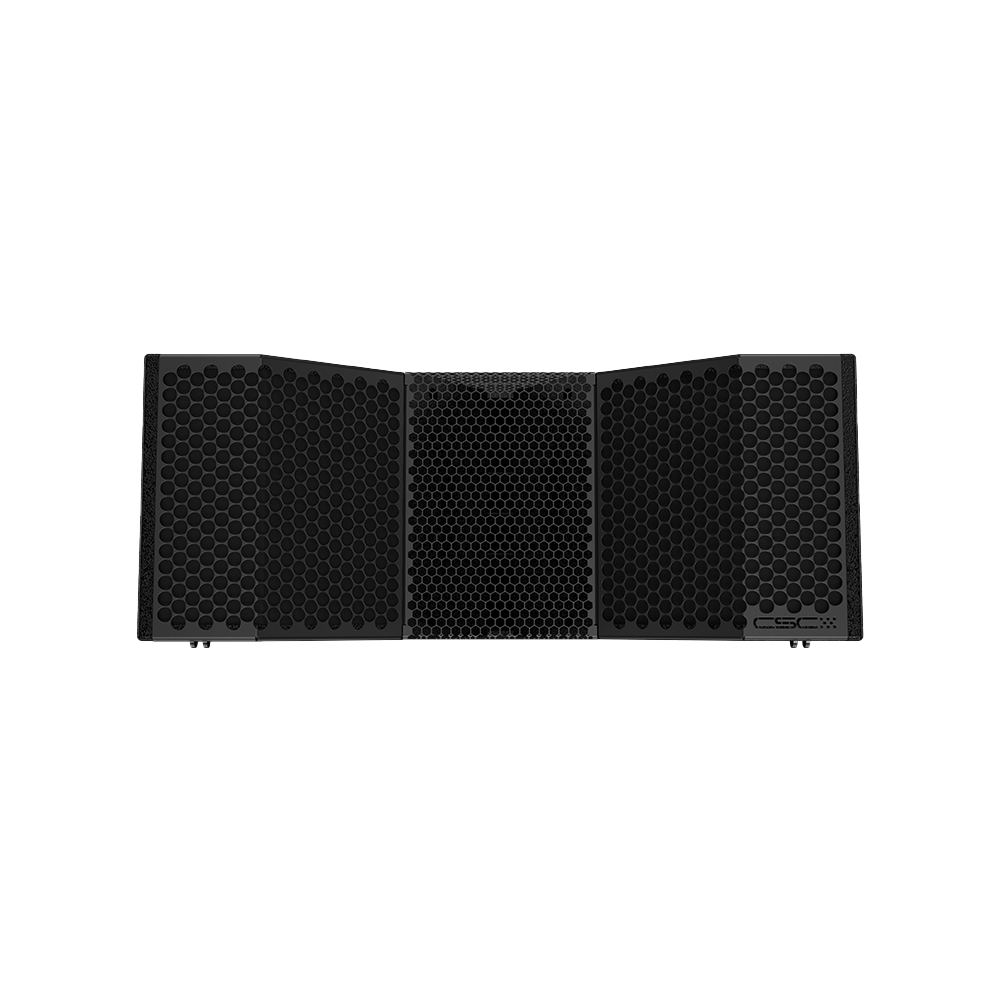

The Harmonica 210 is a compact, two-way, bi-amplified line array loudspeaker designed for professional applications, featuring an innovative isophasic horn design for precise wavefront control.
The unique design results in an almost seamless connection of the horn openings in the high frequency response range. This design also makes it possible to centralize the sound sources in the mid-range. Results in improved dispersion characteristics delivering exceptional performance, clarity, and versatility for large concerts, clubs, stadiums, and demanding touring or installation environments. This line array element is engineered to deliver high output, and precise coverage for professional sound reinforcement applications. It combines the power and punch of dual 10" low-frequency drivers with the articulate high-frequency reproduction of a large 1.4" exit compression driver with a 77mm voice coil, resulting in a versatile and potent building block for scalable line array systems. The design of the hardware makes it possible to cover all applications of the line array with minimum effort. A frame can be used for both ground stacking and rigging. Operation is intuitive and simple. This new design language leads to new visual aesthetics and application optimization capabilities. The generous dimensioning of the components leads to many years of unproblematic functionality.
Key Features
- Precision-engineered waveguide geometry to minimize inter-cabinet interference.
- Perfectly tuned iso-phasic waveguide for flat wave front and optimal phase response
- Long waveguide length for wide frequency control
- Extreme directivity control in HF section
Applications
- High-end permanent installations
- Demanding touring applications
- Concert venues
- Theatres
- Auditoriums
- Outdoor events
Technical Specification
| MODEL | Harmonica 210 |
|
Type |
Two-way bi-amped line array element |
|
Frequency Response (1) |
55 Hz - 20 kHz ± 3dB |
|
Drivers |
LF: 2 x 10" neodymium drivers with a 3" voice coil |
|
|
HF: 1.4" neodymium compression driver with a 3" voice coil mounted on an iso-phasic waveguide. |
|
Power handling AES |
800/100 Watts |
|
Sensitivity (1 W / 1 m) |
LF: 101dB, HF: 110 dB |
|
SPL Nominal (single line array element) |
LF: 130 dB, |
|
Nominal Impedance |
LF: 8 Ohms, HF: 8 Ohms |
|
Dispersion |
80° (H) x 15° (V) |
|
Crossover |
Depending on the array size (presets available) |
|
Enclosure |
Baltic birch ply |
|
Finish |
Non-toxic textured black paint |
|
Protective Grill |
Treated and coated alloy steel grill with acoustic transparent fabric
|
|

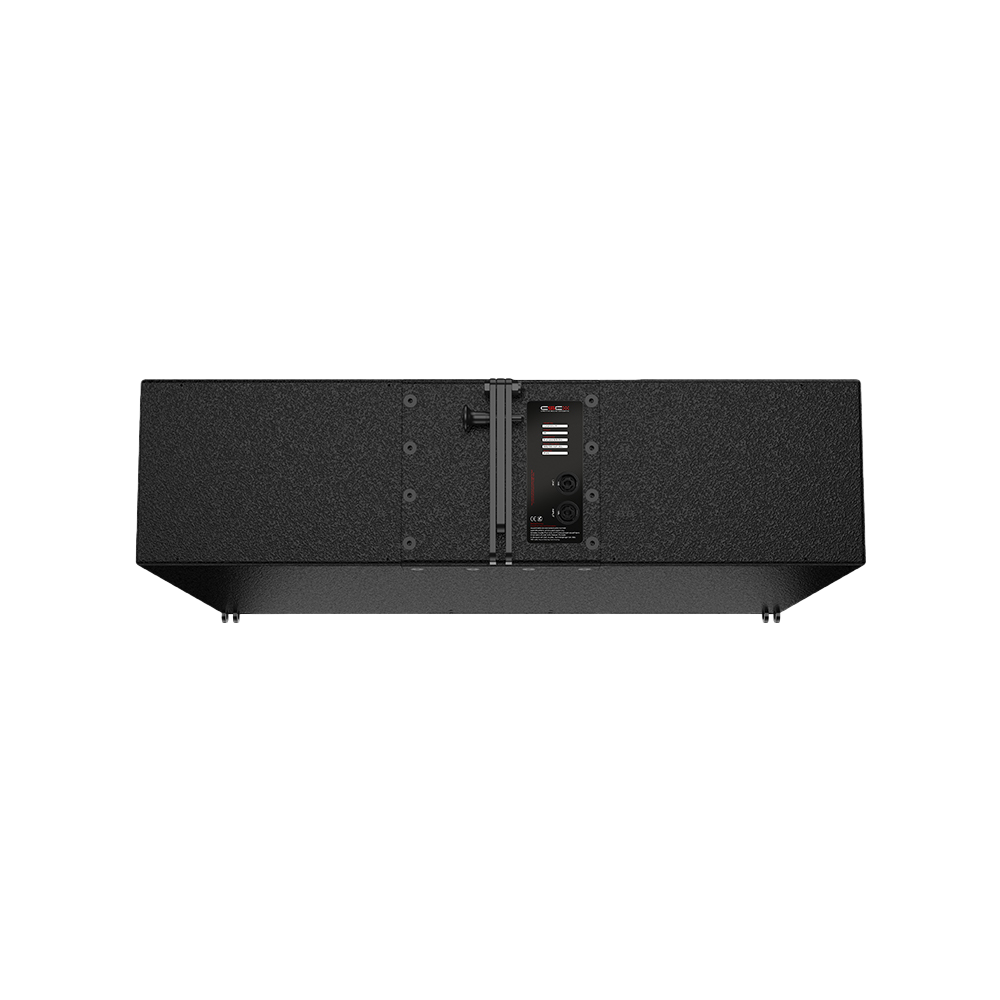

Connectors |
2x Neutrik NL8 |
|
Pin Connections |
LF: ± 1, Link through LF: ± 2 |
|
Rated Power handling (AES) |
800 watts |
|
Maximum/ program power |
1600 watts |
|
Peak power |
3200 watts |
|
Accessories |
Flying frame felt waterproof covers, Flying
|
|
Wave Guide |
Iso-phasic horn |
|
Standard Color |
Black |
|
Fittings |
All internal hardware |
|
Dimensions - Product (in mm) |
(W) 732 x (H) 320 x (D) 665 |
|
Dimensions - Including packing (in mm) |
|
|
Net weight(kgs) |
55 |
|
Shipping Weight(kgs) |
58 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
