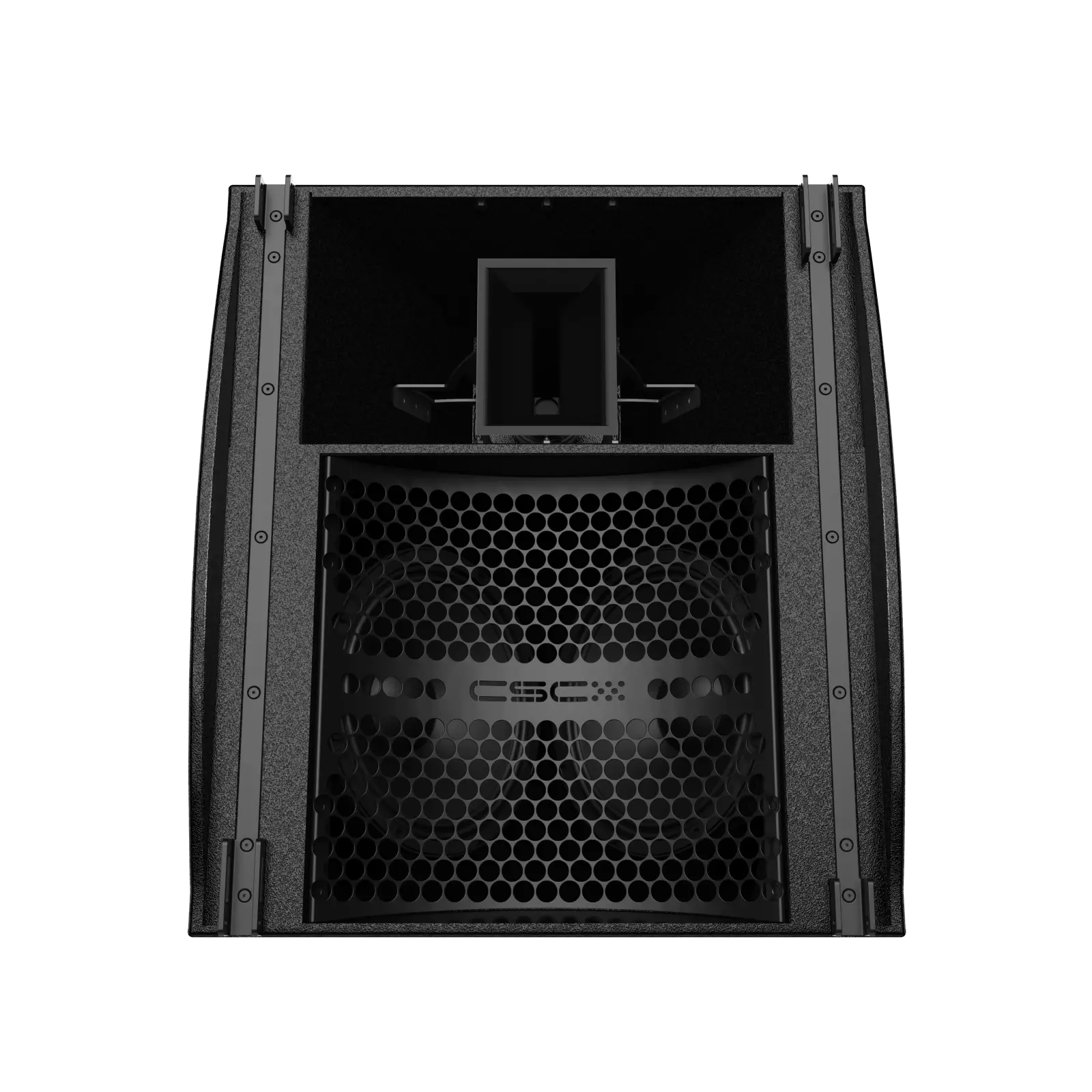

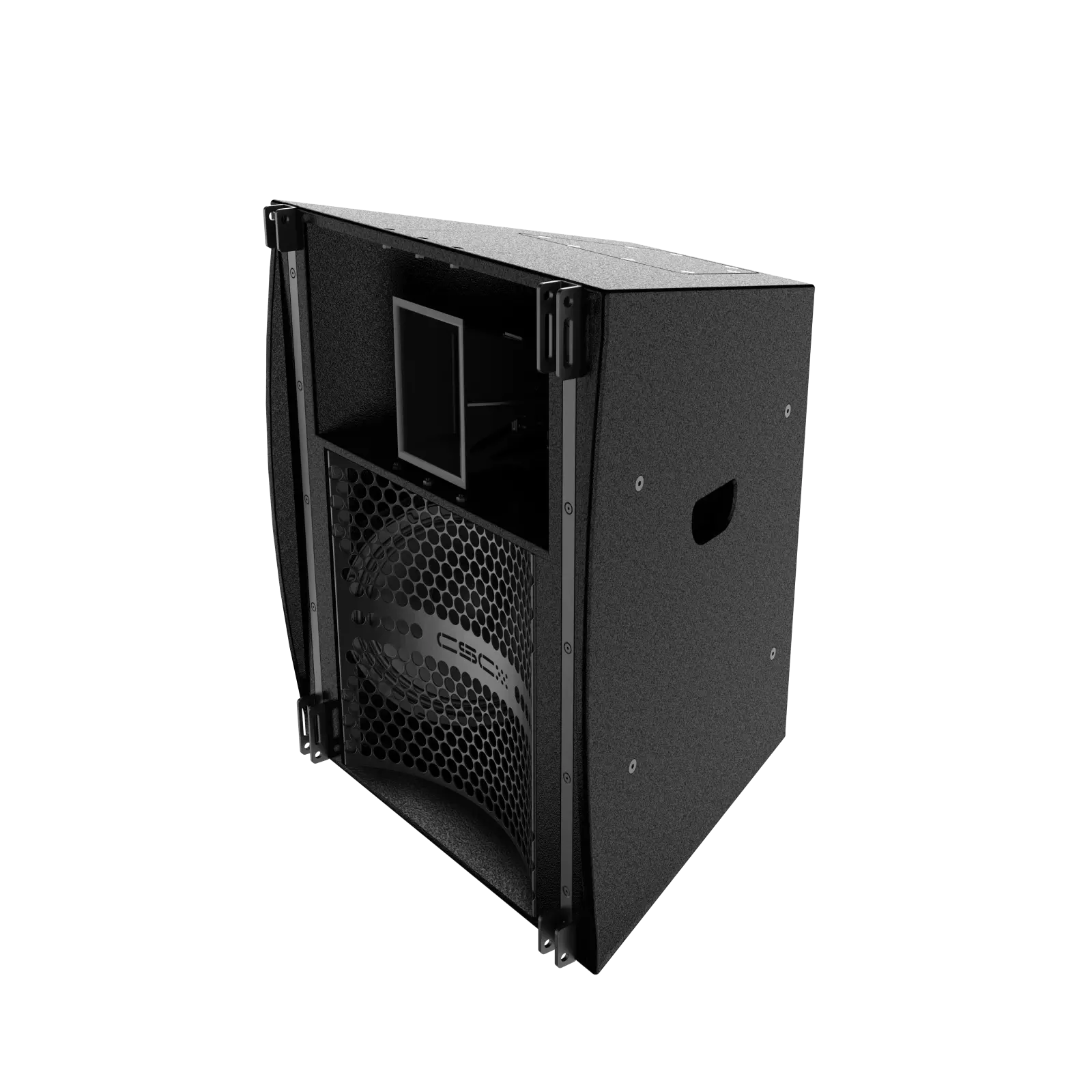

Cello Series RR 212hl MK1
Compact Design, Massive Impact: Loudspeakers that Deliver

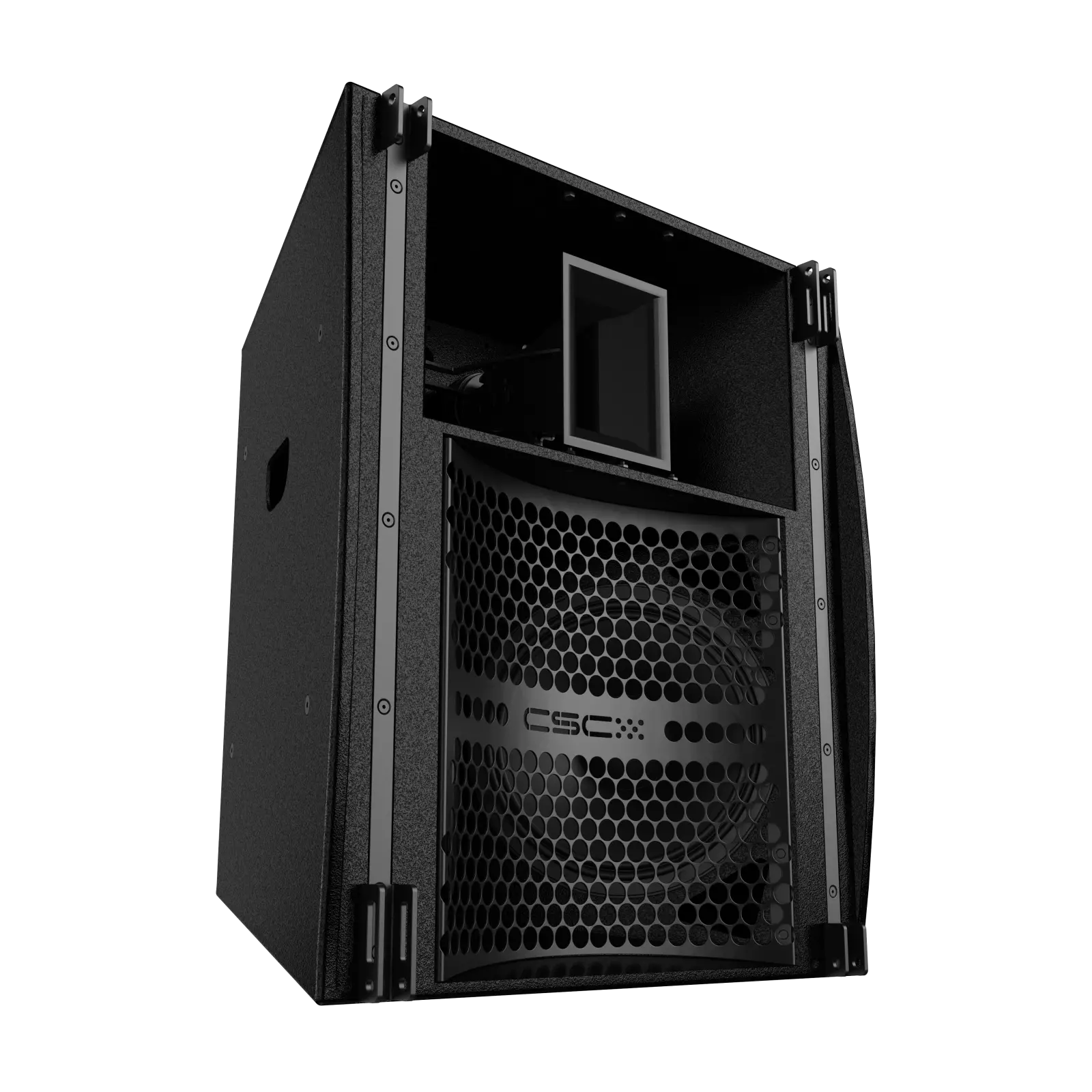

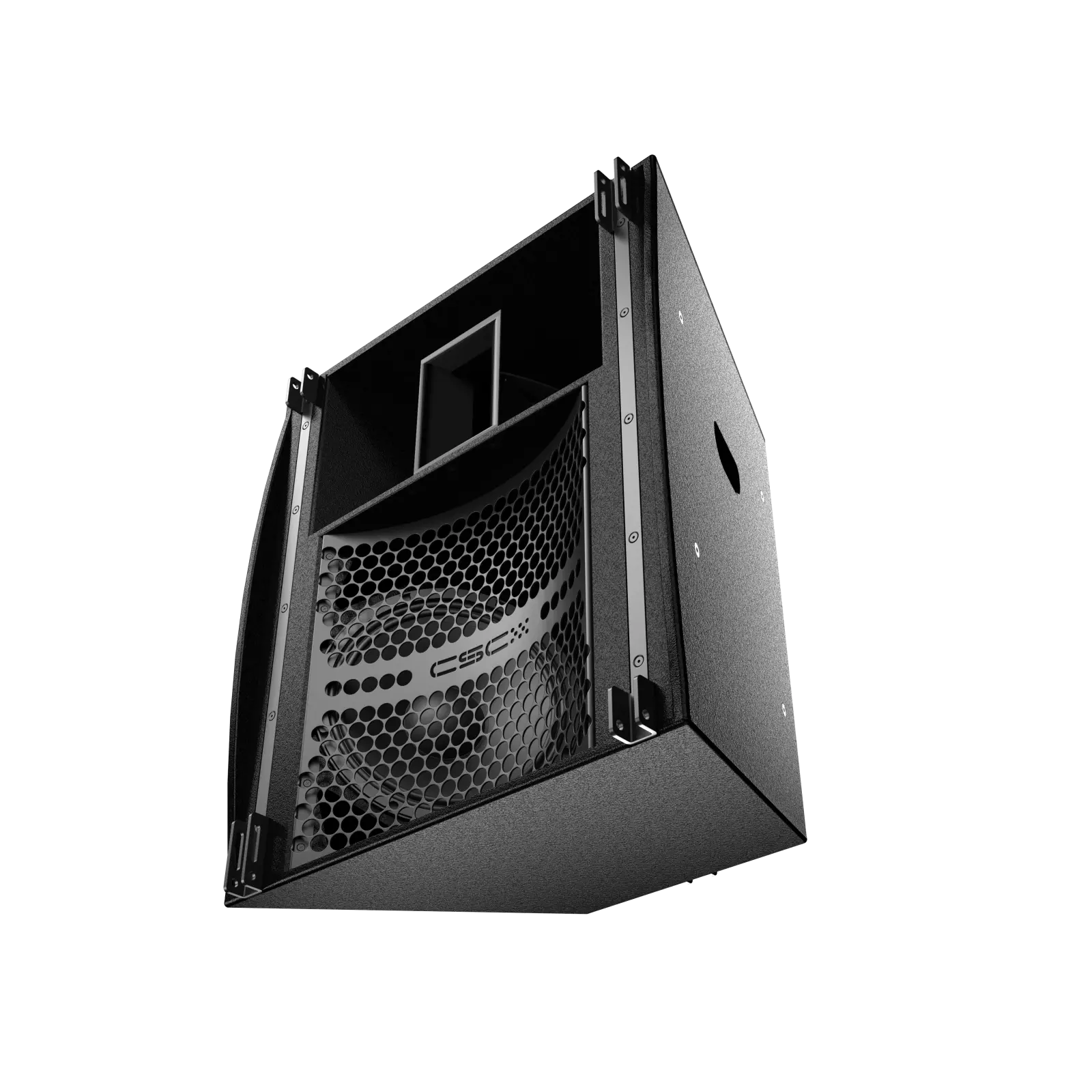

The Cello RR 212hl MK1 is a compact, horn-loaded 3-way passive bi-amped loudspeaker designed for exceptional clarity, efficiency, and directivity control. Its LF section features dual custom 12" drivers with V-chamber reflex-tuning for added sensitivity and low-frequency focus. The HMF section, built around an 8" driver and 1" HF coaxially horn-loaded, delivers smooth crossover, reduced distortion, and high output, making it ideal for both touring and installation.

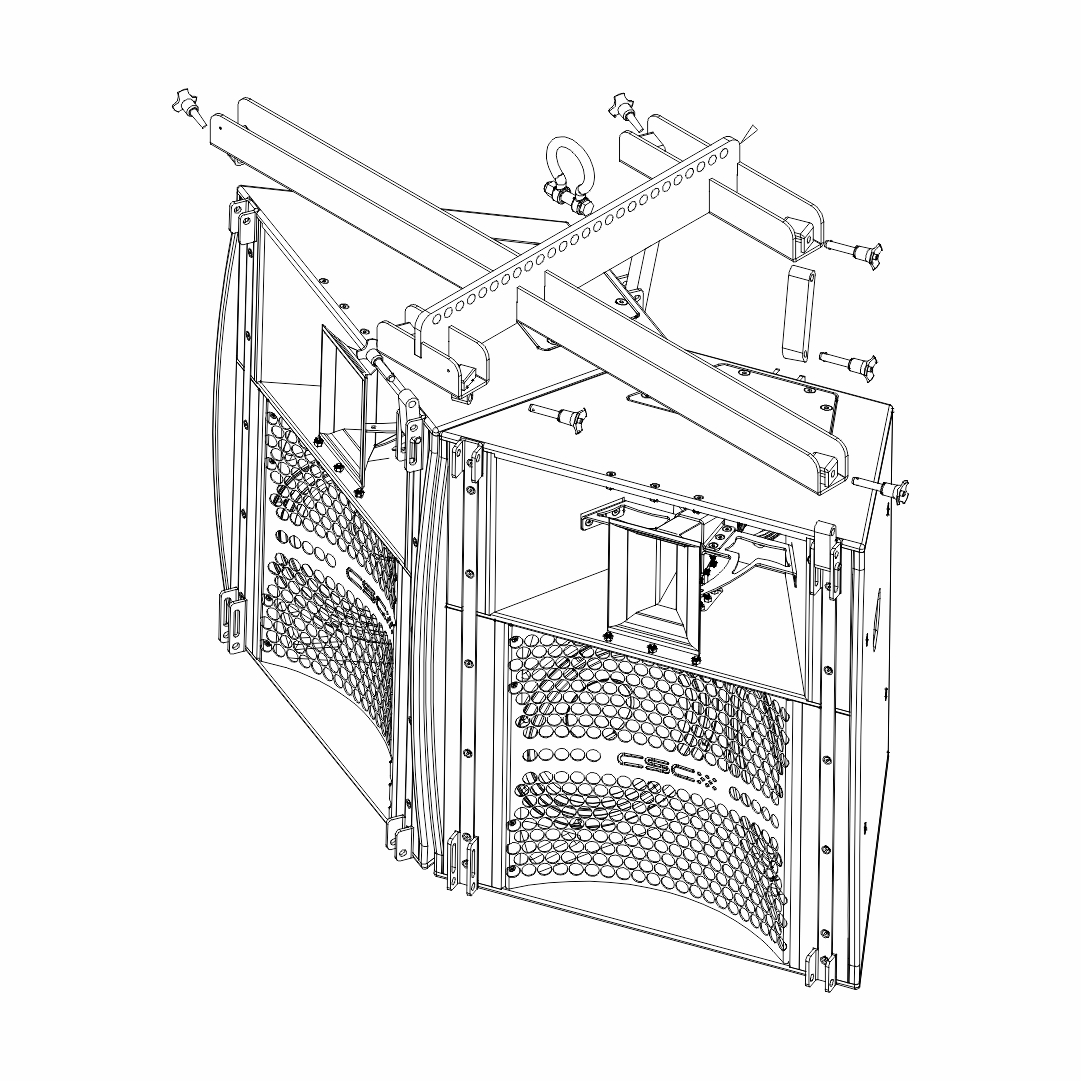

Available in three dispersion variants—40°x40°, 40°x60°, and 40°x90°—the RR 212hl MK1 offers unmatched rigging flexibility. It can be deployed as a single cabinet or in arrays (up to 3 wide or 3 deep), combining long-throw and near-field coverage with ease. Its acoustical horn design enhances sensitivity and mid-band SPL, ensuring brilliant performance even in reverberant spaces.
The RR 212hl MK1 delivers premium dynamic performance with up to 10 dB lower distortion (1–3 kHz) compared to conventional systems. Optimized with the CSC Maestro MS 26 controller and compatible with CSC subwoofers (CR 218s, RR 218s, RRH 218s, RRI 21s), it provides seamless system integration and powerful, distortion-free sound.
FEATURES AND APPLICATIONS
Key Features
- Can be used as a single unit or in arrays of up to nine cabinets
- Represents a unique design concept
- Provides an unusually high degree of rigging flexibility
- Offers dynamic performance
- Reduced distortion and power compression
Applications
- Live performance
- Church
- Auditoriums
- Stadiums
- Large night clubs
Technical Specification
| Model | RR 212hl-40 MK1 | RR 212hl-60 MK1 | RR 212hl-90 MK1 |
|---|---|---|---|
| Type | Bi-amped, semi horn-loaded, three-way, Long throw, Mid-high | Bi-amped, Horn loaded, Coaxial, Three way, Long throw, Mid-high | Bi-amped, Horn loaded, Coaxial, Three way, Long throw, Mid-high |
| Frequency Response | 75 Hz - 20 kHz | 75 Hz - 20 kHz | 75 Hz - 20 kHz |
| Drivers | LF: 2x12" with a 2.56" V C, MF: 8" with a 2.0" VC and HF:1" with a CD 1.4" VC | LF: 2x12" with a 2.56" V C, MF: 8" with a 2.0" VC and HF:1" with a CD 1.4" | LF: 2x12" with a 2.56" V C, MF: 8" with a 2.0" VC and HF:1" with a CD 1.4" |
| Sensitivity (1 W / 1 m) | LF : 103 , HMF : 108 dB | LF : 103 , HMF : 108 dB | LF : 103 , HMF : 108 dB |
| Maximum Spl Continuous/max | LF : 130 , HMF : 130 dB | LF : 130 , HMF : 130 dB | LF : 130 , HMF : 130 dB |
| Maximum Spl Peak | LF : 136 , HMF : 130 dB | LF : 136 , HMF : 130 dB | LF : 136 , HMF : 130 dB |
| Nominal Impedance | LF ; 8 ohms , HMF :8 ohms | LF ; 8 ohms , HMF :8 ohms | LF ; 8 ohms , HMF :8 ohms |
| Dispersion | 40° x 40° | 40° x 60° | 40° x 90° |
| Crossover | LF/HMF active, MF/HF passive | LF/HMF active, MF/HF passive | LF/HMF active, MF/HF passive |
| Enclosure | Baltic birch ply | Baltic birch ply | Baltic birch ply |
| Finish | Non-toxic Textured black paint | Non-toxic Textured black paint | Non-toxic Textured black paint |
| Protective Grill | Perforated Powder-coated Steel | Perforated Powder-coated Steel | Perforated Powder-coated Steel |

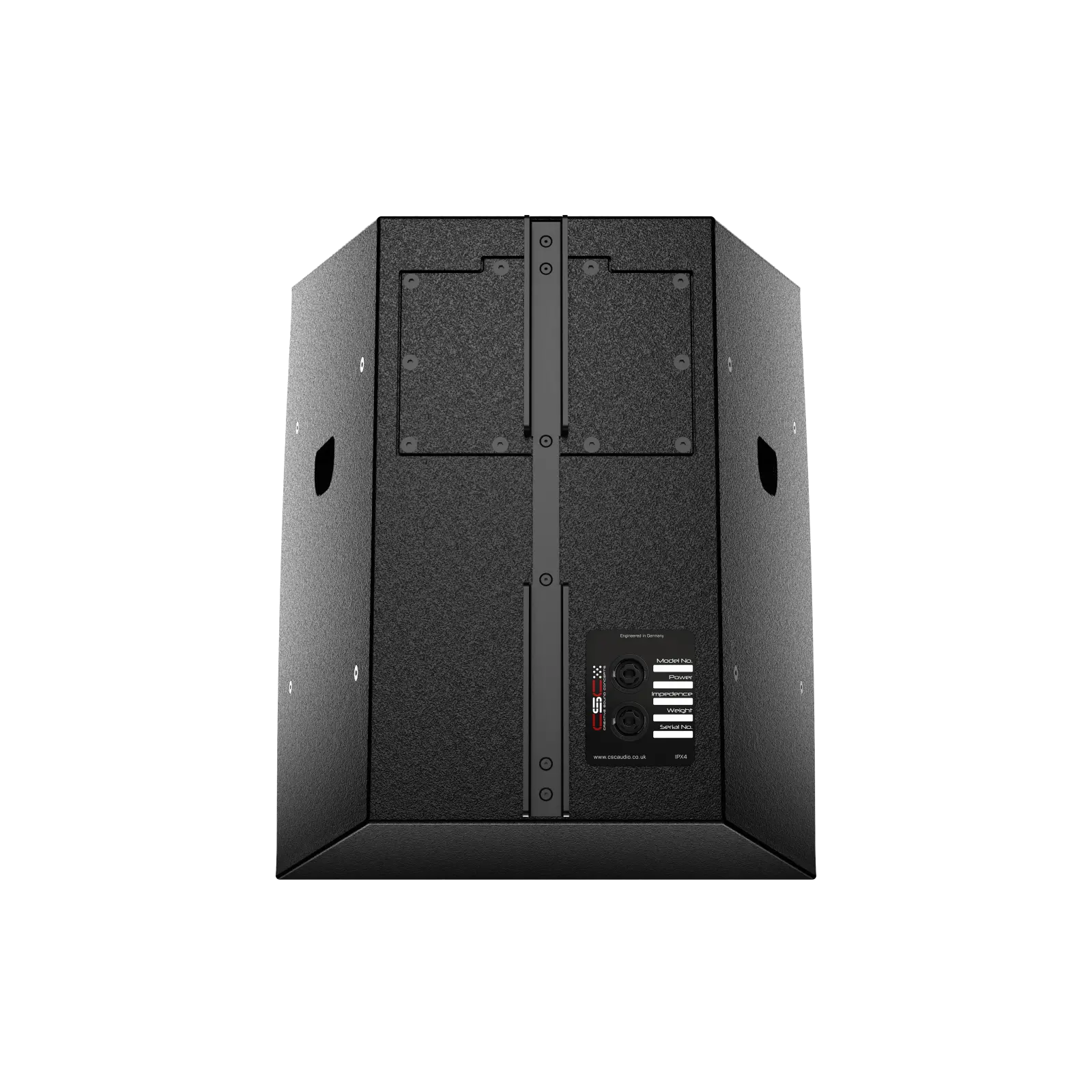

| Connectors | 2 x Neutrik NL8 | 2 x Neutrik NL8 | 2 x Neutrik NL8 |
| Pin Connections | Input LF: ± 3, HF: ± 4 Link through LF ± 3, HF: ± 4 | Input LF: ± 3, HF: ± 4 Link through LF ± 3, HF: ± 4 | Input LF: ± 3, HF: ± 4 Link through LF ± 3, HF: ± 4 |
| Standard Colours | Black | Black | Black |

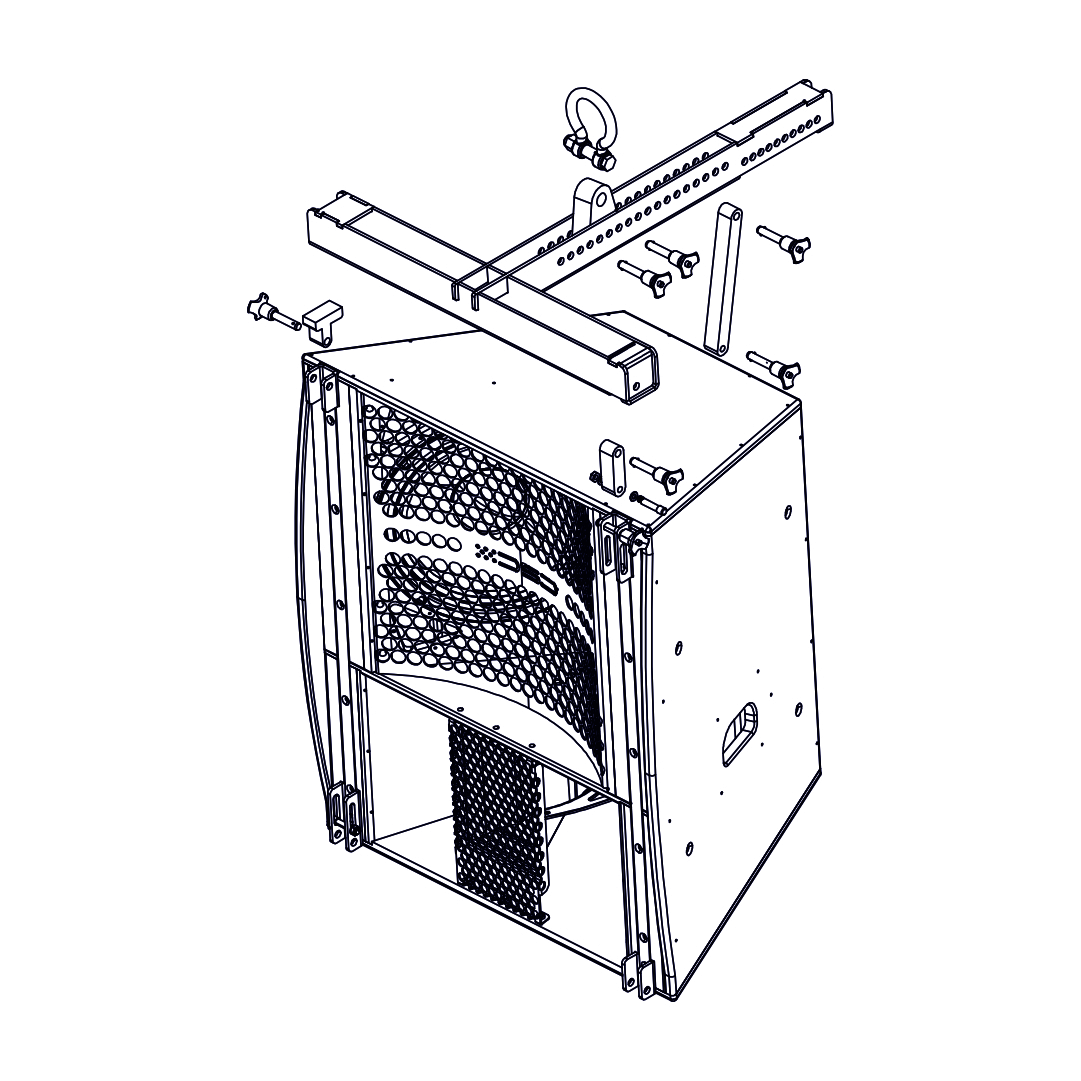

| Fitting | Inbuilt flying system without flying frames | Inbuilt flying system without flying frames | Inbuilt flying system without flying frames |
| Horn | Non Rotatable | Non Rotatable | Non Rotatable |
| Nominal/ AES Power | 600/250/60 watts | 600/250/60 watts | 600/250/60 watts |
| Max/ Continuous/ Program Power | 1200/500/120 watts | 1200/500/120 watts | 1200/500/120 watts |
| Peak Power | 2400/1000/240 watts | 2400/1000/240 watts | 2400/1000/240 watts |

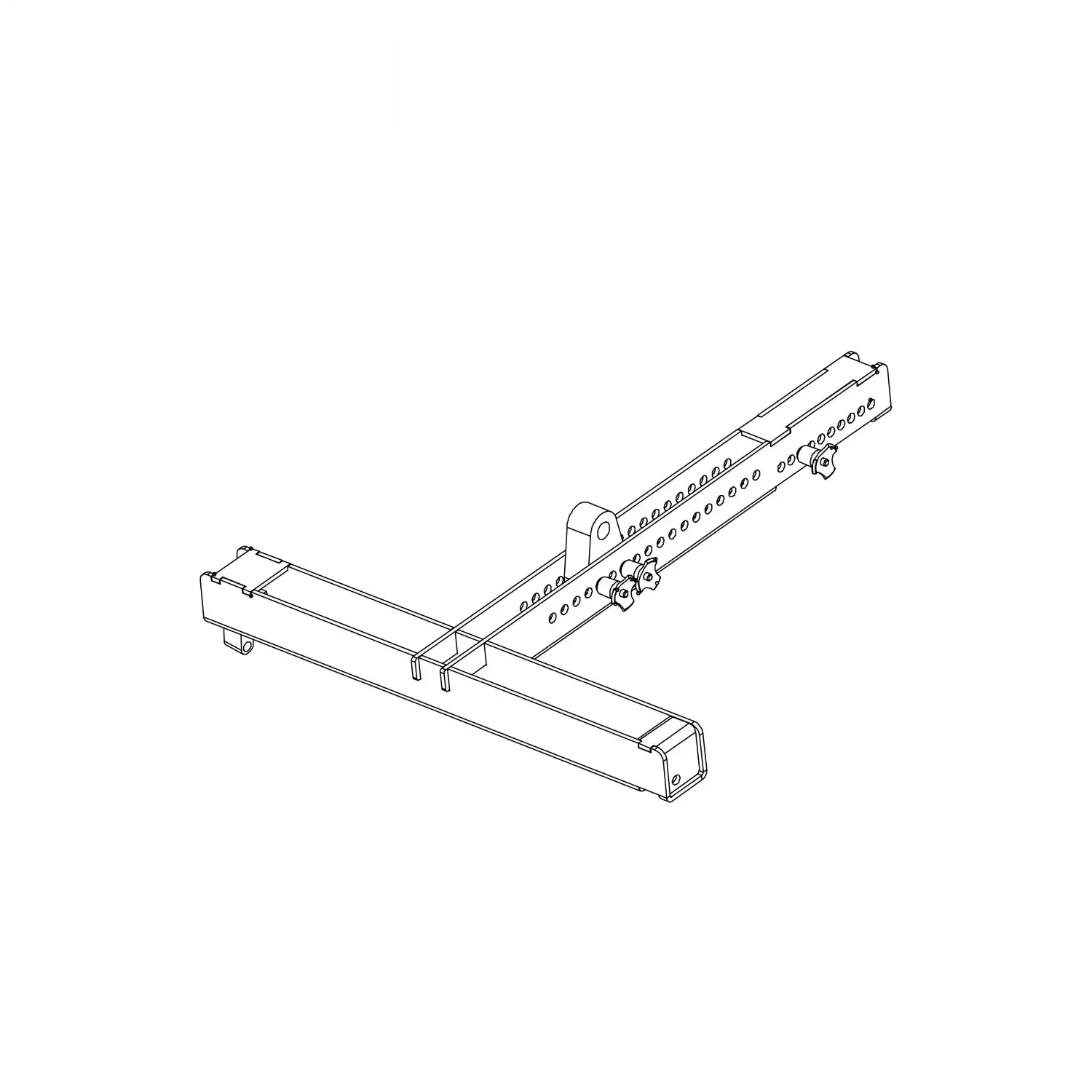

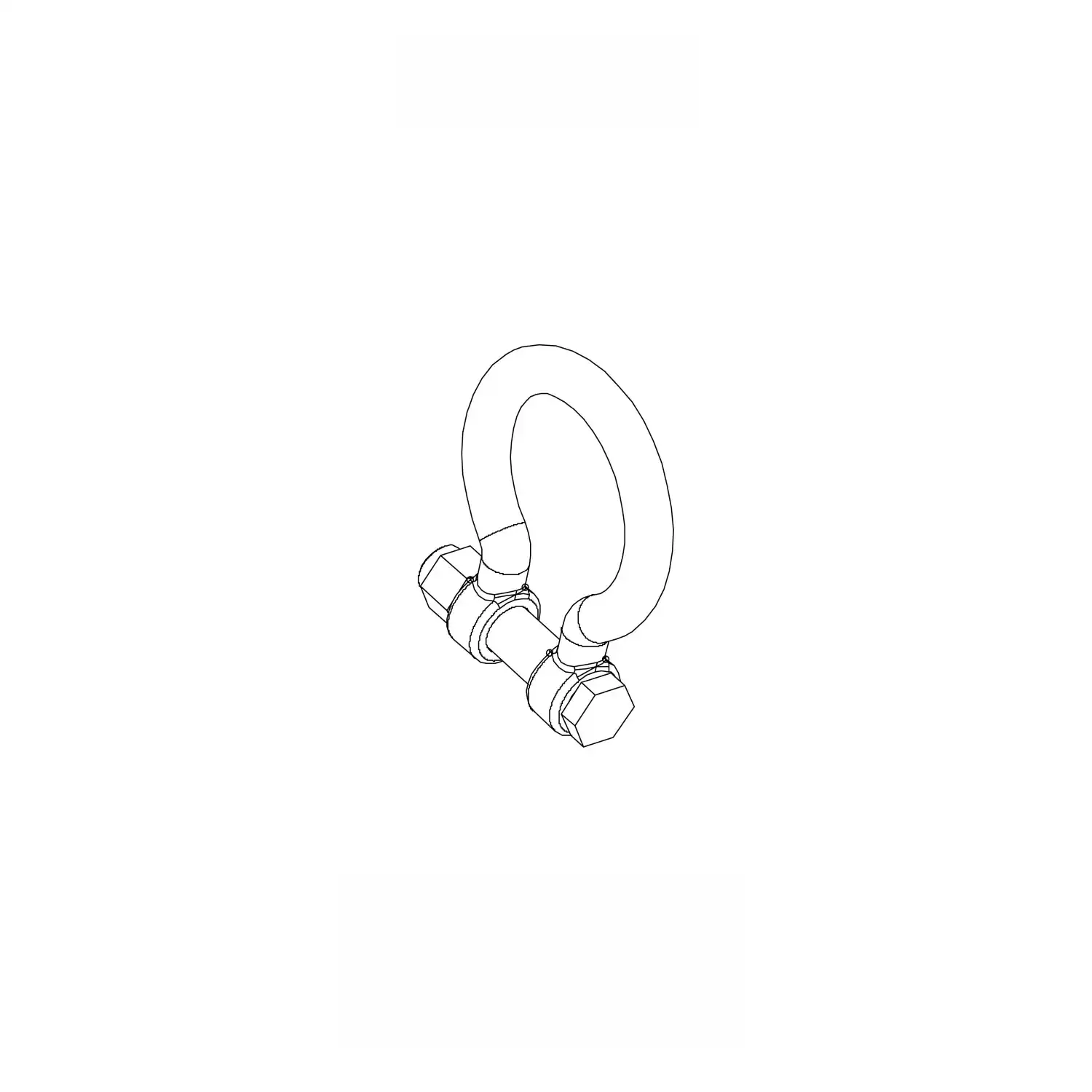

| Accessories | Speaker ground stacking separator, felted waterproof covers, flying hardware | Felted waterproof covers, Flying hardware | Felted waterproof covers, Flying hardware |
| Dimensions For Product (in mm) | (W) 665 x (H) 742 x (D) 465 | (W) 665 x (H) 742 x (D) 465 | (W) 665 x (H) 742 x (D) 465 |
| Dimensions Including Packing (in mm) | (W) 755 x (H) 810 x (D) 540 | ((W) 755 x (H) 810 x (D) 540 | (W) 755 x (H) 810 x (D) 540 |
| Net Weight (kgs) | 41 | 41 | 41 |
| Shipping Weight (kgs) | 48 | 48 | 48 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
