Contrabass Series RR 215s
Engineered for Impact: Experience Bass Like Never Before!

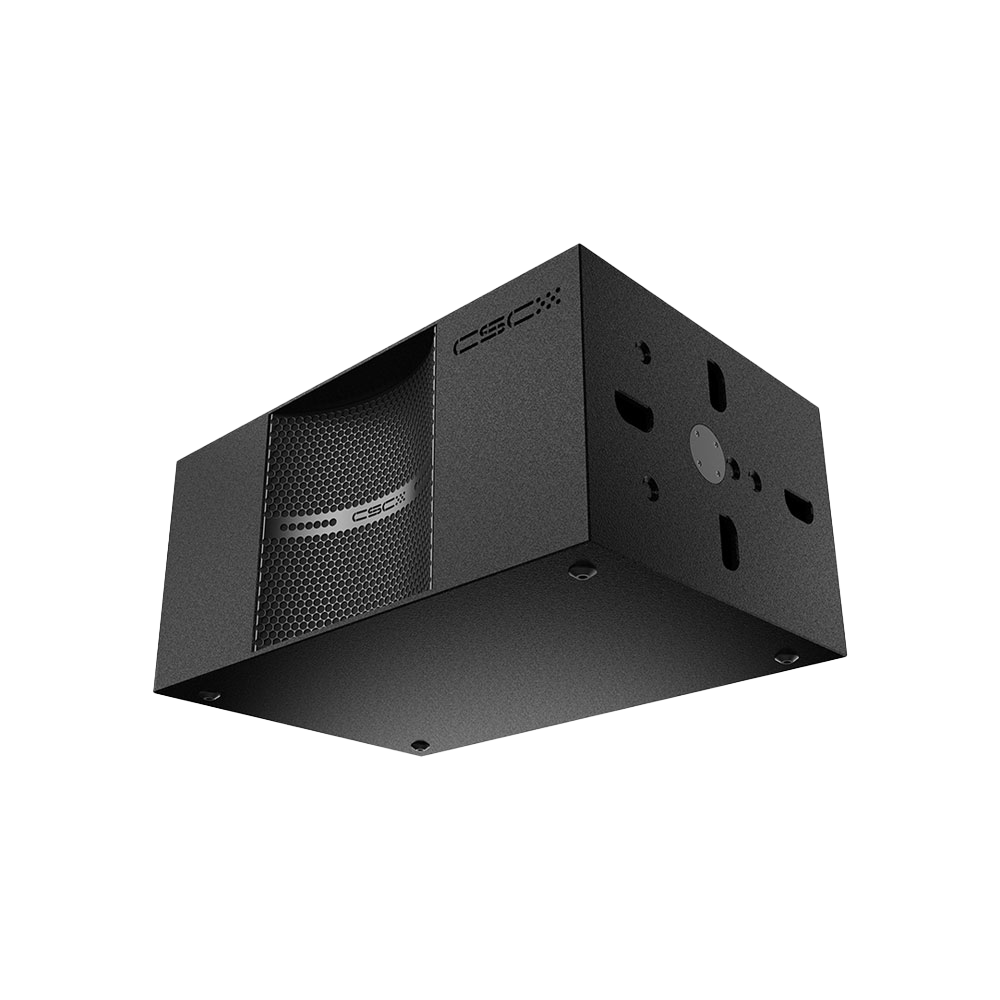

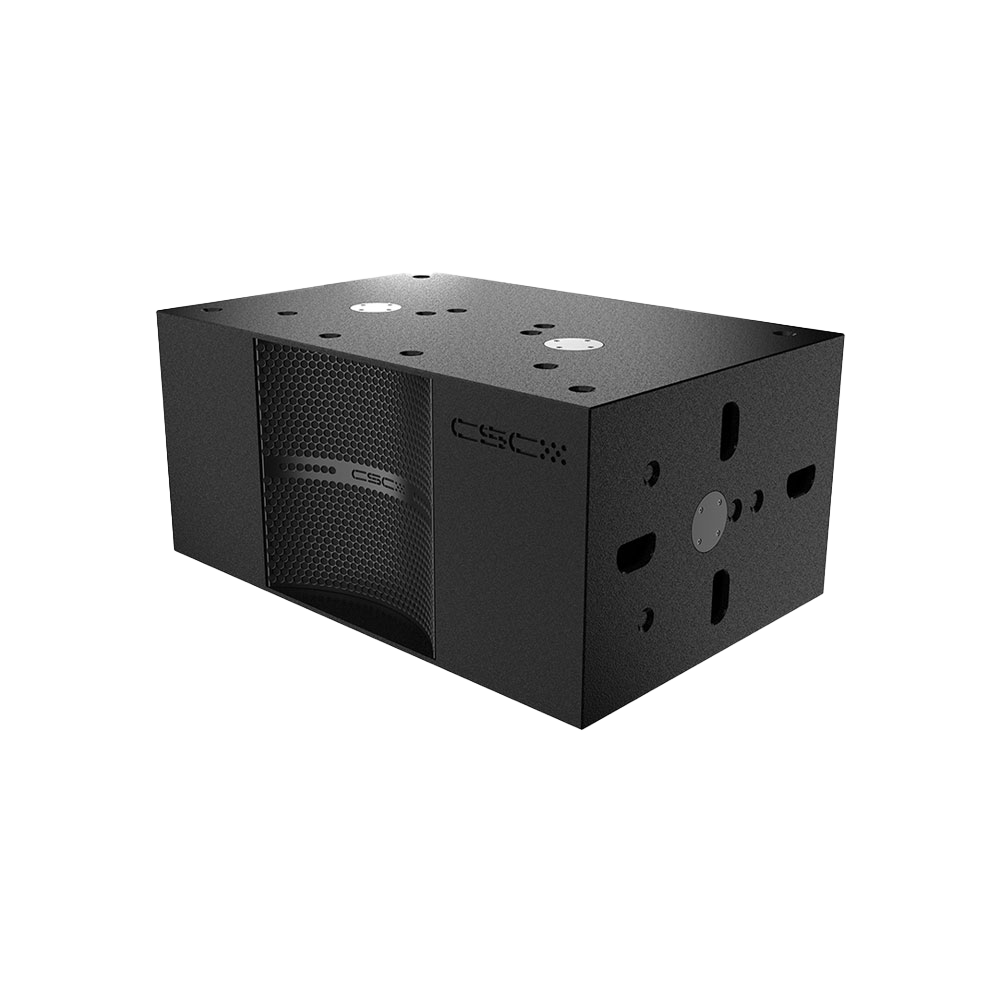

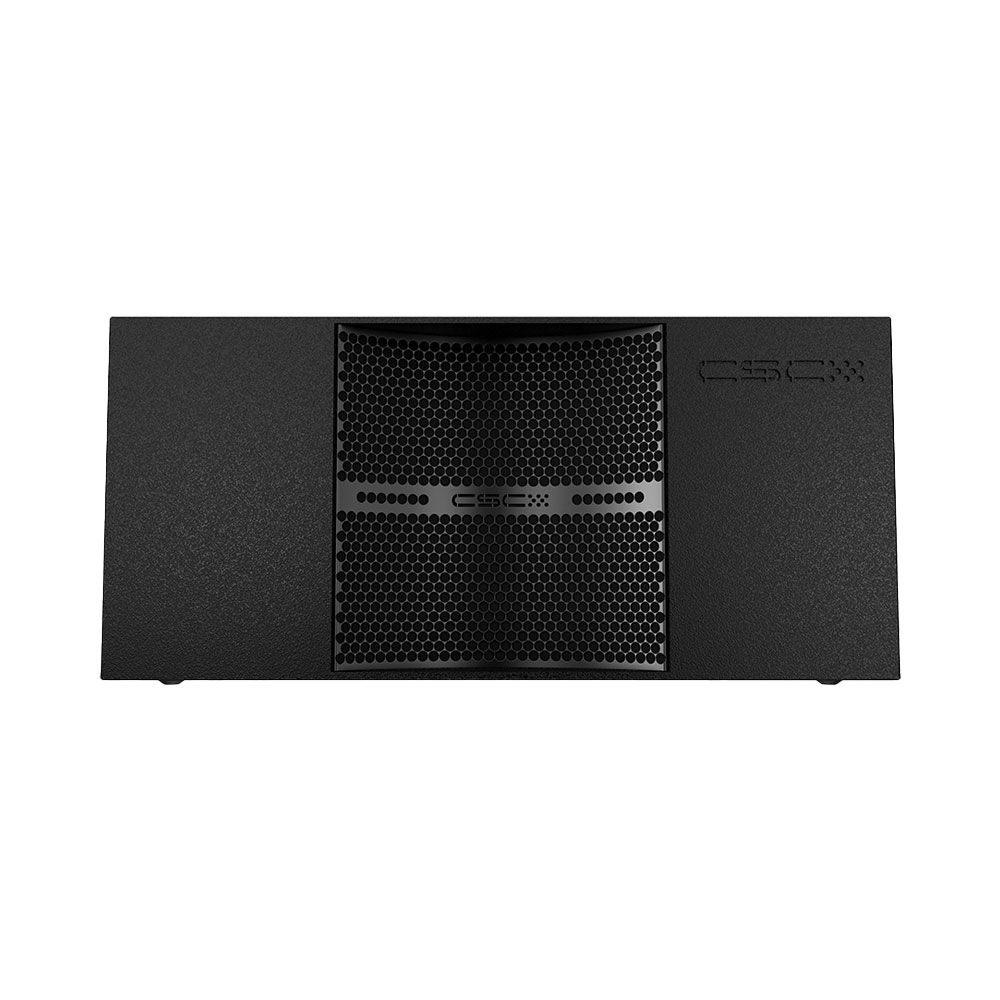

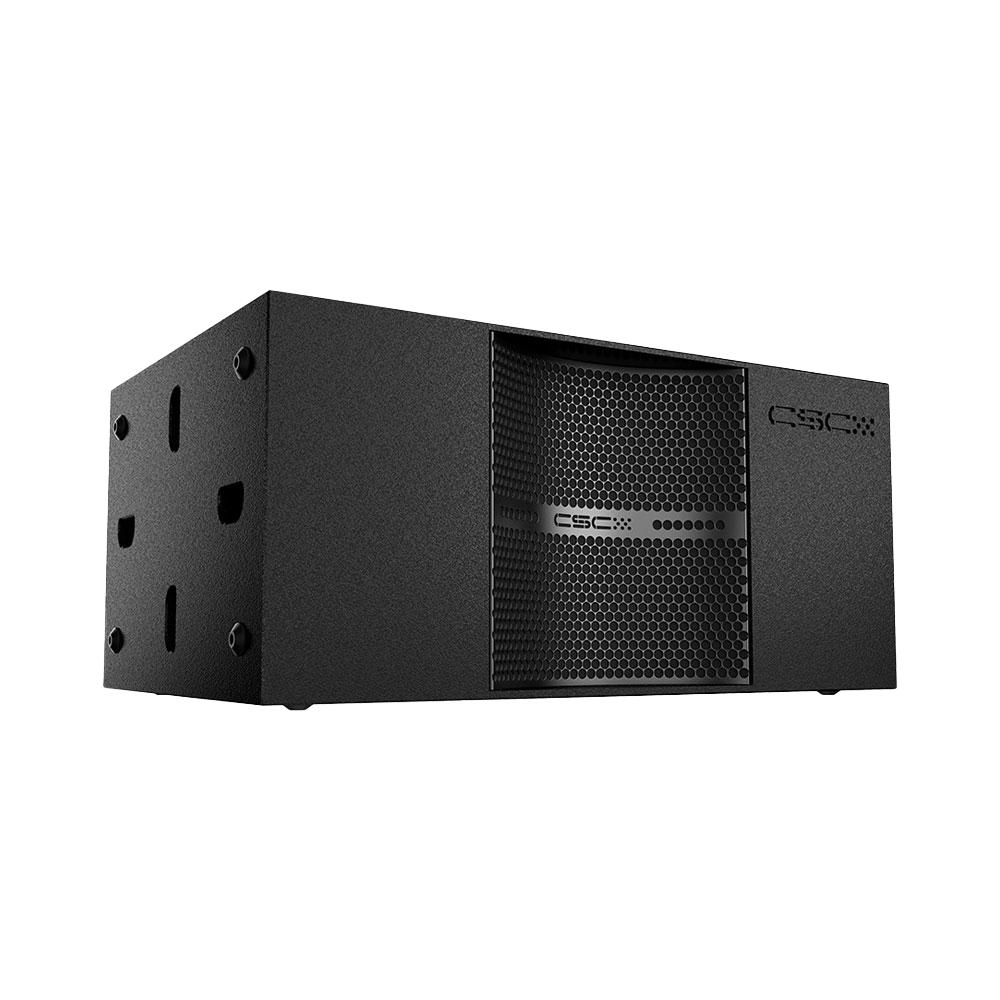

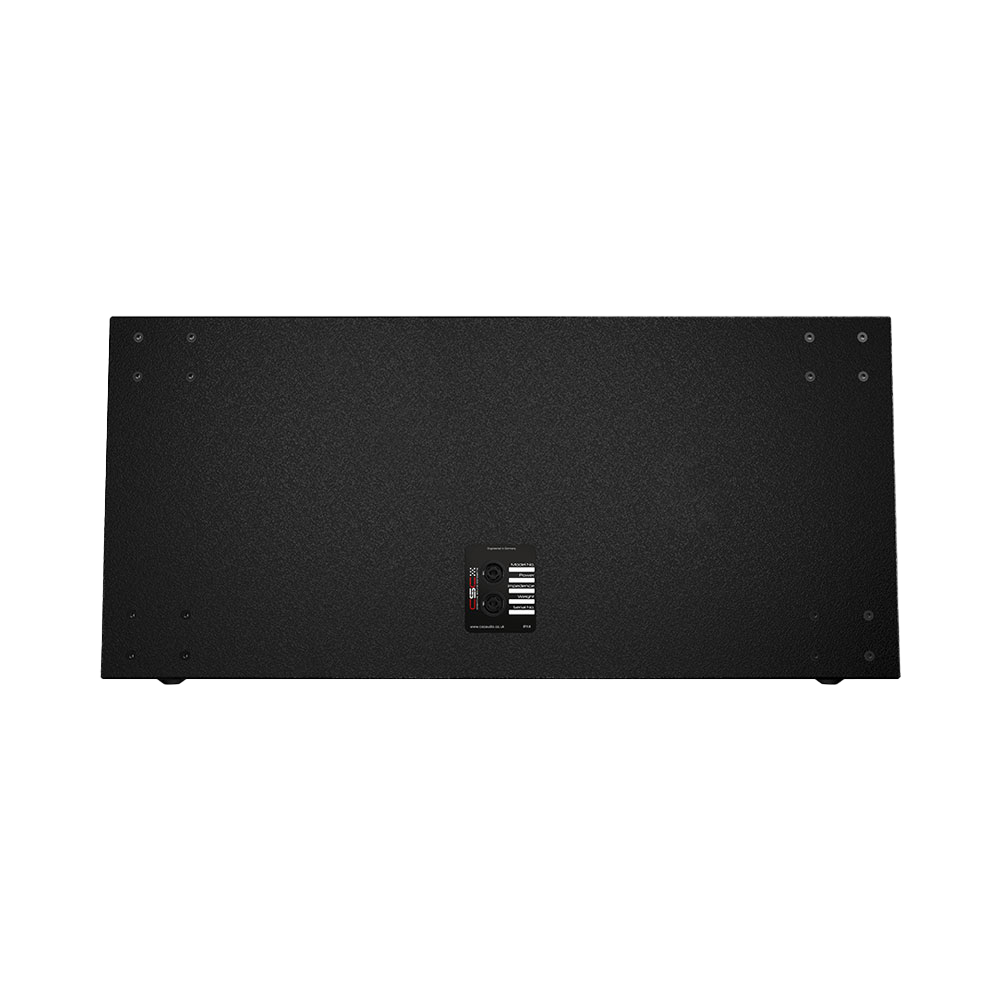

The Contrabass RR 215s is a reflex-loaded, dual 15" (375 mm), 1000 watt sub-woofer with a double suspension. It is the main system to be used with the Cello series top cabinets. The sub-woofer has been designed to kick without losing its extended low-frequency response. Suitable for use in fixed installation and mobile application, the RR 215s is an extremely versatile sub-woofer for integrators.
It has been specially designed for live bands and nightclubs. For demanding applications, the CSC Maestro MS 26 controller is configured to perform with its EQ and limiter functions are pre-loaded in the controller. CC 8, CF 10, CF 12, CF 15, CF 12h, RR 212h, RR 15h and RR 15hl are a perfect match for RR 215s.
Key Features
- Compact, high-performance Band pass horn dual 15" subwoofer.
- Easy to install
- Can retrofit into existing venues
- Rubber feet
- Top Hat
Applications
- Nightclubs need chest thumping.
- Live application
- lounges and bars
Technical Specification
| MODEL | RR 215s |
|---|---|
| Type | Reflex loaded sub-woofer |
| Frequency Response (1) | 39 Hz-250 Hz ± 3dB |
| Drivers | LF: 2 x15" (375 mm) with a 4" (100 mm) voice coil |
| Recommended Amplifier Upto | 2000 Watts |
| Sensitivity (1 W / 1 m) | 100 dB |
| Maximum SPL (9) | 130 dB continuous, 136 dB Max |
| Nominal Impedance | 4 Ohms |
| Dispersion | Omni |
| Crossover | LPF 100Hz |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl8 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Horn | NA |
| Rated Continuous Power AES | 1000 Watts |
| Rated Maximum Power/Program Power | 2000 Watts |
| Peak Power | 4000 Watts |
| Accessories | Castors, Speaker poles, felted waterproof covers |
| Dimensions - Product (in mm) | (W) 964 x (H) 488 x (D) 653 |
| Dimensions - Including packing (in mm) | (W) 986 x (H) 510 x (D) 679 |
| Net Weight (kgs) | 69 |
| Shipping Weight (kgs) | 74 |
About Series
The Contrabass Series products capture the bold and dynamic characteristics of the contrabass. Choose between a Reflex, Multiload, or a bandpass; the Contrabass Series has it all. The aim is to deliver deep, impactful bass that defines the lower frequency extension of the audio spectrum, making them ideal for both live sound and installation applications. Engineered to ensure minimum cabinet resonance, they disappear in a venue and are in different shapes and sizes that fit under a stairway, stand next to a column, or simply can be slipped under a stage without losing the high-impact performance. These subwoofers enhance low-frequency extension and overall audio presence, making them perfect for high-energy environments. These are ideally paired with the Cello and String Series mid-highs. Choose from our range of Contrabass and String series subwoofers to play, hear, and feel the music.
