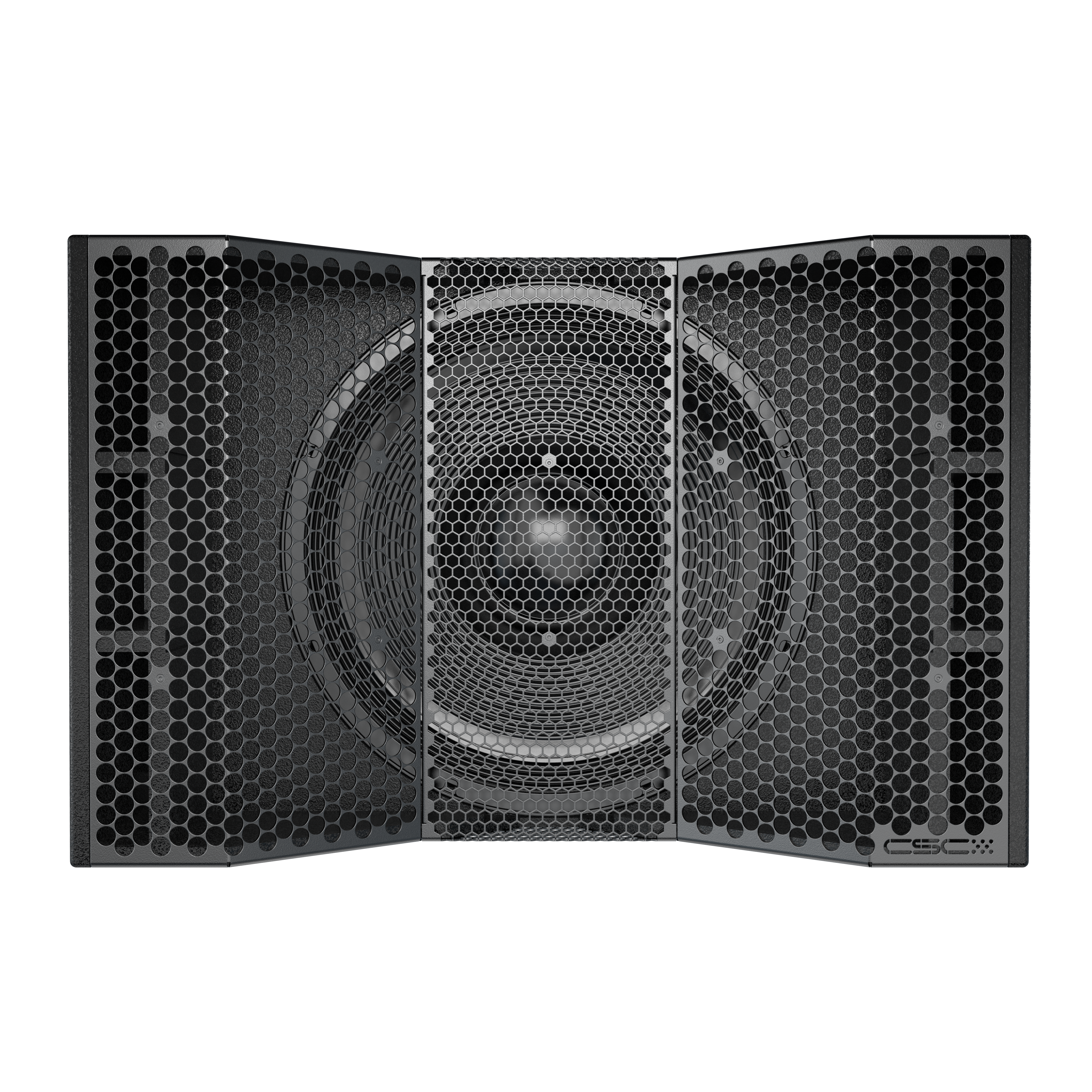

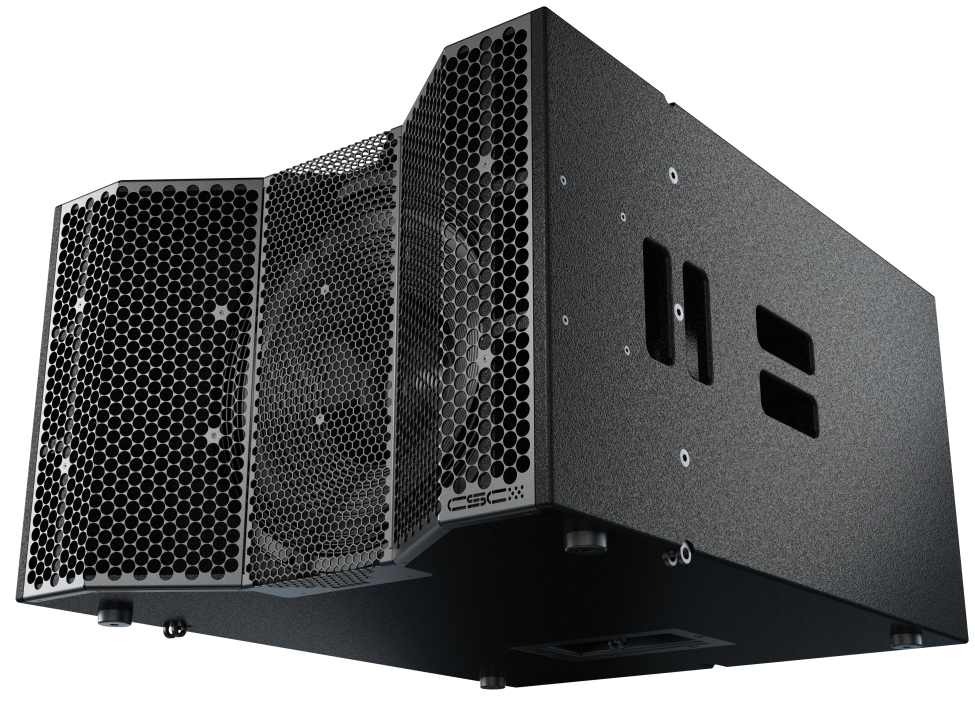

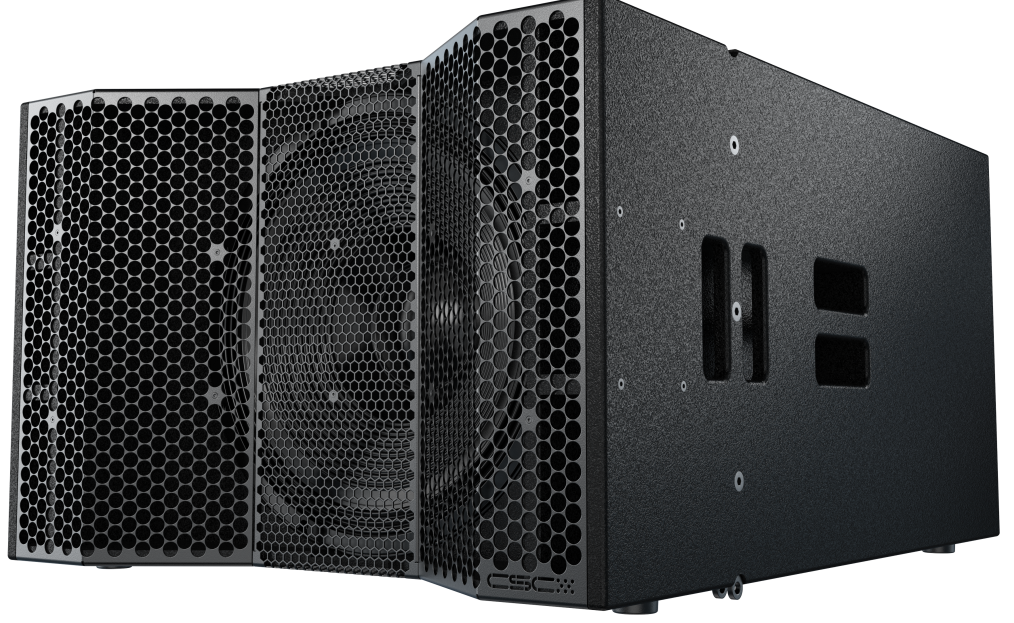

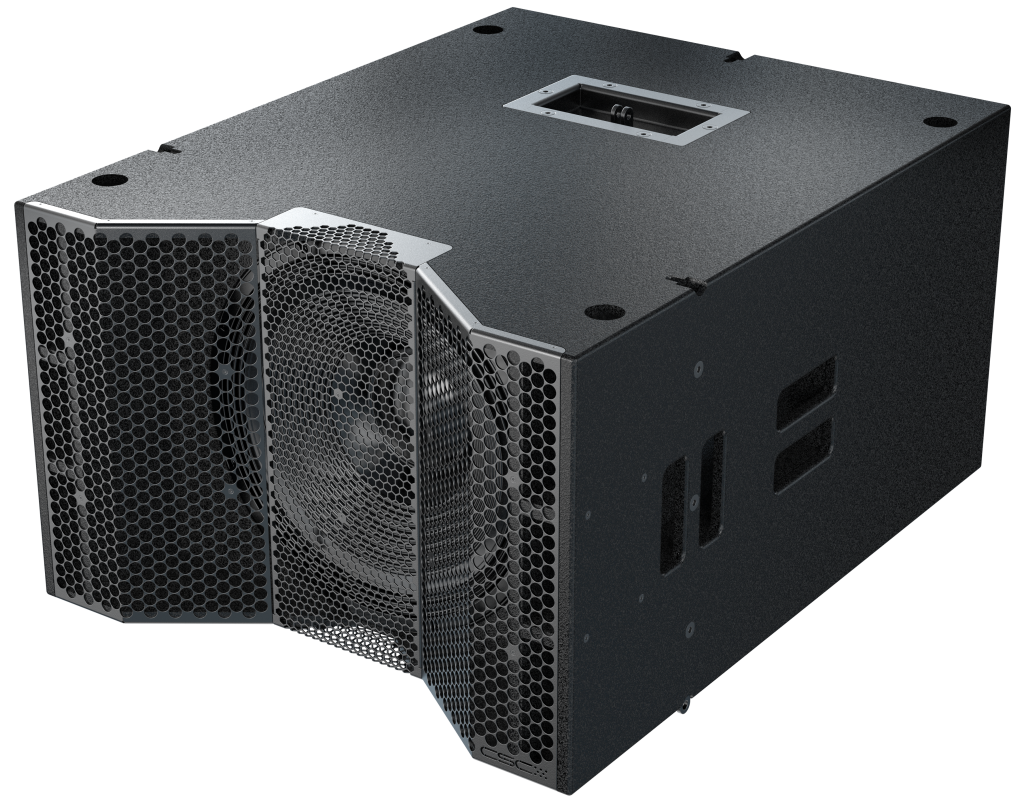

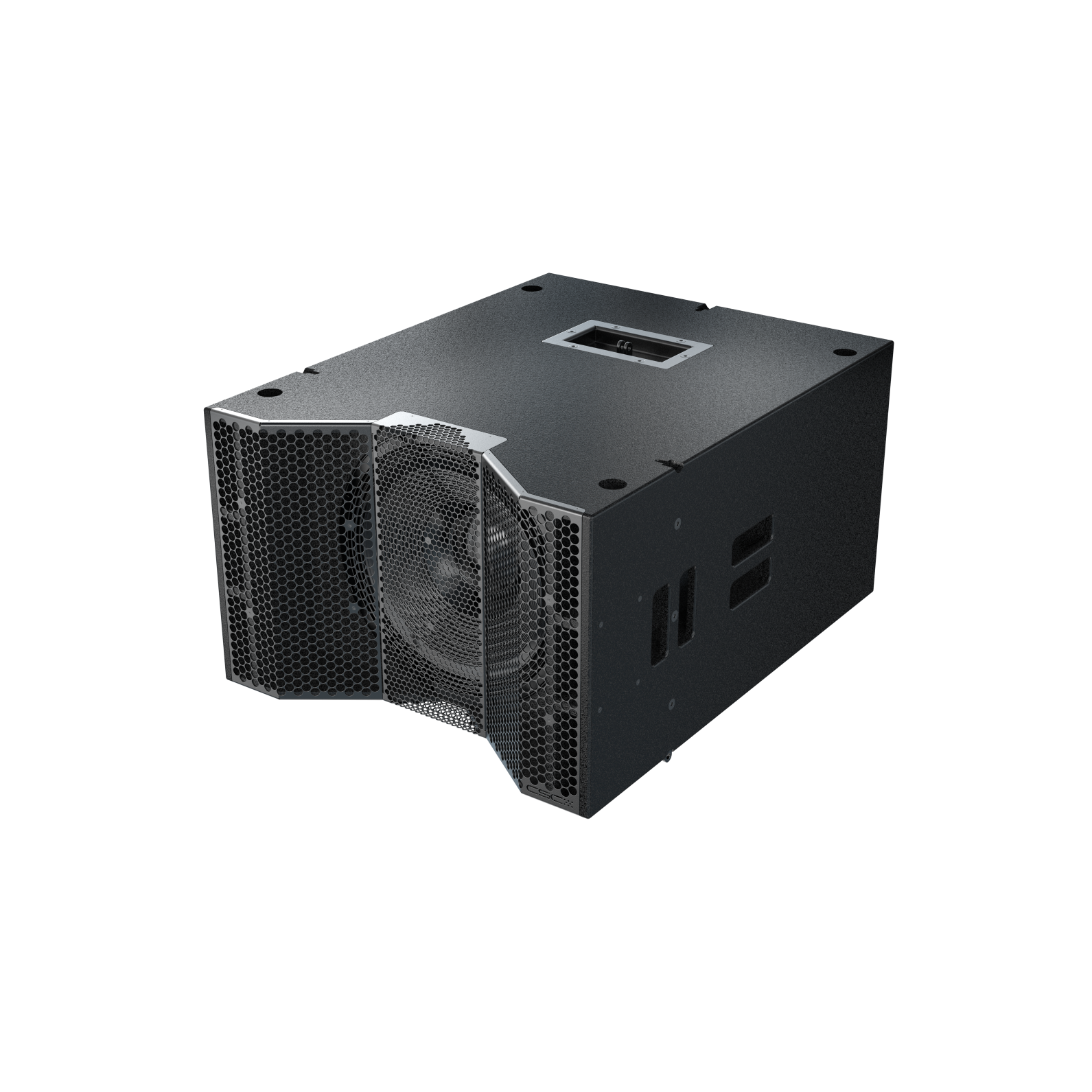

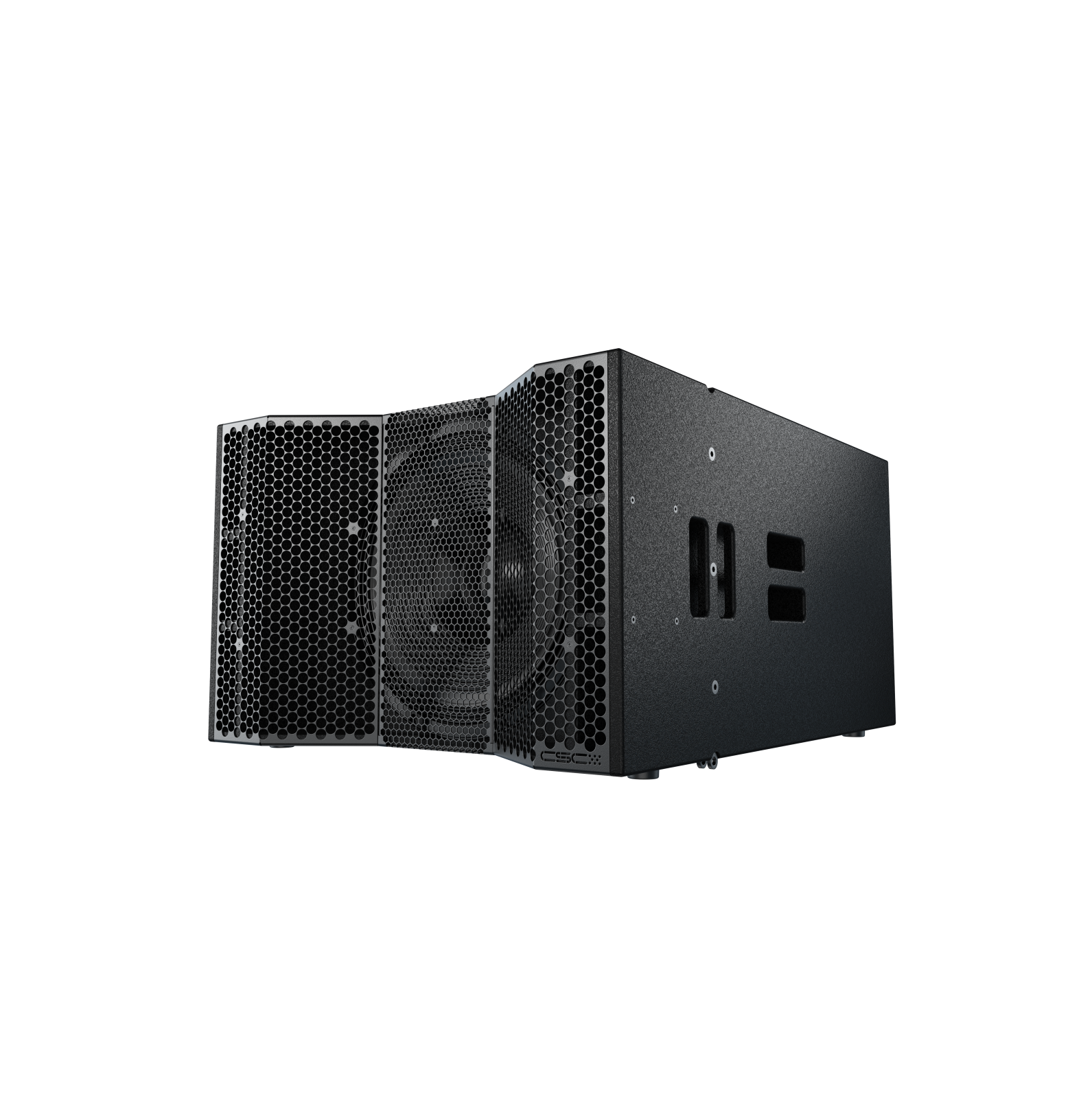

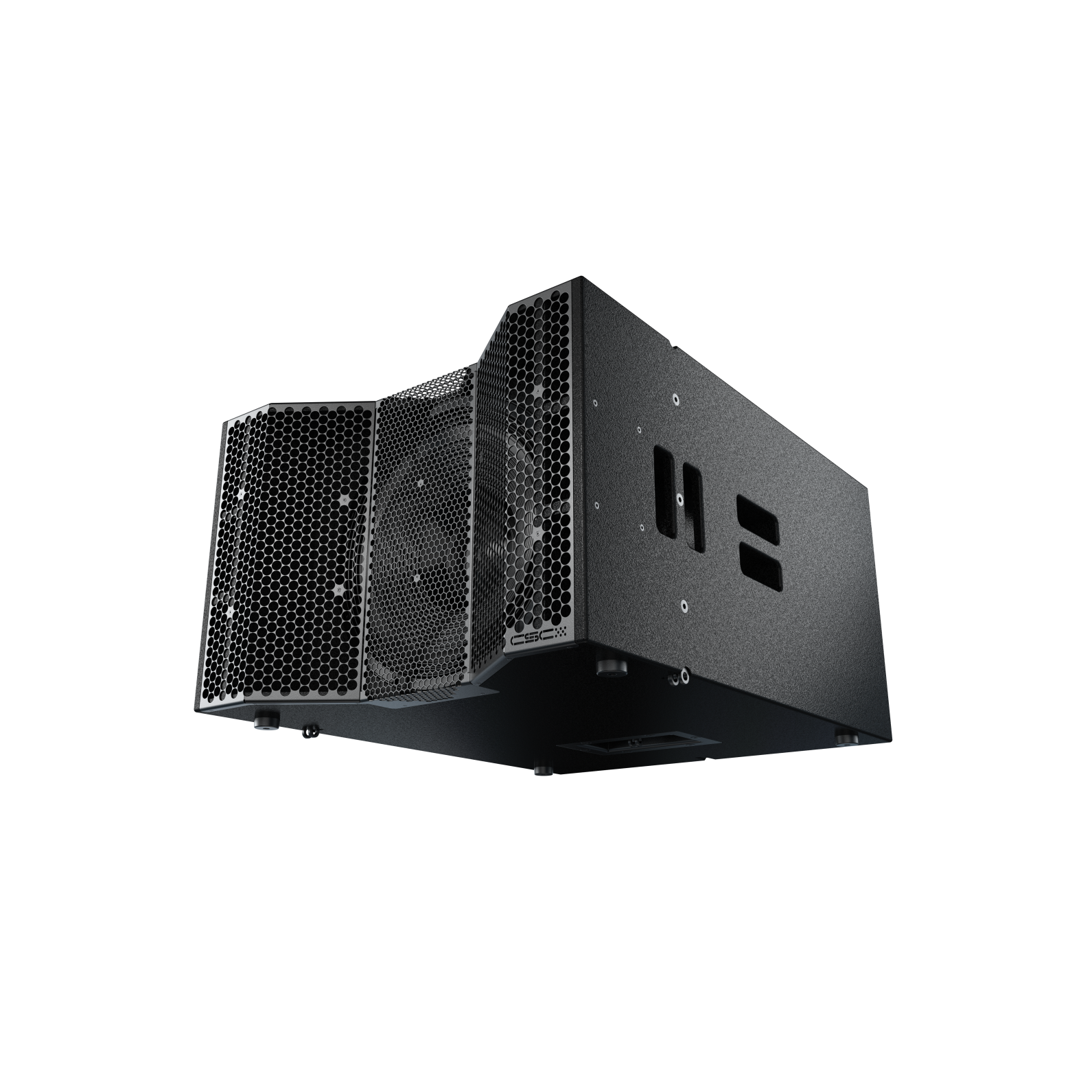

Cello Series Harmonica S
Powerful Performance Meets Perfect Dispersion.

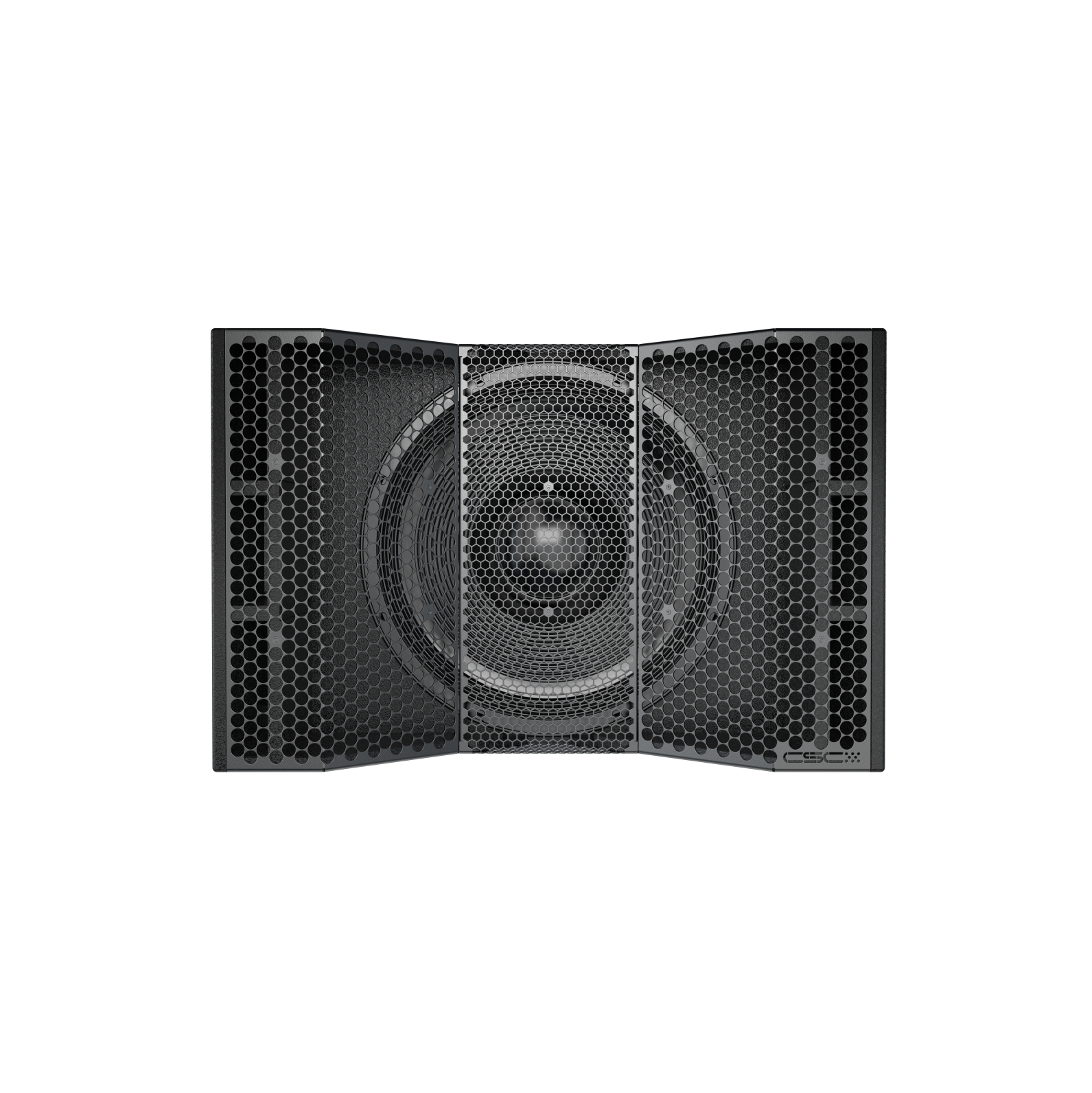

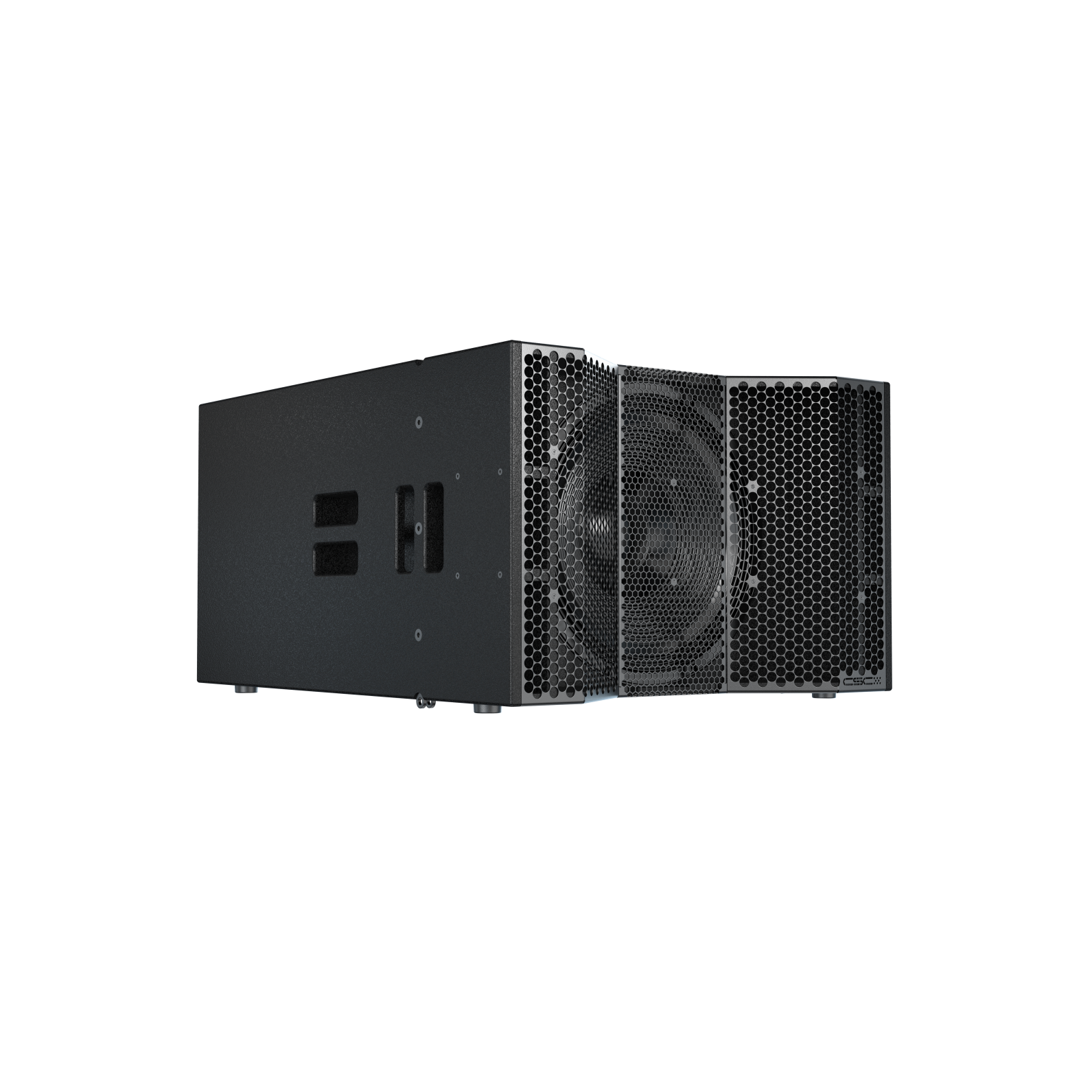

The Harmonica S is a high-performance, single 18" subwoofer featuring a powerful neodymium driver, designed for both flown and ground-stacked configurations. Engineered to seamlessly integrate atop the Harmonica 210-line array, this subwoofer offers a unique solution for auditoriums and venues where traditional floor-mounted subwoofers are impractical or undesirable.
Primarily functioning as a low-frequency extension, the Harmonica S can also be used as a mid-extension to a Harmonica 3S, providing a deeper, more impactful bass response—all while maintaining a clean stage and audience area. Up to two subs can be flown in one hang.
The Harmonica 3S is specifically designed to complement the Harmonica 210-line array systems, offering powerful low-frequency extension while being lightweight enough for flown configurations directly above the array elements. The use of neodymium (neo) drivers is a crucial aspect of its design, contributing to its key features.
Key Features
• High-Output Neodymium Motor structure
• Integrated Flyware
• Compact Form Factor (Relative to Output)
• Improved Vertical Coherency
• Enhanced Visual Aesthetics
• Increased Efficiency
• Improved Transient Response
• High power handling
Applications
• Mid-to-Large Scale Live Concerts
• Touring Sound Systems
• Auditorium
• Corporate Events and Conferences
• Houses of Worship
Technical Specification
| MODEL | Harmonica S |
|---|---|
| Type |
Subwoofer both for flying and ground stacking |
|
Frequency Response (1) |
38 Hz - 300kHz ± 3dB |
|
Drivers |
LF: 1x 18” neo long excursion with a 4" voice coil |
|
Power Handing AES |
1000 Watts |
|
Power Handling (Maximum/prog) |
1800 watts |
|
Power handling (Peak) |
3600 watts |
|
Nominal Impedance |
8 Ohms |
|
Sensitivity (1watt/1met) |
98 db |
|
Max SPL |
128 db |
|
Enclosure |
Baltic birch ply |
|
Finish |
Non Toxic Black Textured Paint |
|
Protective Grill |
Steel grill |
|

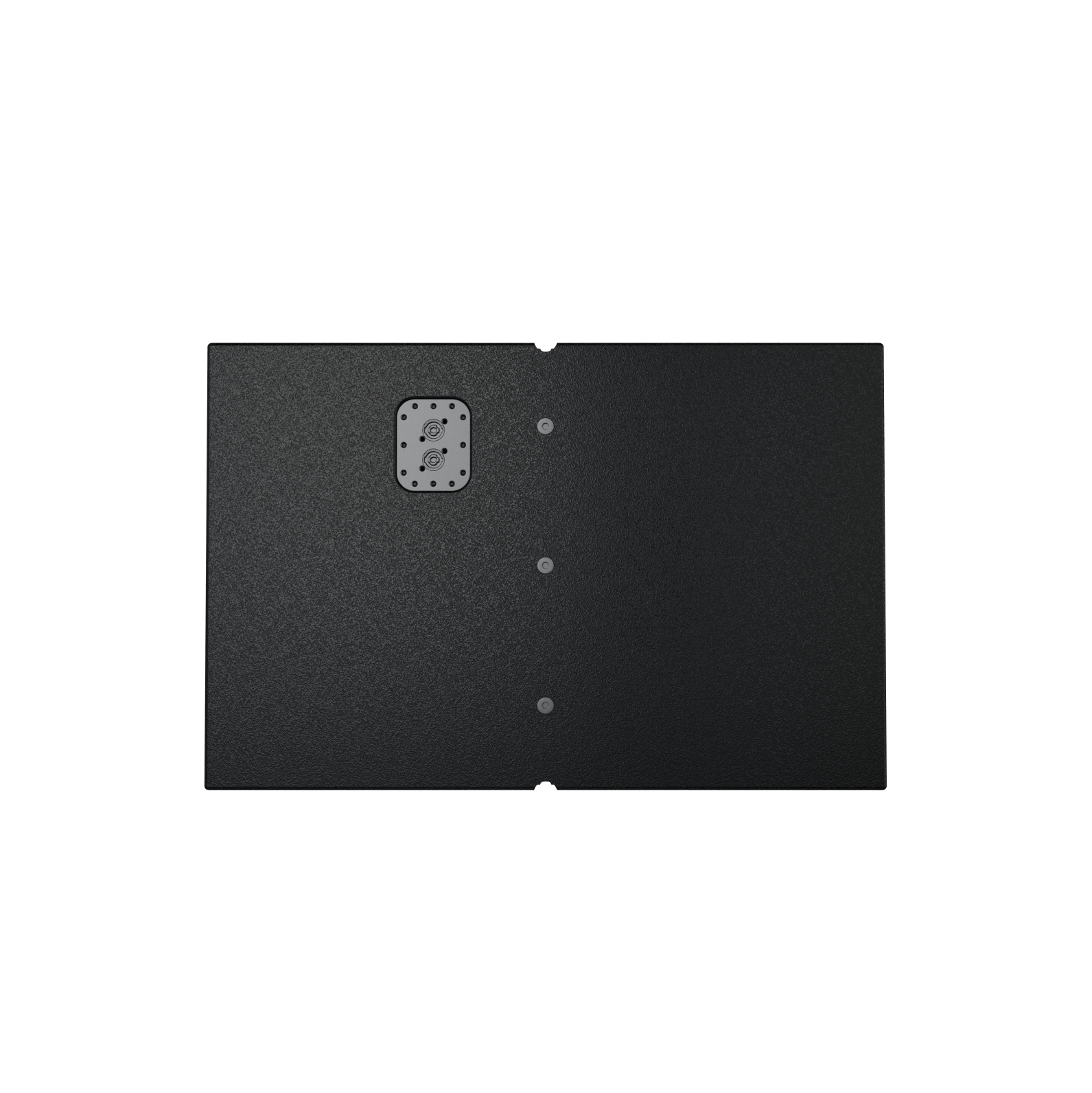

Connectors |
2x Neutrik NL8 |
|
Pin Connections |
LF±1, Link through LF±2 |
|
Standard Colors |
Black |
|
Fittings |
Flying frame |
|
Dimensions - Product (in mm) |
(W) 732 x (H) 320 x (D) 665 |
|
Dimensions - Including packing (in mm) |
|
|
Net weight(kgs) |
35 |
|
Shipping Weight(kgs) |
40 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
