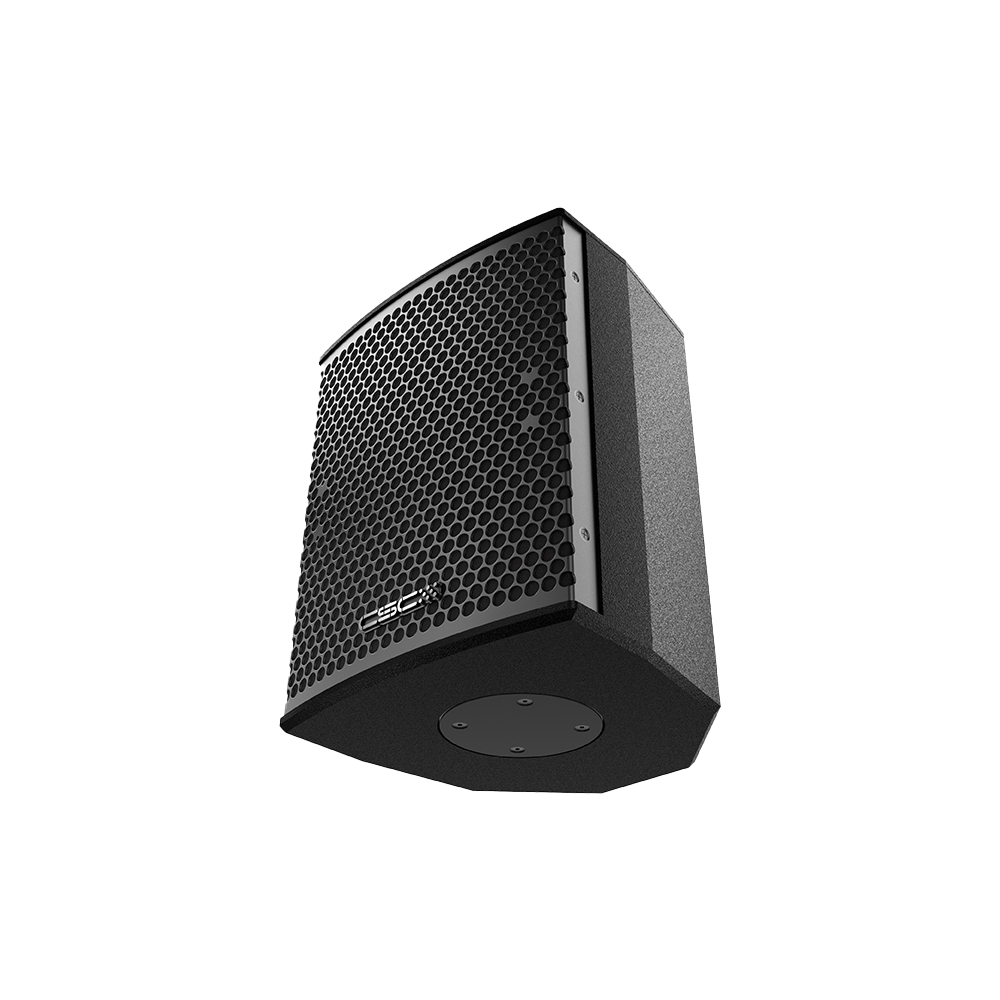

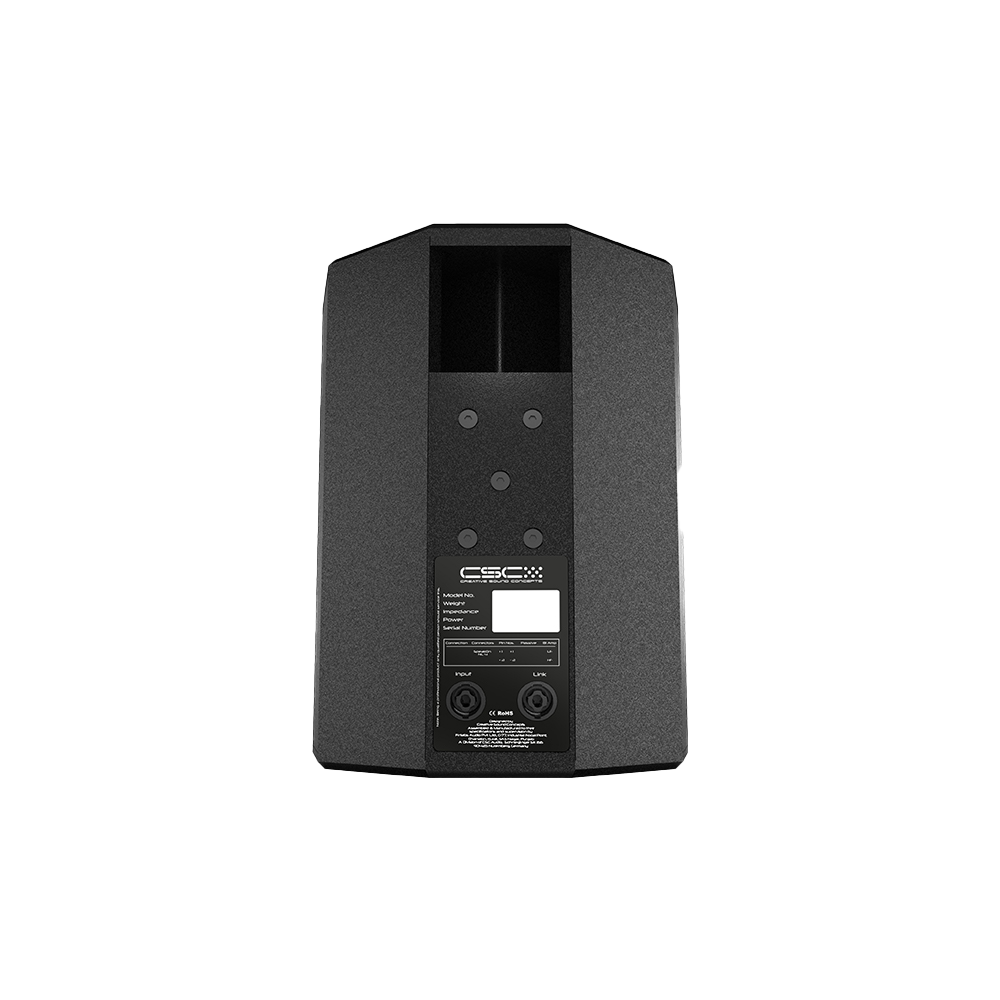

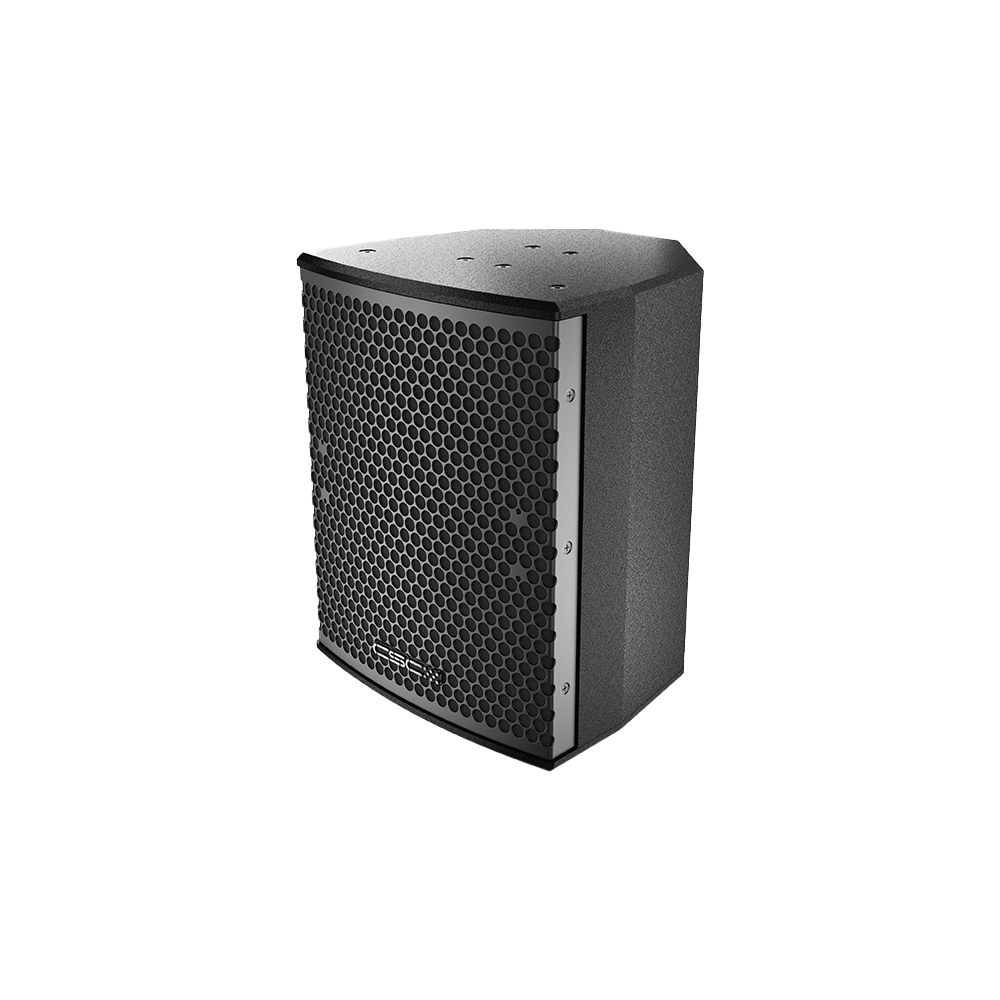

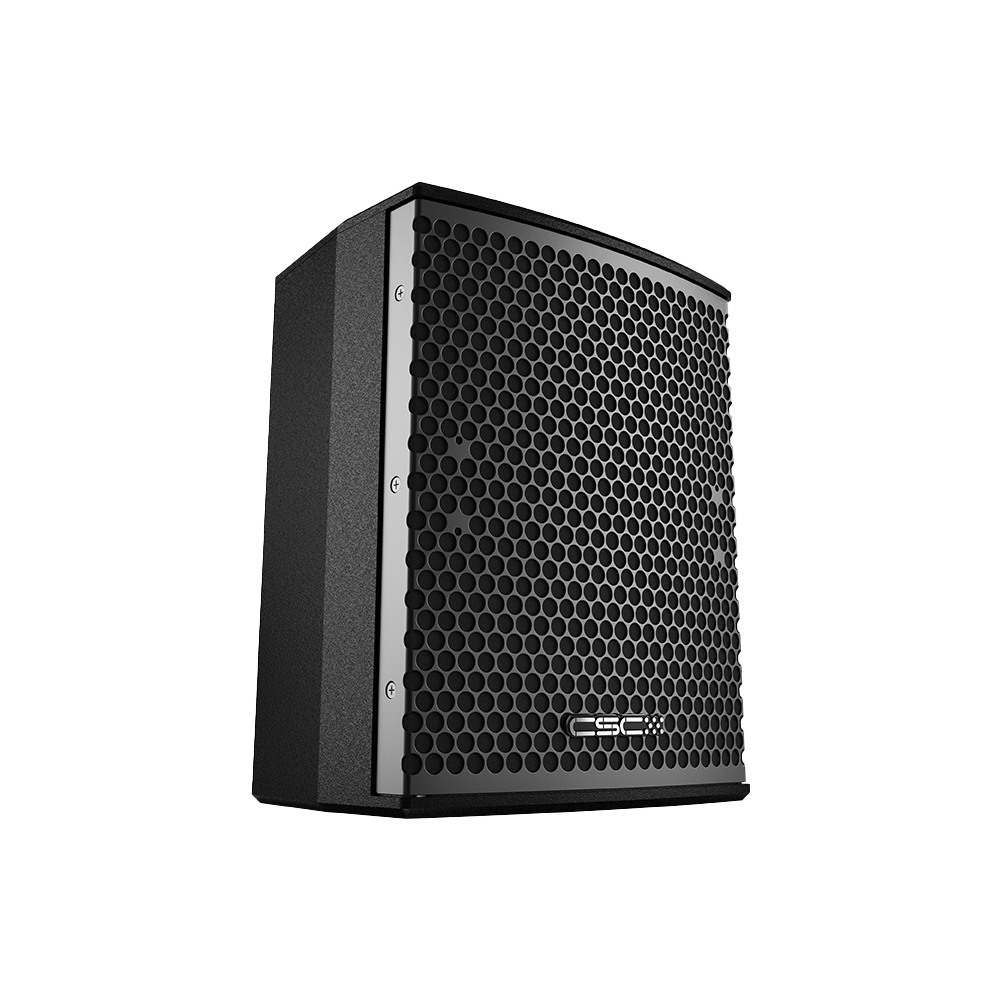

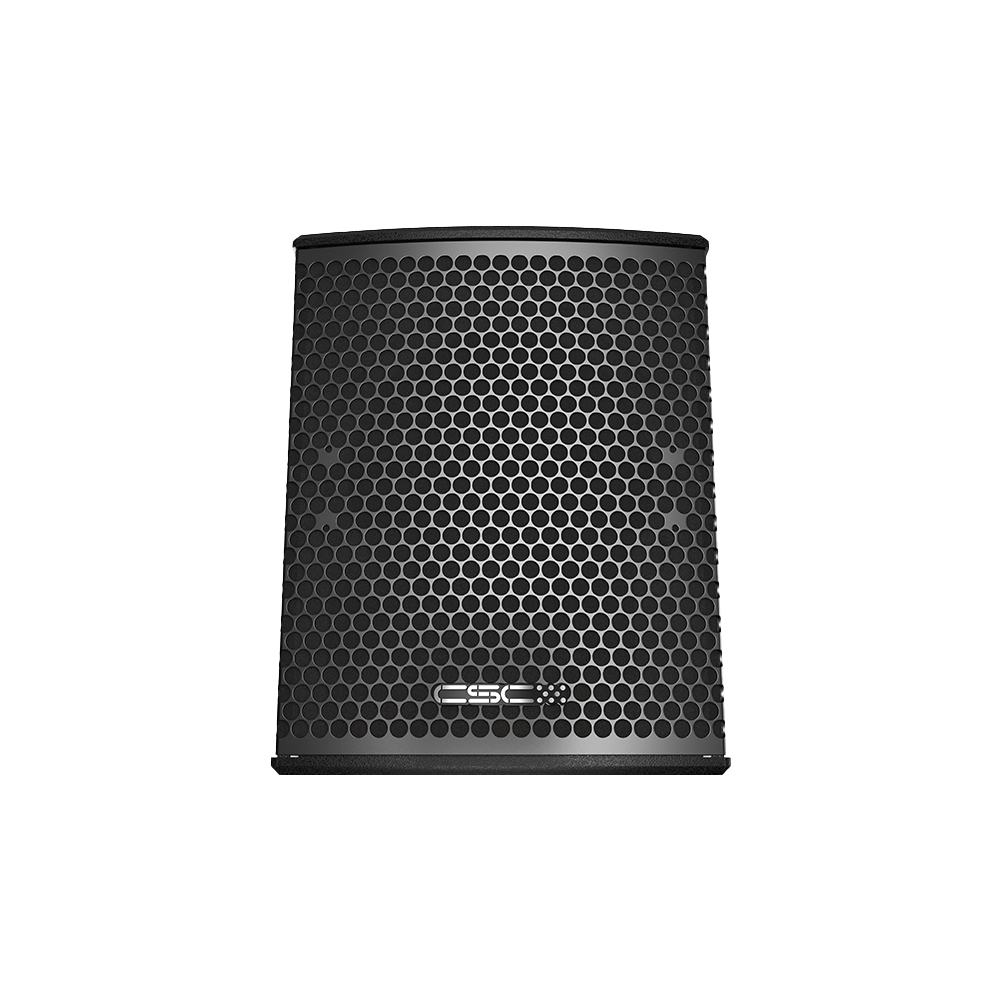

Cello Series CC 8
Compact Design, Massive Impact: Loudspeakers that Deliver
The Cello CC 8 is a two-way, passively crossed-over coaxial loudspeaker with an integrated 8” (200 mm) LF and a 1” (25 mm) exit HF. This compact cabinet can be used with or without a sub-woofer, depending on the application. An ideal point source with the LF and HF mounted on the same axis, eliminates off-axis variations. Optimizing and improving audio field, its high-quality, transparent sound allows customers to enjoy a powerful, clear and natural sound system.
It is best used for loud background or foreground music. CC 8 is a winner when it comes to A/V applications and corporate meetings. Combined with any of the Contrabass subs, Cello CC 8 is ideal for small, high energy lounge with low ceiling height. As a stand-alone loudspeaker, it has varied applications, and it can be incorporated as in-fill loudspeaker in a distributed sound system.
The specialized and phase-optimized crossover network ensures minimum loss and maximum clarity. With a 90 degree conical dispersion, the enclosure can be used in vertical (portrait) orientation.
Key Features
- Coaxial, ultra-compact, passive two-way system
- Elegant birch ply enclosure

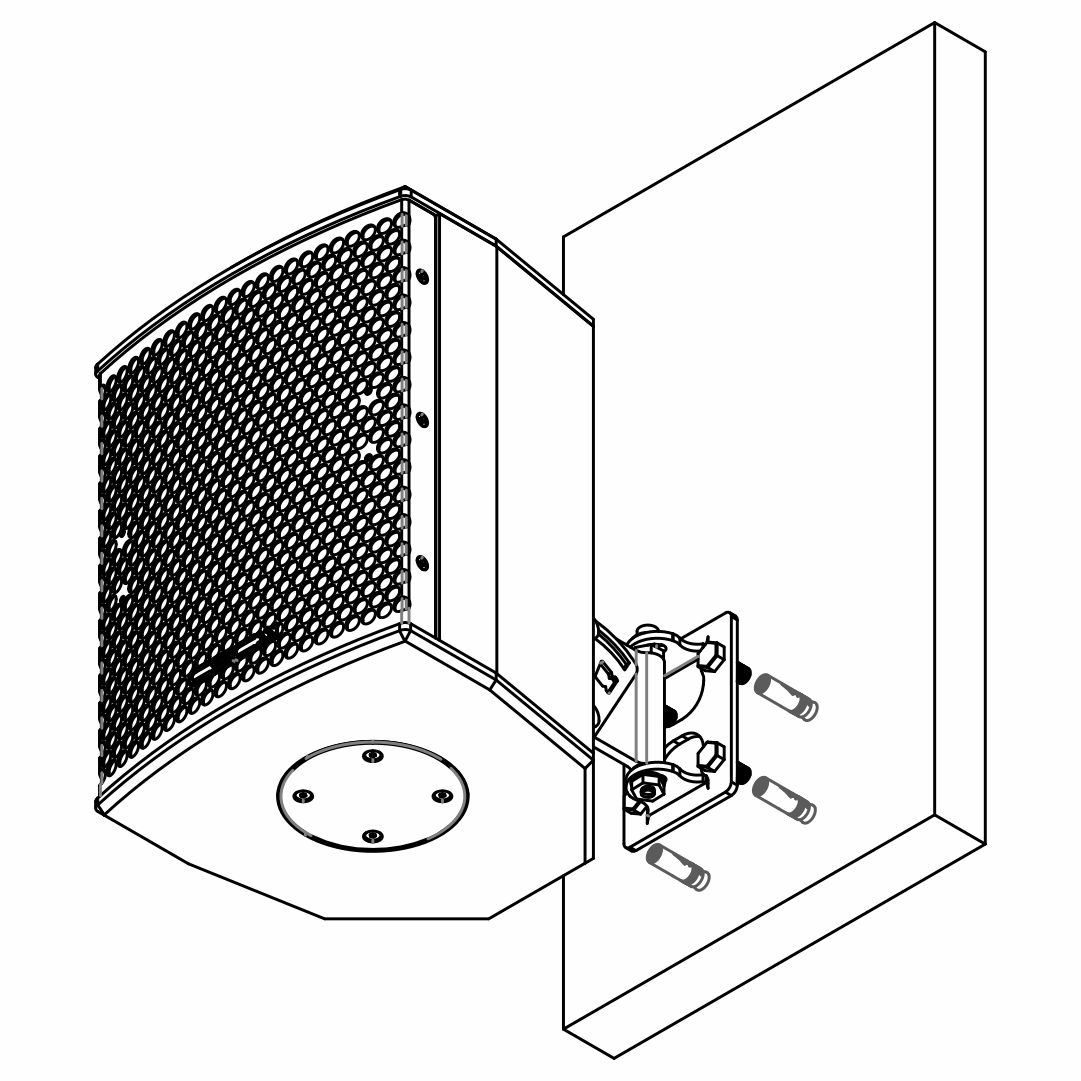

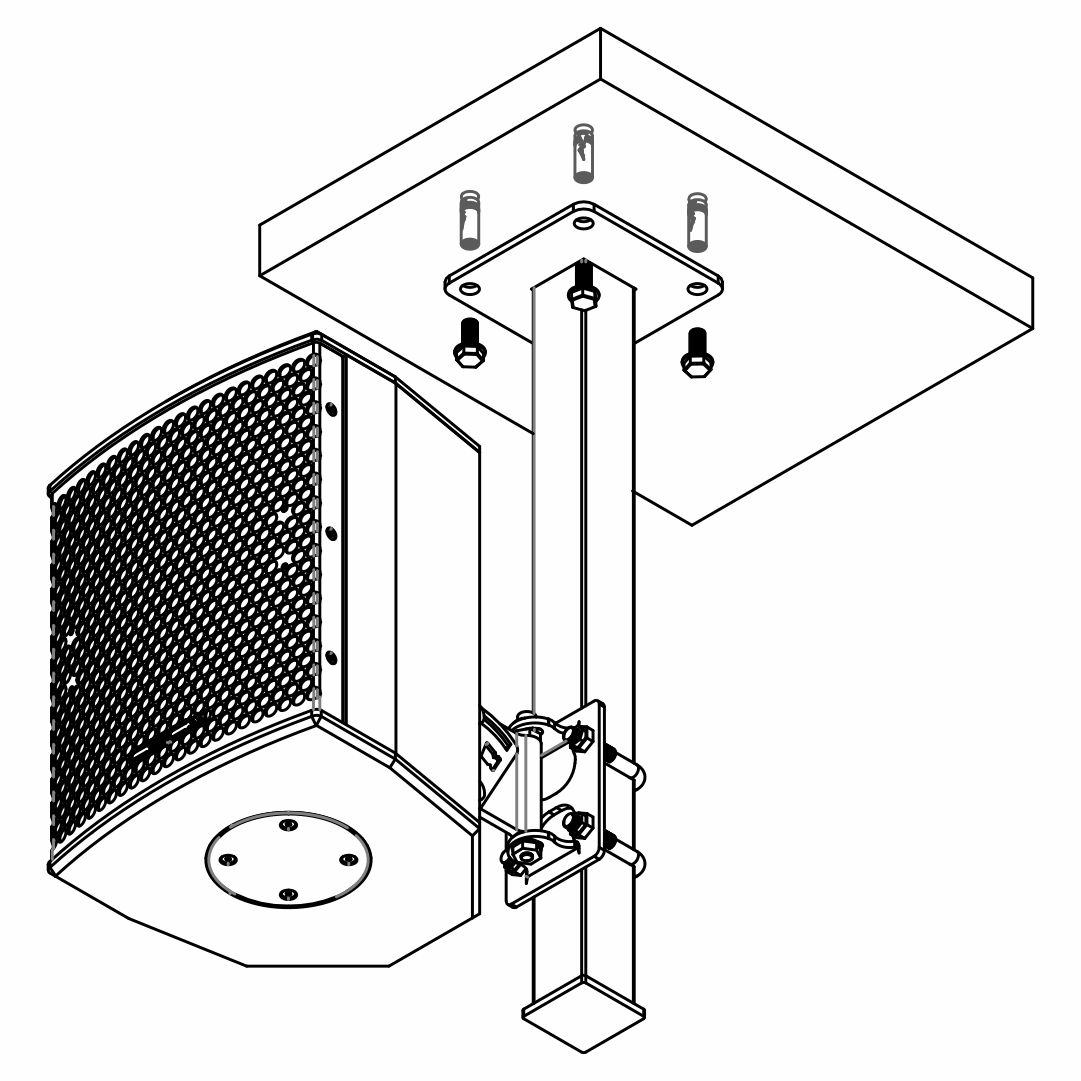

- Vertical and horizontal mounting options
- Perforated steel grill
- 8 ohms nominal impedance
- Discreet mounting accessories
- Available in black & white colours
- Mounting at the top and behind the cabinet
- Top Hat
Applications
- Lounges
- All types of A/V spaces
- Convention centres
- Leisure and gaming centres
- Places of worship
- Gyms and spas
Technical Specification
| MODEL | CC 8 |
|---|---|
| Type | Compact two way coaxial mid high |
| Frequency Response (1) | 75 Hz-18.5 kHz ± 3 dB |
| Drivers | LF: 8" (200 mm) with a 2.5" (65 mm) voice coil, HF: 1" (25 mm) compression driver with a 1" (25 mm) voice coil |
| Recommended Amplifier Upto | 500 Watts |
| Sensitivity (1 W / 1 m) | 94 dB |
| Maximum SPL (9) | 117 dB continuous, 123 dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | 90° conical |
| Crossover | HPF 65 Hz full range / 100 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Textured black/ white paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik Nl4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear / Top standard mounting points, Top hat |
| Horn | NA |
| Rated Continuous Power AES | 250 Watts / 15 Watts |
| Rated Maxium Power/Program Power | 500 Watts / 30 Watts |
| Peak Power | 1000 Watts / 60 Watts |
| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 262 x (H) 330 x (D) 260 |
| Dimensions - Including packing (in mm) | (W) 325 x (H) 390 x (D) 335 |
| Net Weight (kgs) | 9 |
| Shipping Weight (kgs) | 12 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
