Cello Series CF 12
12-Inch Two-Way Full-Range Loudspeaker for Installation, Live Sound & Stage Monitoring
The CSC Audio Cello CF 12 is a compact 12-inch two-way passive full-range professional loudspeaker designed for powerful and controlled sound reinforcement across installation, mobile and live sound applications. Built from Baltic birch ply, CF 12 combines a 12-inch low-frequency driver with a 1-inch compression driver mounted on a constant-directivity 60° × 50° rotatable horn.
CF 12 features a powerful 12” (300 mm) low-frequency driver & a 1” (25mm) compression driver with a 1.7" (44 mm) voice coil mounted on a constant directivity 60° x 50° horn. Depending on the application, the horn can be rotated to be used in either its vertical or horizontal orientation.
CF 12 is suitable for Live Performances, Clubs, Stage Monitoring, Convention Centres, Auditoriums, Places of Worship, A/V applications and professional sound reinforcement systems.. For demanding applications, the CSC Maestro MS 26 controller is pre-configured with its EQ limiter crossover.
FEATURES AND APPLICATIONS
Key Features
- Compact, two-way system
- 60° x 50° horn
- Mounting points behind the cabinet
- Large port behind the cabinet
- Can double as a stage monitor
- Top hat
Applications
- A/V applications and presentations
- Live performances
- Clubs reinforcement
- Stage monitoring
- Convention centres
- Auditoriums
- Places of worship
- Ideal for installation and mobile use
Technical Specification
| MODEL | CF 12 |
|---|---|
| Type | Compact two way full range |
| Frequency Response (1) | 65 Hz-19.5 kHz ± 3 dB |
| Drivers | LF: 12" (300 mm) with a 3" (77 mm) voice coil, HF: 1" (25 mm) compression driver with a 1.7" (77 mm) voice coil |
| Recommended Amplifier Upto | 1000 watts |
| Sensitivity (1 W / 1 m) | 98 dB |
| Maximum SPL (9) | 124 dB continuous, 130 dB Max |
| Nominal Impedance | 8 ohms |
| Dispersion | 60° x 50° |
| Crossover | HPF 55 Hz full range / 100 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Non- toxic Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black |
| Fittings | Rear / Top standard mounting points, Top hat |
| Horn | Rotatable |
| Nominal/ AES Power | 500 watts |
| Max/ Continuous/ Program Power | 1000 watts |
| Peak Power | 2000 watts |
| Accessories | Wall/ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 362 x (H) 666 x (D) 320 |
| Dimensions - Including packing (in mm) | (W) 430 x (H) 725 x (D) 390 |
| Net Weight (kgs) | 27 |
| Shipping Weight (kgs) | 29 |
Accessories

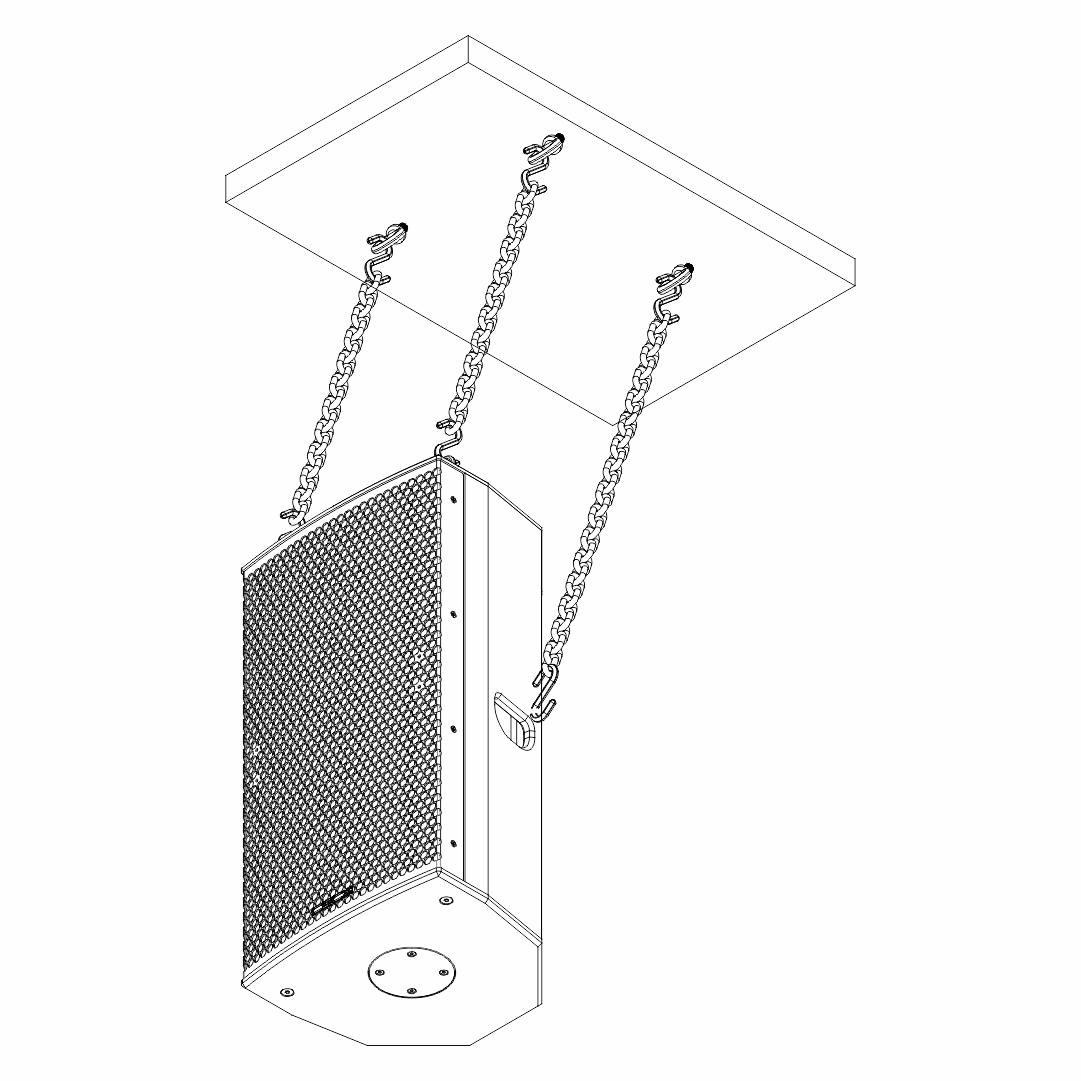

CF 12 CHAIN SUSPENSION

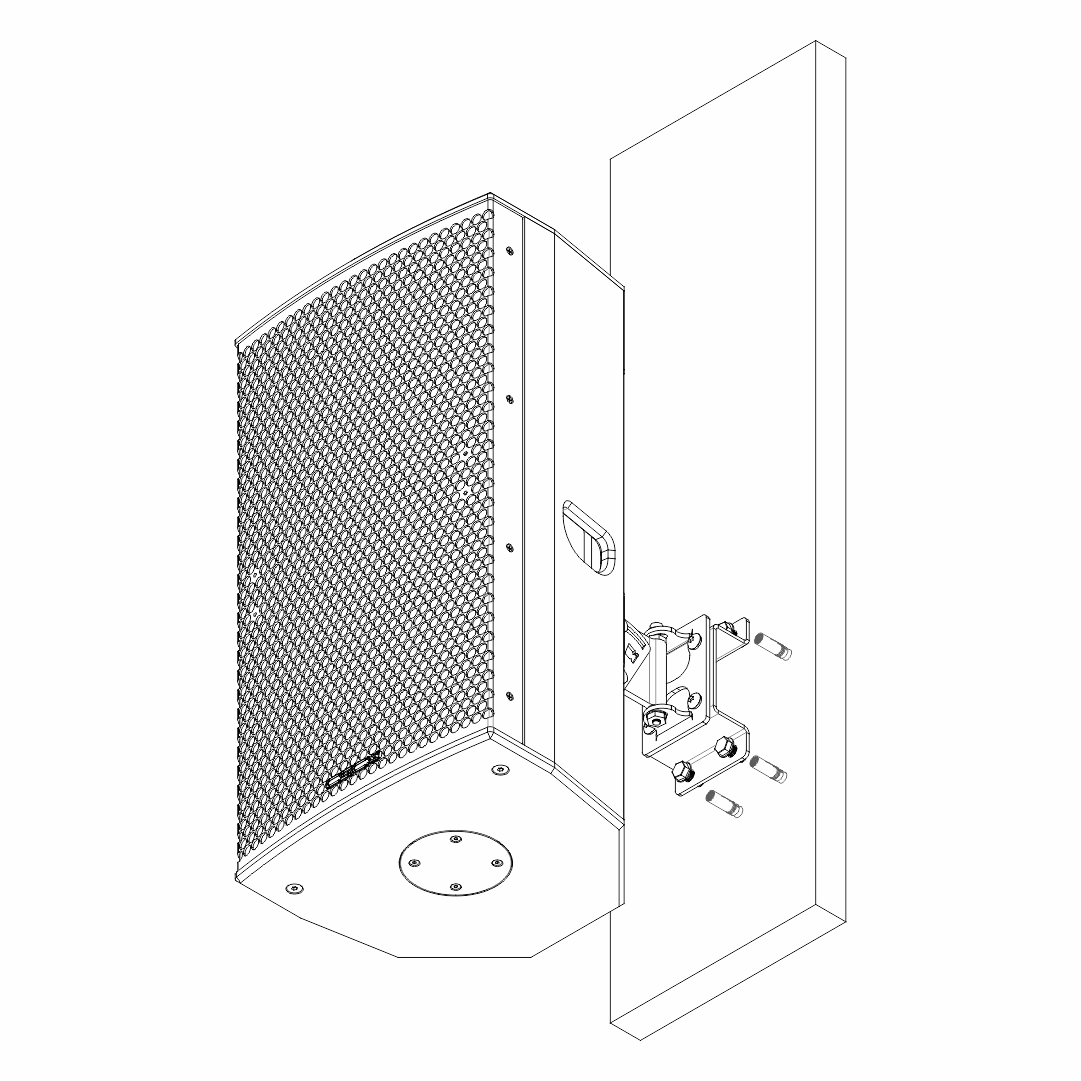

CF 12 WALL MOUNTING

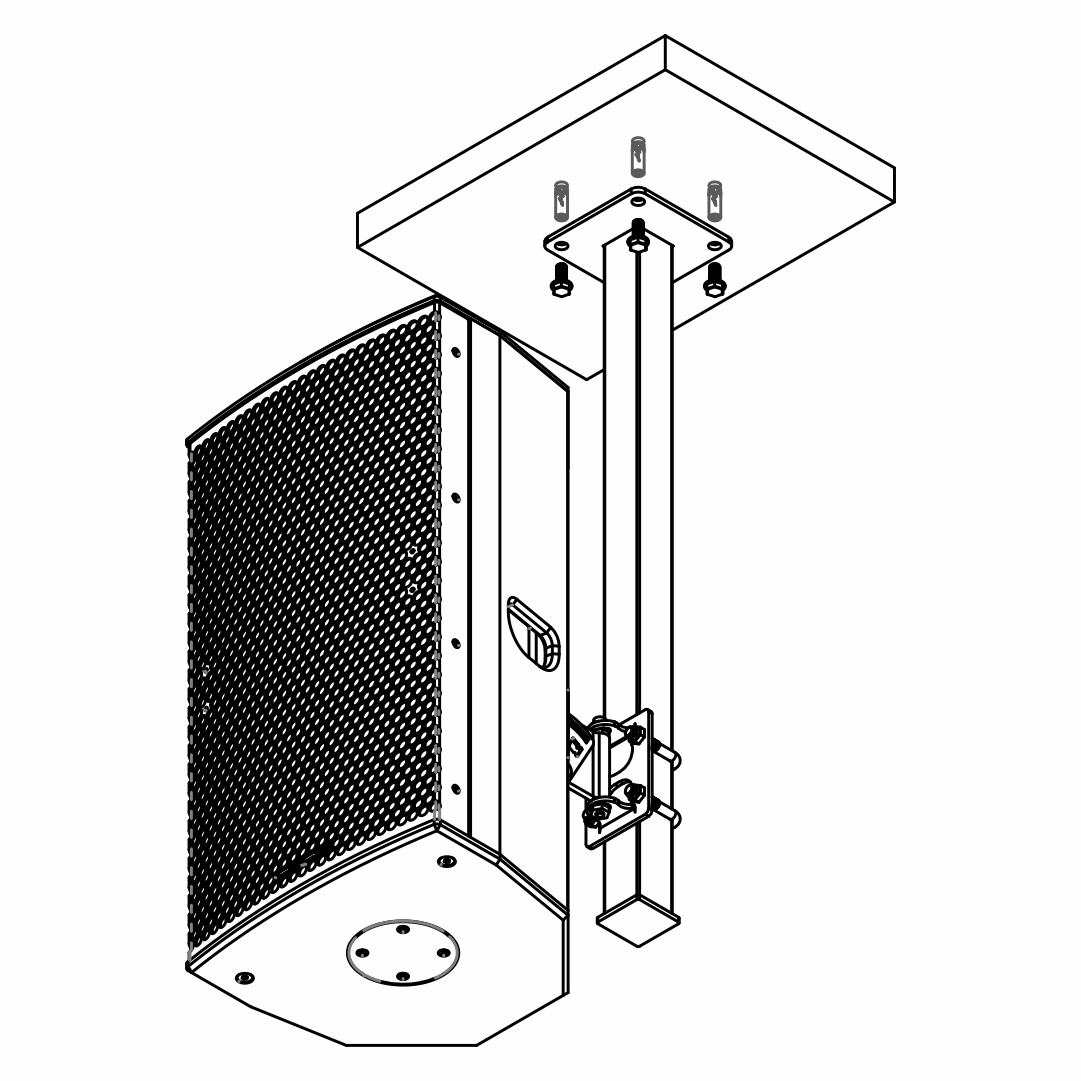

CF 12 CEILING MOUNTING
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
