Cello Series CF 15
15-Inch Two-Way Loudspeaker with Deep Low-Frequency Response for Installation, Live Sound & Stage Monitoring
The CSC Audio Cello CF 15 is a 15-inch two-way passive full-range professional loudspeaker designed for powerful, detailed sound reinforcement in installation, mobile and live sound applications. Its 15-inch low-frequency driver with a 4-inch voice coil delivers an extended 45 Hz–19.5 kHz frequency response, allowing CF 15 to provide deep low-frequency performance even when used without a subwoofer.
CF 15 with its deep low-frequency response, can be used with or without any subwoofer. It features a powerful 15” (375 mm) low-frequency driver housing a 4" (100 mm) voice coil and a 1”(25mm) compression driver with a 1.7" (44 mm) voice coil. All these are mounted on a constant directivity 60° x 50° horn. Its deep low-frequency response makes it perfect for use even without any subwoofers.
For demanding applications, the CSC Maestro MS 26 controller is pre-configured with its EQ limiter crossover. Contrabass CR 18s, CR 218s, RRH 218s, RR 218s and RR 215s are a perfect match for Cello CF 15.
FEATURES AND APPLICATIONS
Key Features
- Compact, two-way system
- 60° x 50° horn
- Mounting points behind the cabinet
- Large port behind the cabinet
- Can double as a stage monitor
- Top hat
Applications
- A/V applications and presentations
- Live performances
- Clubs reinforcement
- Stage monitoring
- Convention centres
- Auditoriums
- Places of worship
- Ideal for installation and mobile use
Technical Specification
| MODEL | CF 15 |
|---|---|
| Type | Compact two way full range |
| Frequency Response (1) | 45 Hz-19.5 kHz ± 3 dB |
| Drivers | LF: 15" (375 mm) with a 4" (100 mm) voice coil, HF: 1" (25 mm) compression driver with an 1.7" (44 mm) voice coil |
| Recommended Amplifier Upto | 1400 watts |
| Sensitivity (1 W / 1 m) | 97 dB |
| Maximum SPL (9) | 124 dB continuous, 130 dB Max |
| Nominal Impedance | 8 ohms |
| Dispersion | 60° x 50° |
| Crossover | HPF 45 Hz full range / 100 Hz with sub |
| Enclosure | Baltic birch ply |
| Finish | Non-toxic Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL4 |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black |
| Fittings | Rear / Top standard mounting points, Top hat |
| Horn | Rotatable |
| Nominal/ AES Power | 700 watts |
| Max/ Continuous/ Program Power | 1400 watts |
| Peak Power | 2800 watts |
| Accessories | Wall / ceiling mount bracket, Extension pipe |
| Dimensions - Product (in mm) | (W) 442 x (H) 738 x (D) 357 |
| Dimensions - Including packing (in mm) | (W) 500 x (H) 805 x (D) 415 |
| Net Weight (kgs) | 33 |
| Shipping Weight (kgs) | 36 |
Accessories

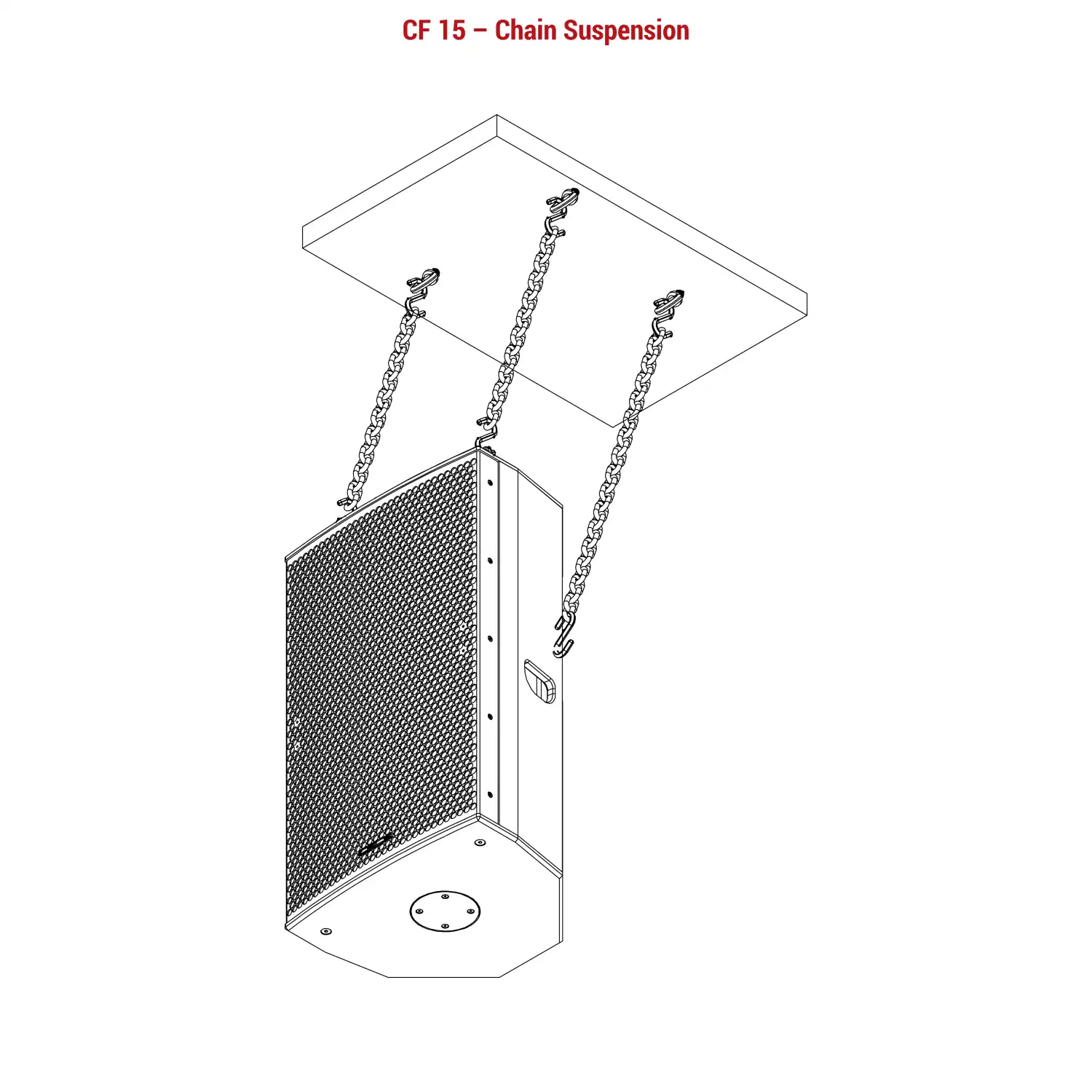

CF 15 Chain Mounting

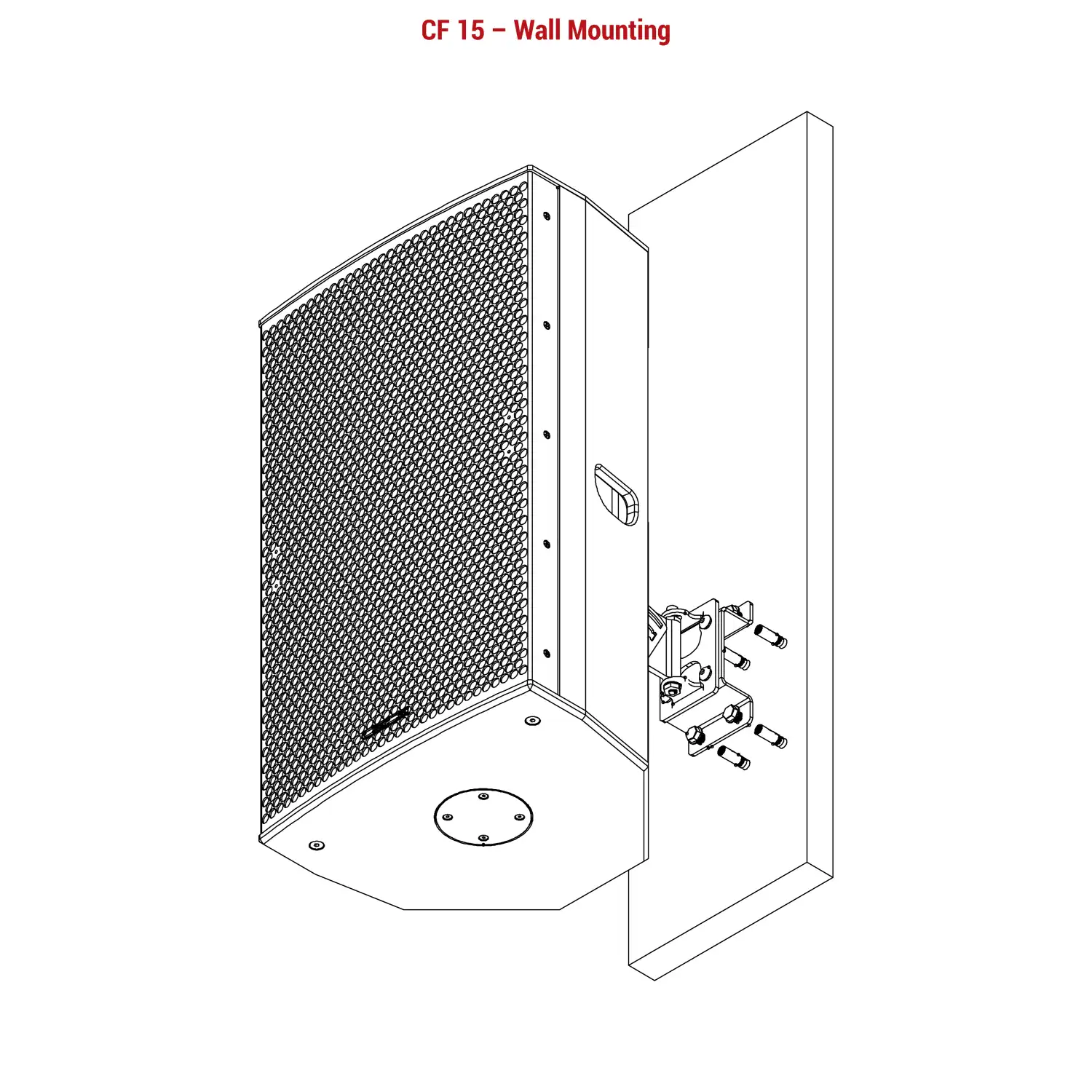

CF 15 Wall Mounting

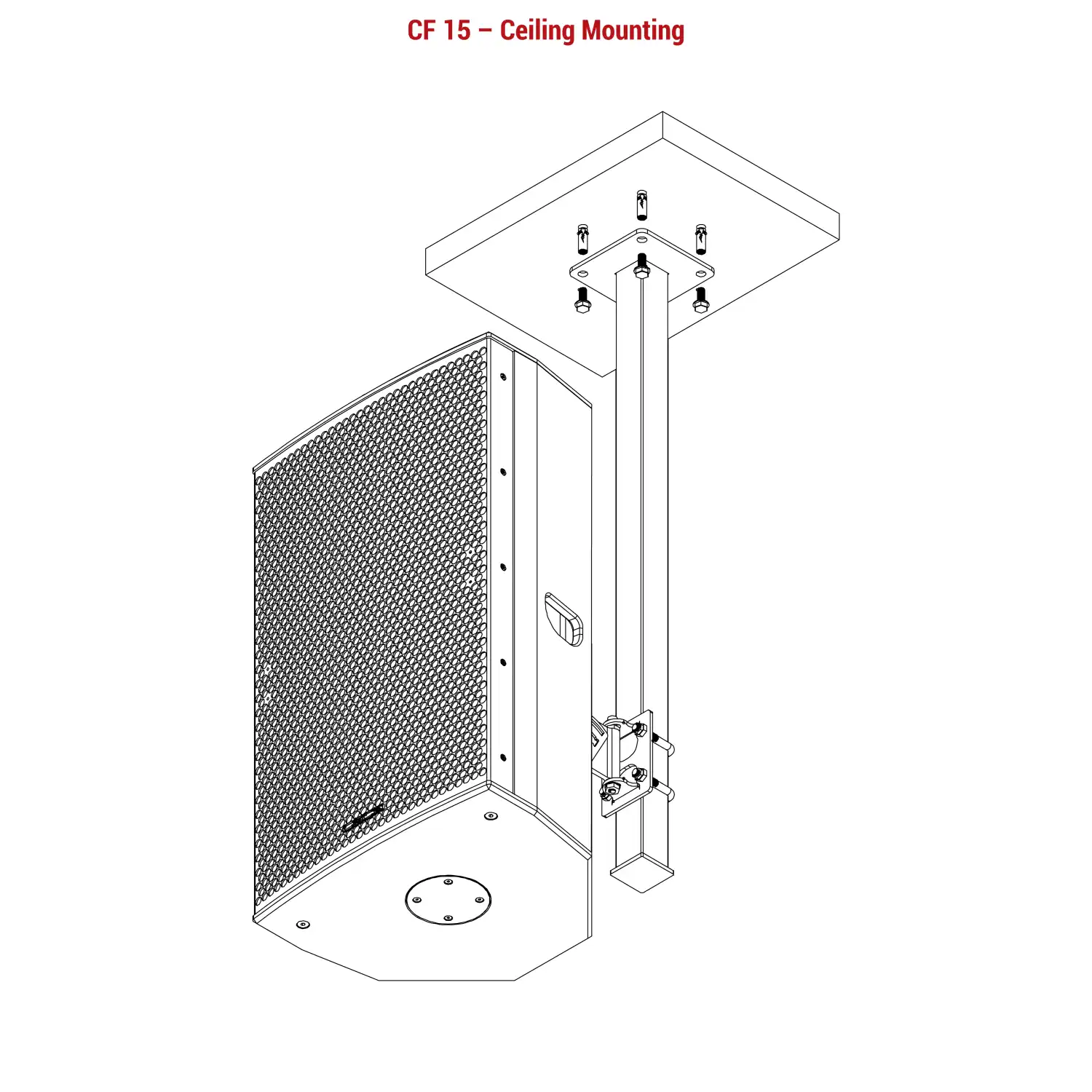

CF 15 Ceiling Mounting
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
