String Series ST 3
Compact Design, Massive Impact: Loudspeakers that Deliver

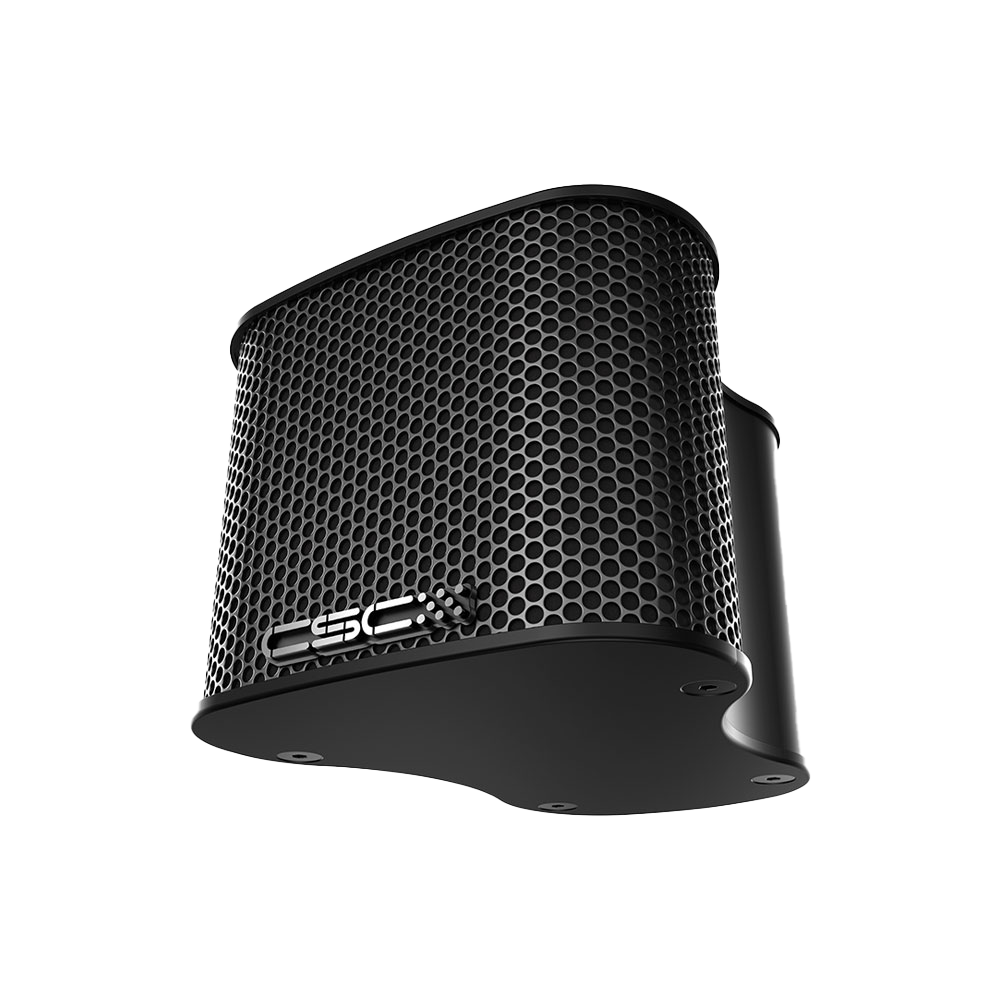

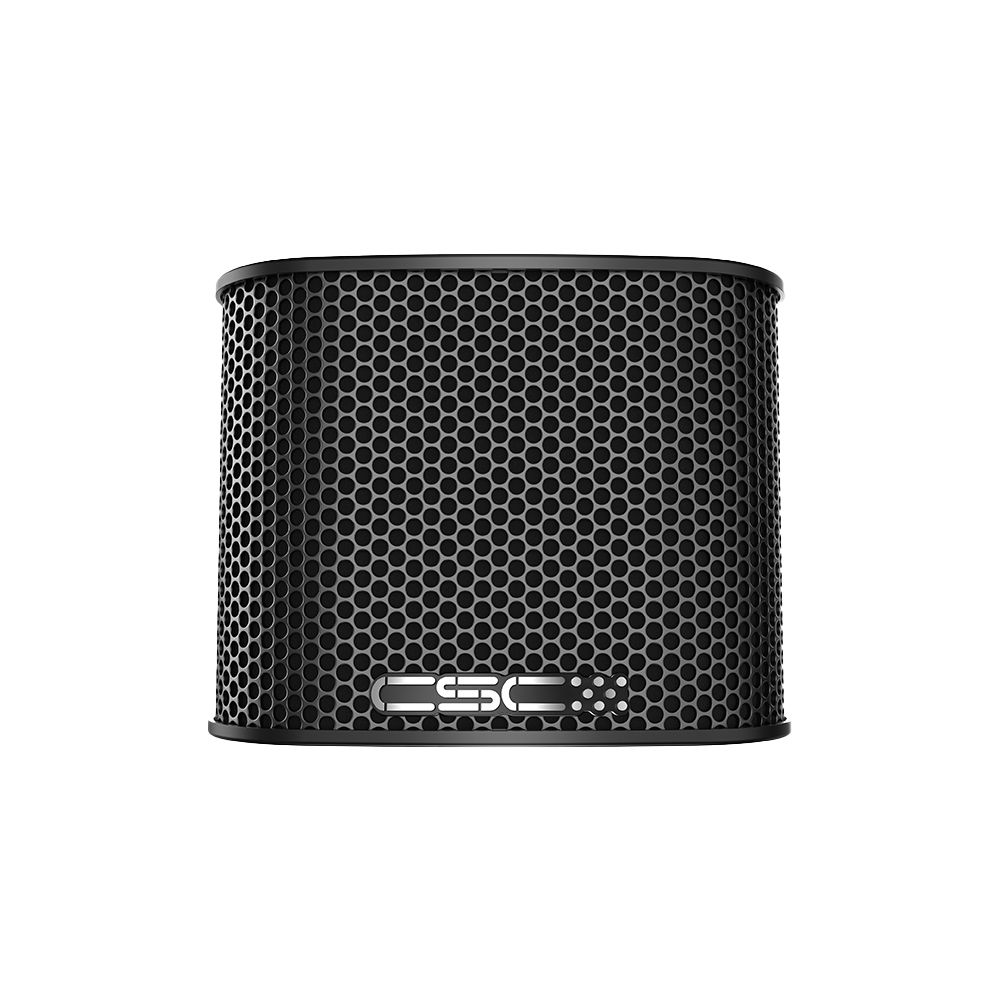

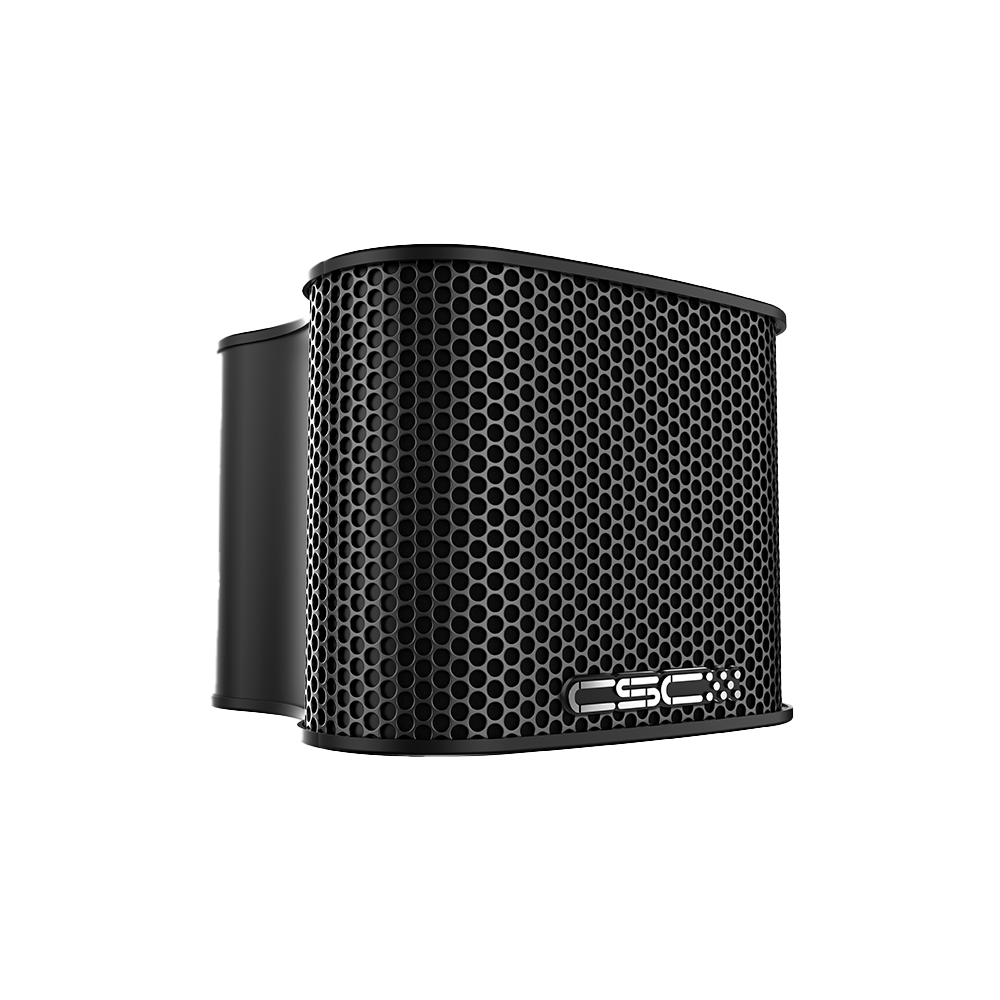

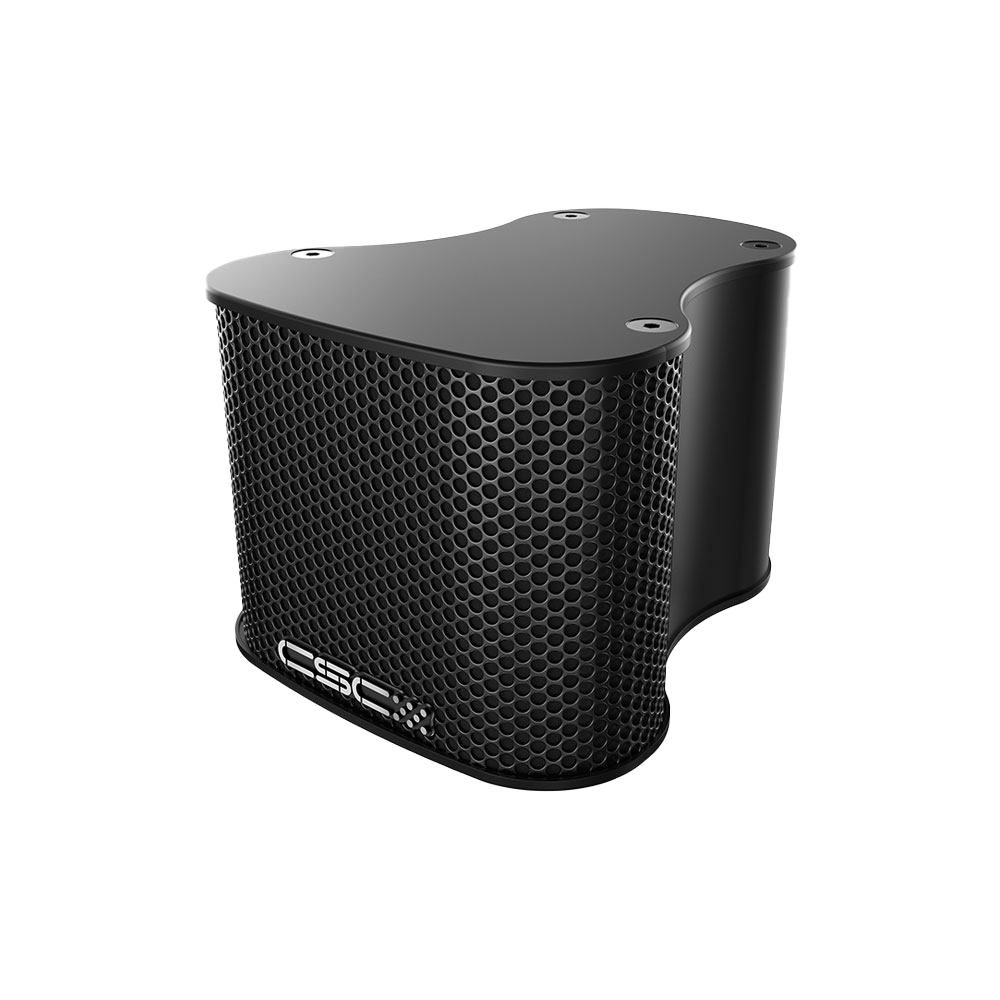

The String ST 3 features a 3" (75 mm) driver in a rigid, extruded aluminum enclosure with a dedicated Omni-directional mounting bracket. Its design has no parallel walls, helping eliminate all cabinet resonances. This small loudspeaker delivers consistent coverage with excellent accuracy and projection. Its innovative design offers wide horizontal and vertical coverage, reducing off-axis variations.

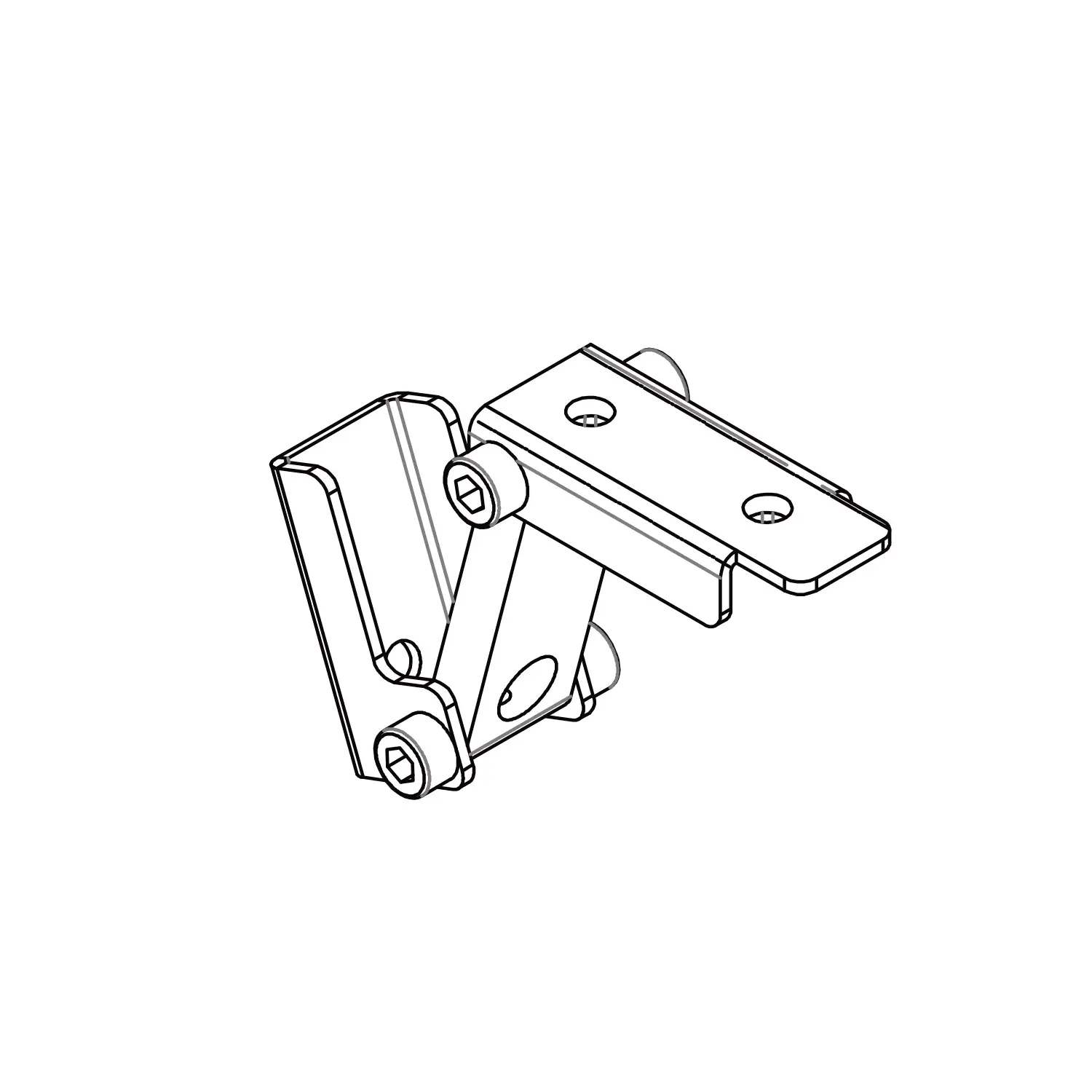

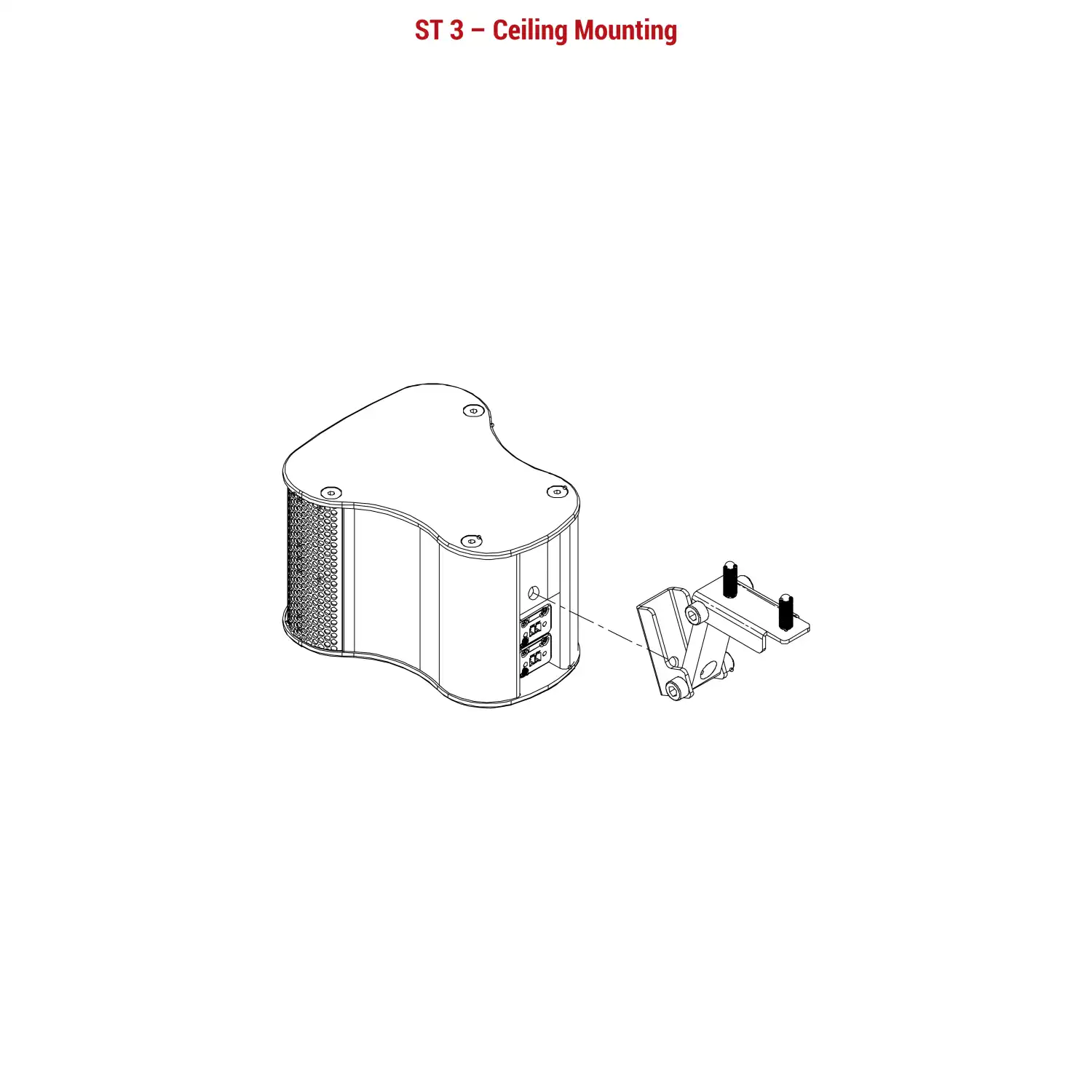

The visually distinct enclosure can be installed in either a horizontal or upright position. The curved shape of the cabinet allows surface-mounting to walls or ceilings using an Omni-directional bracket. The ST 3 can be employed as a stand- alone unit or combined with the unobtrusive CR 10s sub-woofer.
It is available in an attractive black/white matte finish and is ideal for background sound in restaurants, boutiques, small bars, lounge areas, and foyers.
Key Features
- High performance in a small package
- Designed to be combined with CR 10s
- Fast, integral clamp
- Simple to install
- Can be retrofitted into existing venues
Applications
- Restaurants and hotels
- Museums and A/V spaces
- Cafes
- Retail outlets
- Gyms
- Homes
- Home theatres
Technical Specification
| MODEL | ST 3 |
|---|---|
| Type | Ultra compact satellite |
| Frequency Response (1) | 150 Hz-16 kHz ± 3 dB |
| Drivers | LF: 3" (75 mm) neo driver |
| Recommended Amplifier Upto | 40 Watt |
| Sensitivity (1 W / 1 m) | 91 dB |
| Maximum SPL (9) | 104 dB continuous, 110 dB Max |
| Nominal Impedance | 8 Ohms |
| Dispersion | 90° conical |
| Crossover | HPF Hz ( 170Hz) |
| Enclosure | Extruded Aluminium |
| Finish | Powder Coated |
| Protective Grill | Perforated steel |

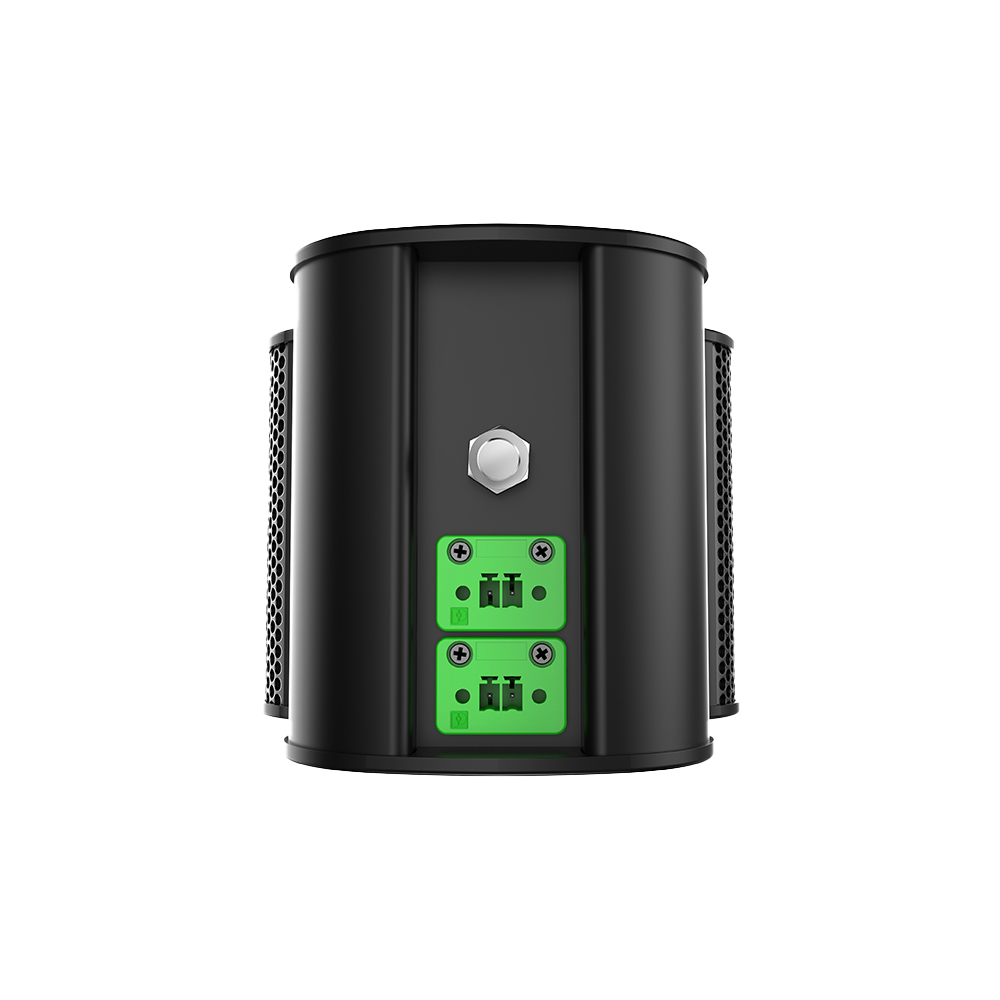

| Connectors | 2 x Phoenix connectors |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear mounting |
| Horn | NA |
| Rated nominal Power AES | 20 Watts |
| Rated Maximum Power/Program Power | 40 Watts |
| Peak Power | 80 Watts |
| Accessories | clamp |
| Dimensions - Product (in mm) | (W) 116 x (H) 90 x (D) 138 |
| Dimensions - Including packing (pair) (in mm) | (W) 290 x (H) 150 x (D) 193 |
| Net Weight (kgs) | 1 |
| Shipping Weight (kgs) | 2.5 (Shipped in pairs) |
About Series
The String Series features a range of essentials for every application with a range of robust small satellite speakers designed to deliver harmonious and balanced sound reminiscent of the intricate qualities of string instruments. The extruded in thick-walled aluminum housing subjected to finite element analysis have near-zero resonance, thereby reproducing music with minimal distortion. With meticulous engineering and exceptional clarity, these offer a full-range audio product that faithfully reproduces complex musical tones and nuances. Ideal for both pro-install and commercial applications, the String Series speakers pair seamlessly with Contrabass Series subwoofers for enhanced low-end impact and dynamic range. When you want big sound in a small profile, ST3, ST23 are unbeatable. Designed to provide clear and dynamic sound in a sleek, unobtrusive form.Available in our string series is also a wide dispersion STW28, boasting of a 140 horizontal dispersion to replace two cabinets with no compromise in the power. The speakers are perfect for professional and entertainment setups, offering flexibility and high performance in any environment.
