String Series ST 23
Compact Design, Massive Impact: Loudspeakers that Deliver

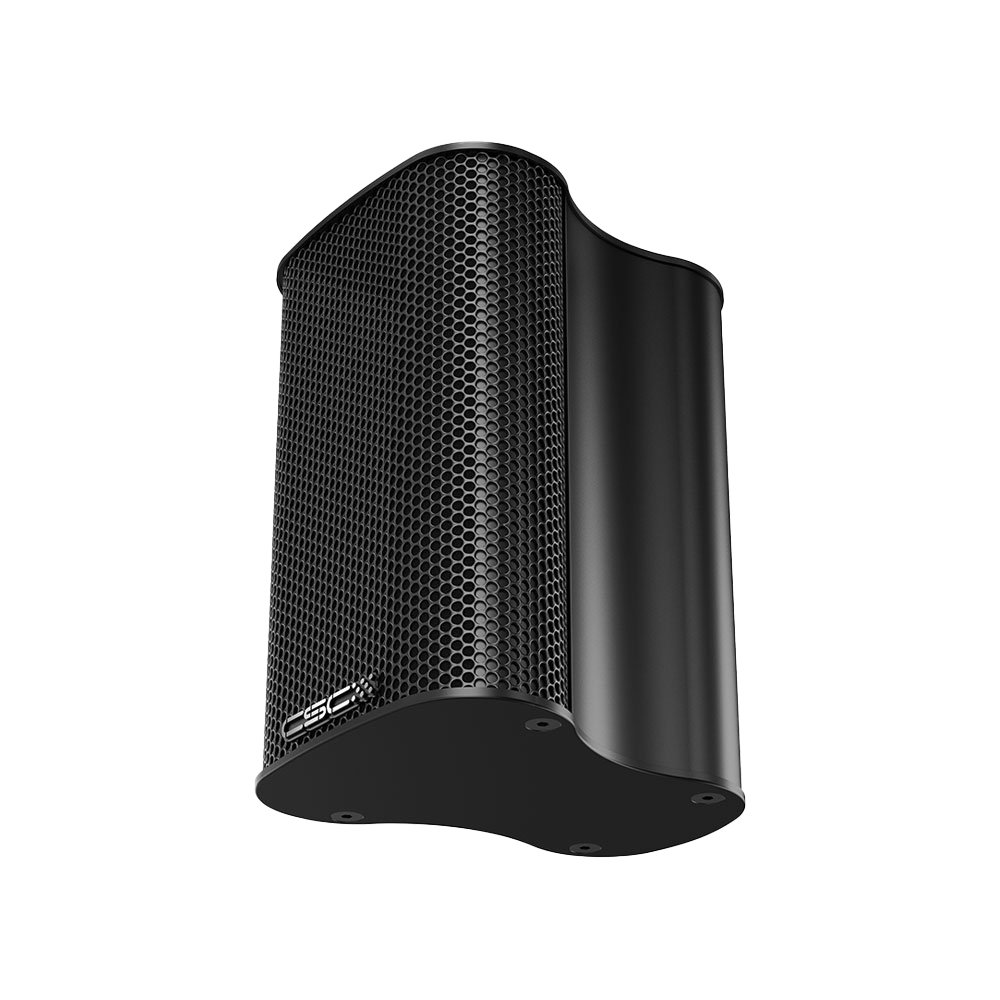

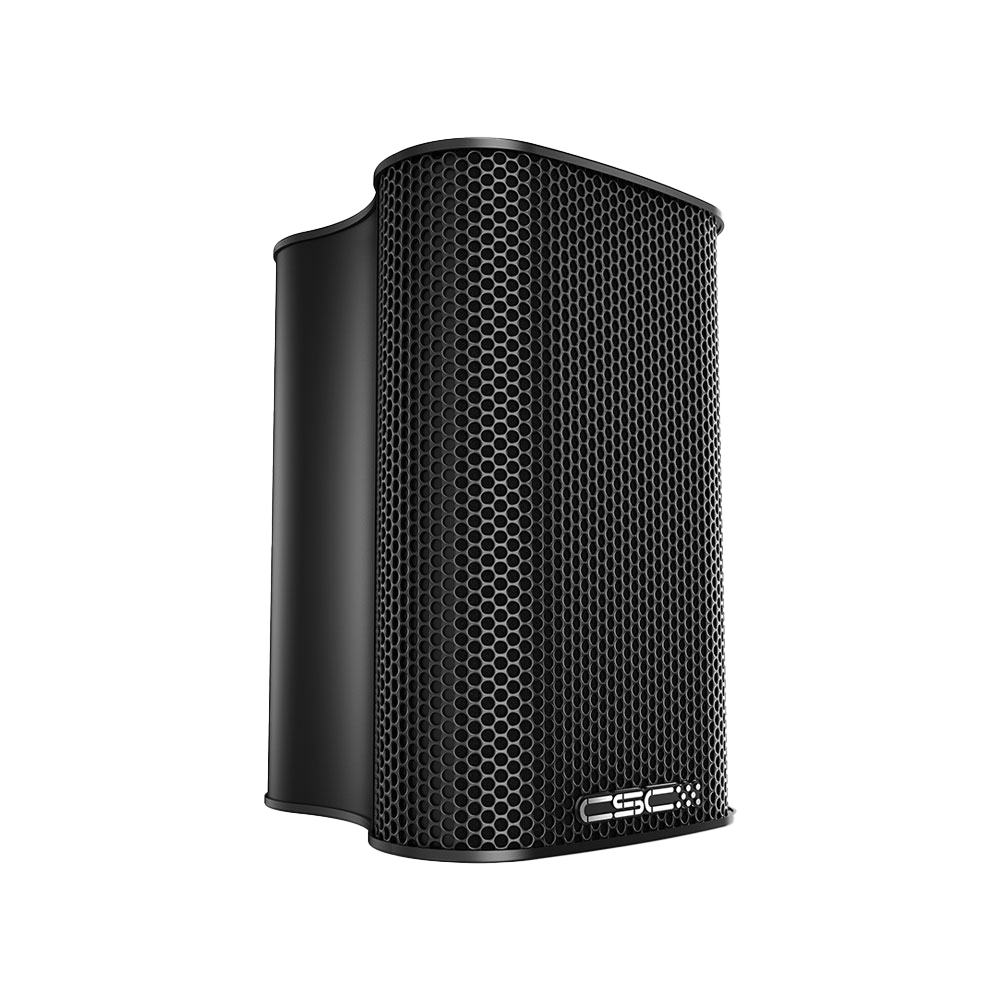

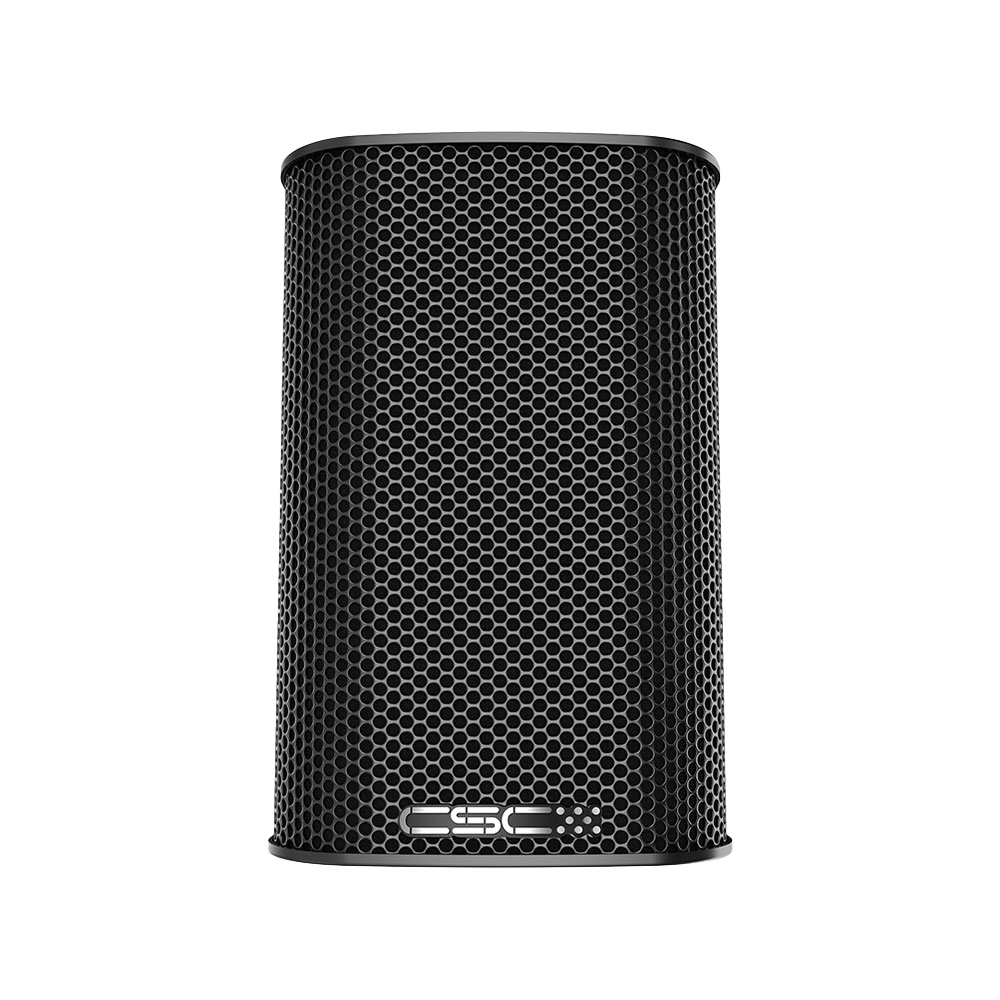

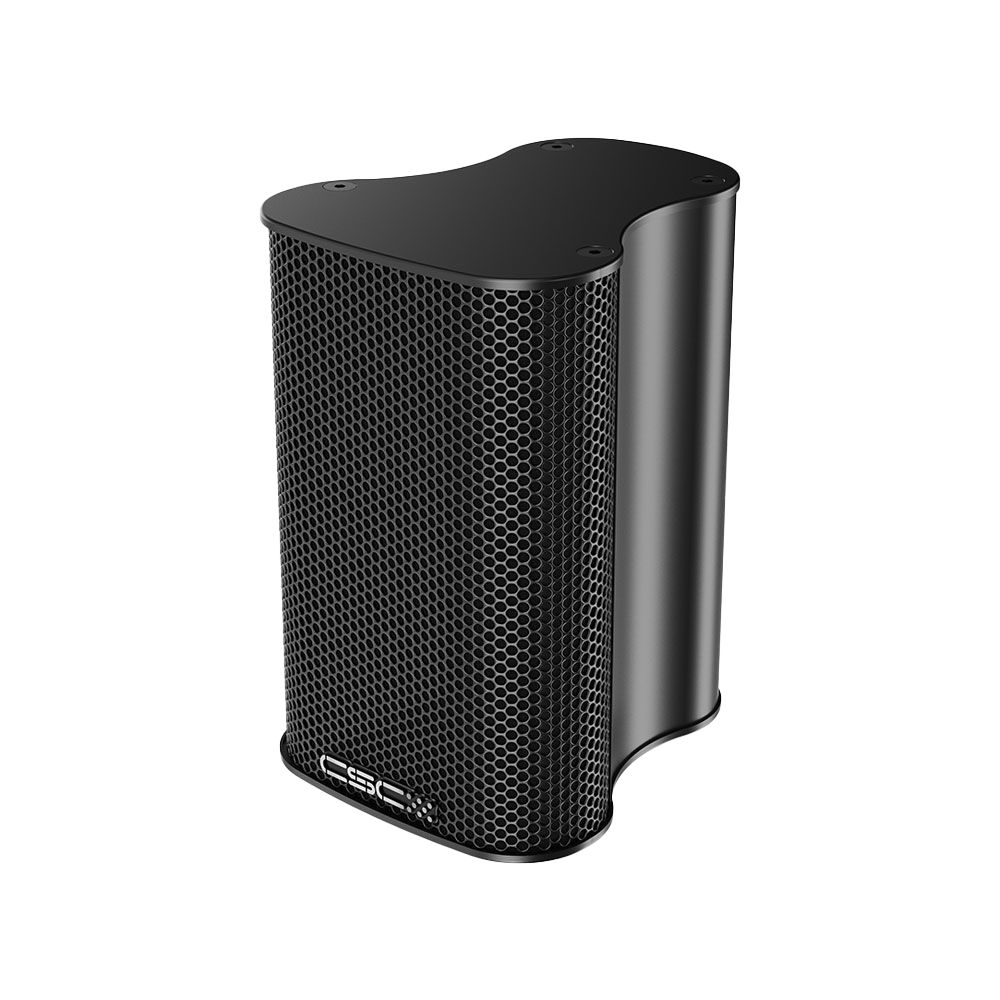

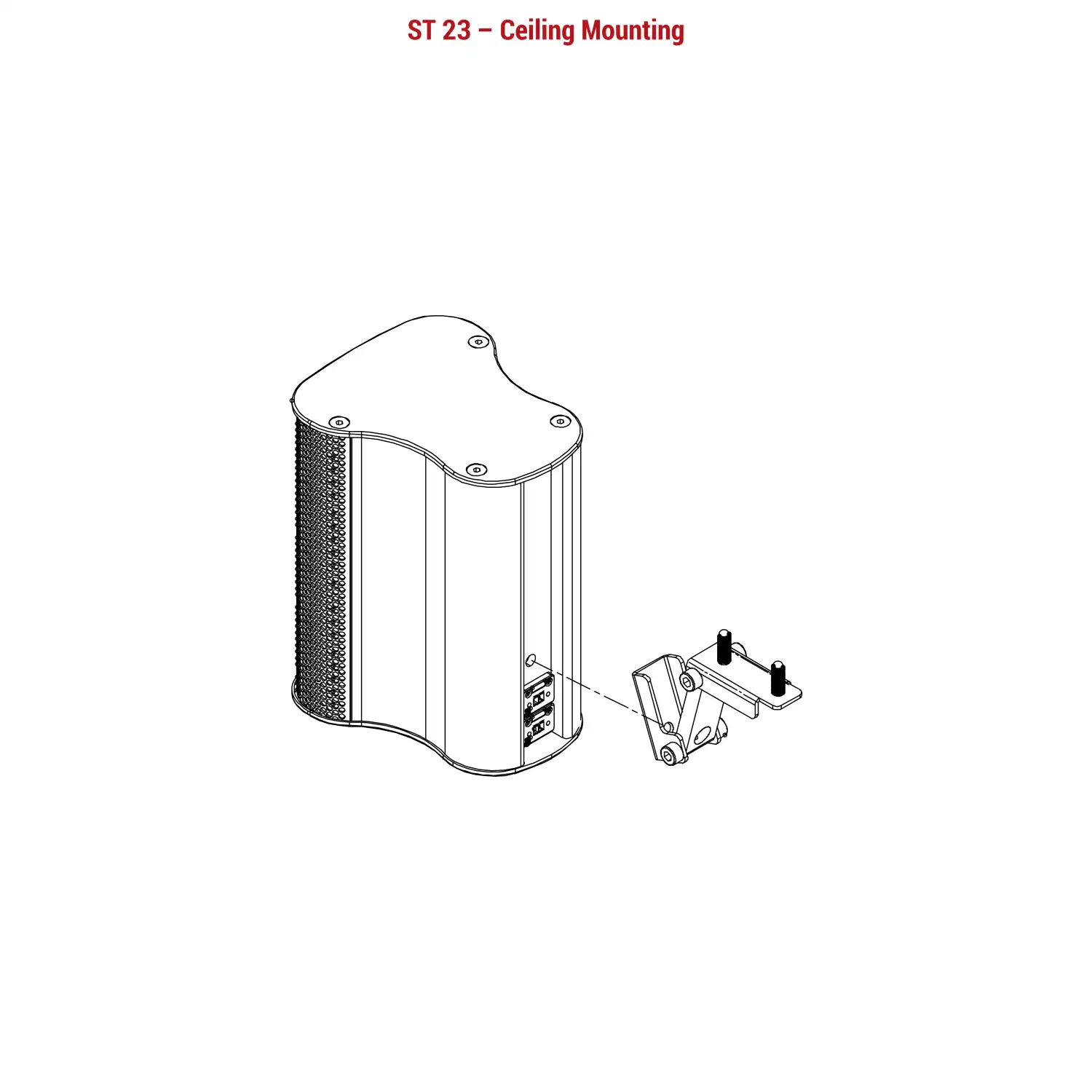

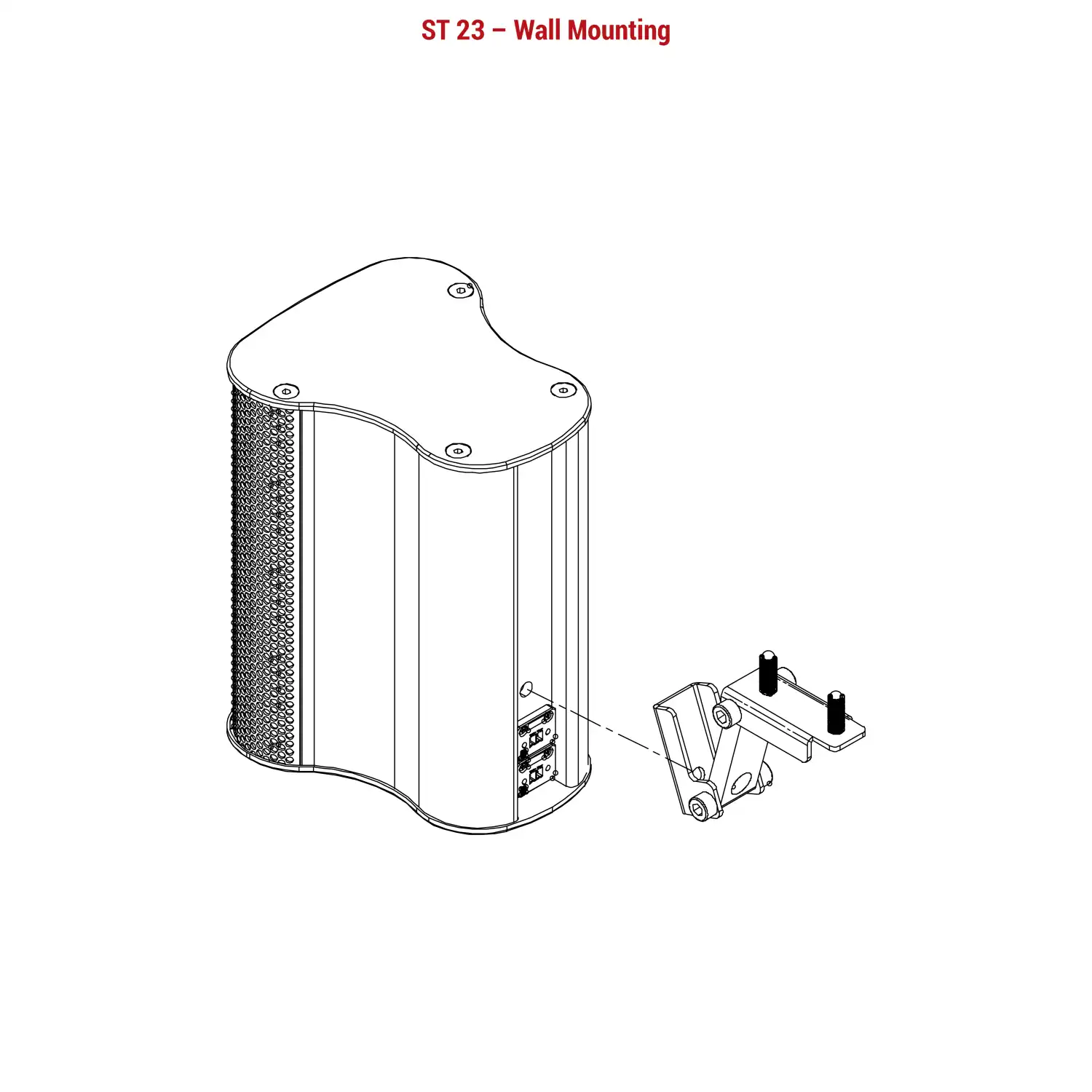

The String ST 23 follows the same profile as the ST 3 but is louder, and has a tighter vertical dispersion of 60 degrees. The ST 23 multi-purpose loudspeaker performs admirably in a discreet installation with minimal visual impact. The Satellite is a 16 ohm passive, compact, point-source speaker ideal for background music, in fills in fixed installations. The discreet design with a perforated powder-coated steel grill offers the driver all the protection they need. Available in an attractive black/white matte finish, it is ideal for distributed sound in restaurants, boutiques, small bars, office spaces, lounge areas, and foyers. A unique 2 x 3" (75 mm) driver in a rigid, extruded aluminum enclosure has a dedicated Omni-directional mounting bracket. With no parallel walls, it eliminates cabinet resonances. Its innovative design offers wide horizontal and controlled vertical coverage, reducing off-axis variations with surprising accuracy and projection. This visually distinct enclosure can be installed either horizontally or in an upright position. The cabinets curved shape allows surface-mounting on walls and facilitates ceiling installation using an Omni-directional bracket. The ST 23 can be employed as a stand-alone loudspeaker or combined with unobtrusive sub-woofers like the CR 10s or CR 210s. The ST 23 is available in a black or white finish.
Key Features
- Compact, high performance
- Seamlessly combines with the CR 10s and CR 210s

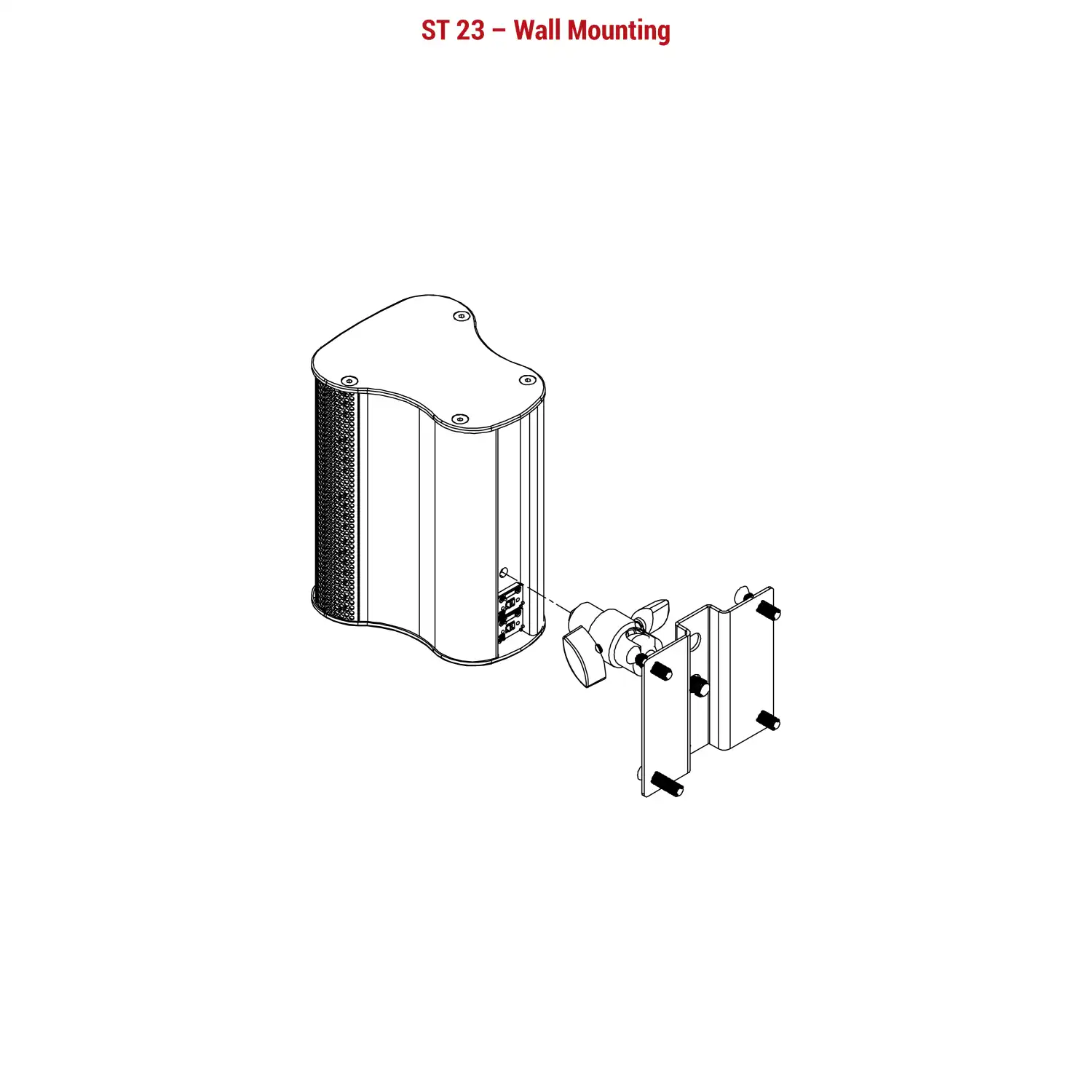

- Fast integral wall/ceiling bracket
- Easy to install with minimal wiring
- Can be retrofitted into existing venues
Applications
- Small bars and restaurants
- Museums and A/V spaces
- Convention centres
- Cafes
- Retail outlets
- Recreation centres
- Gyms
- Homes
Technical Specification
| MODEL | ST 23 |
|---|---|
| Type | Ultra compact satellite |
| Frequency Response (1) | 150 Hz-16 kHz ± 3 dB |
| Drivers | LF: 2 x3" (75 mm) neo driver |
| Recommended Amplifier Upto | 80 Watt |
| Sensitivity (1 W / 1 m) | 94 dB |
| Maximum SPL (9) | 110 dB continuous, 116 dB Max |
| Nominal Impedance | 16 Ohms |
| Dispersion | 90° x 60° |
| Crossover | HPF 170 Hz active/ passive |
| Enclosure | Extruded Aluminium |
| Finish | Powder coated |
| Protective Grill | Perforated steel |

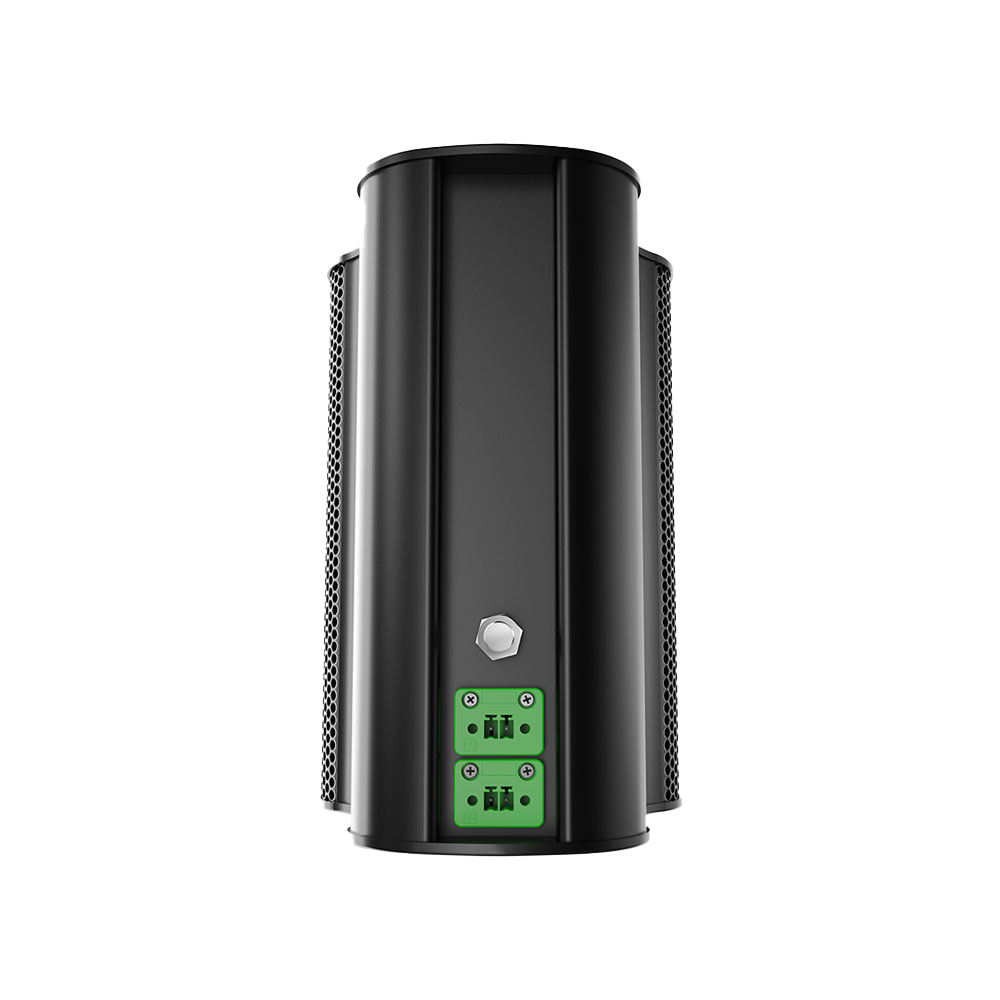

| Connectors | 2 x Phoenix connectors |
| Pin Connections | Input: ± 1, Link through: ± 2 |
| Standard Colours | Black / White |
| Fittings | Rear mounting |
| Horn | NA |
| Rated Continuous Power AES | 40 Watts |
| Rated Maximum Power/Program Power | 80 Watts |
| Peak Power | 160 Watts |

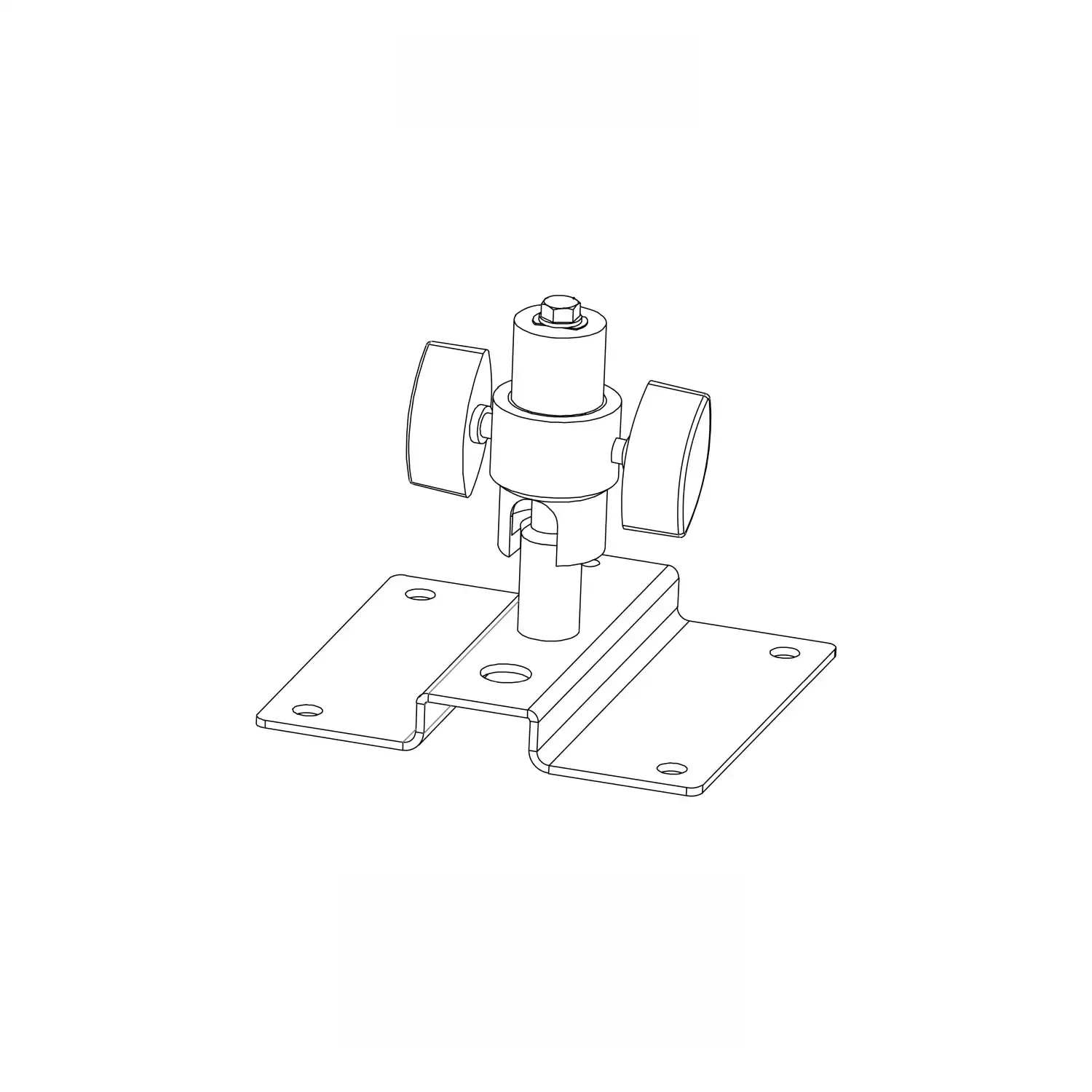

| Accessories | Bracket |
| Dimensions - Product (in mm) | (W) 116 x (H) 175 x (D) 138 |
| Dimensions - Including packing (pair) (in mm) | (W) 290 x (H) 230 x (D) 193 |
| Net Weight (kgs) | 1.5 |
| Shipping Weight (kgs) | 4 (Shipped in pairs) |
About Series
The String Series features a range of essentials for every application with a range of robust small satellite speakers designed to deliver harmonious and balanced sound reminiscent of the intricate qualities of string instruments. The extruded in thick-walled aluminum housing subjected to finite element analysis have near-zero resonance, thereby reproducing music with minimal distortion. With meticulous engineering and exceptional clarity, these offer a full-range audio product that faithfully reproduces complex musical tones and nuances. Ideal for both pro-install and commercial applications, the String Series speakers pair seamlessly with Contrabass Series subwoofers for enhanced low-end impact and dynamic range. When you want big sound in a small profile, ST3, ST23 are unbeatable. Designed to provide clear and dynamic sound in a sleek, unobtrusive form.Available in our string series is also a wide dispersion STW28, boasting of a 140 horizontal dispersion to replace two cabinets with no compromise in the power. The speakers are perfect for professional and entertainment setups, offering flexibility and high performance in any environment.
