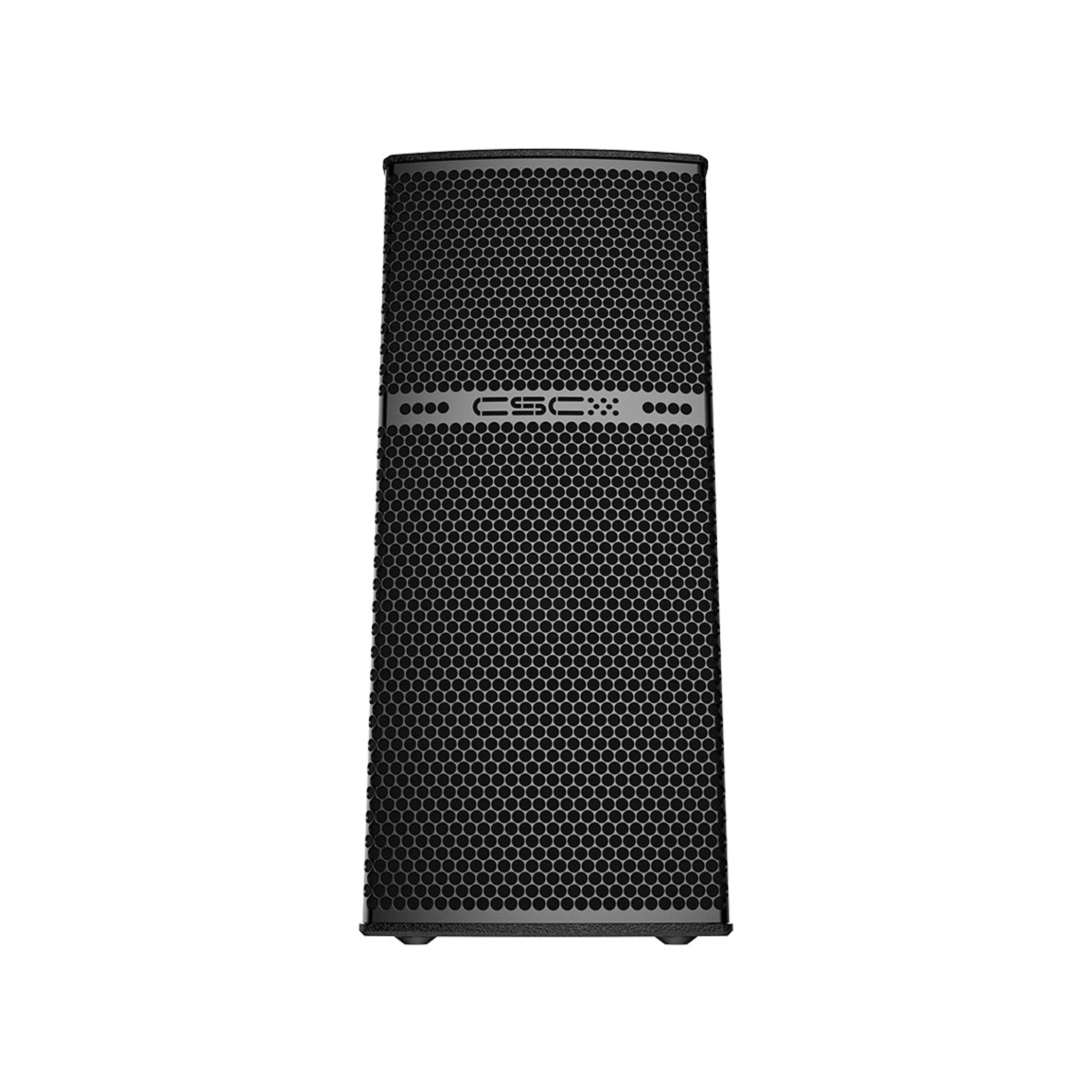

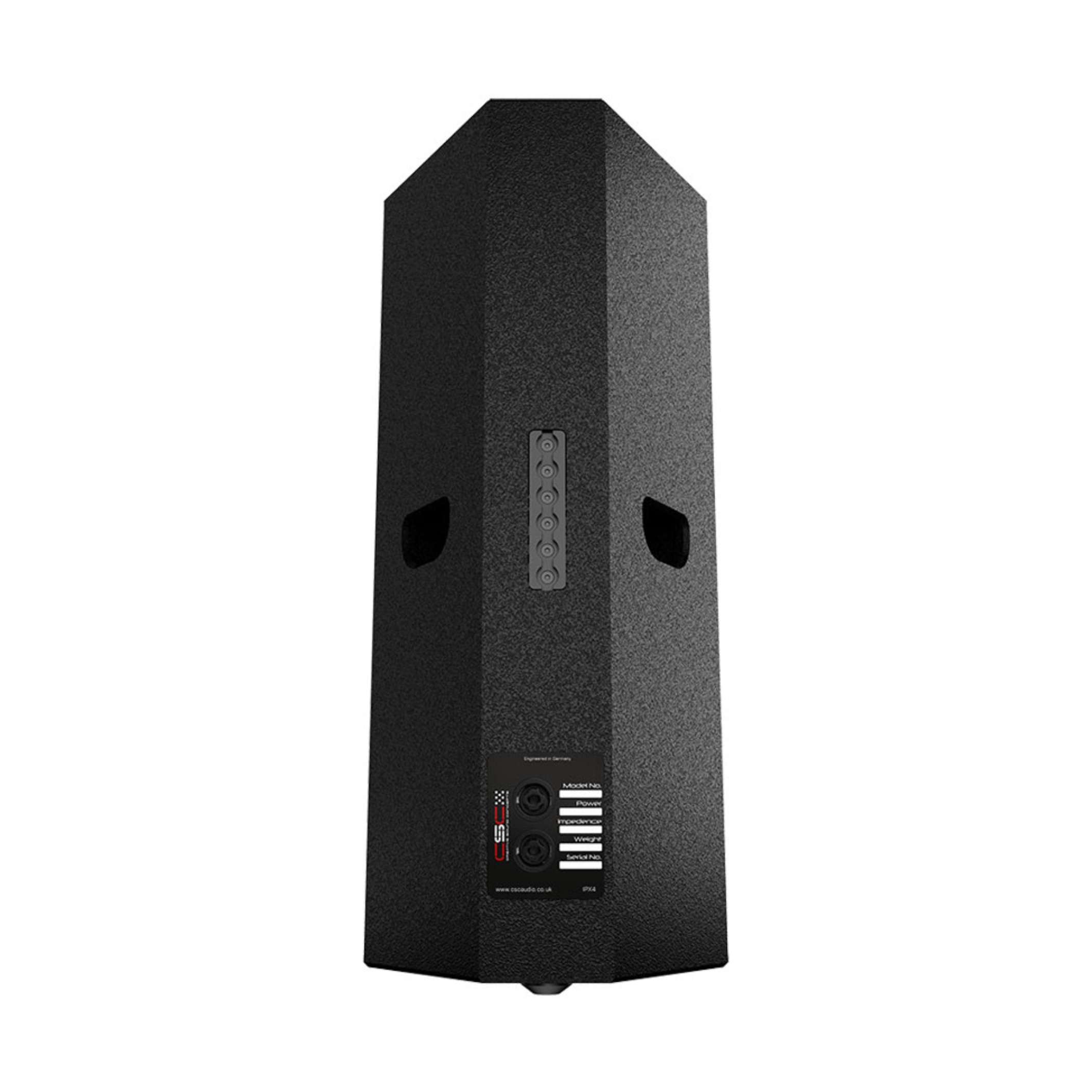

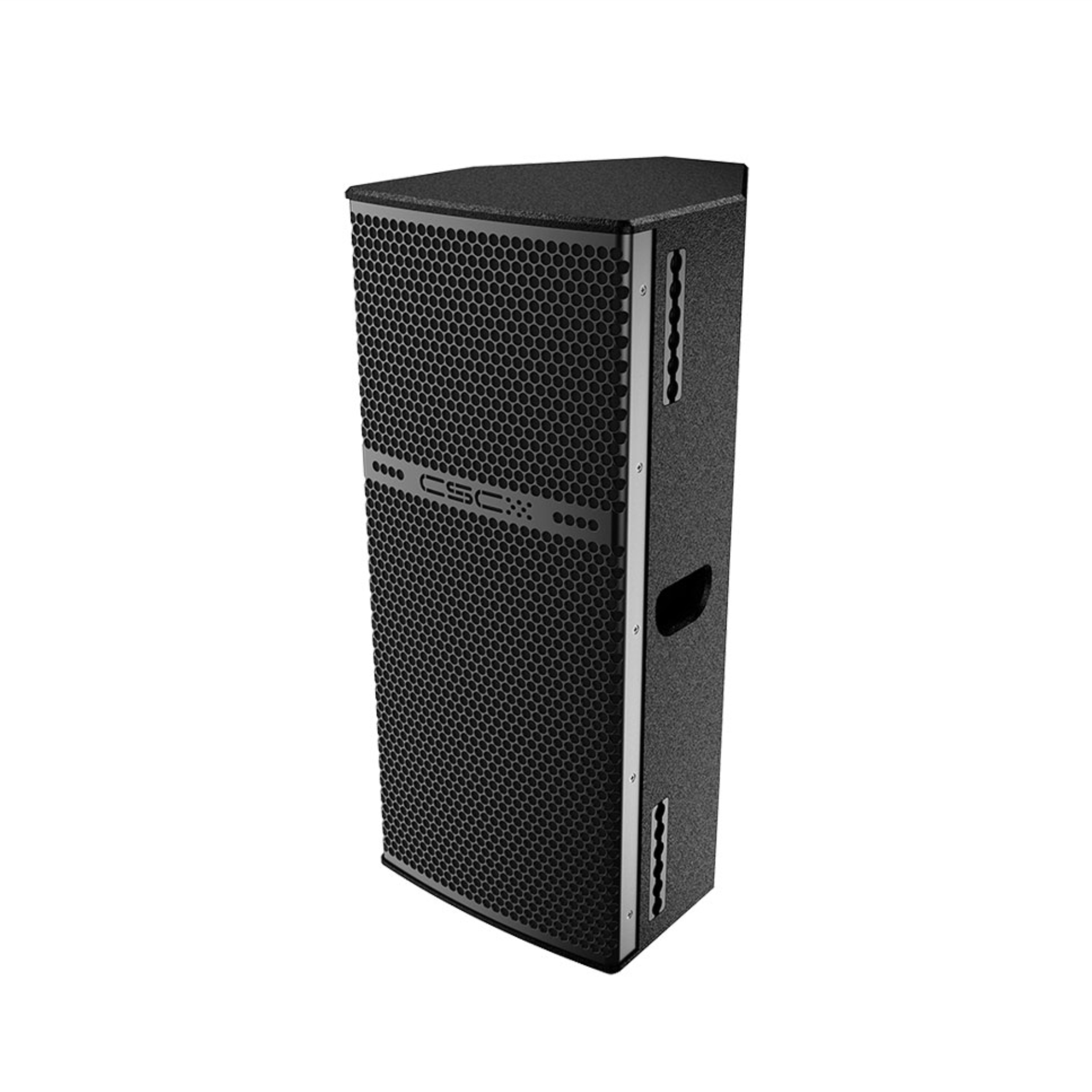

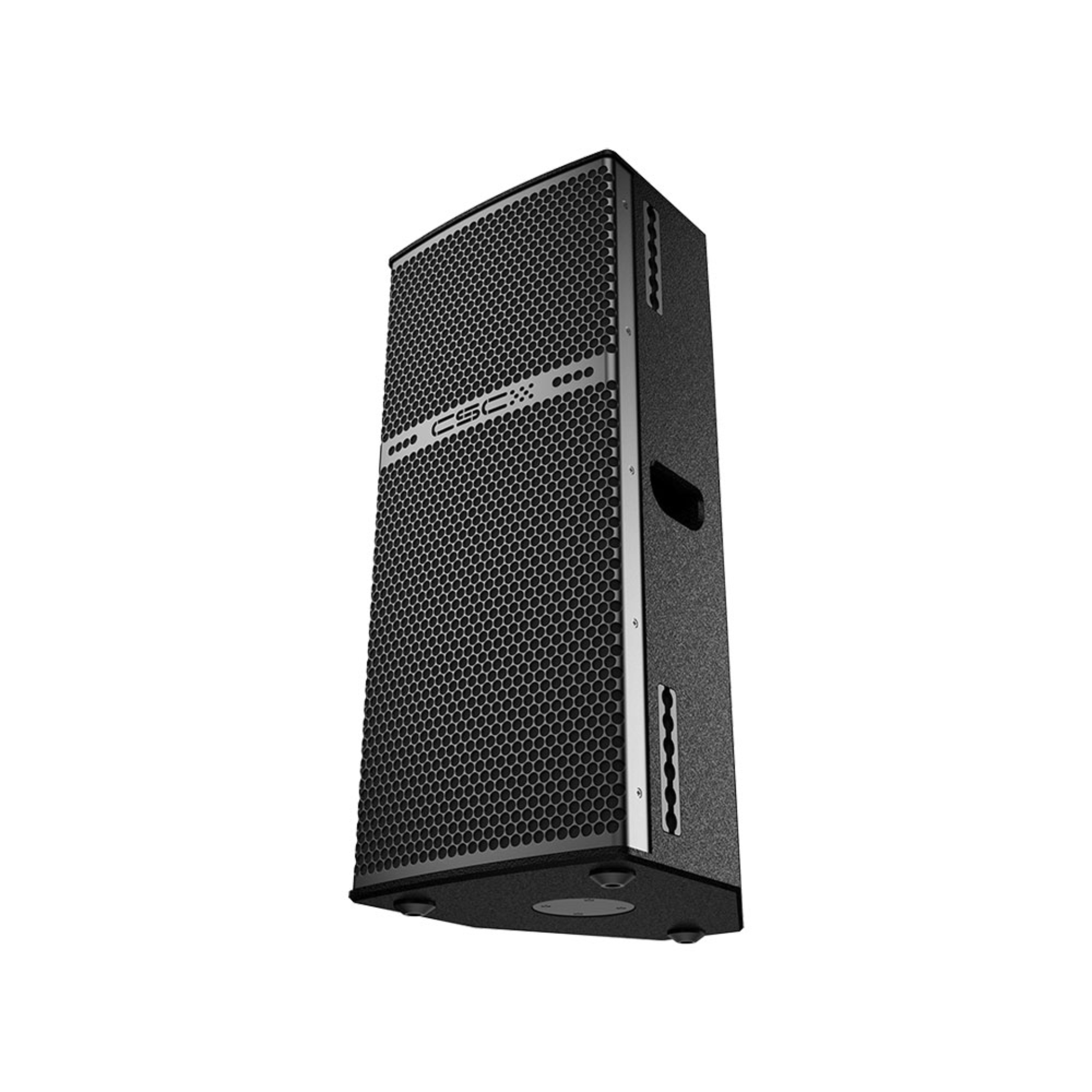

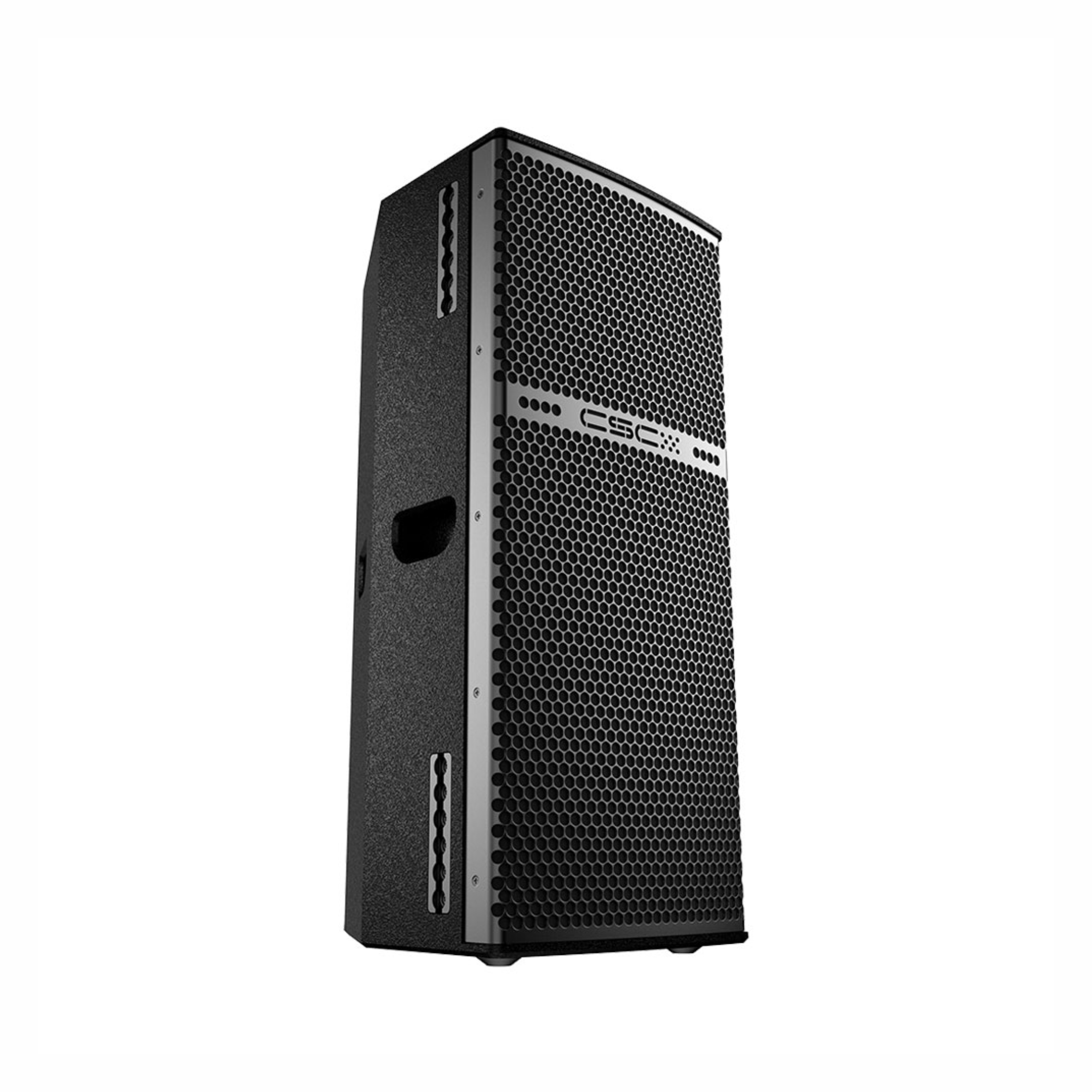

Cello Series RR 212h
Engineered for Impact: Experience Bass Like Never Before!
The Cello RR 212h is a bi-amped two-way cabinet designed for power and voice propagation. Its exceptional sound reinforcement uses a pair of customized dual 12" (300 mm) low- frequency transducers with a 3" (77 mm) voice coil. The high-frequency section is reinforced with a powerful 2" (50 mm) compression driver having a 2.5" (65 mm) voice. These are mounted on a constant directivity rotatable 60° x 40° horn.
The RR 212h is made of Baltic birch ply and is intended for touring and high-end installations, particularly where serious SPLs are required while keeping vocal propagation in mind. A smart design with clever construction contributes to its relatively compact size.
The use of a CSC Maestro MS 26 controller is recommended with the RR 212H. This cabinet is perfect for live applications or a nightclub.
The touring RR 212h is a perfect match with the CR 218s, RRH 218s and the RR 218s sub-woofers.

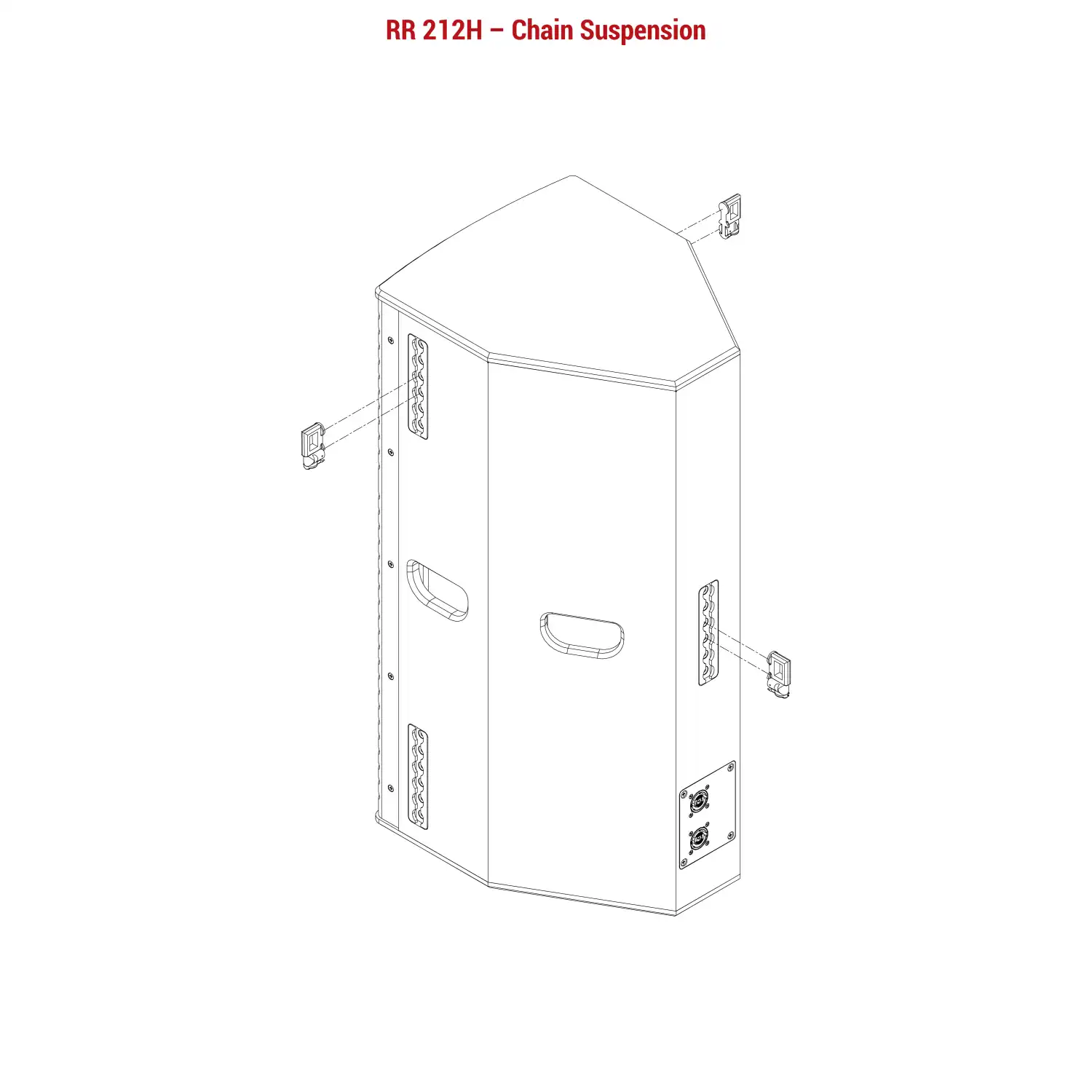

Flying rails on its side and behind are standard hardware for ease of mounting. It is available in nontoxic black texture paint with a top hat and rubber feet as standard accessories.
Key Features
- Compact bi-amped two-way system
- 60° x 40° Dispersion
- Installing rails on its sides & behind it with top hat
Applications
- Concerts & live bands
- Spacious auditoriums
- Worship centers
- Enhancement of club sound
- Main PA for large installations
Technical Specification
| MODEL | RR 212h |
|---|---|
| Type | Bi- amped two-way medium throw mid high |
| Frequency Response (1) | 65 Hz-17.5 kHz ± 3 dB |
| Drivers | LF: 2 x12" (300 mm) with a 3" (77 mm) voice coil, HF:2" (50 mm) compression driver with a 2.5" (65 mm) voice coil |
| Recommended Amplifier Upto | 1500/160 Wat ts |
| Sensitivity (1W / 1m) | 101/109 dB |
| Maximum SPL (9) | 132 dB continuous, 136 dB Ma x |
| Nominal Impedance | 4/8 Ohms |
| Dispersion | 60° x 40° |
| Crossover | HPF 100 Hz |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Per forated steel |
| Connectors | 2 x Neutrik Nl8 |
| Pin Connections | Input LF: ± 3, HF: ± 4; Link through LF: ± 3, HF: ± 4 |
| Standard Colours | Black / White |
| Fittings | Flying rails, Top hat |
| Horn | Rotatable |
| Rated Continuous Power AES | 1000/80 Watt |
| Rated Ma ximum Power/Program Power | 2000/160 Watt |
| Peak Power | 4000/320 Watt |
| Accessories | Speaker poles, felted waterproof covers, flying hardware |
| Dimensions - Product (in mm) | (W) 361 x (H) 841 x (D) 418 |
| Dimensions - Including packing (in mm) | (W) 431 x (H) 912 x (D) 488 |
| Net Weight (kgs) | 38 |
| Shipping Weight (kgs) | 42 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
