Compact Design, Massive Impact: Loudspeakers that Deliver
The Cello CF 12h is a powerful, versatile, bi-amped two-way mid-high cabinet perfectly designed for installation and aimed at the high end live band market. The cabinet is un-coloured and transparent. Crafted in Baltic Birch. It has the flexibility to suit even the most difficult applications.
It features a powerful 12” (300 mm) low frequency driver and a 2” (50 mm) compression driver with a 3" (77 mm) voice coil mounted on a constant directivity 60° x 40° horn. Depending on the application, the cabinet can be used in either its vertical or horizontal orientation. Additionally, the LF driver has been coupled with the HF horn through the DSP settings.
The Maestro MS 26 controller is configured to perform with it’s EQ and limiter functions are pre-loaded in the controller. Contrabass CB 215s, CR 18s, RRH 218s, RR 218s, CR 218s and RR 215s are a perfect match for CF 12h.
MODEL | CF 12h |
---|---|
Type | Bi-amped, two way mid high |
Frequency Response (1) | 65 Hz-17.5 kHz ± 3 dB |
Drivers | LF: 12" (300 mm) with a 3" (77 mm) voice coil, HF: 2" (50 mm) compression driver with a 3" (77 mm) voice coil |
Recommended Amplifier Upto | 1000/200 Watt |
Sensitivity (1 W / 1 m) | 98/109 dB |
Maximum SPL (9) | 125/129 dB continuous, 131/ 135 dB Max |
Nominal Impedance | 8/8 Ohms |
Dispersion | 60° x 40° |
Crossover | HPF 55 Hz full range / 100 Hz with sub |
Enclosure | Baltic birch ply |
Finish | Textured black paint |
Protective Grill | Perforated steel |
Connectors | 2 x Neutrik Nl4 |
Pin Connections | Input: LF:± 1, HF: ± 2; Link through LF:±1, HF:±2 |
Standard Colours | Black / White |

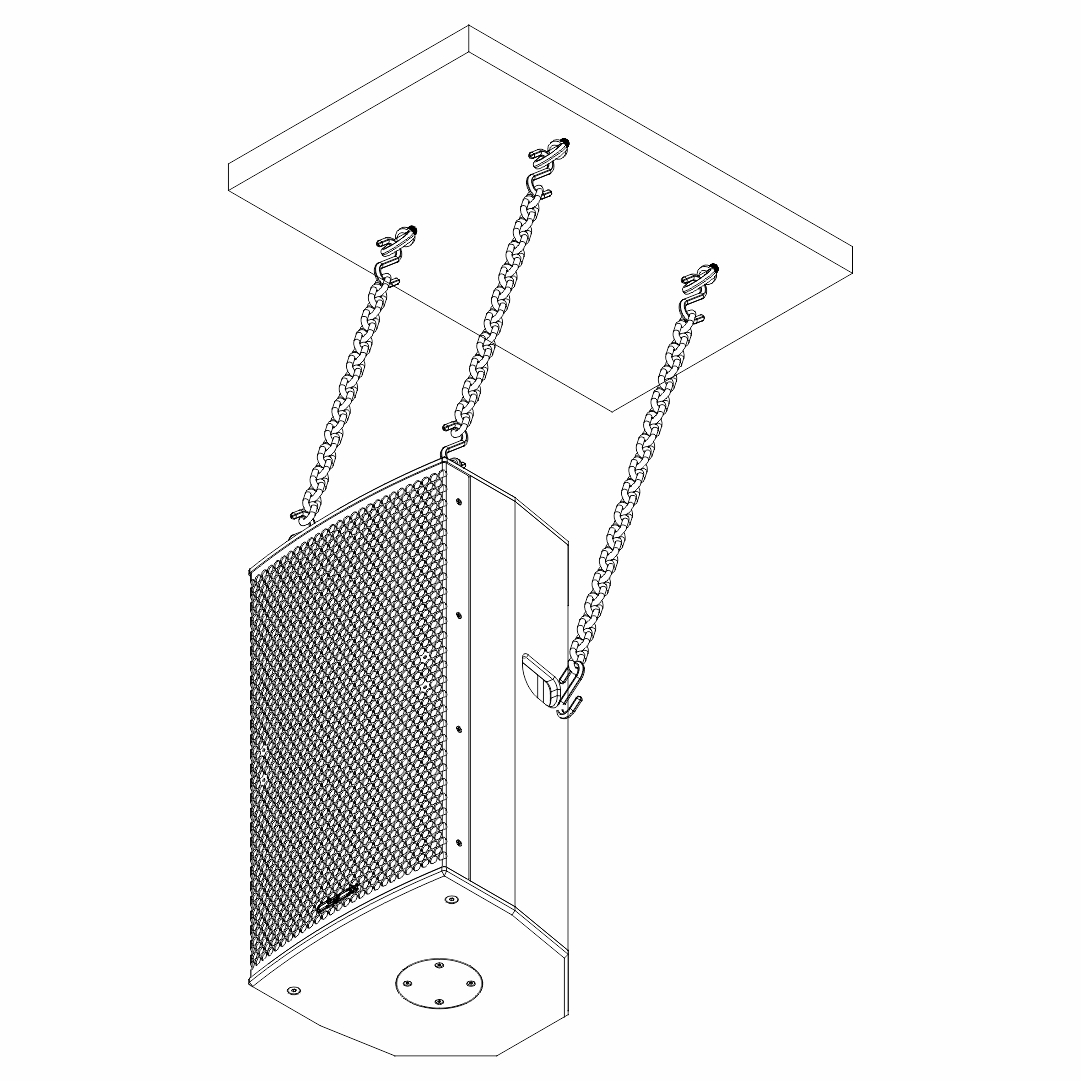

Fittings | Rear / Top standard mounting points, Top hat |
Horn | Rotatable |
Rated Continuous Power AES | 500 Watts / 100 Watts |
Rated Maximum /Program Power | 1000 Watts / 200 Watts |
Peak Power | 2000 Watts / 400 Watts |

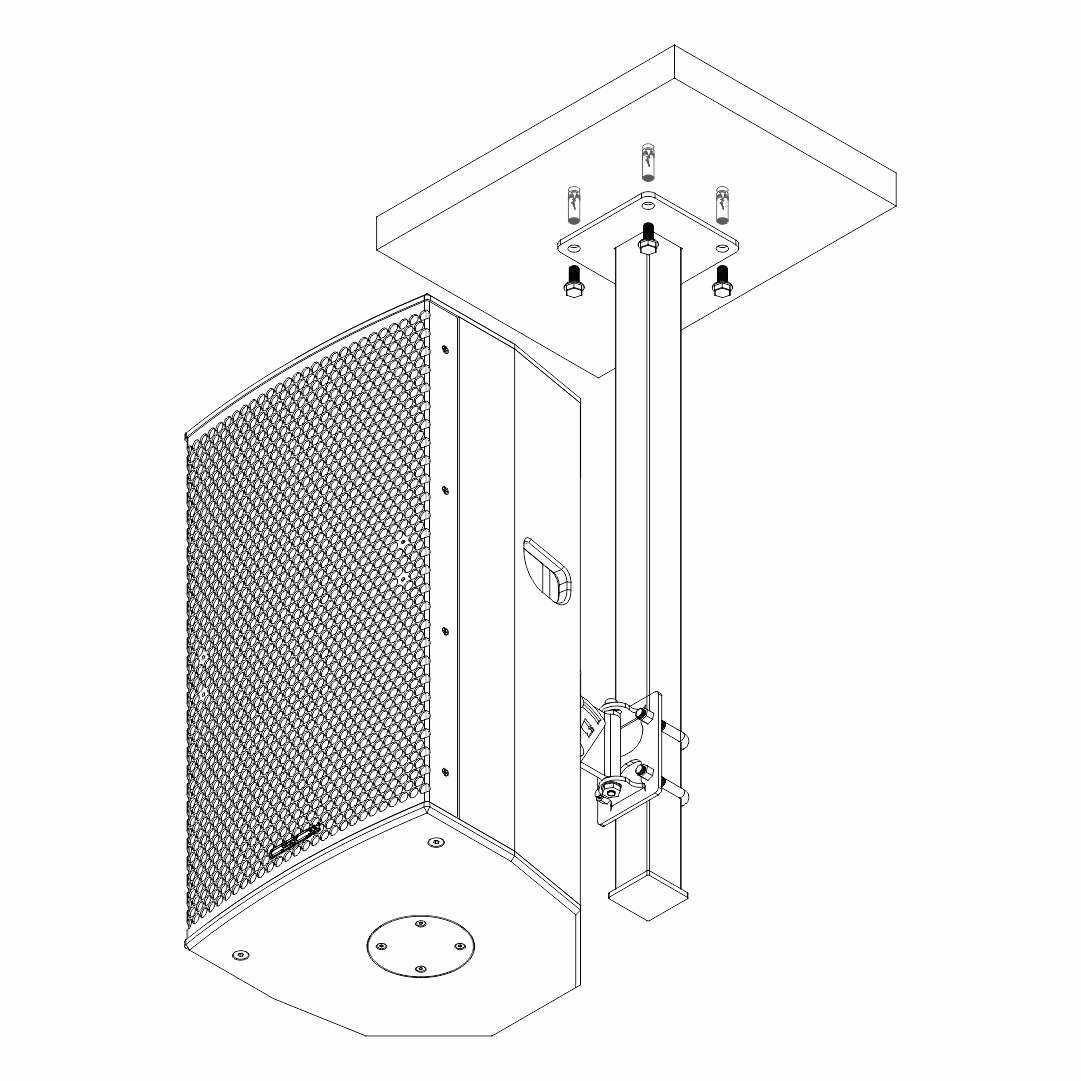

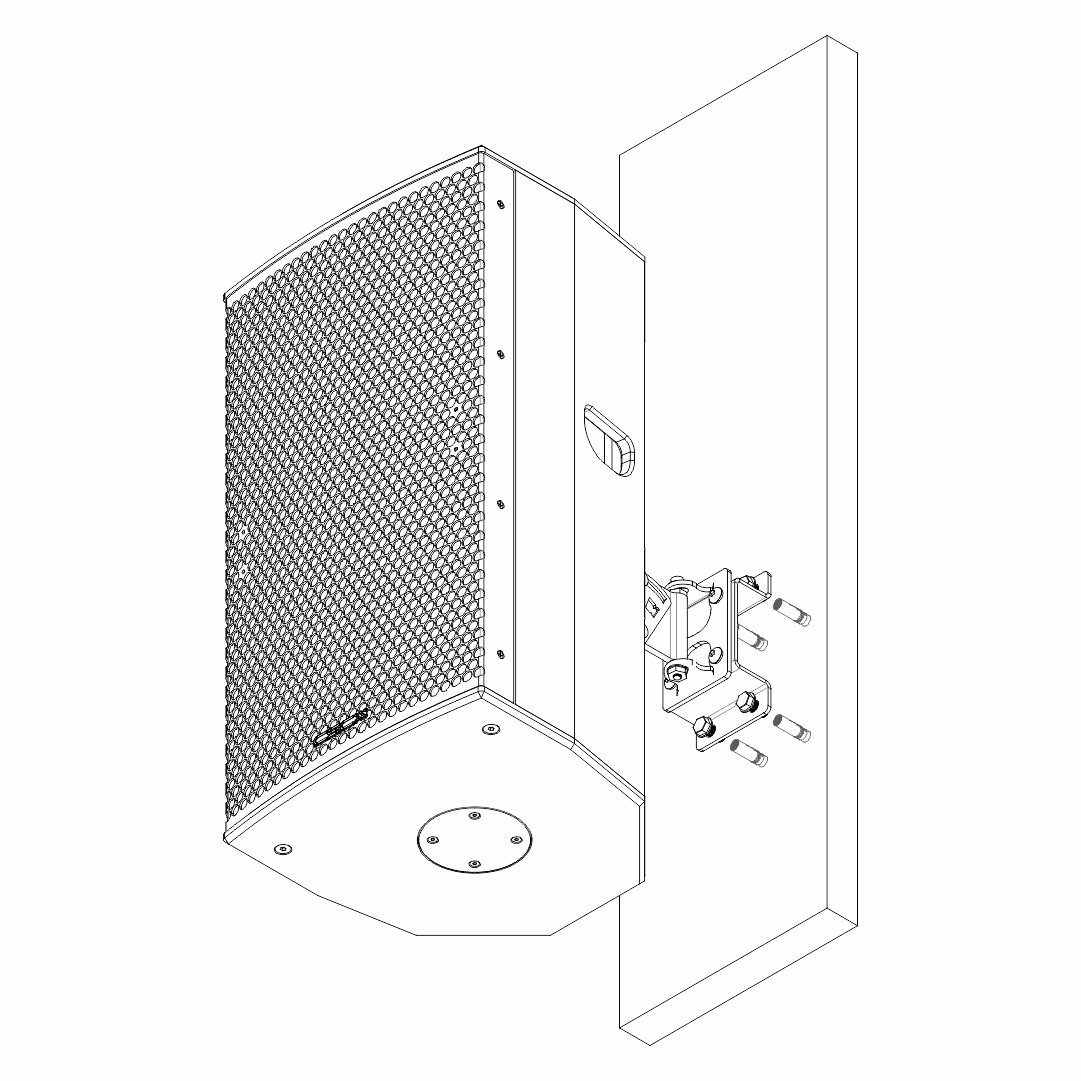

Accessories | Wall / ceiling mount bracket, Extension pipe |
Dimensions - Product (in mm) | (W) 363 x (H) 667 x (D) 360 |
Dimensions - Including packing (in mm) | (W) 435 x (H) 739 x (D) 433 |
Net weight (kgs) | 29 |
Shipping Weight (kgs) | 31 |
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
