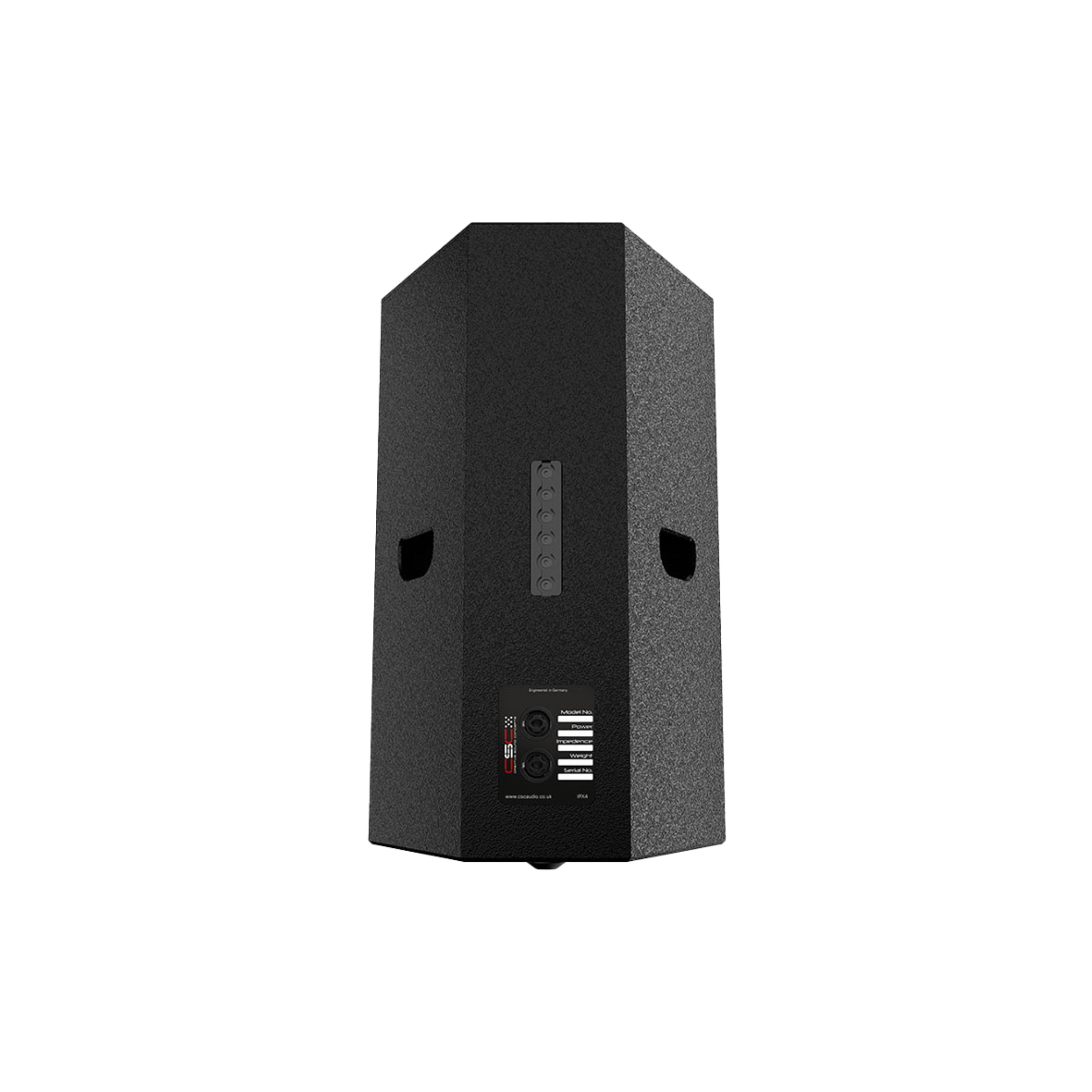

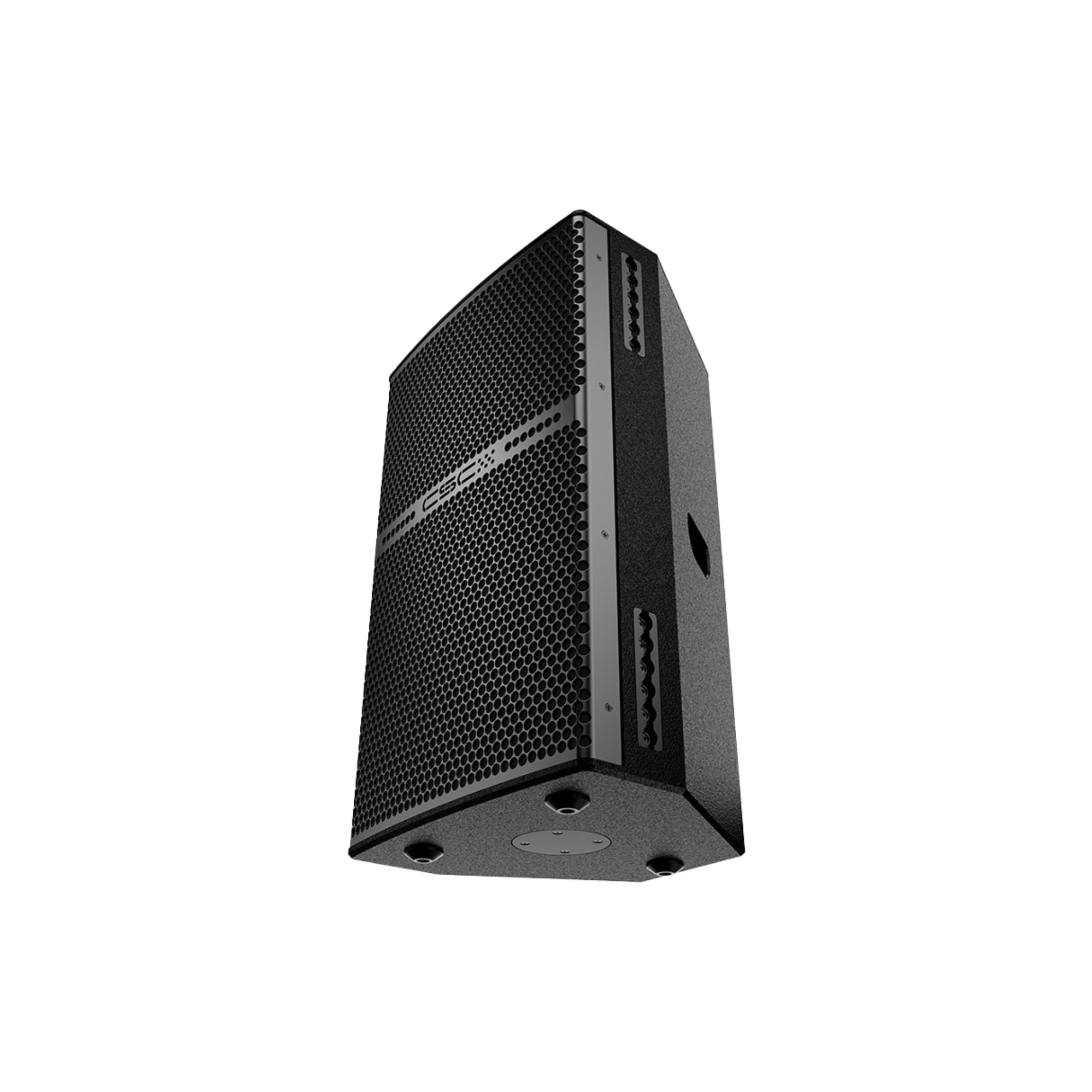

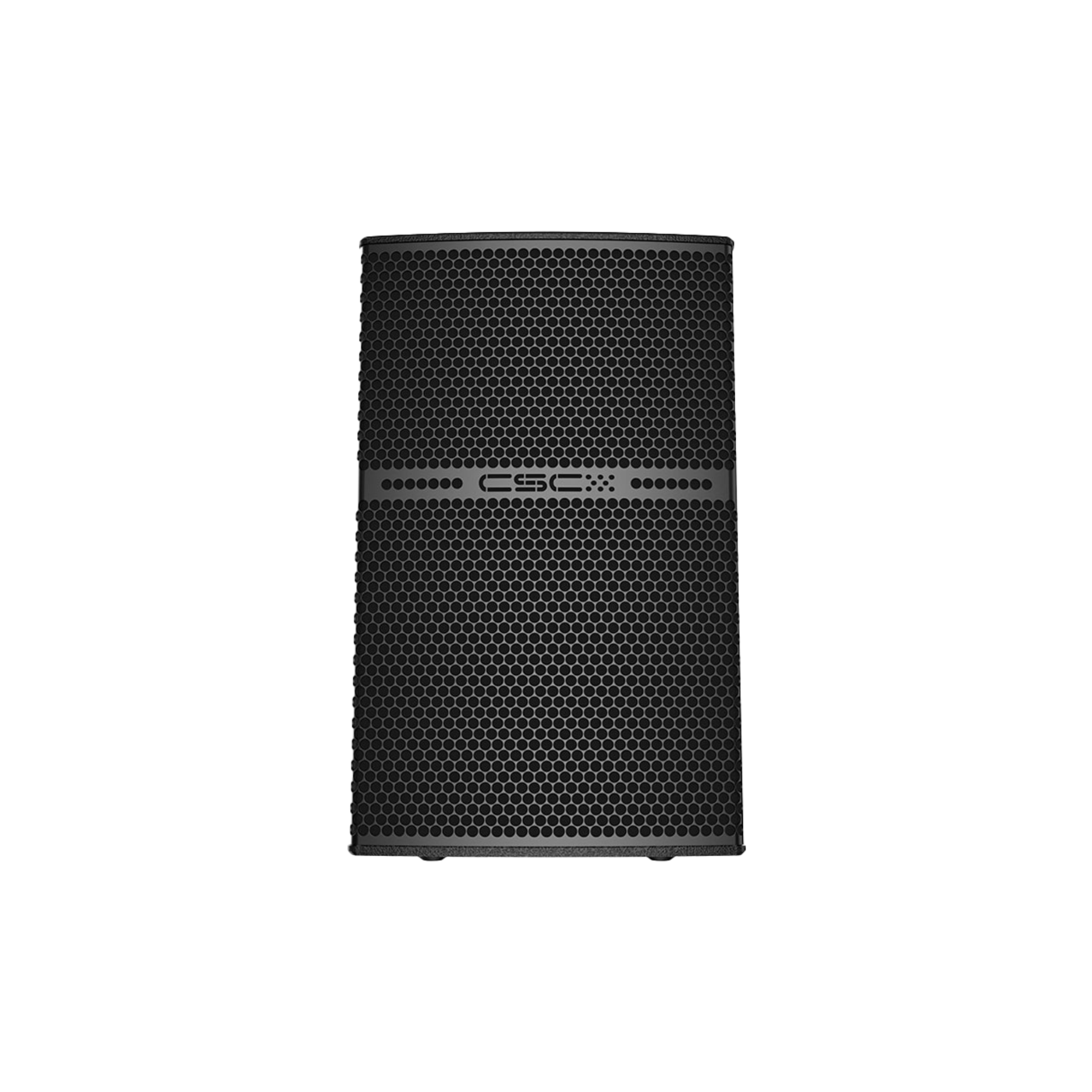

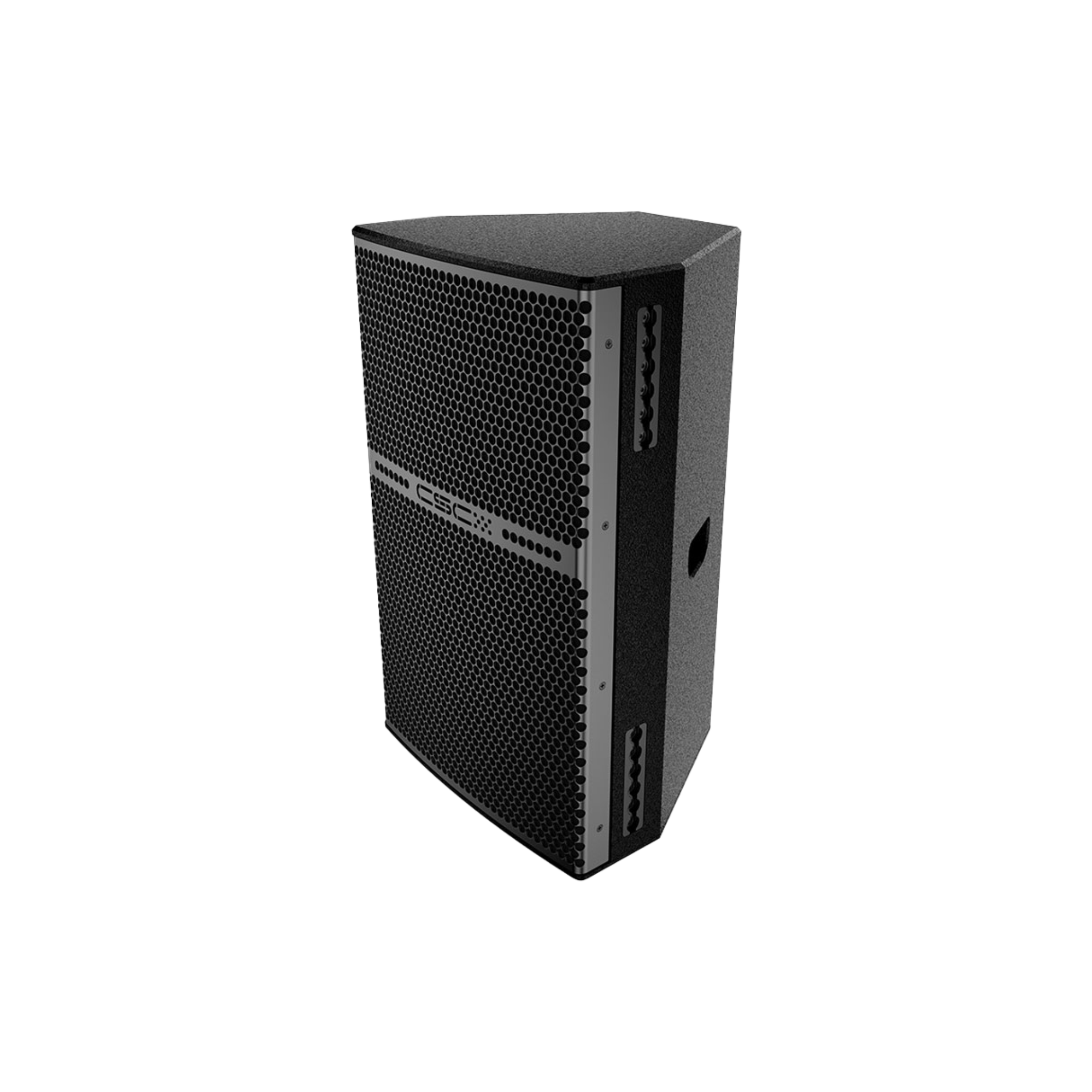

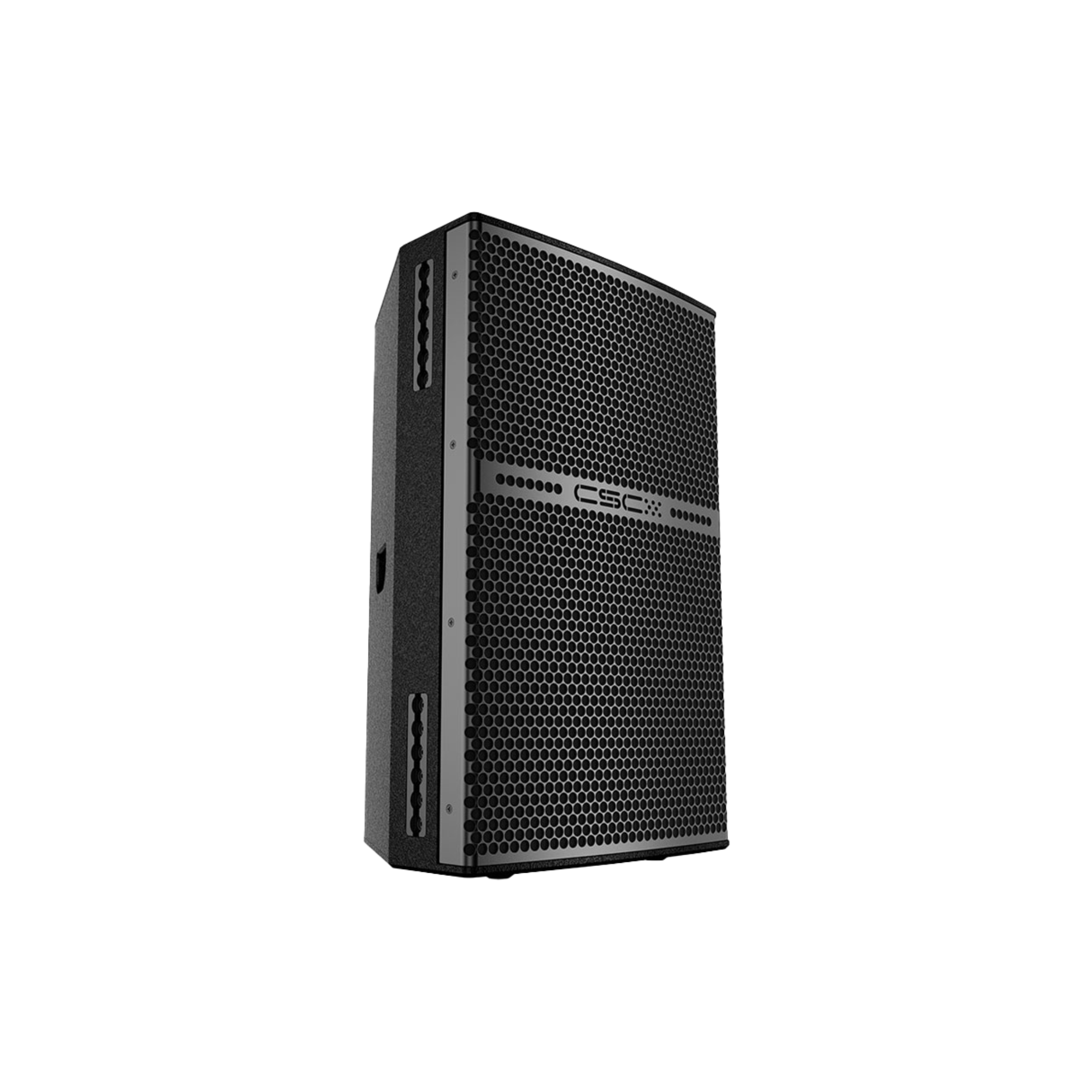

Cello Series RR 15h
Compact Design, Massive Impact: Loudspeakers that Deliver
The Cello RR 15h is a powerful, versatile bi-amped two-way full-range loudspeaker cabinet designed to provide exceptional sound reinforcement. It features a powerful and fast 15" (375 mm) low-frequency transducer housing a 3" (75 mm) voice coil. Reinforcing the HF section of this cabinet lies a powerful 2" (50 mm) neodymium compression driver (with a 2.5" (65 mm) voice coil) mounted on a 60° x 40° horn which has constant directivity and is rotatable.
Crafted in Baltic birch, it is perfectly designed for touring and high-end installation. Natural and uncolored timber makes the cabinet perfect for use without a sub-woofer. Its high sensitivity drivers unique construction focuses on accuracy and power.
The use of a Maestro MS 26 controller is a recommended choice with the RR 15h. The cabinet is perfect for live applications or a pounding nightclub.
The Contrabass CR 218s, CB 215s, CR 18s, RR 218s, and RRH 218s sub-woofers seamlessly couple with the Cello RR 15h.
Key Features
- Compact two-way bi-amped system
- Dispersion 60° x 40°
- Mounting rails on its sides & behind
Applications
- Live band
- Cinema
- Auditoriums
- House of worship
- Club sound enhancement
Technical Specification
| MODEL | RR 15h |
|---|---|
| Type | Bi-amped two way mid high configured for medium throw application |
| Frequency Response (1) | 70 Hz-17.5 kHz ± 3 dB |
| Drivers | LF: 15" (375 mm) with a 3" (75mm) voice coil, HF: 2" (50mm) compression driver with a 2.5" (65mm) voice coil |
| Recommended Amplifier Upto | 1000/160 Watts |
| Sensitivity (1 W / 1 m) | 103/109 dB |
| Maximum SPL (9) | 129/131 dB continuous, 135/137 dB Max |
| Nominal Impedance | LF-8 Ohms, HF-8 Ohms |
| Dispersion | 60° x 40° |
| Crossover | HPF 100 Hz |
| Enclosure | Baltic birch ply |
| Finish | Textured black paint |
| Protective Grill | Perforated steel |
| Connectors | 2 x Neutrik NL8 |
| Pin Connections | Input LF: ± 3, HF: ± 4; Link through LF: ± 3, HF: ± 4 |
| Standard Colours | Black / White |

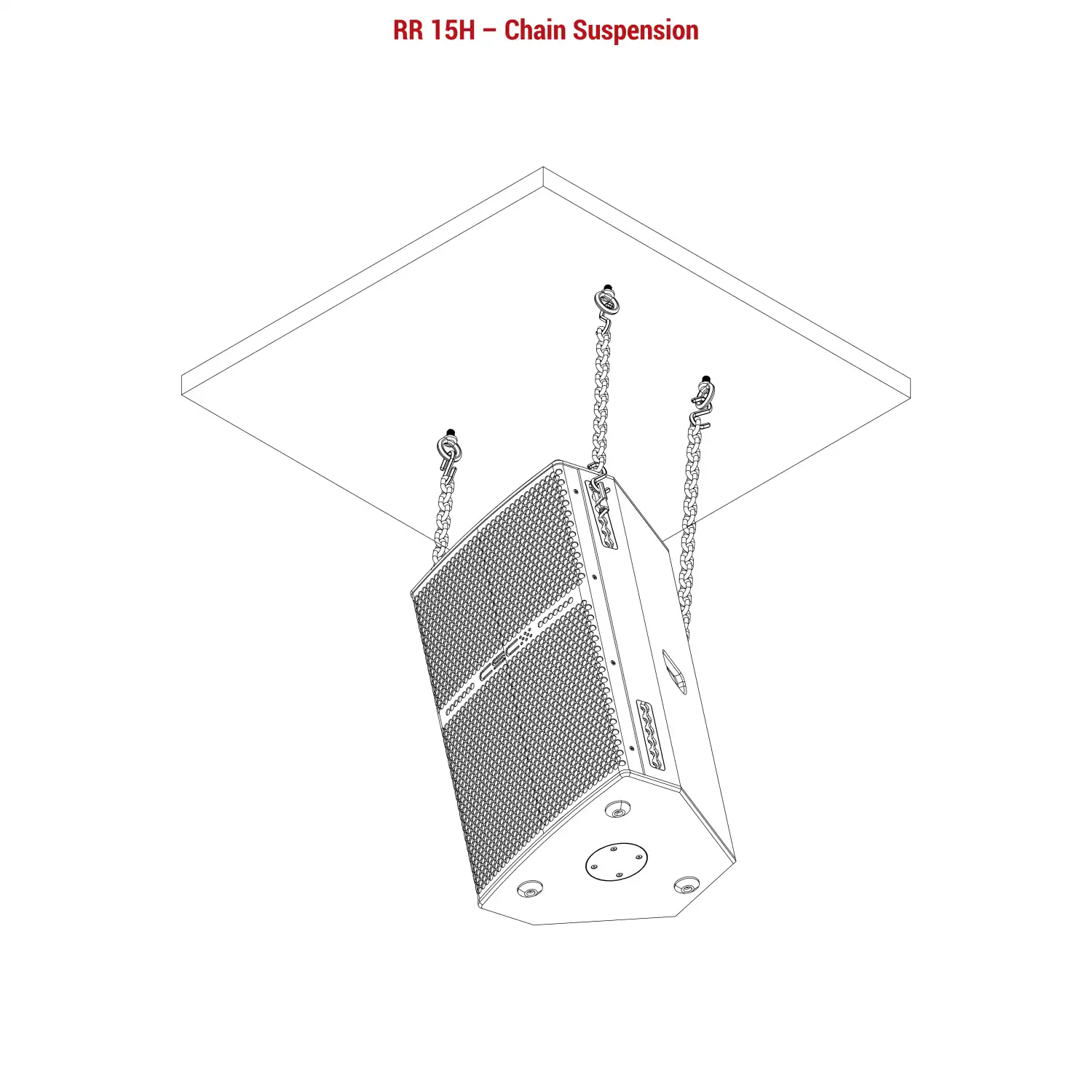

| Fittings | Flying rails, Top hat |
| Horn | Rotatable |
| Rated Continuous Power AES | 500 Watts / 80 Watts |
| Rated Maxium Power/Program Power | 1000 Watts / 160 Watts |
| Peak Power | 2000 Watts / 320 Watts |
| Accessories | Speaker poles, Felted waterproof covers, Flying hardware |
| Dimensions - Product (in mm) | (W) 442 x (H) 711 x (D) 374 |
| Dimensions - Including packing (in mm) | (W) 511 x (H) 791 x (D) 443 |
| Net weight (kgs) | 24 |
| Shipping Weight (kgs) | 28 |
About Series
The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
